qView Full Size

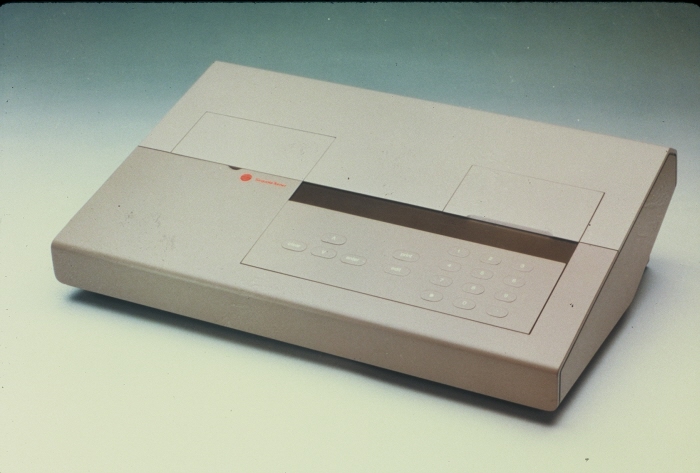

Hybritech - Right: Final production unit, all sheetmetal fabrication, lexan lens with a vinyl membrane keyboard. 9"x12"x3"
Preliminary presentation at left (model) in urathane fabrication. 7"x12"x3"
qView Full Size
Hybritech - Model, acrylic and front grill in perforated sheet metal. 30"x17"x4.5"
Design Review
qView Full Size
Sequoia - Turner - Model, all acrylic fabrication.
24"x16"x4"
qView Full Size

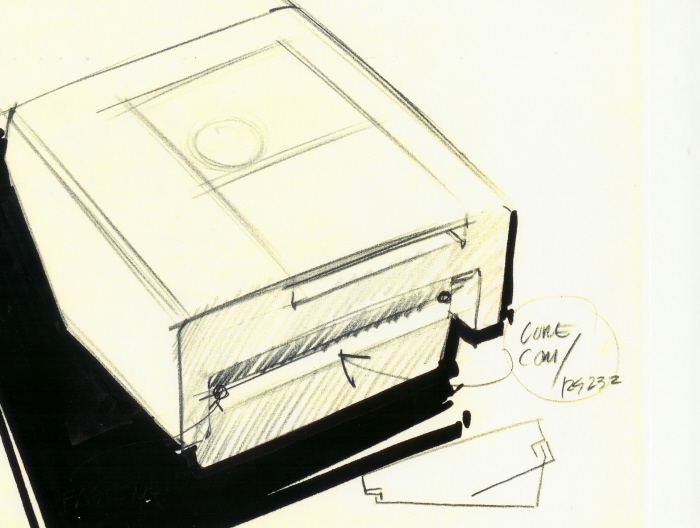

Maxwell Laboratories, San diego - Thumbnail, marker on tracing paper,
part definition, ergonomics and form study. 9"x12"
qView Full Size
Maxwell Laboratories, San Diego. - Packaging for a laboratory environment.
Sheetmetal & injection molded panels for a budget sensitive solution.
Model fabricated in acrylic and urathane high density foam.
24"x20"X18"
qView Full Size

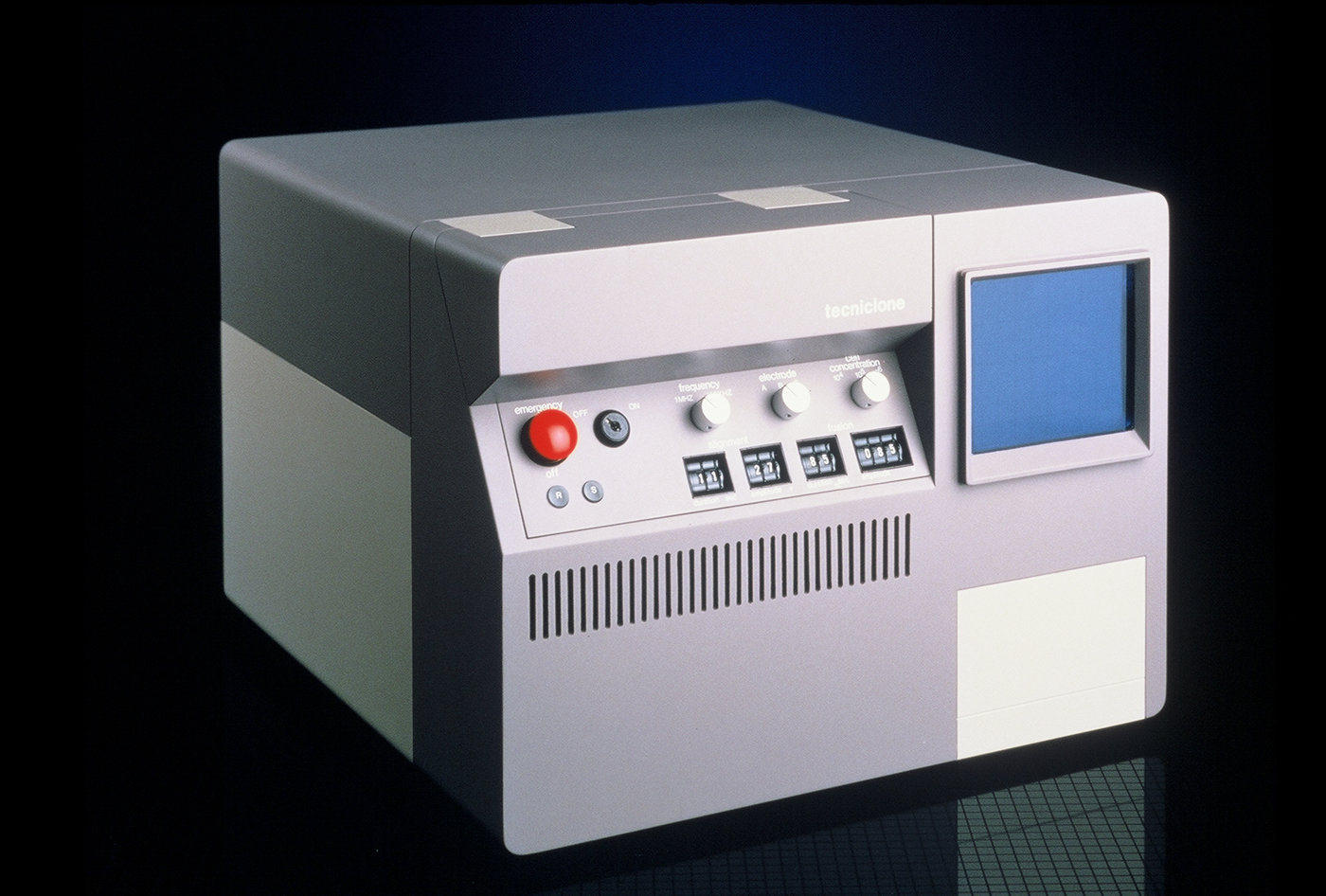

Bio Research, Texas. - Spectrofluorometer (model). All acrylic fabrication. 30"x17"x6"
qView Full Size

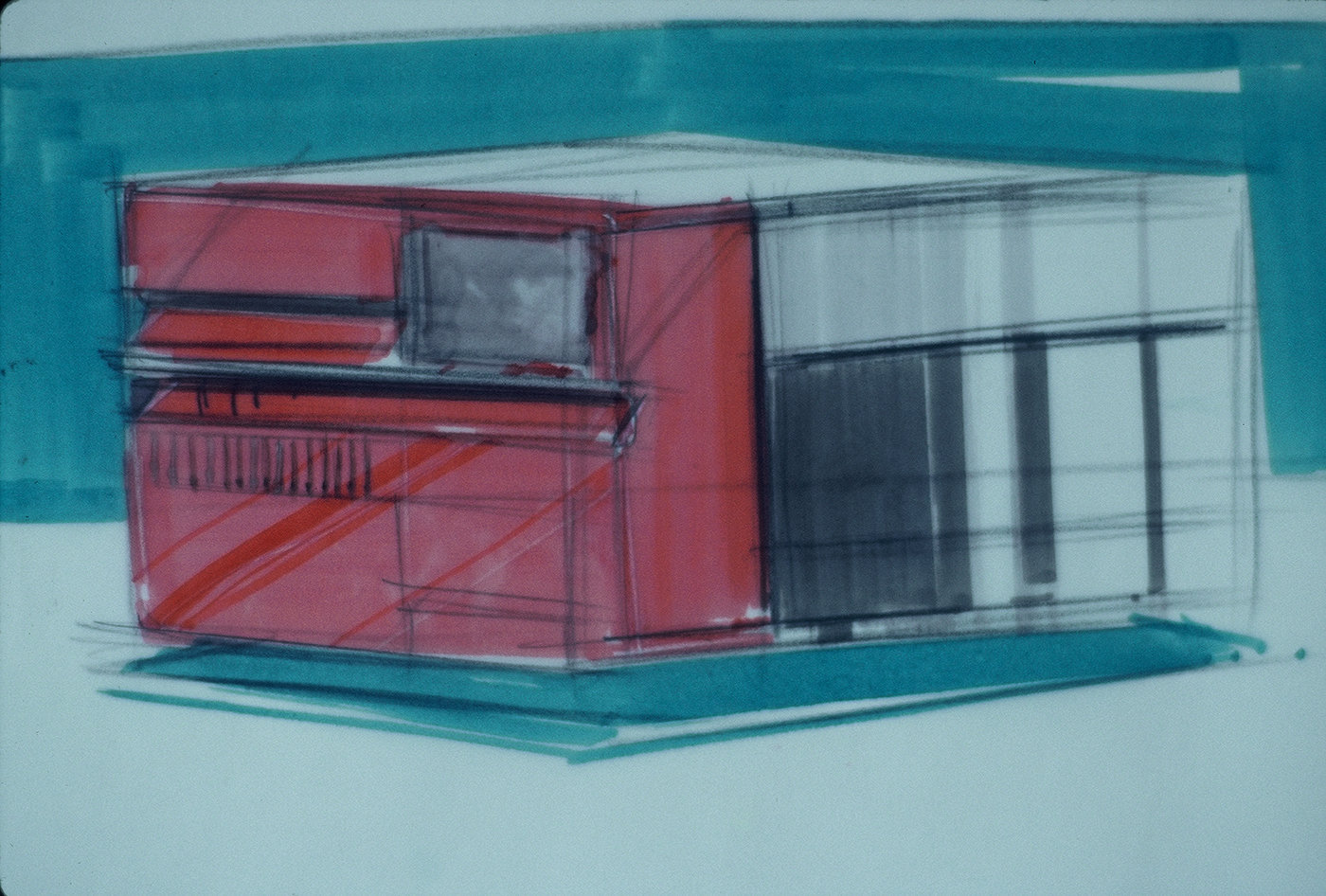

Bio Reasearch, Texas - Presentation sketch 30"x40"
Marker, chalk, pencil on canson.
Bio Research, Texas - Design process, part configuration.
Thumbnail 9"x12", marker on tracing paper

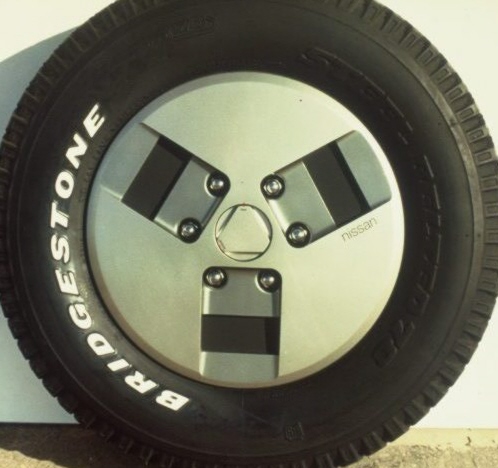

Nissan. - Model, mag wheel. Vacuumed form / automotive two tone paint finish.
Hand application of graphics.

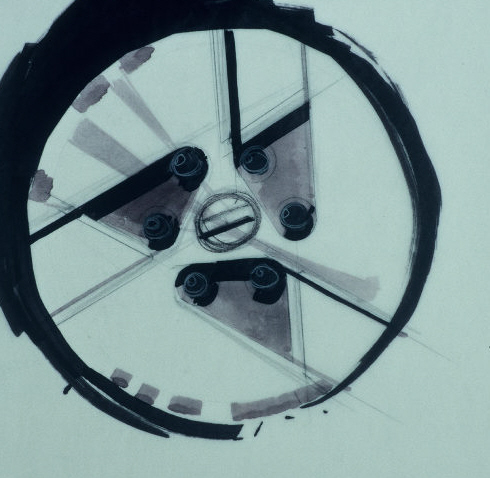

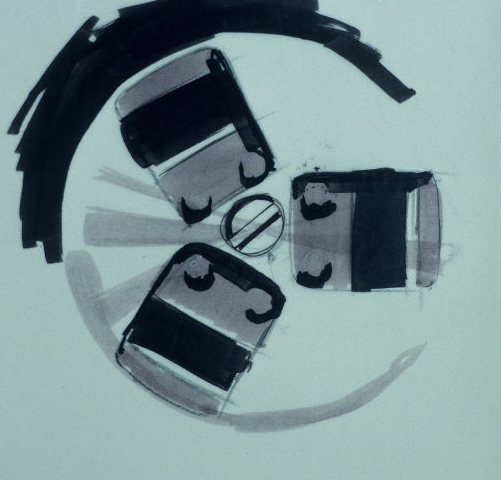

Nissan - Four wheel drive mag wheel.
Thumbnail 12"sq, marker on tracing paper, three dimensional solution, 4W locking hub study.

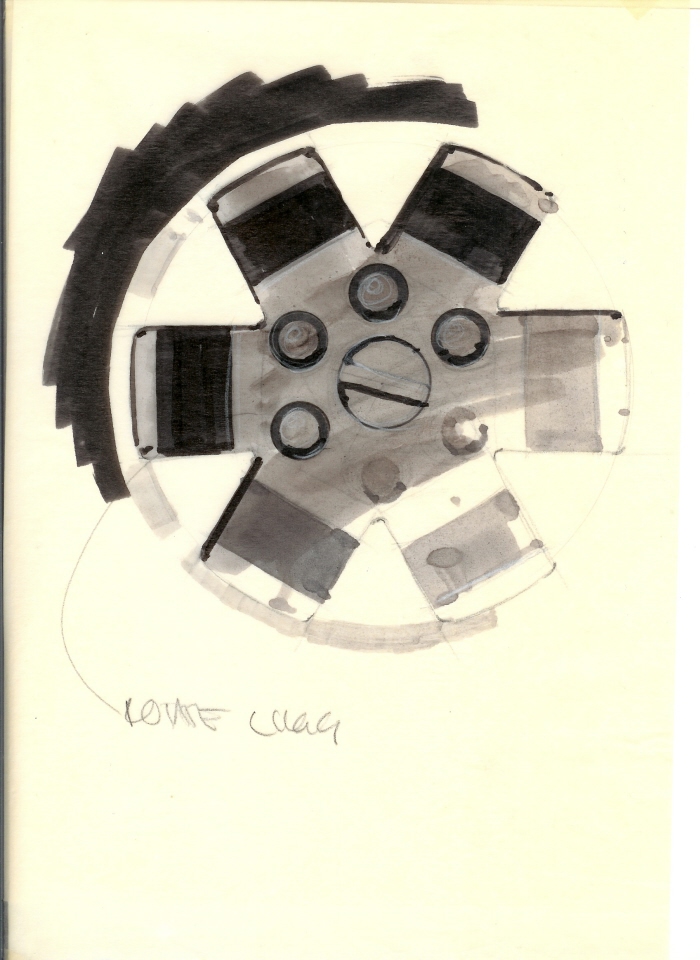

Nissan. - Concept exploration.
Thumbnail sketch 12"x12", marker on tracing paper.
DG 303 - Model
qView Full Size
43% scale model
qView Full Size

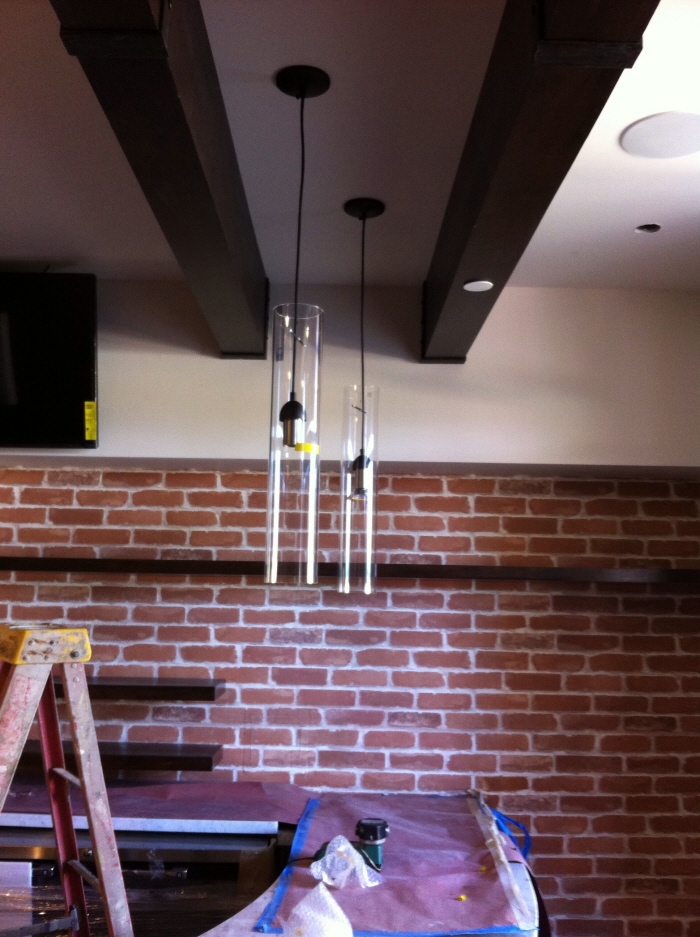

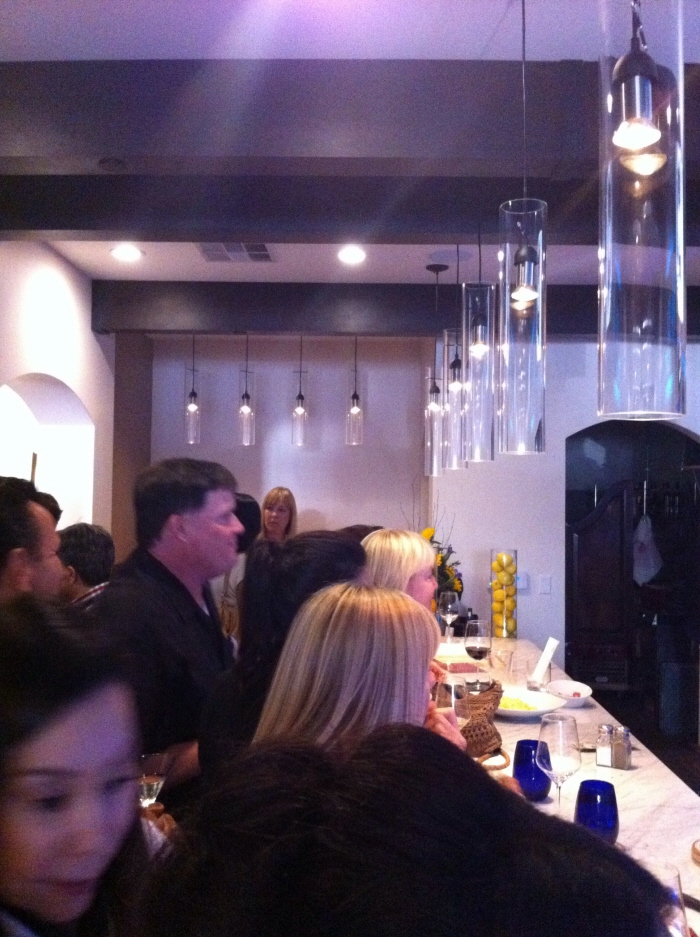

Custom Lighting, cast acrylic.
The Bar Next Door.
Temecula, California
qView Full Size

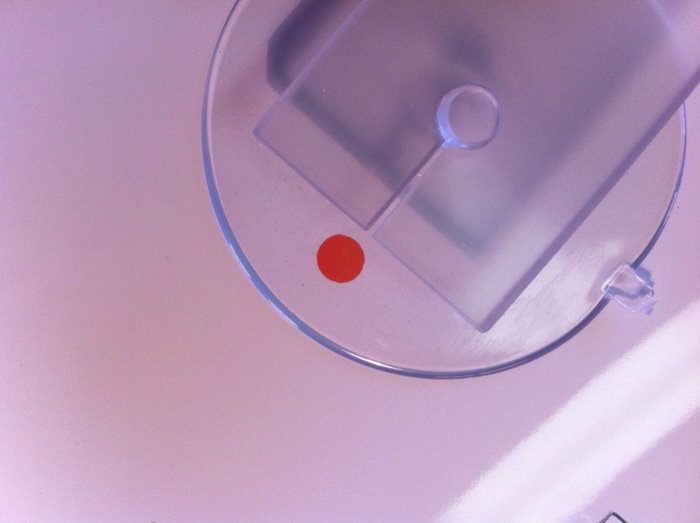

Custom Lighting, cast acrylic.
Temecula, California
