Bogdan Nacu
Sydney, Australia
Conversion of the disused Coal Bunker at Blackwattle Bay, Sydney, into a Fire Station, Art Gallery, Restaurant and Cafe, giving the local community a destination point on the waterfront. The main moves are creating site lines through the existing Coal Bunker, extending the existing structure into a new art gallery, extending the existing electricity substation into a new fire station, and stitching the site into its context by connecting it to the adjacent fish market, park and bay.
Existing Coal Bunker - North Side before collapse
Full Size (highres_width x highres_height)
View from Park - Site lines to Anzac Bridge and connection through existing Coal Bunker
Full Size (highres_width x highres_height)
Public Square formed by fire station, art gallery, cafe and bay
Full Size (highres_width x highres_height)

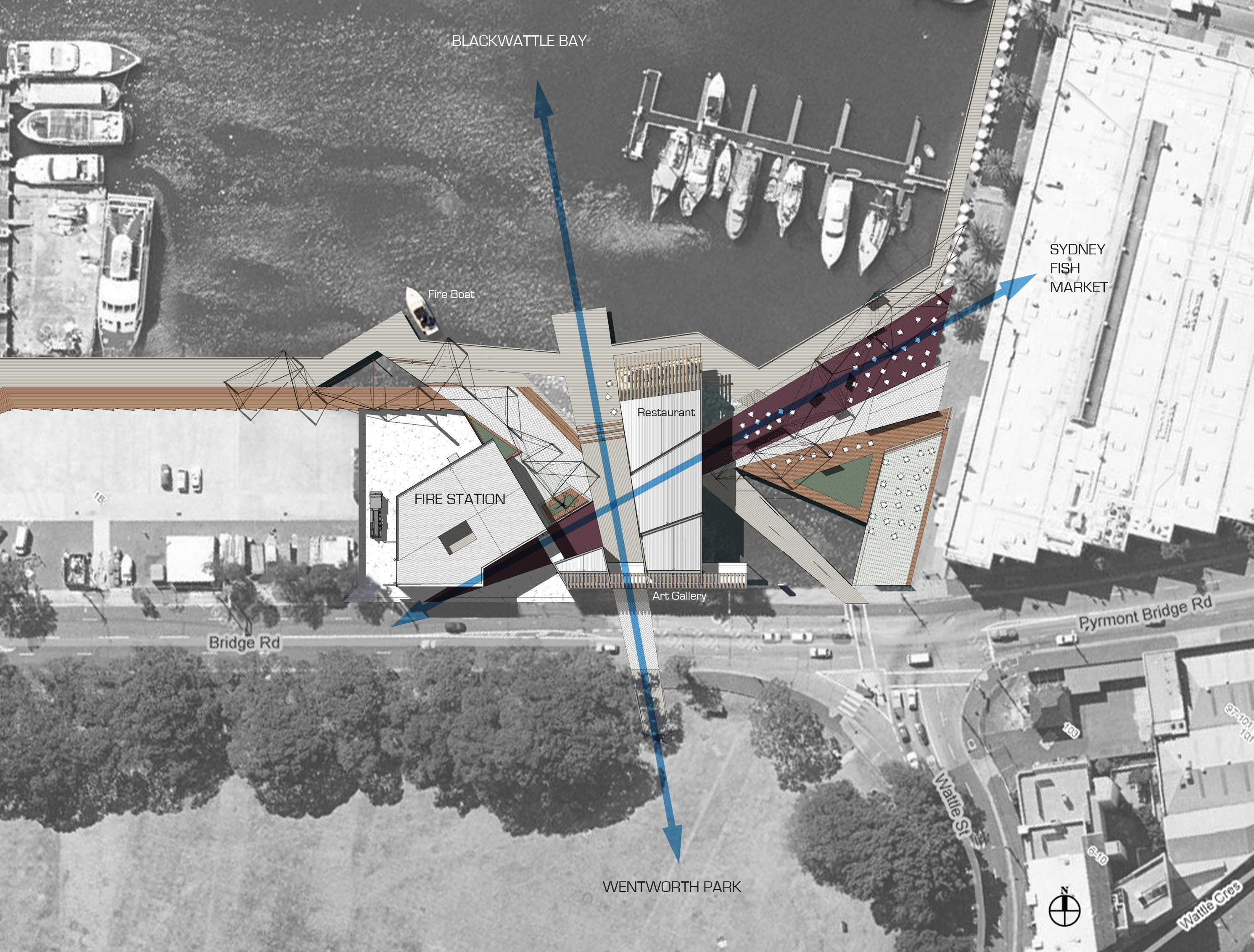

Site Plan - Connections to park south, Fish Market east and bay north, continuous waterfront boardwalk and jetty
Download PDF file
Ground Level Plan - Buildings and public space shaped by site lines and connections
Download PDF file
Level 1 Plan - Art gallery extending from existing Coal Bunker, linking restaurant and fire statation accomodation
Download PDF file
Art Gallery Detail Section - Existing Coal Bunker used as the backbone for the new art gallery enclosure
Download PDF file
Site Section - Transition between park and bay, restaurant and cafe built on top of existing platform
Download PDF file
Fire Station Section - Relationship to Public Square
Full Size (highres_width x highres_height)

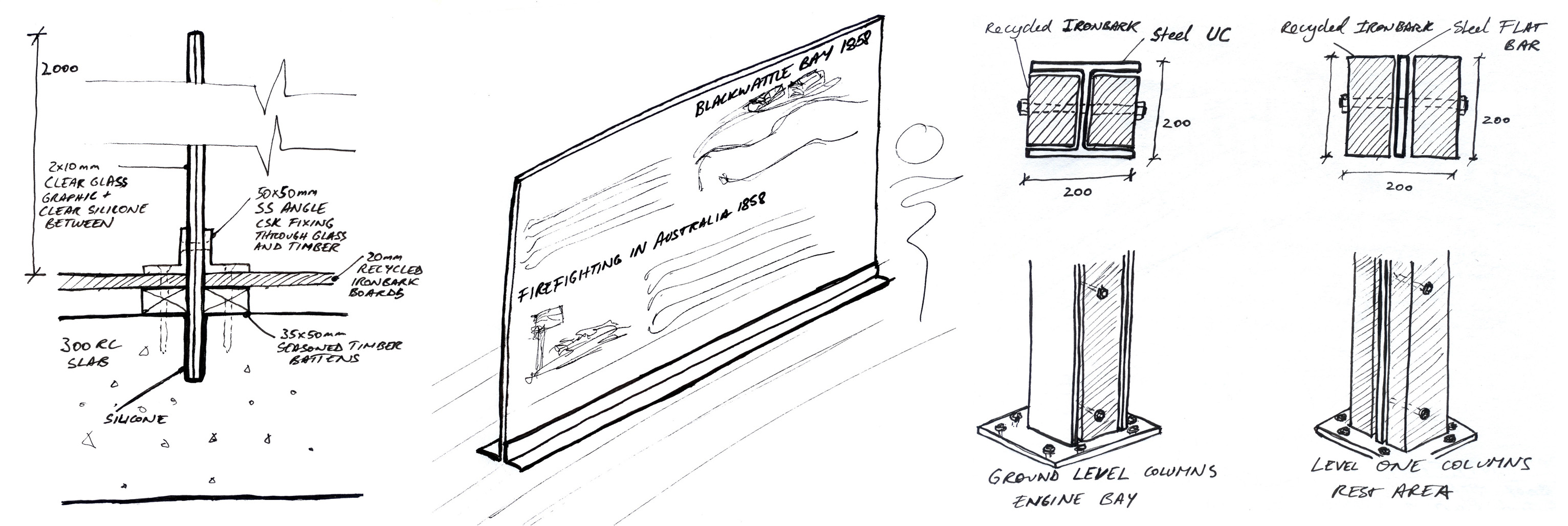

Costruction Details - Glass History Wall, Fire Station timber & steel columns
Full Size (highres_width x highres_height)

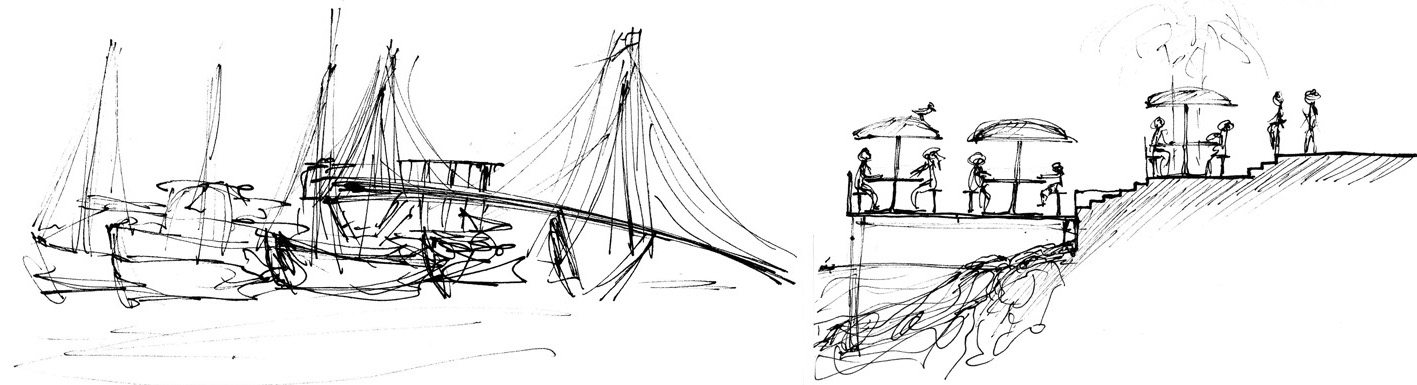

Sketches - Blackwattle Bay & Fishmarket
Full Size (highres_width x highres_height)

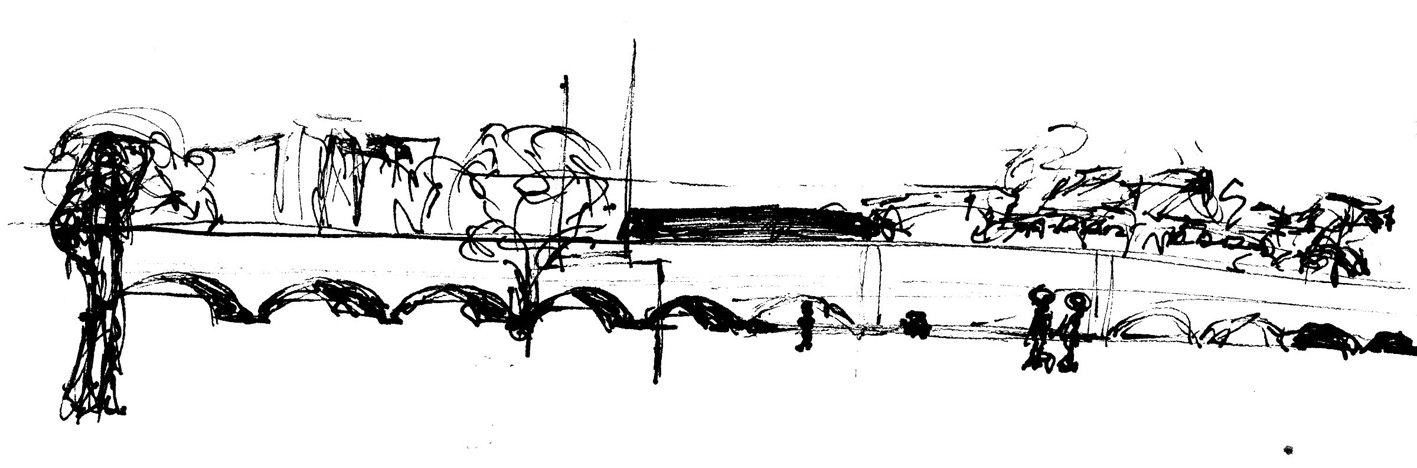

Sketch - Wentworth Park
