Structural design for an Aquatic Centre, using an elegant and efficient shape and minimising the amount of steel and connections used. The portal frame design morphs between an arch on the ends and a truss haunched rectangular frame in the middle. The columns are deep to resist the lateral force, while most of the other members are slender, transferring force axially.
Full Size (highres_width x highres_height)
Structural Steel Members with cladding
Full Size (highres_width x highres_height)

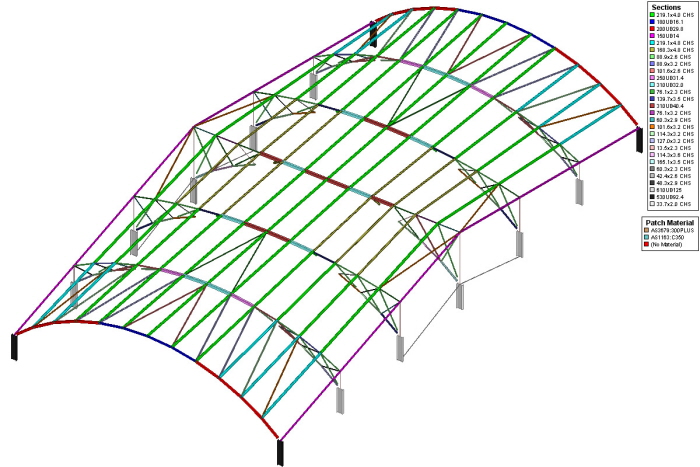

Structural Steel Members
Full Size (highres_width x highres_height)

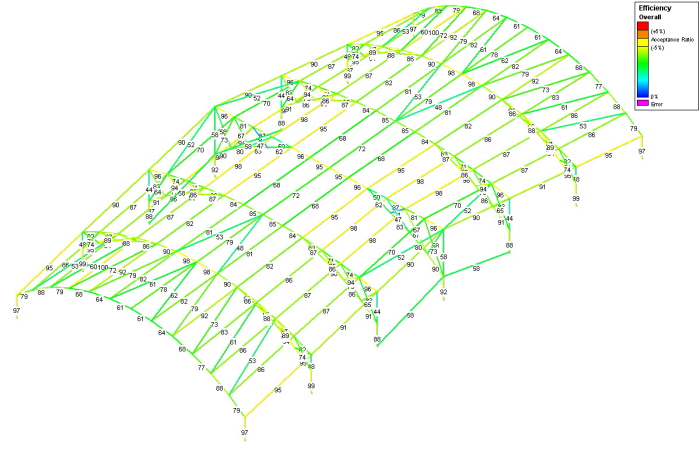

Structural efficiency
Full Size (highres_width x highres_height)

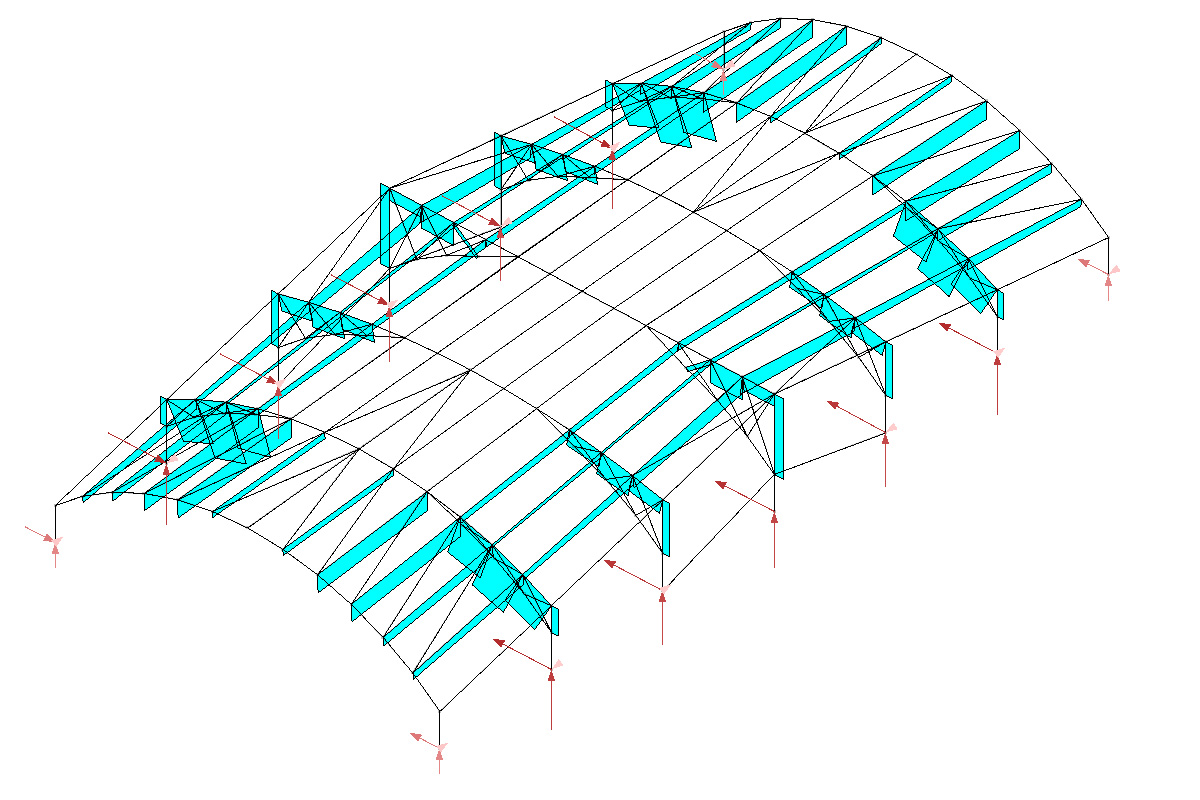

Members in compression
Full Size (highres_width x highres_height)

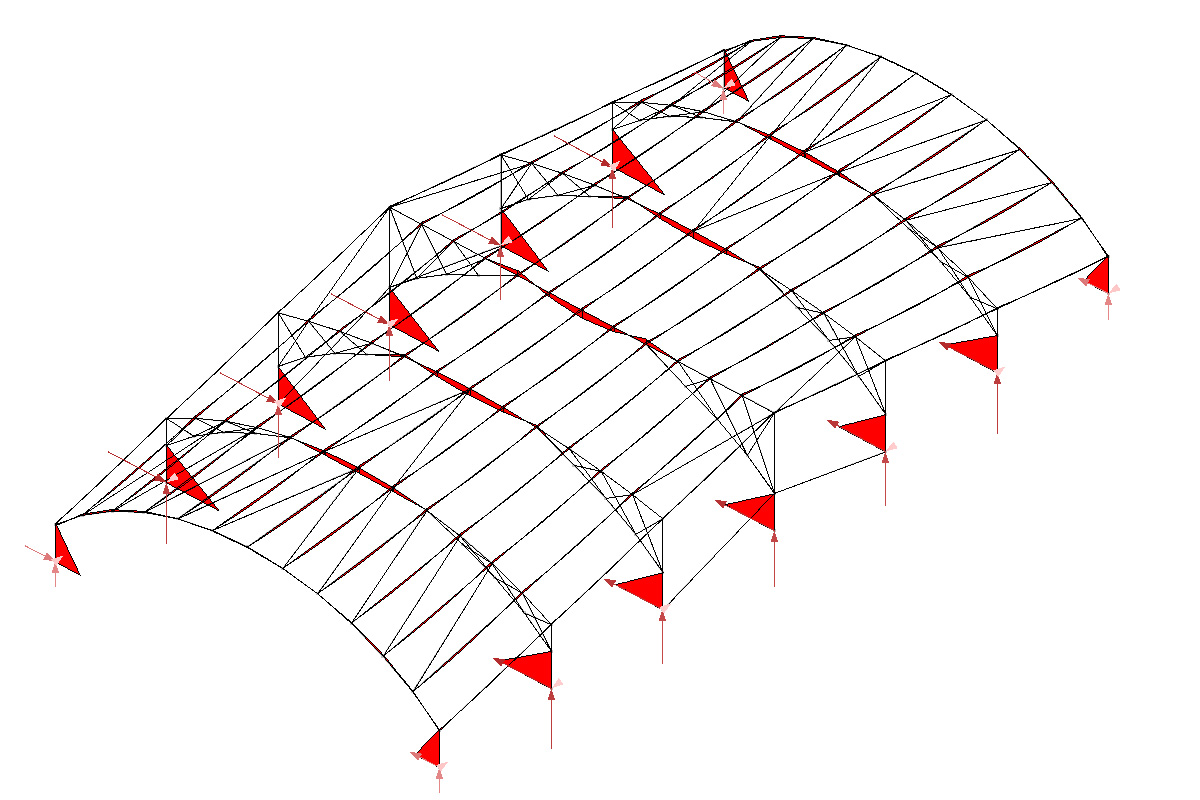

Members in tension
Full Size (highres_width x highres_height)

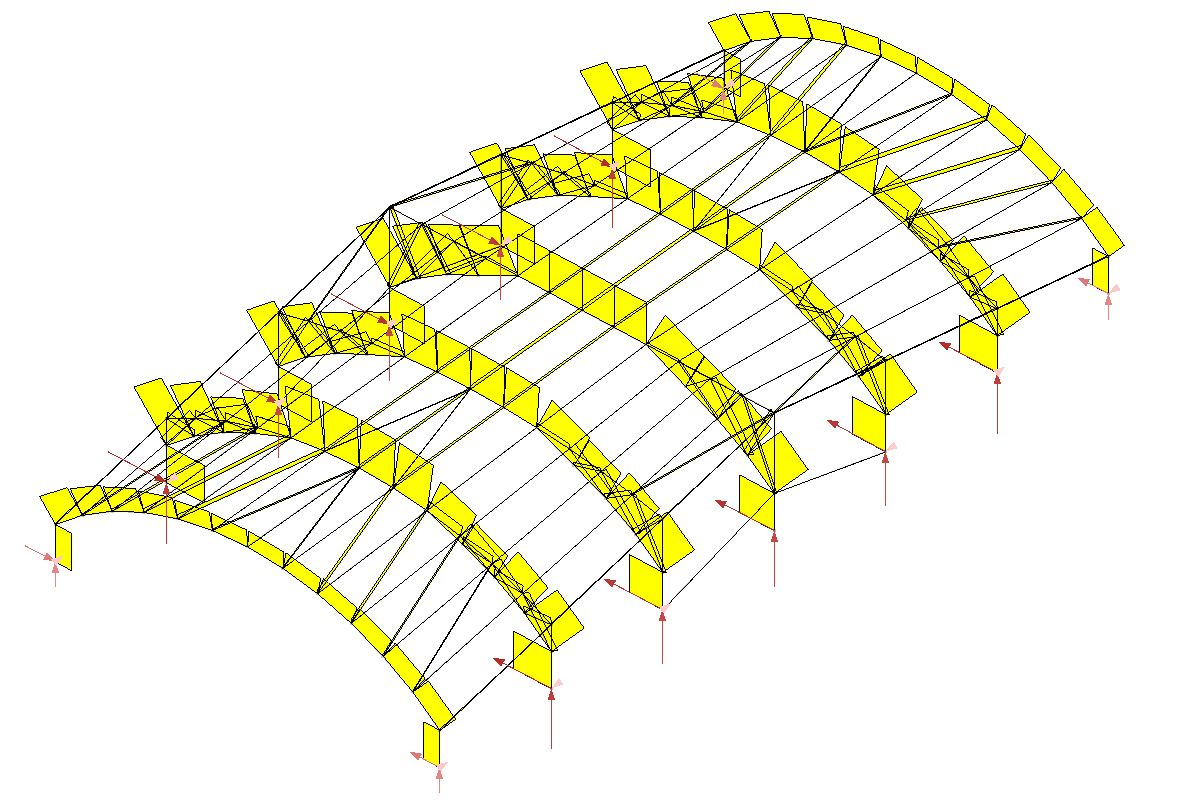

Members experiencing bending moment
Full Size (highres_width x highres_height)
1st Portal Frame - Ends
Full Size (highres_width x highres_height)
2nd Portal Frame
Full Size (highres_width x highres_height)
3rd Portal Frame
Full Size (highres_width x highres_height)
4th Portal Frame - Middle
