The new Defy series from Giant provides the consumer with all the tools necessary to complete any ride.
qView Full Size

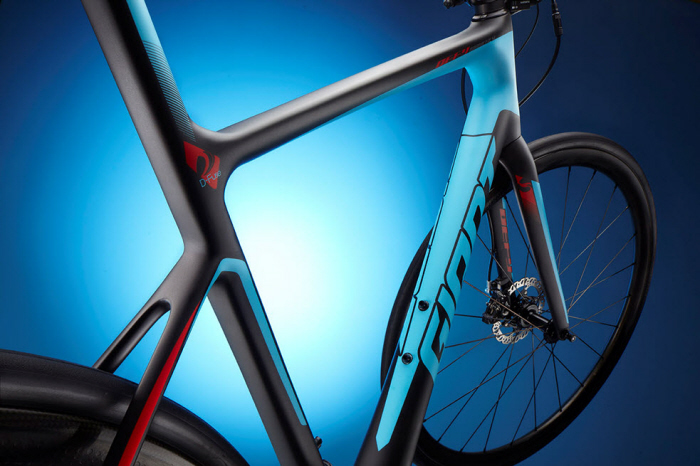

Robust yet elegant forms mesh with sporty graphics.
qView Full Size
The design language of the 2015 model year of Giant's Road Products: Dynamic Flow
qView Full Size

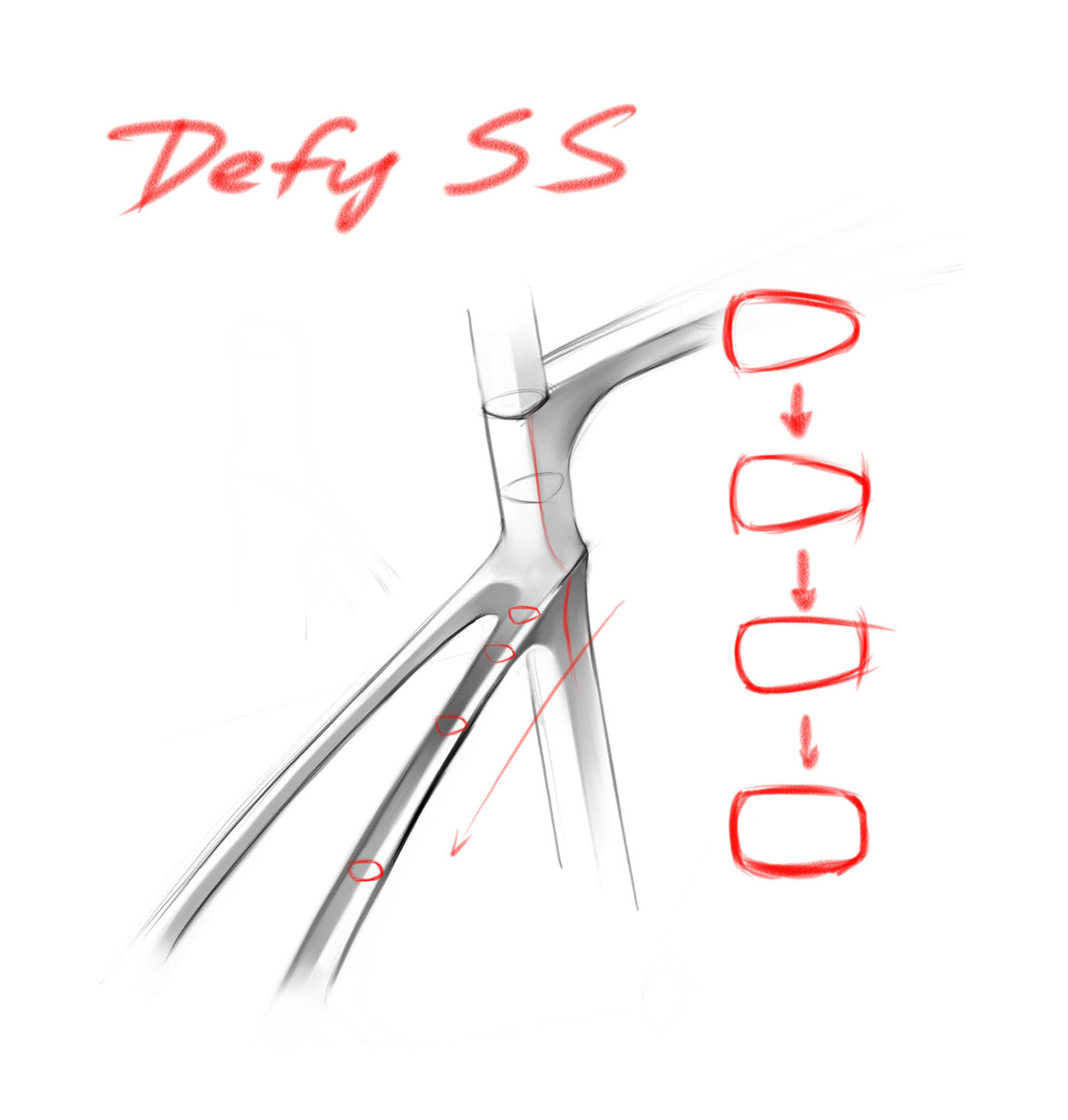

Initial sketches for creating the character of Defy.
qView Full Size
Three key technologies added to Defy:
-DFuse Seatpost
-Disc Brake
-Integrated Compliance system
qView Full Size
Being authentic. Through great form development and carbon lay-ups, we did not need to rely on "gimmicks" to create comfort on this bike.
-Sketch by BK Kang
qView Full Size
The right shaping on the seat-stays can make a huge difference in compliance for the rider.
qView Full Size
The integration of disc brakes on Defy was a new feature for 2015.
-Sketch by BK Kang
qView Full Size
Initial graphic exploration to further establish the appeal of the Defy.
qView Full Size
Hidden Technology. Through thoughtful form development and concurrent engineering, the new Defy elevates the cycling experience.
qView Full Size
Even with the integration of disc brakes (and tabs), the 2015 Defy dropped 150 grams in weight over the previous version. Some areas of weight-loss in red.
qView Full Size
Development renderings to better judge the integration of form and graphics.
qView Full Size
Sizing, checking and altering graphics for the cleanest fit possible.
qView Full Size
Telling a story through graphics. Allowing certain swatches and colors illuminate where road vibration is being transmitted away from the rider.
qView Full Size
All weather conditions.
qView Full Size
Taking flight...
qView Full Size
Climbs and Descents will be conquered.
qView Full Size
Second in line: Defy Advanced SL 1
qView Full Size
Lower in the range: Defy Advanced 3
qView Full Size
2015 Defy
qView Full Size
July 2014: Product Launch in Pitlochry, Scotland.
