Some print screens of the new bodywork proposal
H Favorite qView Full Size
Some print screens of the new bodywork proposal
H Favorite qView Full Size

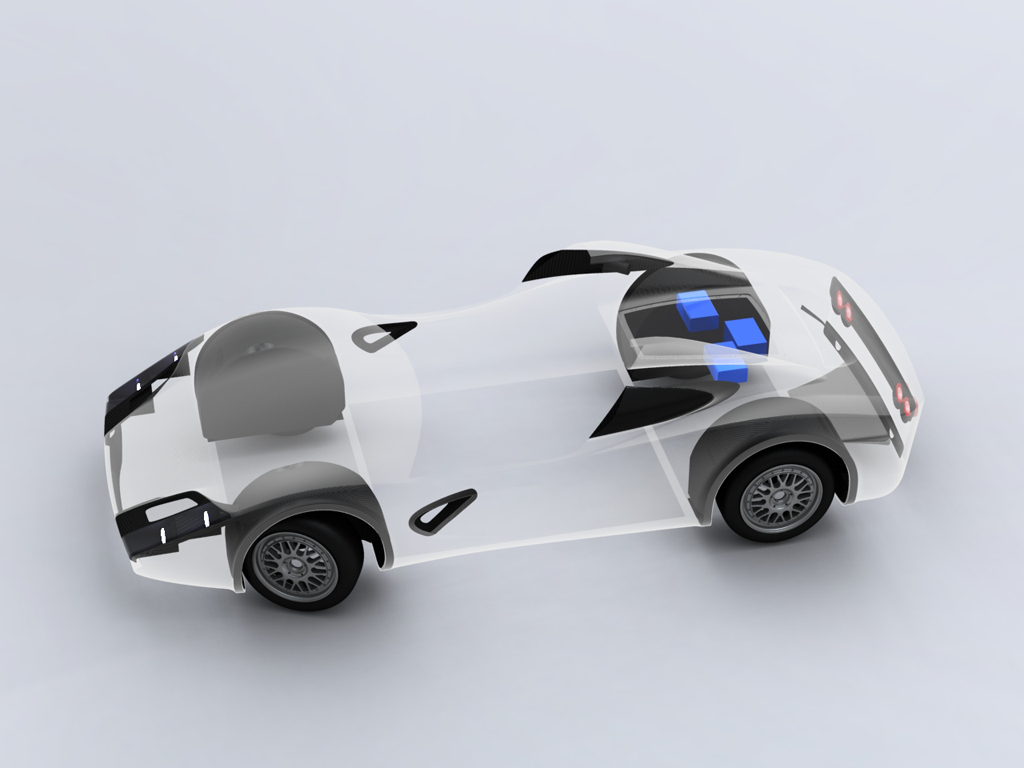

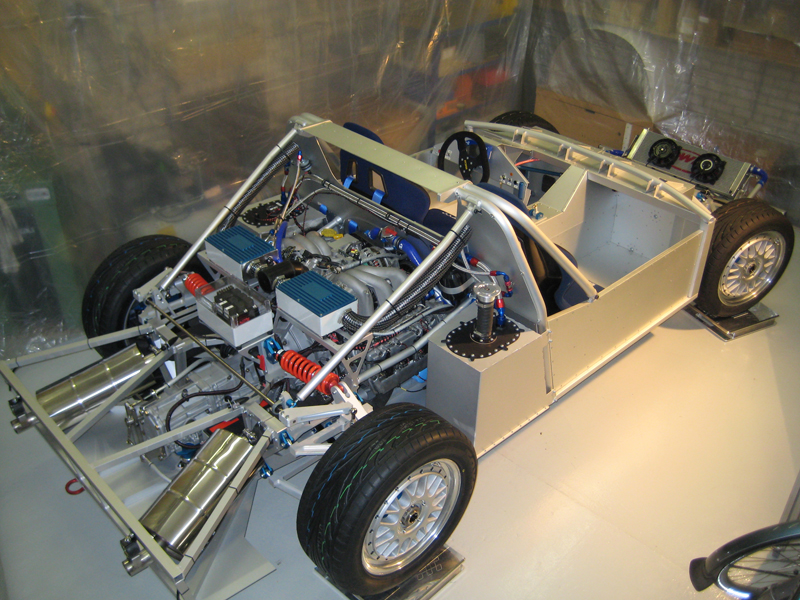

Silvermine 11P prototype - Technical basis for which the carbon fibre body is designed.
H Favorite qView Full Size
Silvermine 11P prototype - Technical basis for which the carbon fibre body is designed.
H Favorite qView Full Size
Ideas and concepts - Sketches for first main idea. The idea is that the car exists of three visually seperated parts: two opposing outer parts and a single middle part. Devided by two distinct character lines.
H Favorite qView Full Size
Ideas and concepts - Sketches for second main idea. The idea is that the car is built up of smooth and bulging patches, joined by a sharp character line running from the front grille up to behind the two bulges. The same shape is inverted on the back side to communicate a Yin/Yang type of balance in the shape.
H Favorite qView Full Size
Ideas and concepts - Shape development and engineering solutions made into an attractive and feasible starting point for the 3d CAD model.
H Favorite qView Full Size

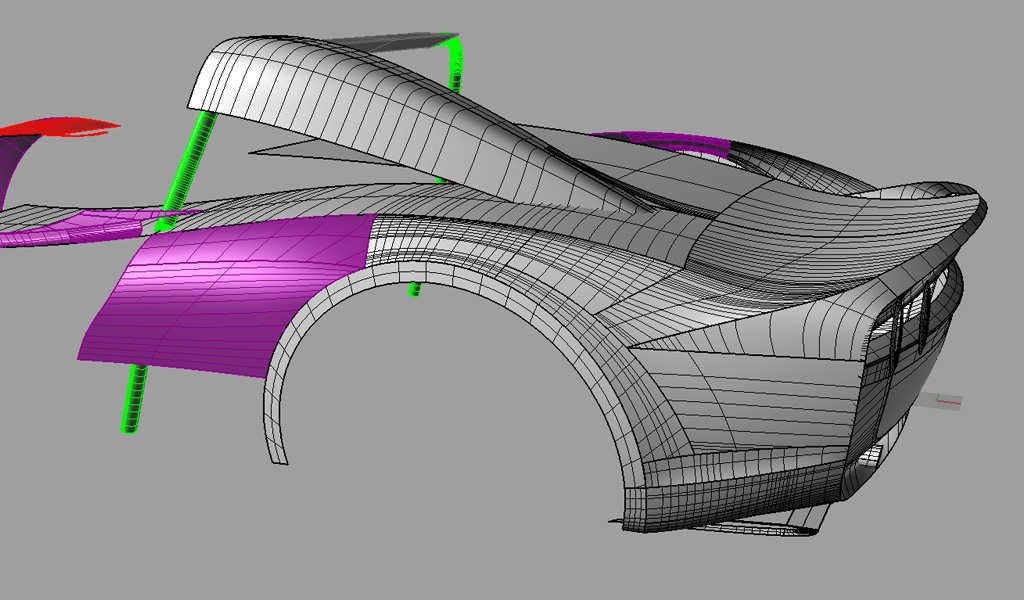

3d model - Class A 3D CAD model for the exterior of the Silvermine 11P prototype sportscar.

www.silvermine.nl
H Favorite qView Full Size
Silvermine 11P thesis project - Sports car carbon fibre body design, development and engineering for production.
H Favorite qView Full Size
Silvermine 11P thesis project - Sports car carbon fibre body design, development and engineering for production.
H Favorite qView Full Size
Silvermine 11P thesis project - Sports car carbon fibre body design, development and engineering for production.
H Favorite qView Full Size
Silvermine 11P thesis project - Sports car carbon fibre body design, development and engineering for production.
H Favorite qView Full Size

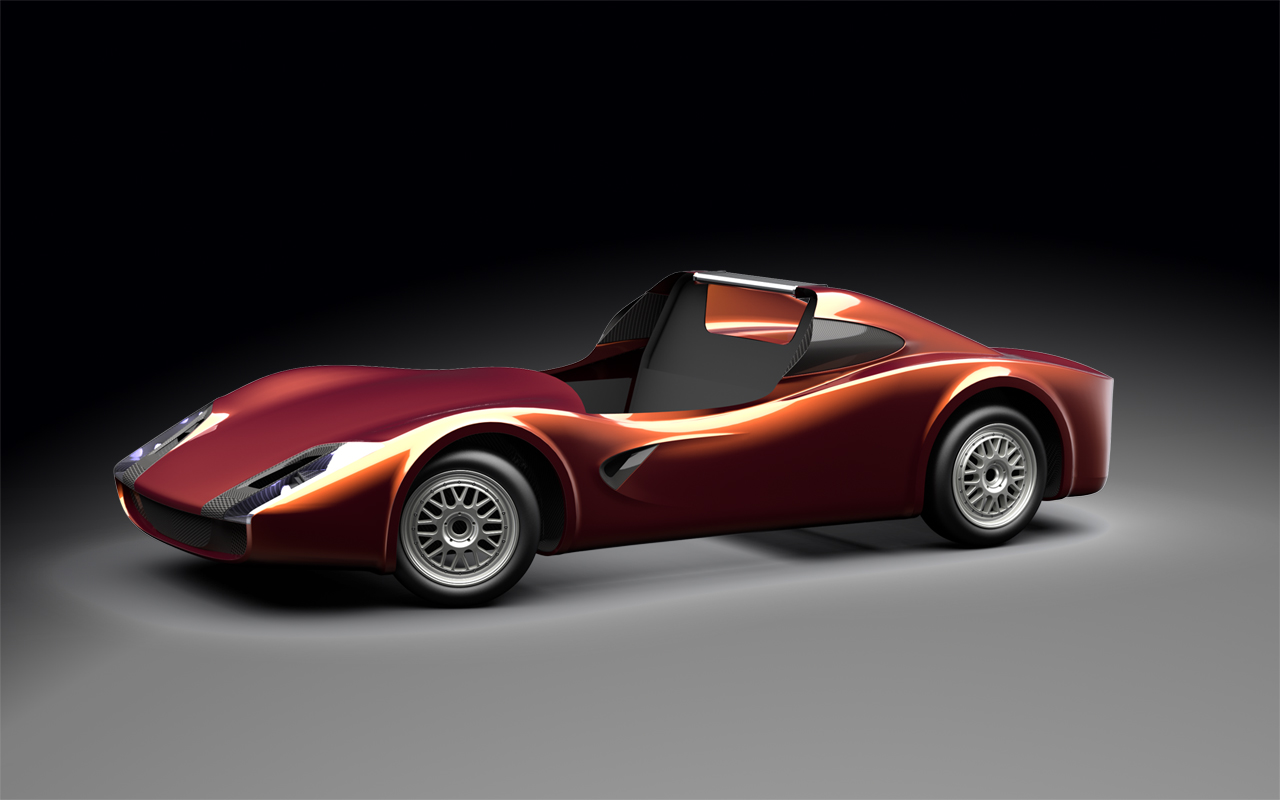

Silvermine 11P thesis project - Front of the car in final body colour: Pantone 3145.
H Favorite qView Full Size

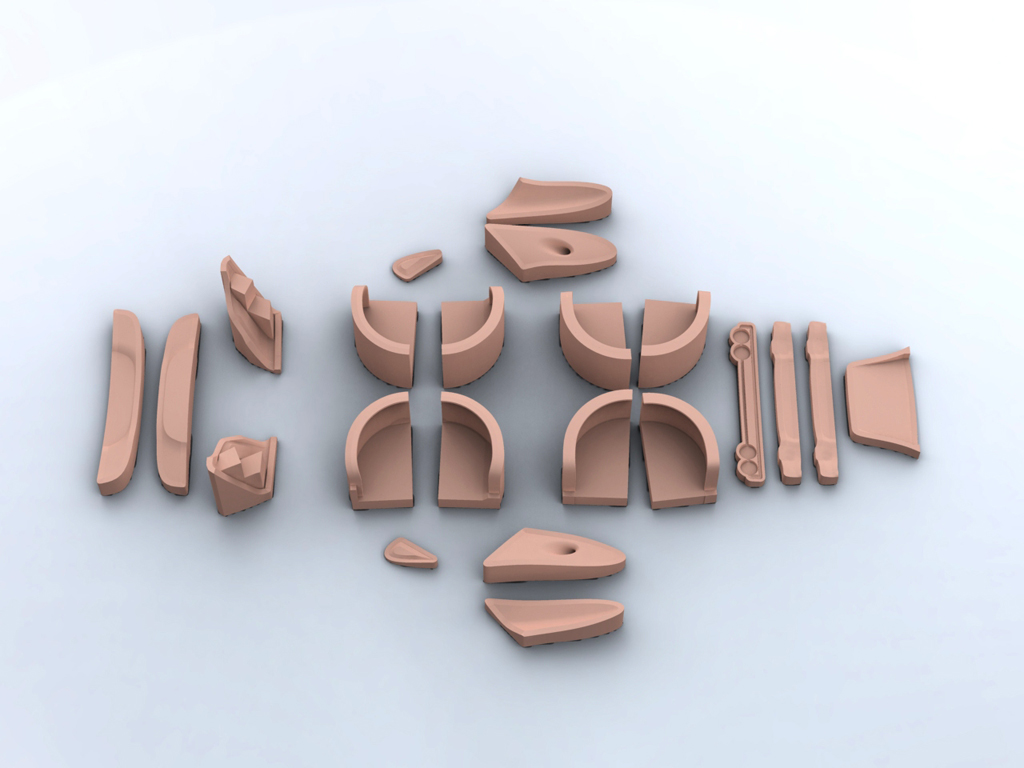

Silvermine 11P thesis project - Position and fitting of loose carbon fibre parts.
H Favorite qView Full Size
Silvermine 11P thesis project - Engineered moulds for loose carbon body parts. Some parts take parted moulds to make, some need single moulds. Mesh parts need a positive and negative mould to be pressed into shape.
