Selection of design drawings using hand techniques and AutoCAD
Version 1.0 Stone Table Side - Hand drafted original concept design for side table.
Carved black stone, polished finish all surfaces except for rough finish on table top.

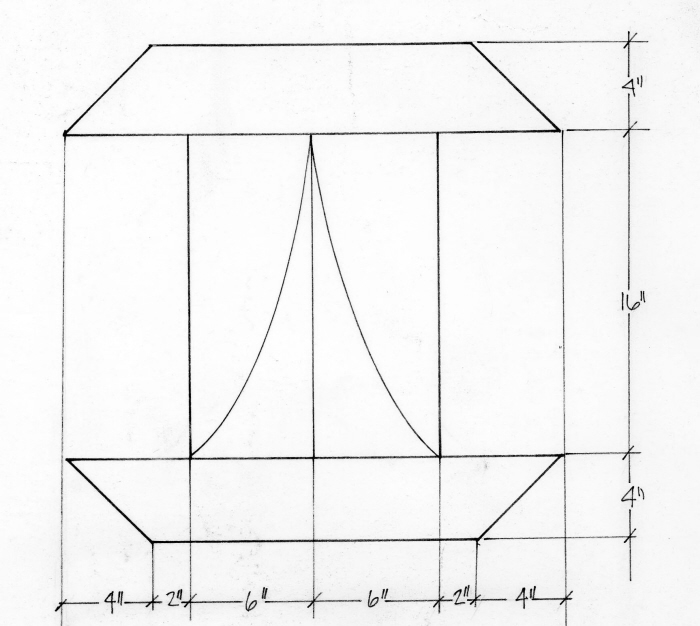

Version 1.0 Stone Table Front - Hand drafted original concept design for side table.
Carved black stone, polished finish all surfaces except for rough finish on table top.

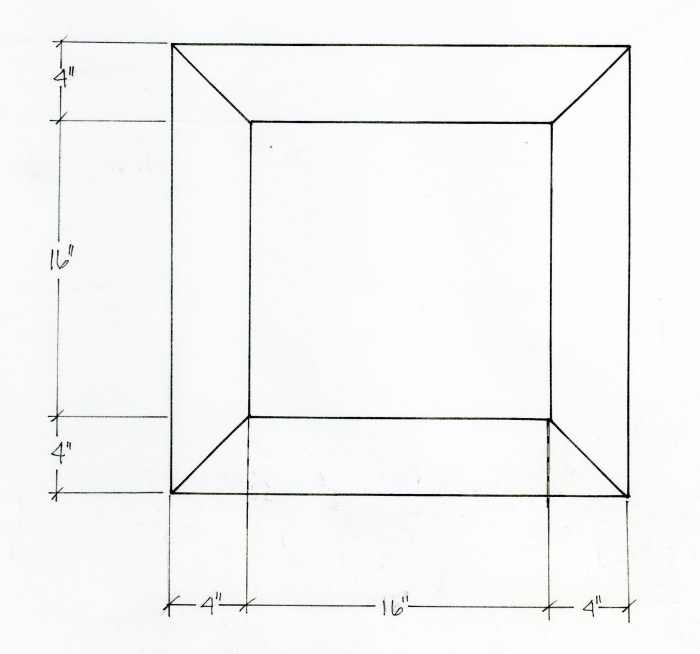

Version 1.0 Stone Table Top - Hand drafted original concept design for side table.
Carved black stone, polished finish all surfaces except for rough finish on table top.

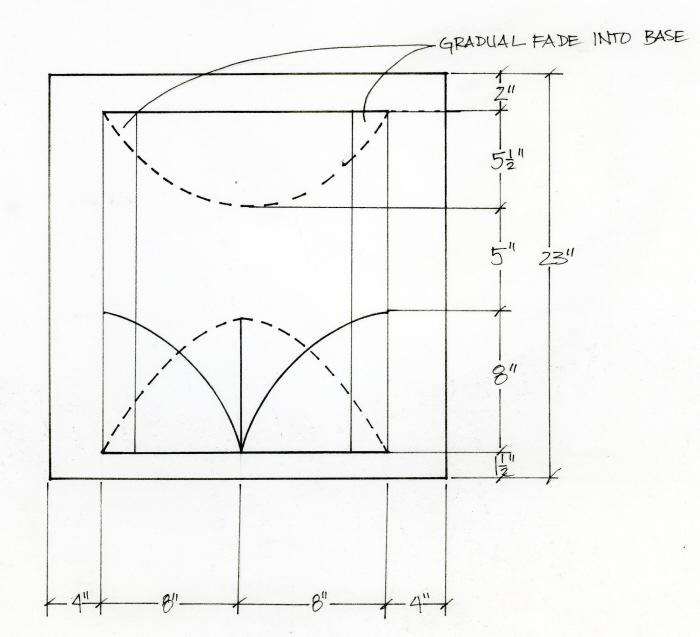

Version 1.0 Stone Table Top Section - Hand drafted original concept design for side table.
Carved black stone, polished finish all surfaces except for rough finish on table top.
Hangar Lobby - Created in AutoCAD2009
Furniture Plan was provided
Lighting Plan is original
Hangar Lobby - Created in AutoCAD2009
Furniture Plan was provided
Lighting Plan is original
Hangar Lobby - Created in AutoCAD2009
Furniture Plan was provided
Lighting Plan is original

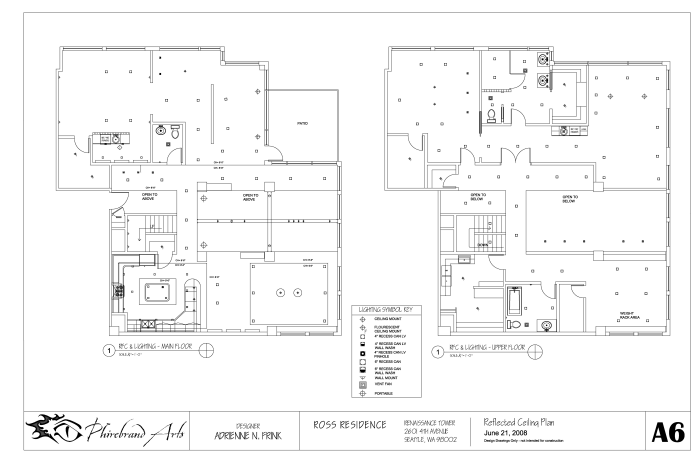

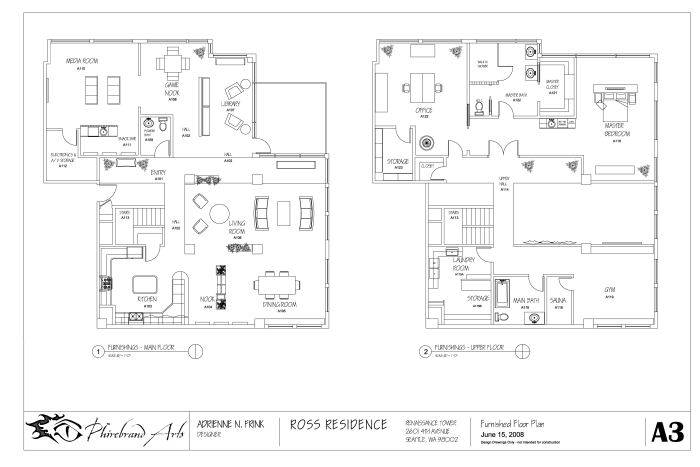

Multi Family Unit Remodel (Ross Residence) - Design Drawings for a two-story 3,000 SF high-rise condo remodel project.
Multi Family Unit Remodel (Ross Residence) - Design Drawings for a two-story 3,000 SF high-rise condo remodel project.
Basic Space Planning - Small Office - CAD exercise
