Working Prototype Pic - Many guitarists experience the symptoms of carpal tunnel syndrome due to excessive strain on the fretting wrist. With a rotating fret board this guitar addresses the problem without sacrificing functionality or superior performance.
H Favorite qView Full Size
Working Prototype Pic - Many guitarists experience the symptoms of carpal tunnel syndrome due to excessive strain on the fretting wrist. With a rotating fret board this guitar addresses the problem without sacrificing functionality or superior performance.
H Favorite qView Full Size
Working Protytpe Pic - Many guitarists experience the symptoms of carpal tunnel syndrome due to excessive strain on the fretting wrist. With a rotating fret board this guitar addresses the problem without sacrificing functionality or superior performance.
H Favorite qView Full Size
Working Protytpe Pic - Many guitarists experience the symptoms of carpal tunnel syndrome due to excessive strain on the fretting wrist. With a rotating fret board this guitar addresses the problem without sacrificing functionality or superior performance.
H Favorite qView Full Size
Solidworks Model
H Favorite qView Full Size
Solidworks Model
H Favorite qView Full Size
Solidworks Model
H Favorite qView Full Size
Solidworks Model
H Favorite qView Full Size
Concept Sketches - Conveying concept of rotating fretboard
H Favorite qView Full Size
Concept Sketches - Conveying volume detail
H Favorite qView Full Size
Concept Sketches - Early exploration of body shape
H Favorite qView Full Size
Concept Sketches - Exploring sitting vs. standing functionality
H Favorite qView Full Size
Concept Renderings - Early concept of what would become the final mechanism design.
H Favorite qView Full Size
Concept Renderings - Early concept for a rotating mechanism design.
H Favorite qView Full Size

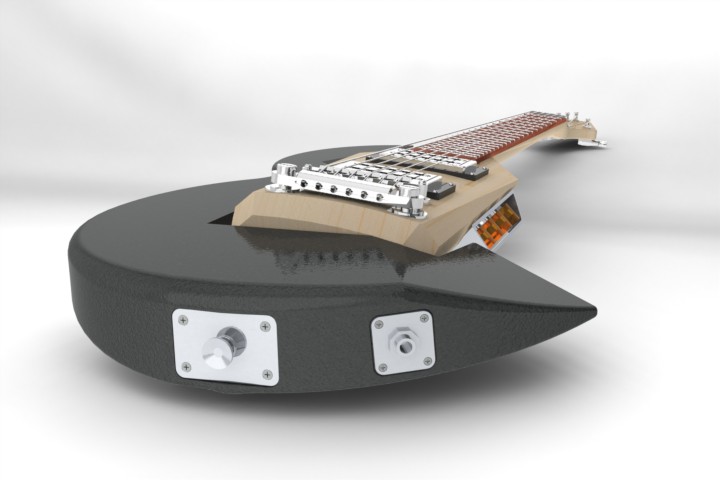

Concept Renderings
H Favorite qView Full Size
Concept Renderings
H Favorite
Orthographic Drawings - Final design- ready for prototype fabrication
H Favorite
Mechanism Section View - Mechanism inserts and locks into place like a key. This way it can be disassembled easily.
H Favorite qView Full Size
Original Study Model - The purpose of the original study model was to understand how the downward turn motion of the neck would feel on the fretting wrist.
H Favorite qView Full Size
Progressive Study Models - Because of the importance of the tactile relationship between instrument and user I created many variations of study models before arriving at a final form.
H Favorite qView Full Size

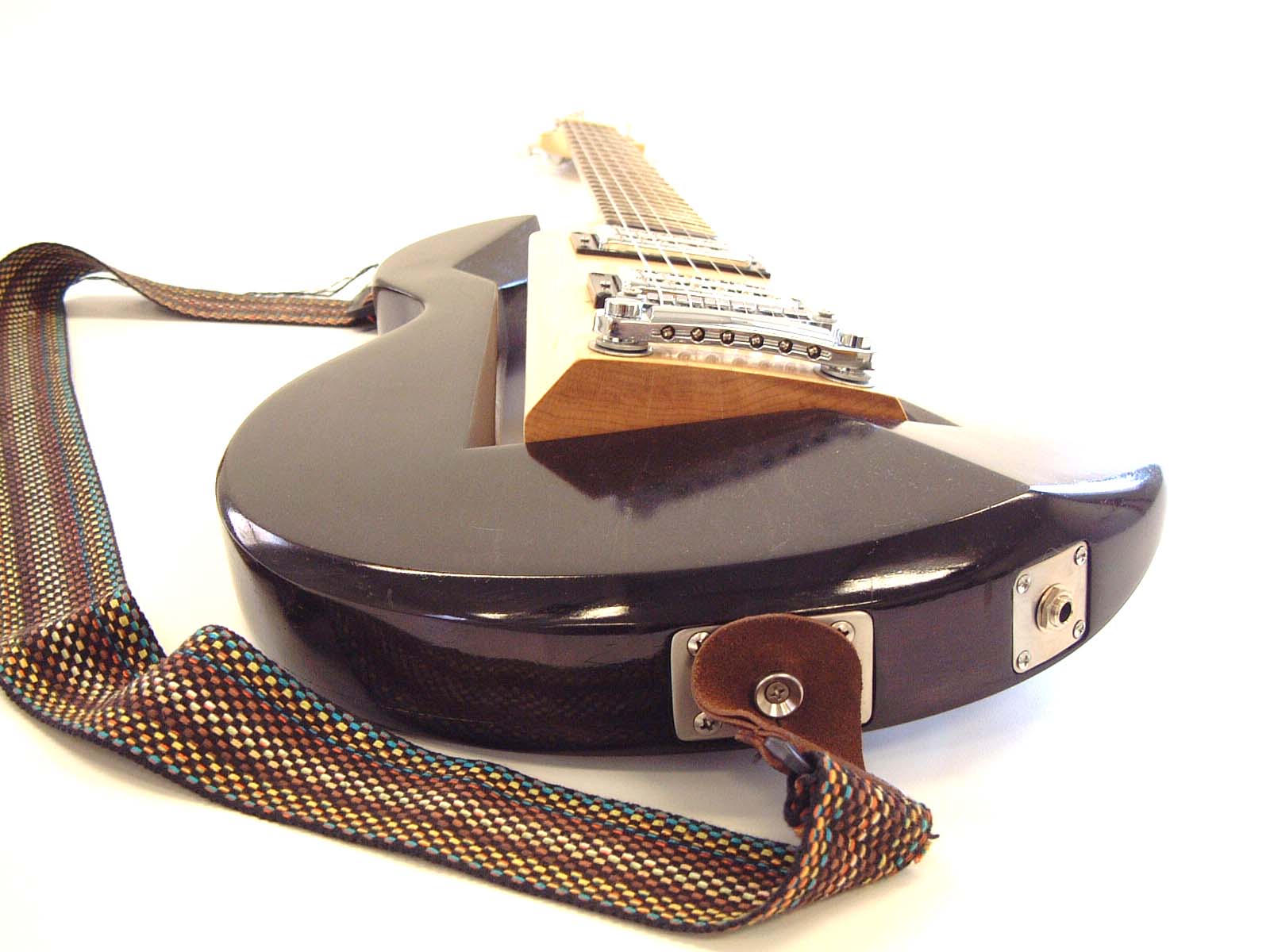

Working Prototype Pic - Many guitarists experience the symptoms of carpal tunnel syndrome due to excessive strain on the fretting wrist. With a rotating fret board this guitar addresses the problem without sacrificing functionality or superior performance.
H Favorite qView Full Size
Working Prototype Pic - Many guitarists experience the symptoms of carpal tunnel syndrome due to excessive strain on the fretting wrist. With a rotating fret board this guitar addresses the problem without sacrificing functionality or superior performance.
