John Capogna
San Francisco, CA
Pictures and video of an 8x8x8 LED cube.

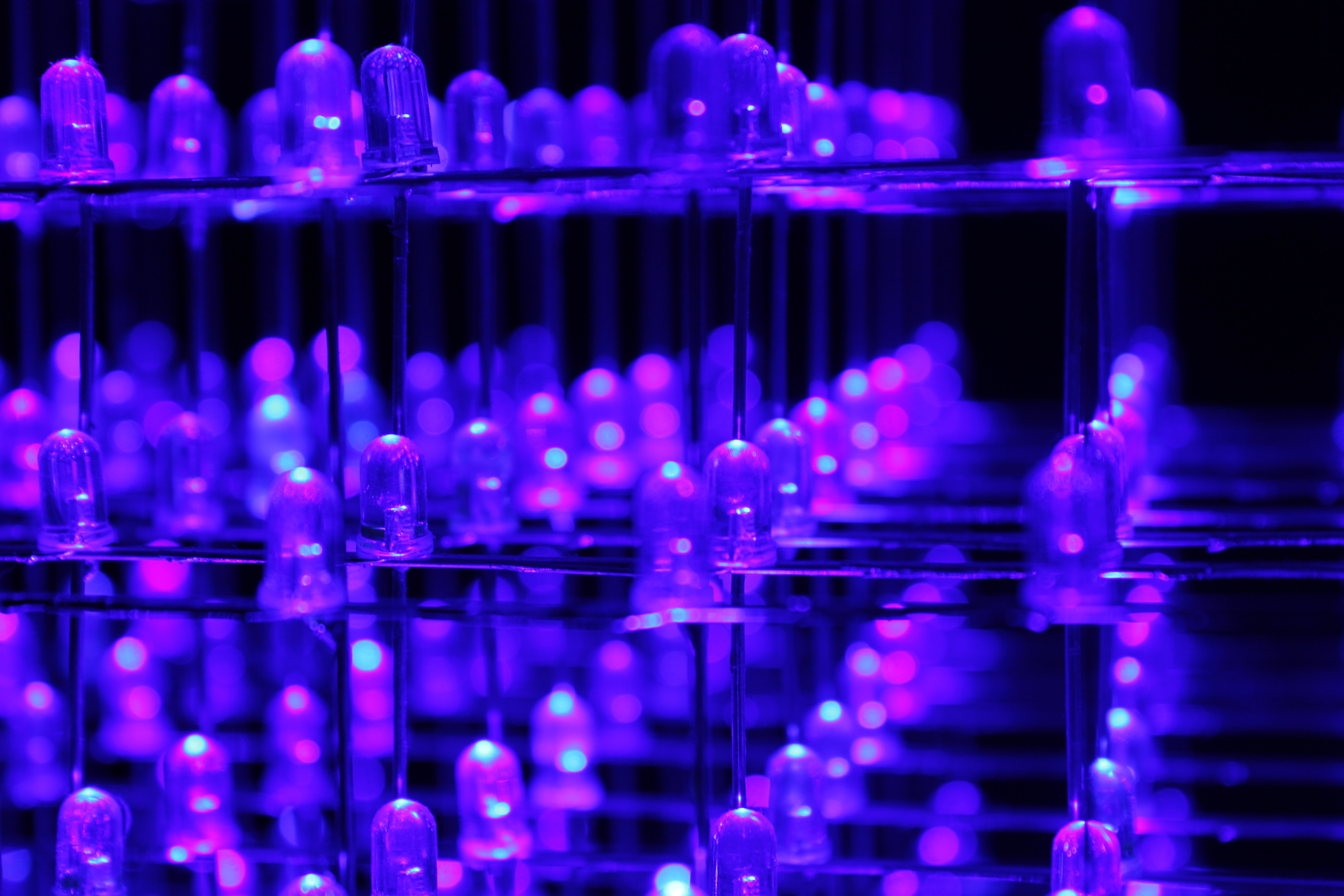

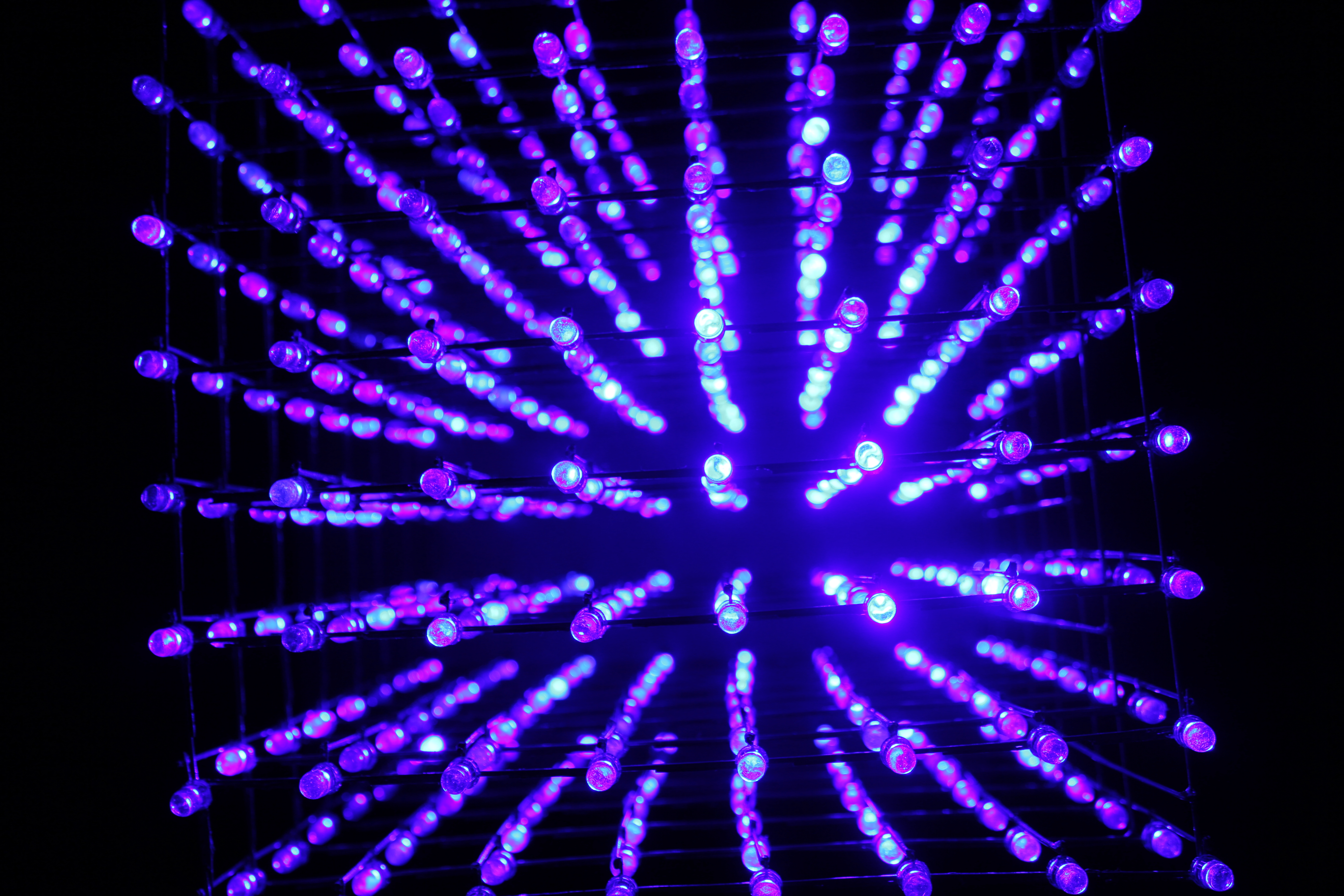

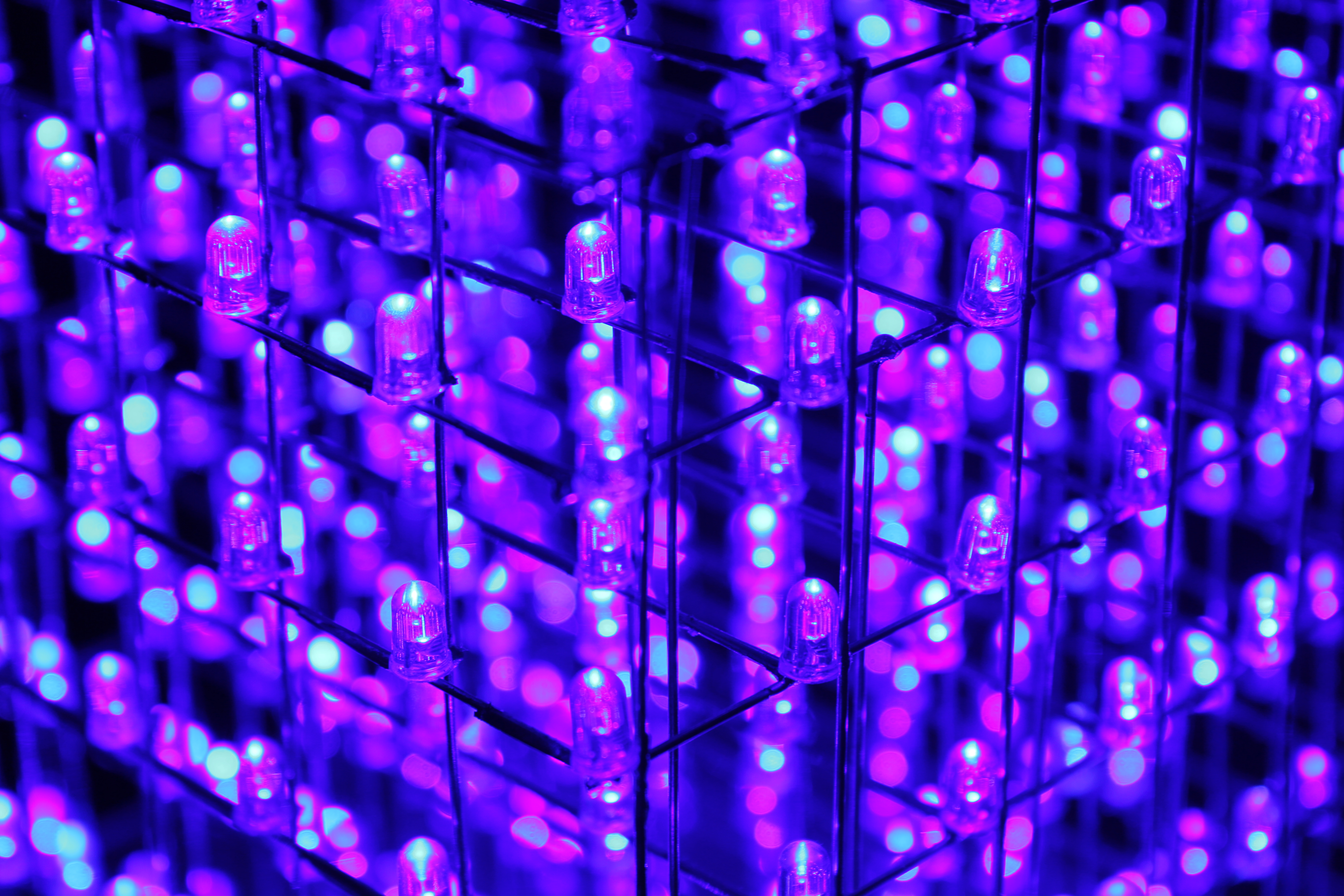

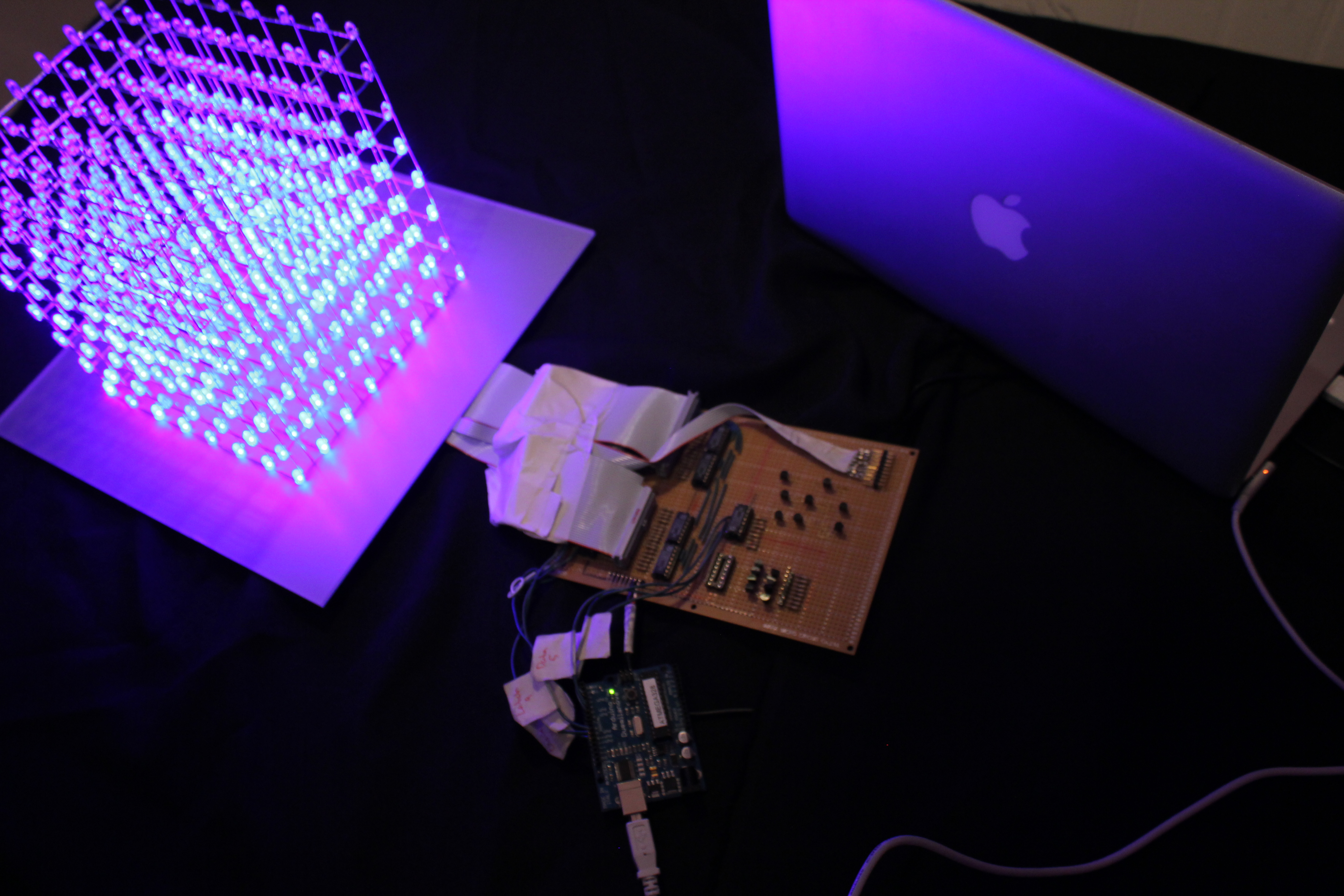

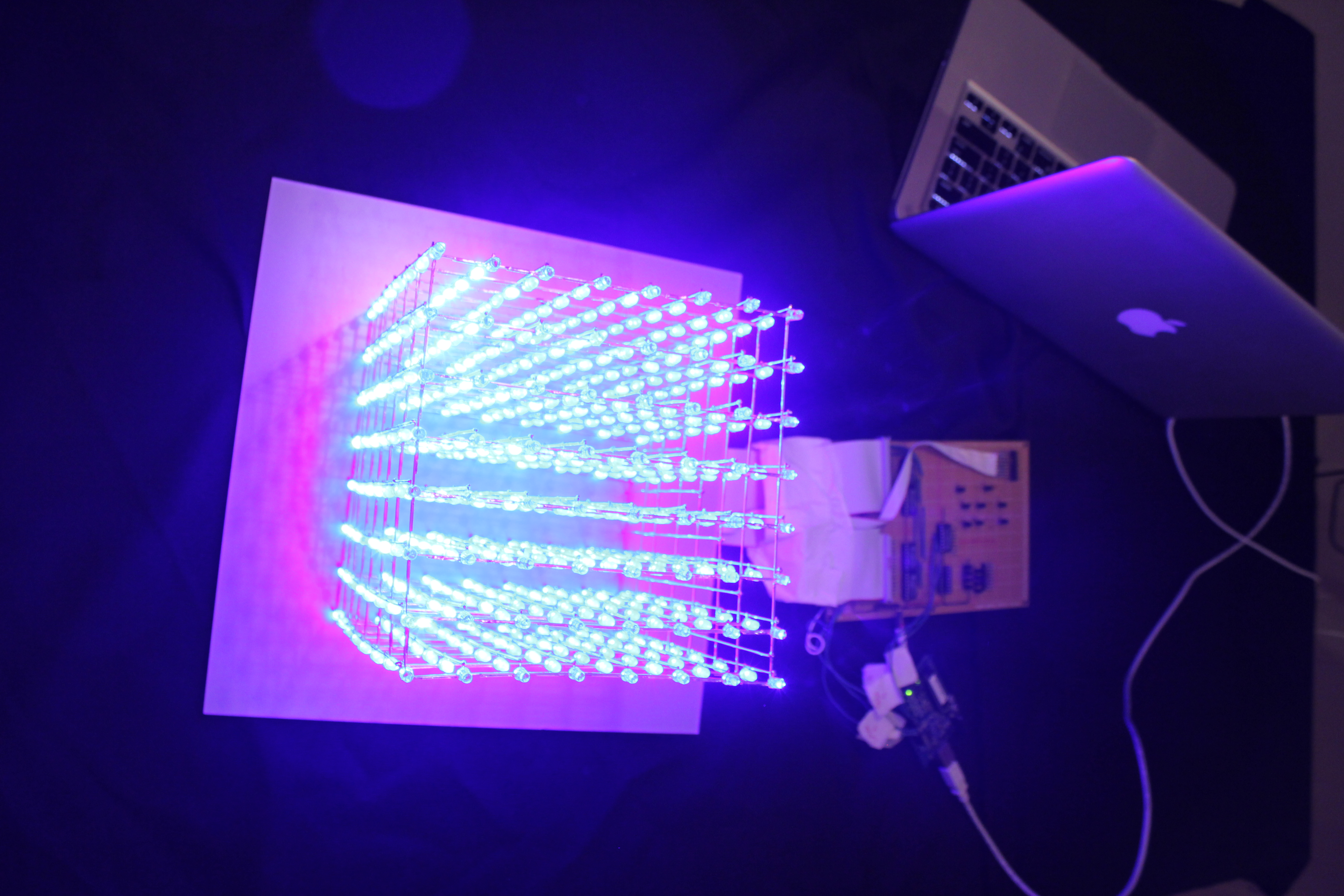

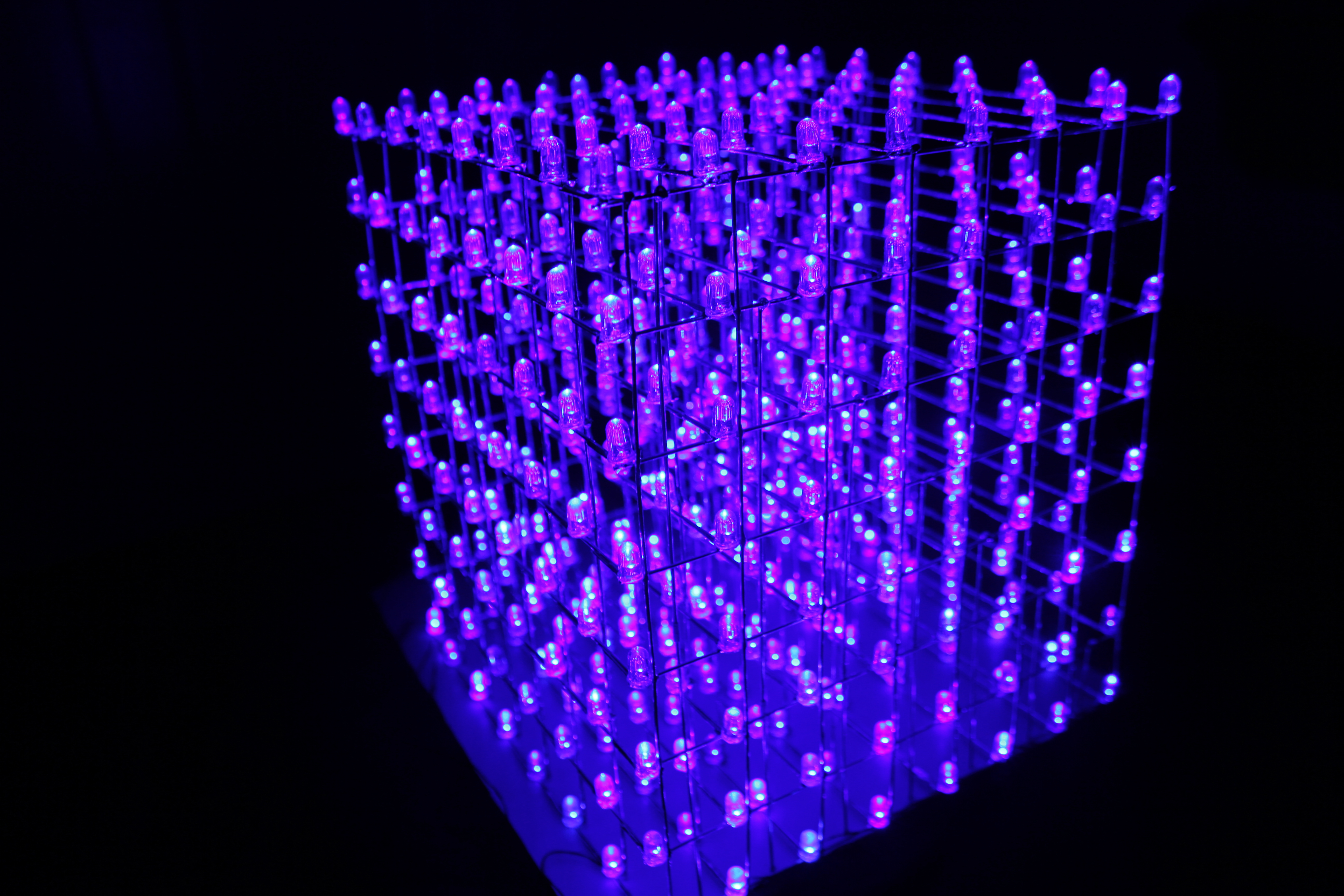

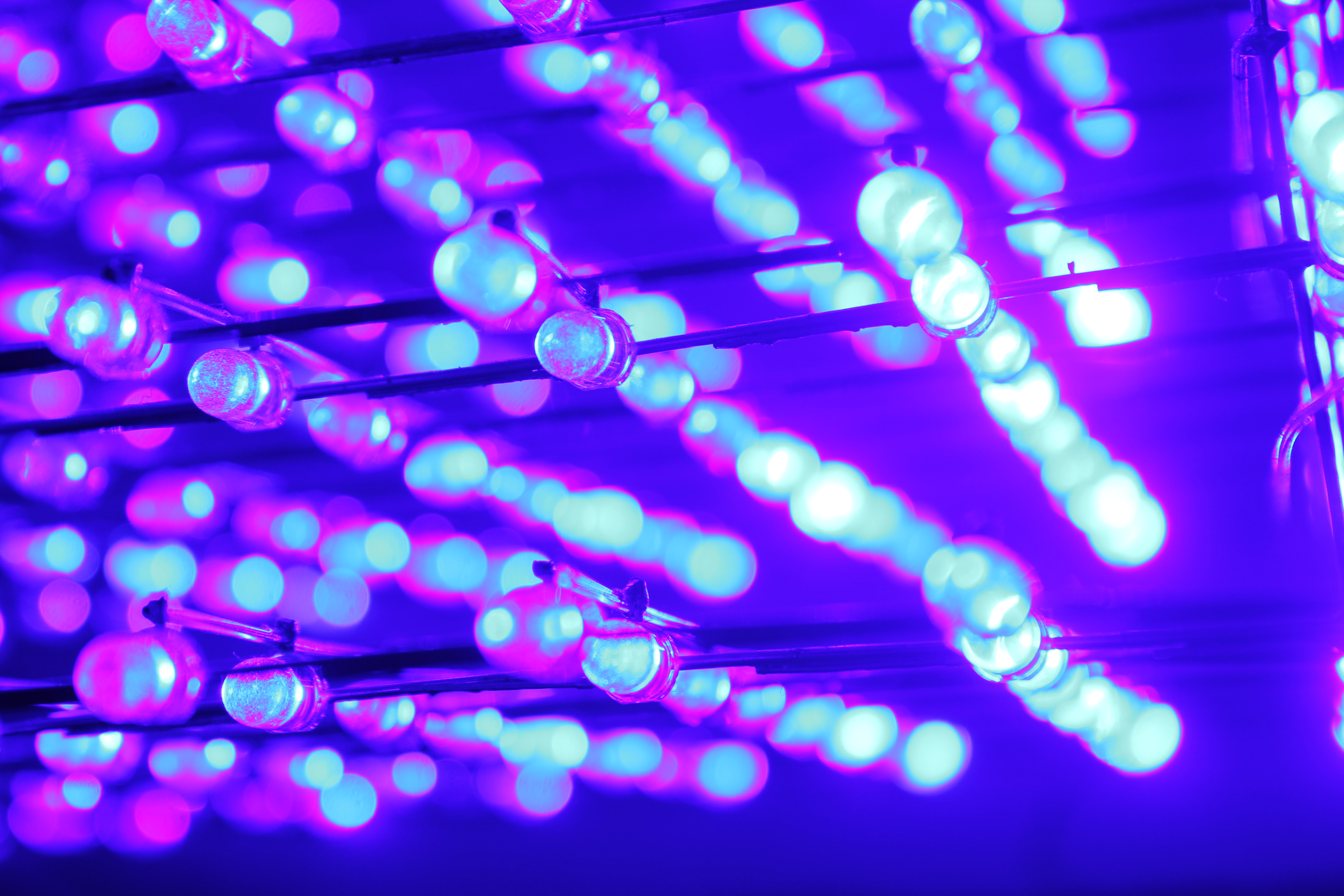

Cube - An LED cube I made. Its dimensions are 8x8x8. Circuit and hardware designed by me. Software written in the Arduino IDE.
This project was featured on Make Magazine's "Make" series. This segment is from the episode on hackerspaces, and comes from San Francisco's Noisebridge. The introduction is by Mitch Altman, one of the founders of Noisebridge. You can see and hear me talk about my cube project around seven minutes in.
http://www.youtube.com/watch?v=EpLvqrKQvwU&feature=youtu.be
This project was featured on Make Magazine's "Make" series. This segment is from the episode on hackerspaces, and comes from San Francisco's Noisebridge. The introduction is by Mitch Altman, one of the founders of Noisebridge. You can see and hear me talk about my cube project around seven minutes in.
http://www.youtube.com/watch?v=EpLvqrKQvwU&feature=youtu.be
Full Size (highres_width x highres_height)

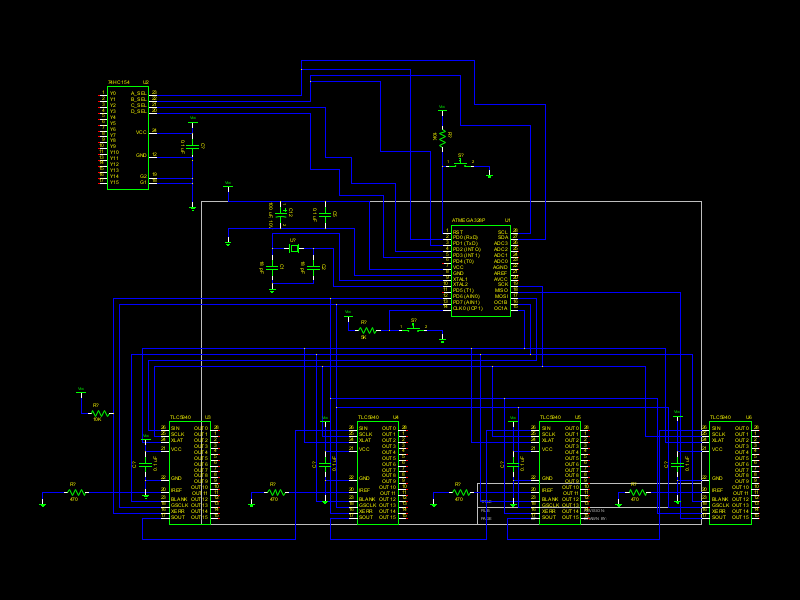

Cube Schematic - A schematic diagram of the Cube circuit. The microcontroller is the Atmega328P, which is Arduino compatible. It features four 16 Channel LED Drivers outputting to the cube's 64 columns and an 8 line decoder/transistor array for switching the cube's layers. The schematic was drawn in gschem:
