H Favorite qView Full Size

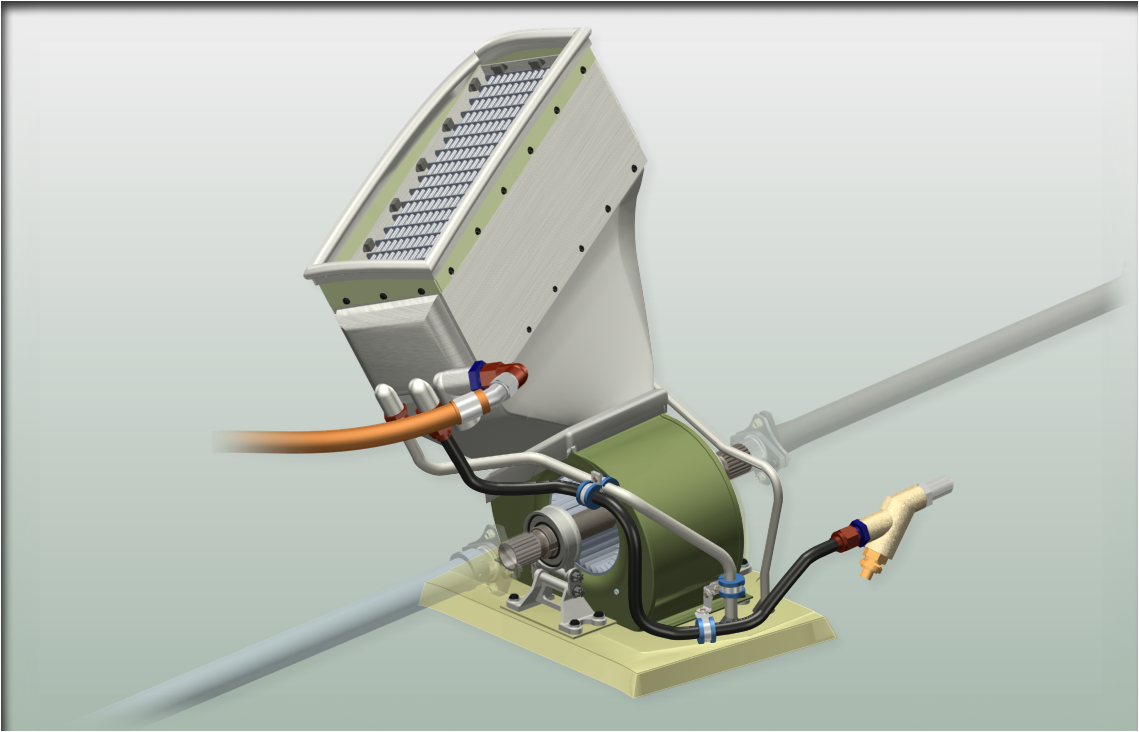

Oil Cooler Assembly - Originally multiple CATIA files, this model was translated by Right Hemisphere into the 3DS format and imported into 3DS Max. After combining multiple files the geometry was polished and the materials were added using photo references. The background and edges were project standards.
H Favorite qView Full Size

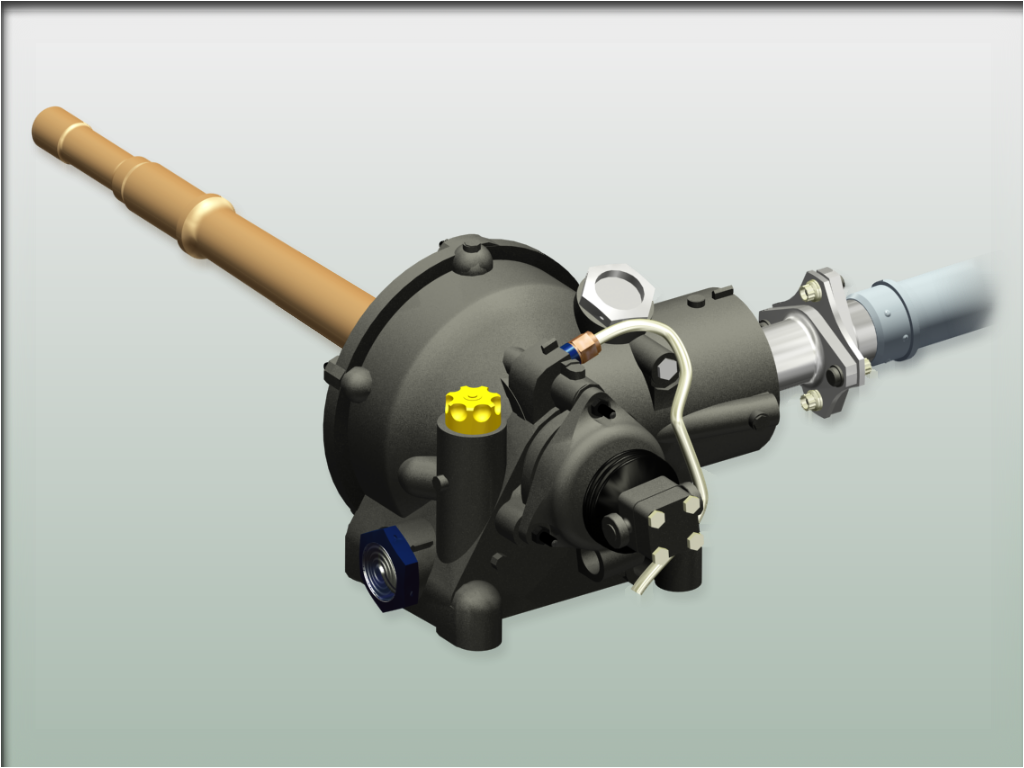

Tail Rotor Gearbox - Originally multiple CATIA files, this model was translated by Right Hemisphere into the 3DS format and imported into 3DS Max. After combining multiple files the geometry was polished and recreated if needed. The materials were developed using photo references. The background and edges were project standards.
H Favorite qView Full Size

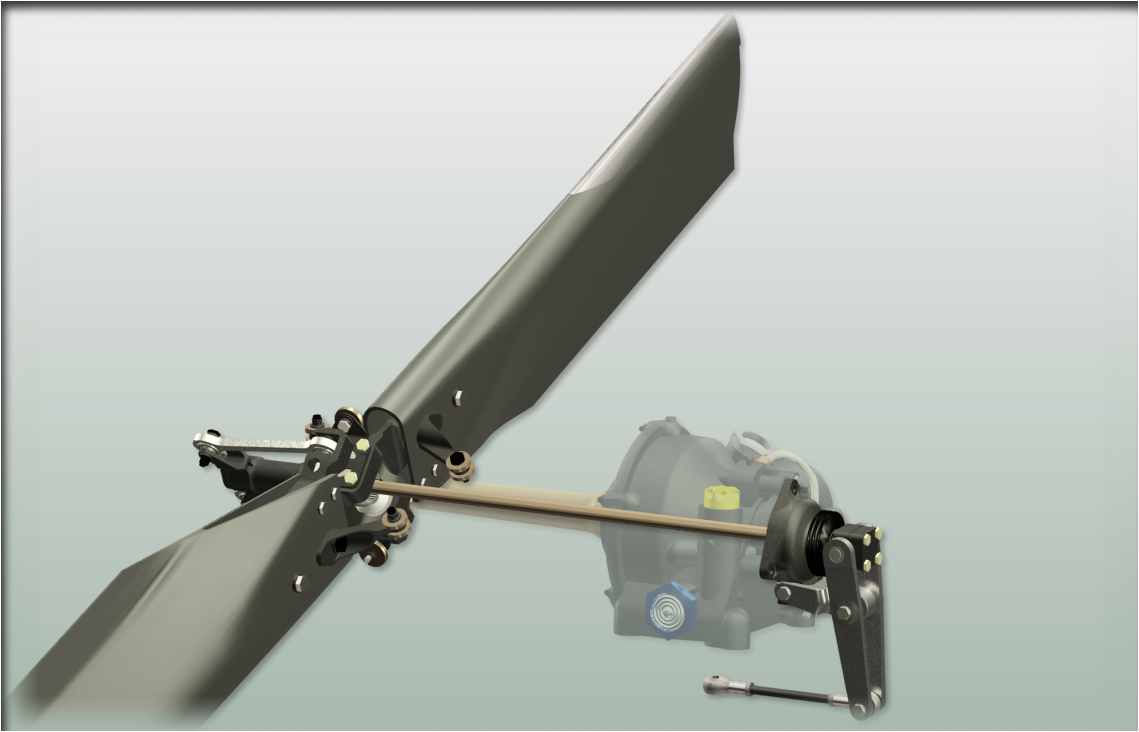

Pitch Change Mechanism
H Favorite qView Full Size
Seascape - 2007

A test rendering for the use of a plug-in for 3DS Max called Dreamscape.
H Favorite qView Full Size

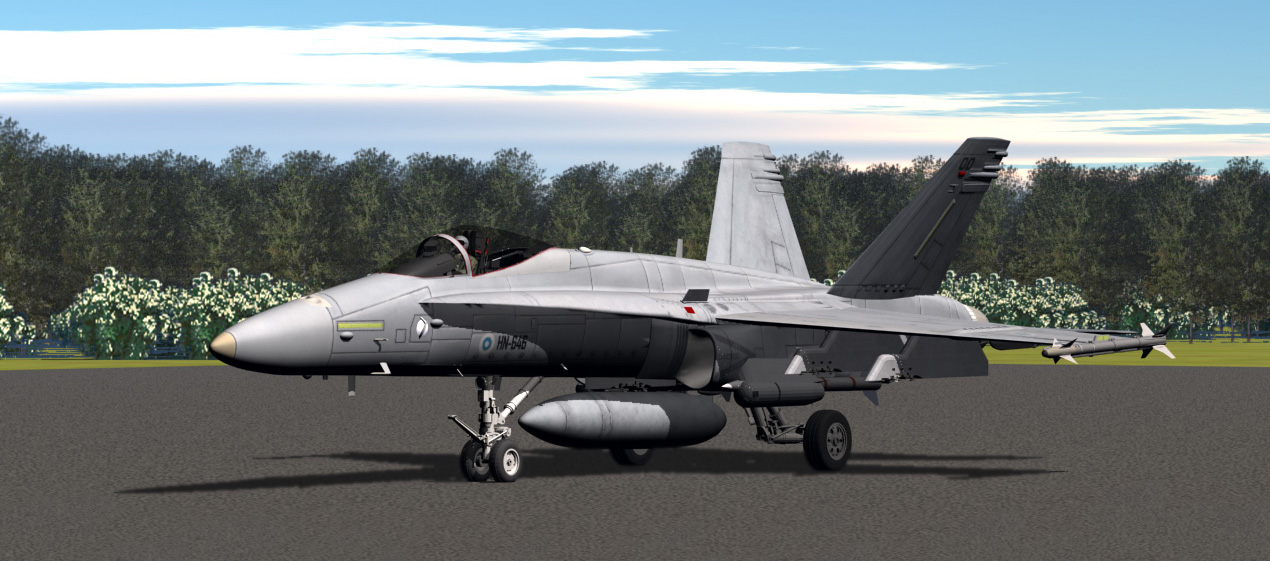

F-18 Style Prototype - 2007

A rendering of a F-18 for a demonstration on the Finnish Air Force project. The F-18 was completed by another artist but I created the environment and lighting using 3DS Max with the Dreamscape plug-in and Itoo Software Forest Generator within a day for use in a Contract Proposal.
H Favorite qView Full Size
F-18 Style Prototype - 2007

A rendering of a F-18 for a demonstration on the Finnish Air Force project. The F-18 was completed by another artist but I created the environment and lighting using 3DS Max with the Dreamscape plug-in for use in a Contract Proposal..
H Favorite qView Full Size
F-18 Style Prototype - 2007

A rendering of a F-18 for a demonstration on the Finnish Air Force project. The F-18 was completed by another artist but I created the environment and lighting using 3DS Max with the Dreamscape plug-in for use in a Contract Proposal..
H Favorite qView Full Size
Master Cylinder - Select the PDF to activate. Use the View drop down box to change angles. Left Mouse button orbits camera, scroll wheel and right mouse button zooms (hold down and move mouse forward and back), and pressing and holding left and right mouse buttons allows panning.

The ARH project required Computer Aided Instruction so 3-D PDFs were developed for the Trainers to demonstrate complex procedures without having to use real components.
