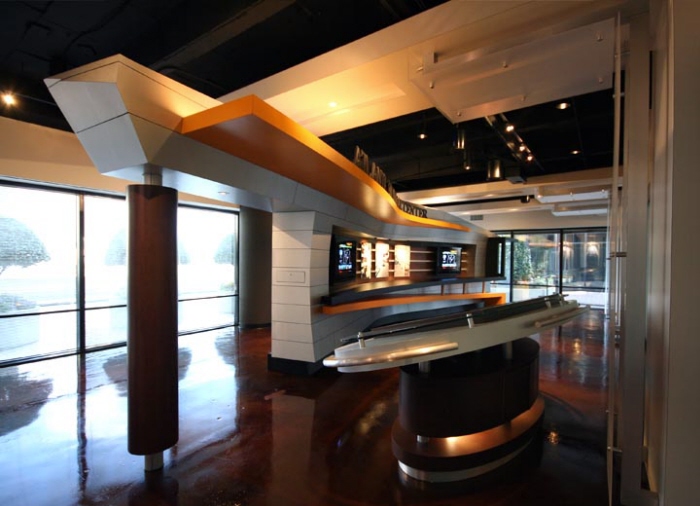

AFC Interior Photo. - Acting as detailer and project manager on this project I took a sales rendering and modeled each part within this build. To achieve the curved wall, it was broken down into 9" tall rows that were then sectioned off in a staggered pattern. I drew 3D cnc parts with the profile curves as well as the angle so that each part was matched top to bottom and skinned. This construction technique allowed for an accellerated build time, a more compact shipping size, and a quicker install.
AFC Interior Photos - Acting as detailer and project manager on this project I took a sales rendering and modeled each part within this build. To achieve the curved wall, it was broken down into 9" tall rows that were then sectioned off in a staggered pattern. I drew 3D cnc parts with the profile curves as well as the angle so that each part was matched top to bottom and skinned. This construction technique allowed for an accellerated build time, a more compact shipping size, and a quicker install.

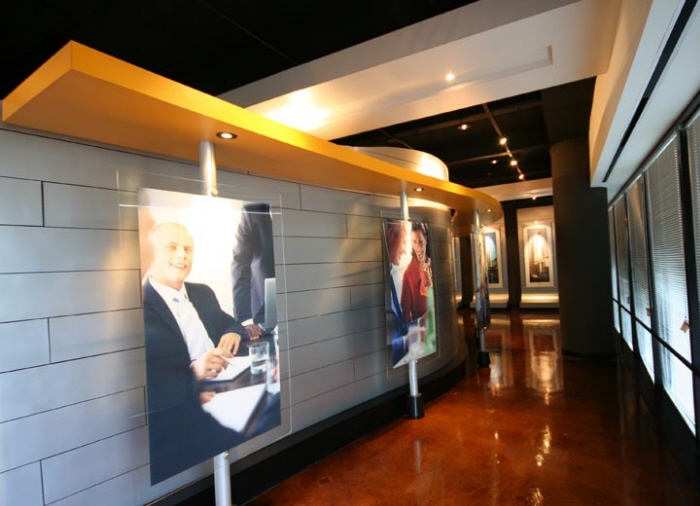

AFC Interior. Backside of the wall photo - Along the backside of the curved wall are a series of "lifestyle" photos. In the background you can also see that the back wall is lined with graphic pedestals.

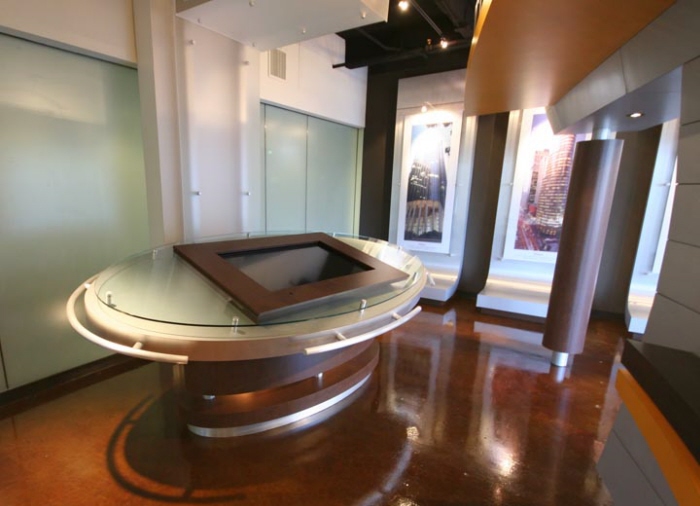

AFC Interior Smart Table. - Housing a 50" screen with touchscreen capabilities, this smart table can provide an interactive tour through facilities and more.
