The drawings looks pretty identical to the actual model, awesome job. When I did mine I learned a lot from your file, and then there were times like what the hell did he just do. LOL

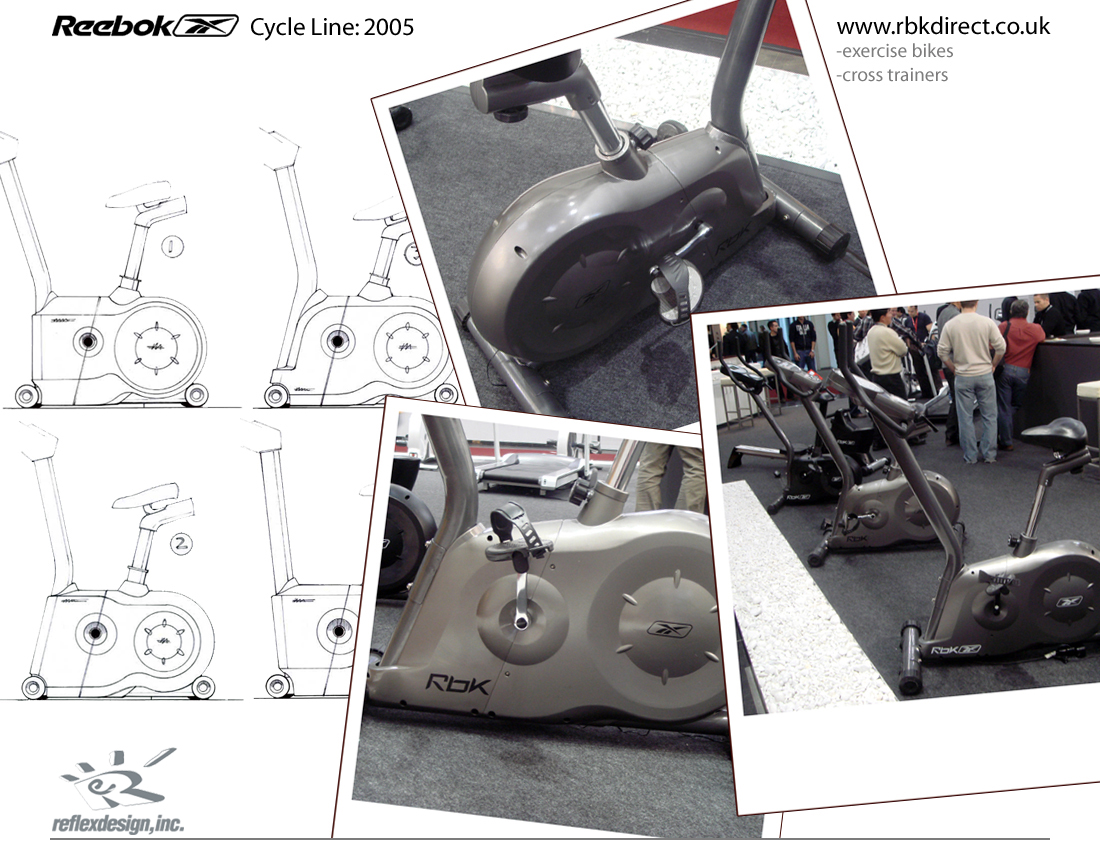

Those drawings are actually for the low-end bike, which was created after the Larger bike. The original sketches aren't quite as dead on to the final design, but they are close. I like some of the surfacing of the whole line A LOT! and I still think the frame is pretty nice. But the file probably wasn't very organized, since it is from 04'-05', and I certainly didn't make any friends by making the frame using a surface master file (which was later deleted by the Taiwanese Engineers) ;-)
