Art Therapy
qView Full Size
Sketches
qView Full Size
Main Rendering
qView Full Size
System Operation
qView Full Size
Instiu Rendering
qView Full Size

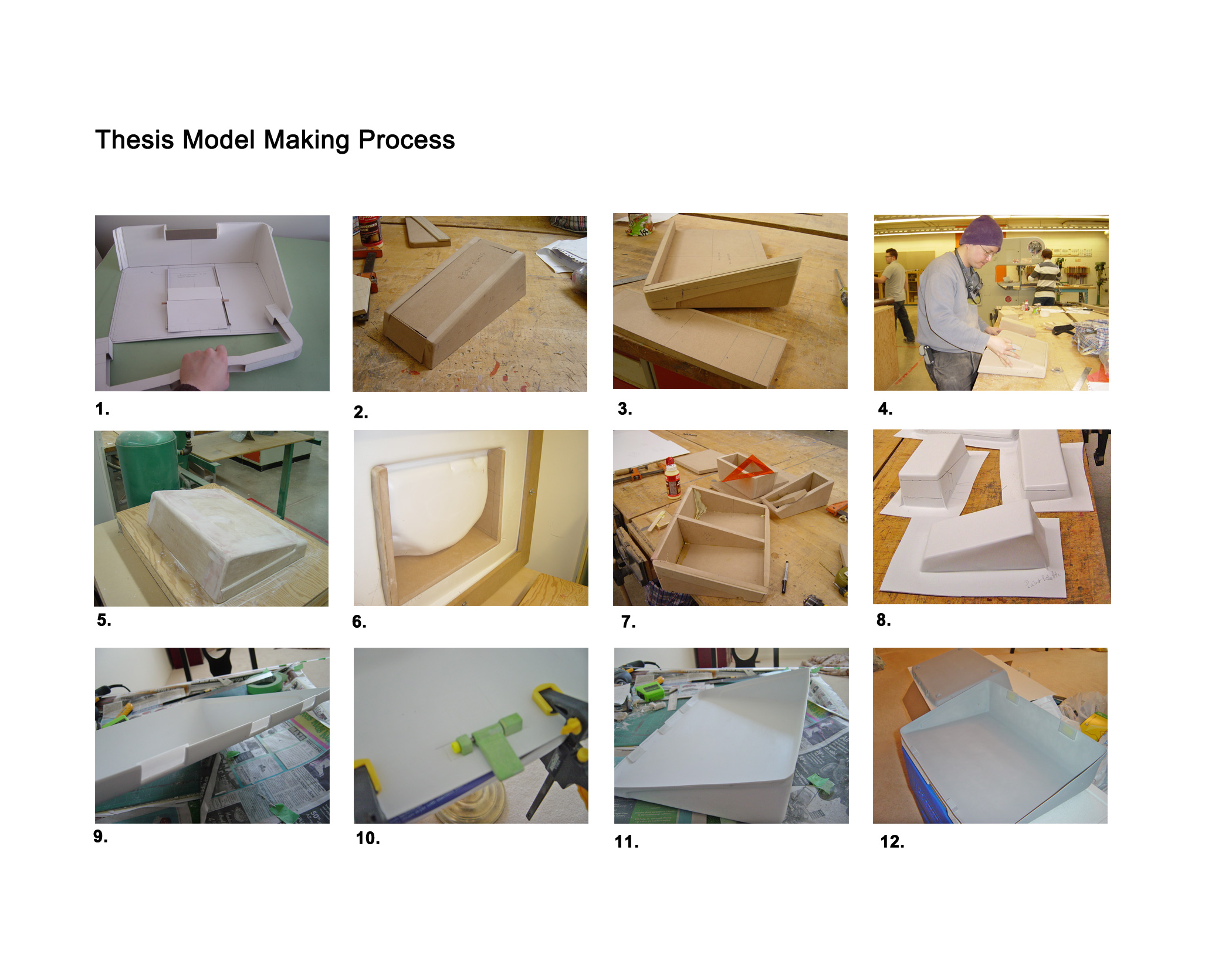

Making of Art-Improve - 1.Completed paper sketch model
2.Completed MDF buck for rinse water container
3.Assembling large buck
4.Sanding large buck of full scale model
5. It is positioned on top of vacuum pipe
6.large buck broke after thermo forming due to insecure structure
7. Reinforced with cross-section rib, countersink screws and glue
8.Large thermal formed model parts
9.Latches back thermoformed & glued onto art table
10.Slide-in hinge glued onto it
11.Art storage
12.Full scale model primed
qView Full Size
Final Model - Left to right - art table and art storage
qView Full Size
Final Model - Storage
qView Full Size
Thesis Topic Pitch Presentation
qView Full Size
Photo taken at the Rocket Show 2010.
