Caldwell Matrix
Full Size (highres_width x highres_height)
Final colorways. Colors had to remain consistent with the other products in the Caldwell lineup.
Full Size (highres_width x highres_height)
Initial theme sketches used to narrow down to final concept.
Full Size (highres_width x highres_height)
Final direction for 3D development. Additional storage and mechanical features were developed later in Solidworks.
Full Size (highres_width x highres_height)
Concepts for connecting the front and rear rest components. The parts had to slide on a track for repositioning, and the rear rest had to be removable.
Full Size (highres_width x highres_height)
Solidworks 3D modeling development, including mechanical design.
Full Size (highres_width x highres_height)

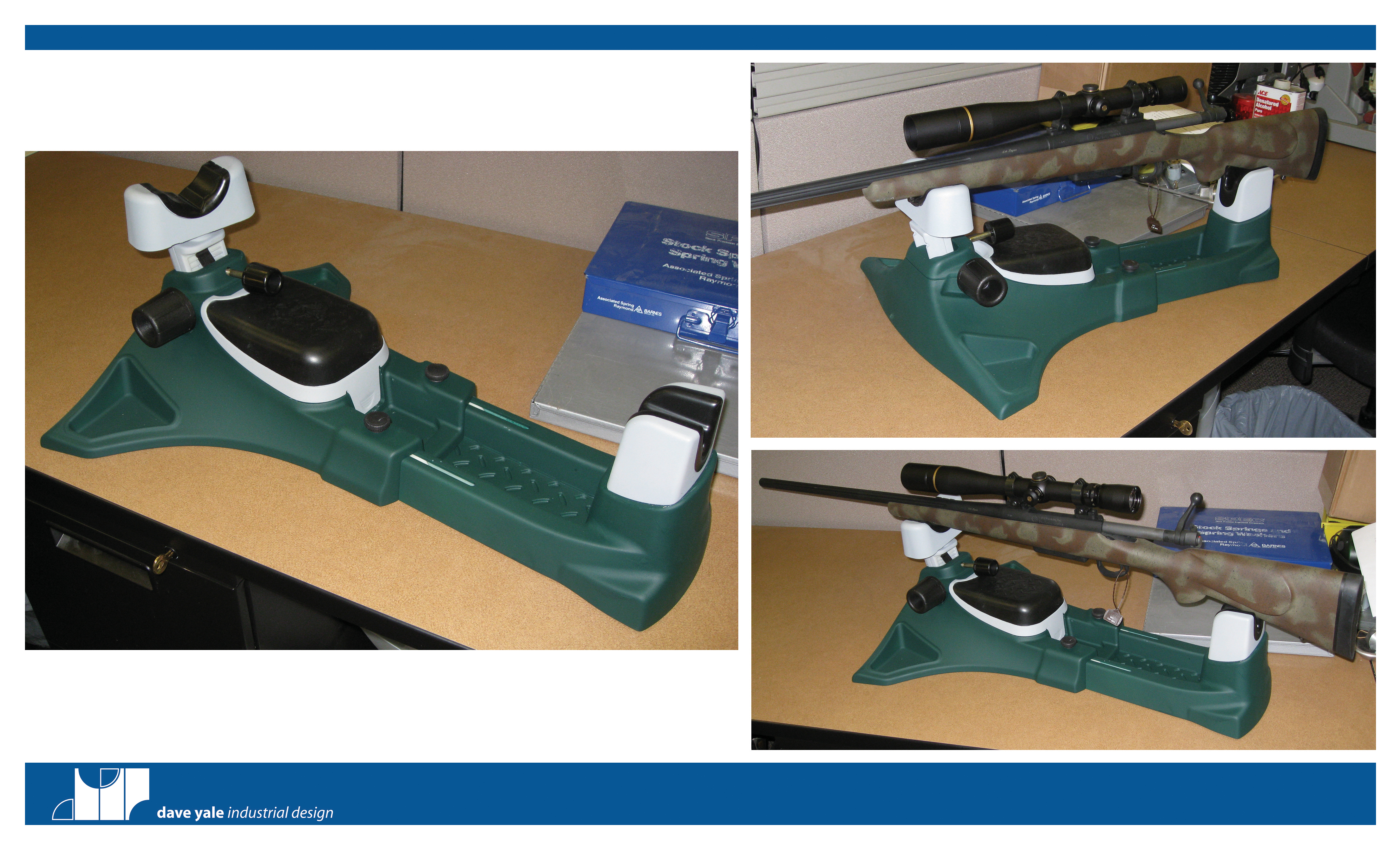

First SLA run with paint applied. Mechanical design features were tweaked after this design review.
Full Size (highres_width x highres_height)

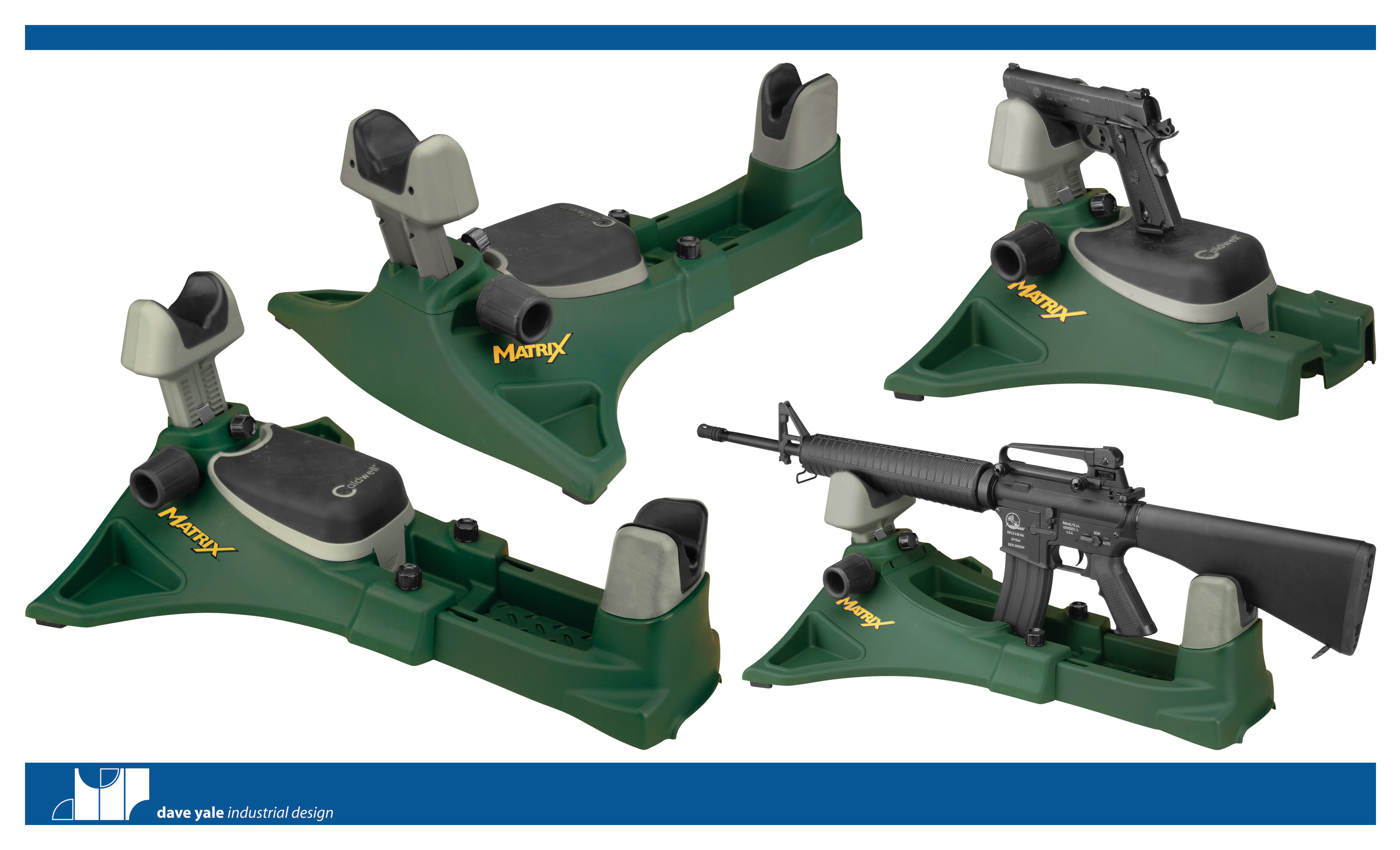

Final production product. Shown fully assembled, with rear rest removed for handgun usage, and with handgun cover removed for use with AR-15's and other rifles.
Full Size (highres_width x highres_height)
Final production model. Rear rest adjusts length on track with use of 2 thumbscrews. Height adjustment knob can be positioned on either side, accommodating left and right-handed shooters.
