qView Full Size

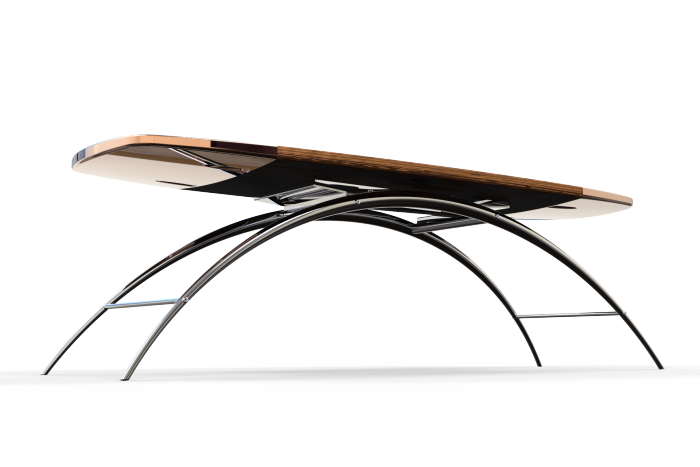

Actual prototype image of underside detail of Balance coffee table.
qView Full Size
Actual top view image of Balance prototype table.
qView Full Size
Steel legs are swaged formed first then roll bent to a specific geometrical arc.
qView Full Size

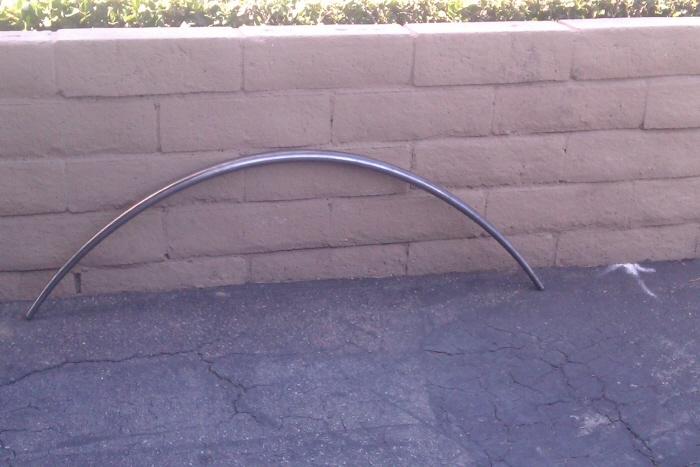

Final steel leg bent to design specifications.
qView Full Size
Finished CNC cut Zebra wood center section.
qView Full Size
Finished Zebra wood center section.
qView Full Size
Aluminum end caps copper plated.
qView Full Size

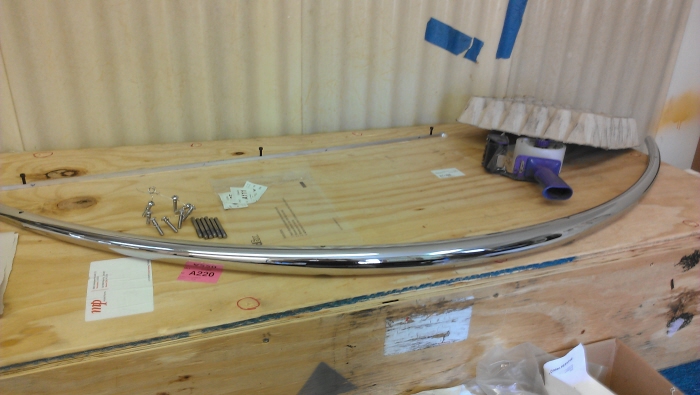

Steel legs and cross stabilizer bars are chrome plated. Aluminum mounting bracket is highly polished.
qView Full Size

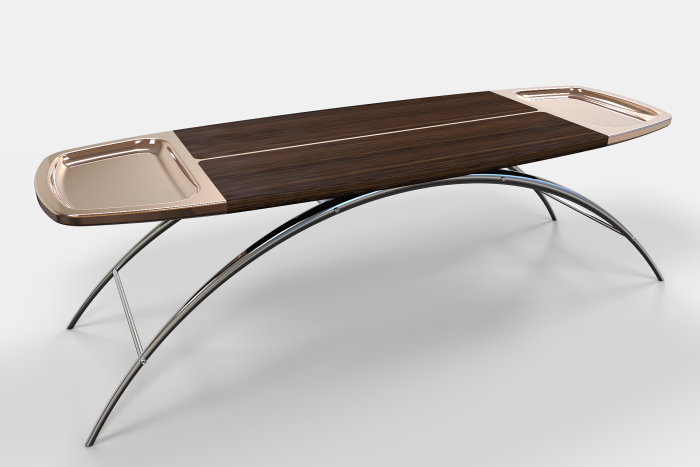

The two end parts are copper plated. They are dished out to hold items such as remote controls, magazines, keys etc. to keep main center table area clear of clutter.
qView Full Size
The two arched legs were inspired by modern suspension bridge designs. This approach keep the overall look and feel simple, not over designed.
qView Full Size
The two arched legs are swagged then pinch rolled to achieve the tapered look as the legs arch and touch the floor.
qView Full Size

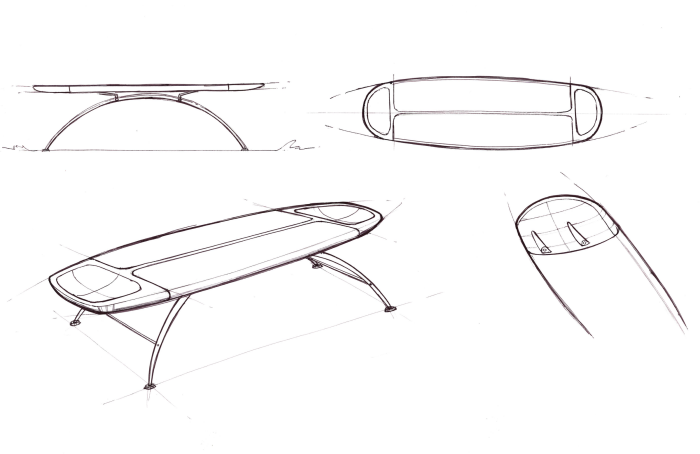

Early quick sketch of overall form and layout of the design.
qView Full Size

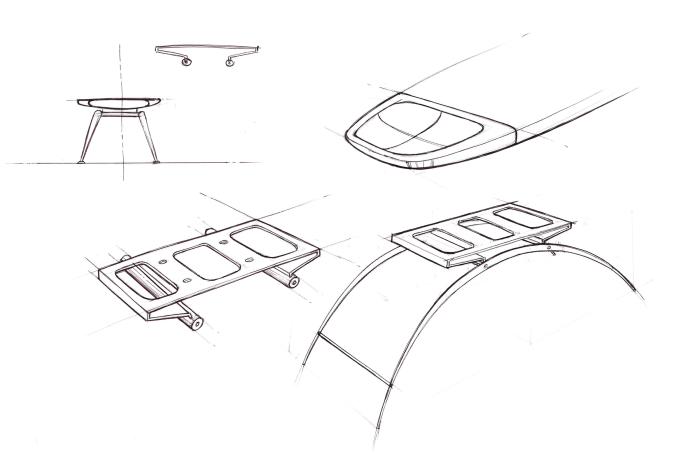

This sketch shows bracketing and angle mounting of the legs. This part of the design was important as the intent was the table top to appear floating on two curved legs.
