daniel j. lipscomb
senior industrial designer — sauk prairie, WI
Full Size (highres_width x highres_height)

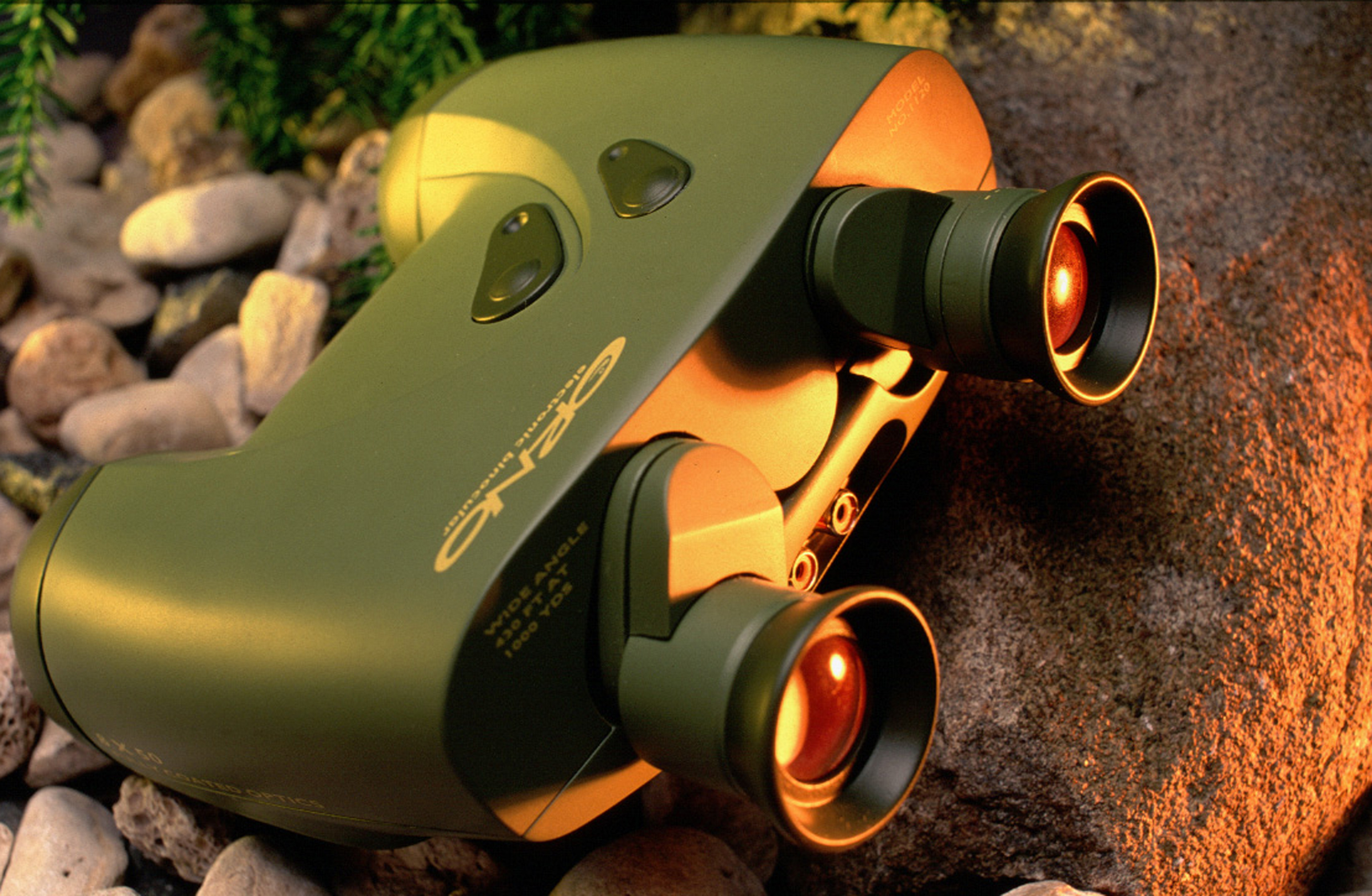

hand made renshape model - this old, senior thesis material. photo was taken with the help of a model maker i know who rocks at photography. model is still perfectly intact after 11 years!
Full Size (highres_width x highres_height)
proof of principal prototype
Full Size (highres_width x highres_height)

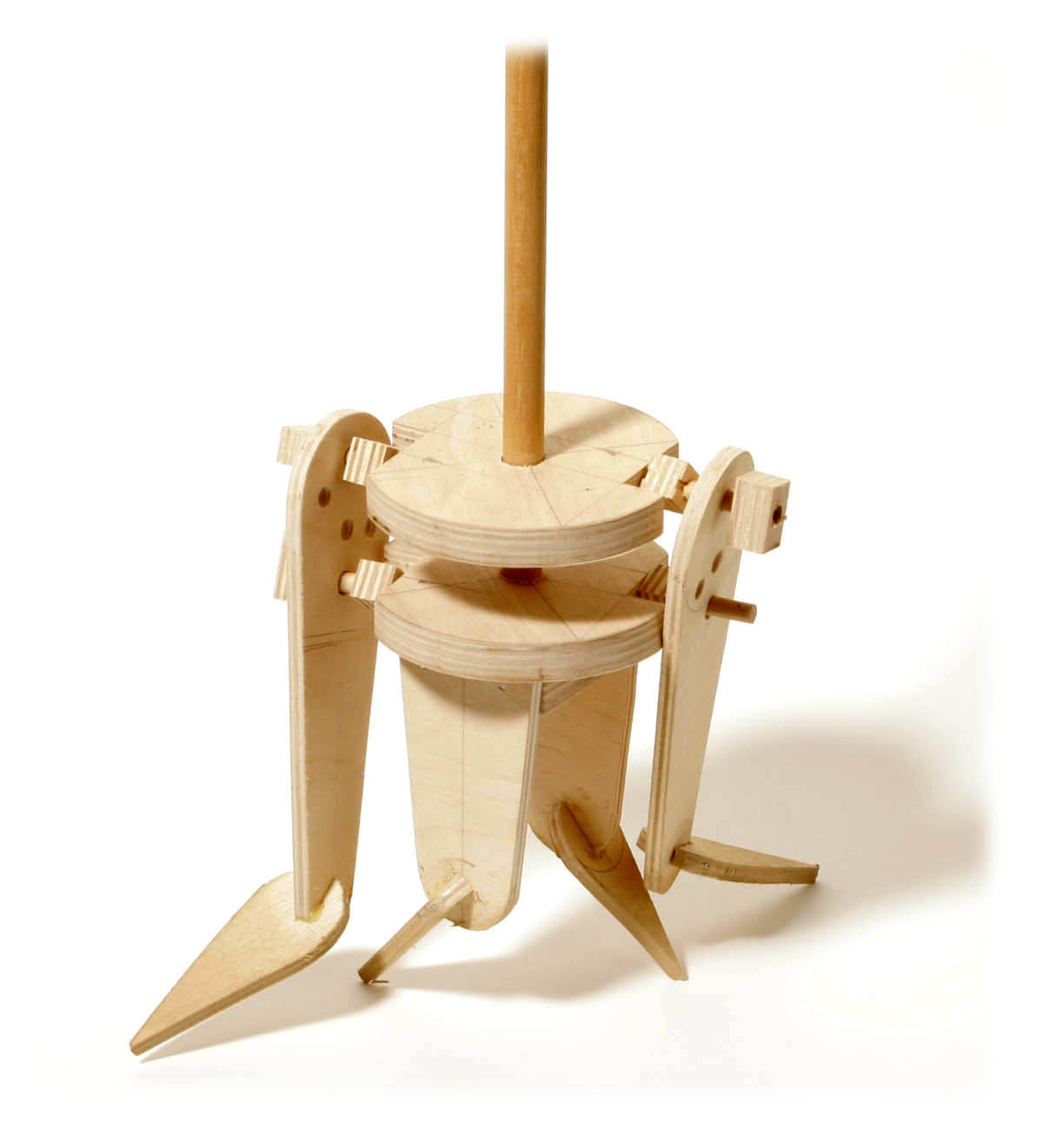

proof of principal prototype - built this one at home one night out of appleply and other mics materials. it is a cultivator with a mechanism added to increase efficiency. works well in a bucket of sand to prove concept.
Full Size (highres_width x highres_height)

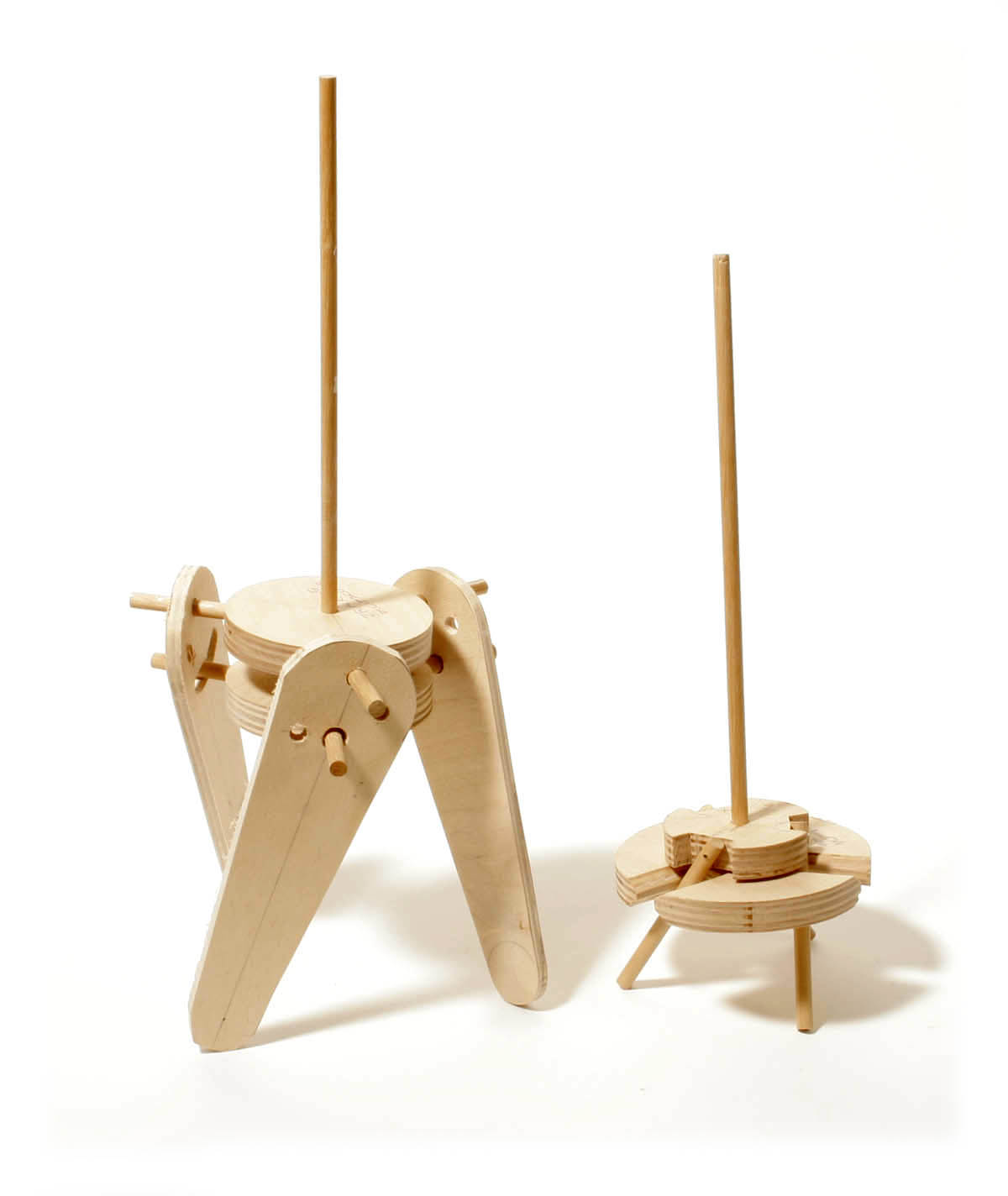

proof of principal prototype
Full Size (highres_width x highres_height)
FDM model - functional - our FDM machine can "insert mold!" or darn close too it. the machine will pause and tell you "hey, time to put the blades and hook in here jack." works sweet - efficiently!
Full Size (highres_width x highres_height)

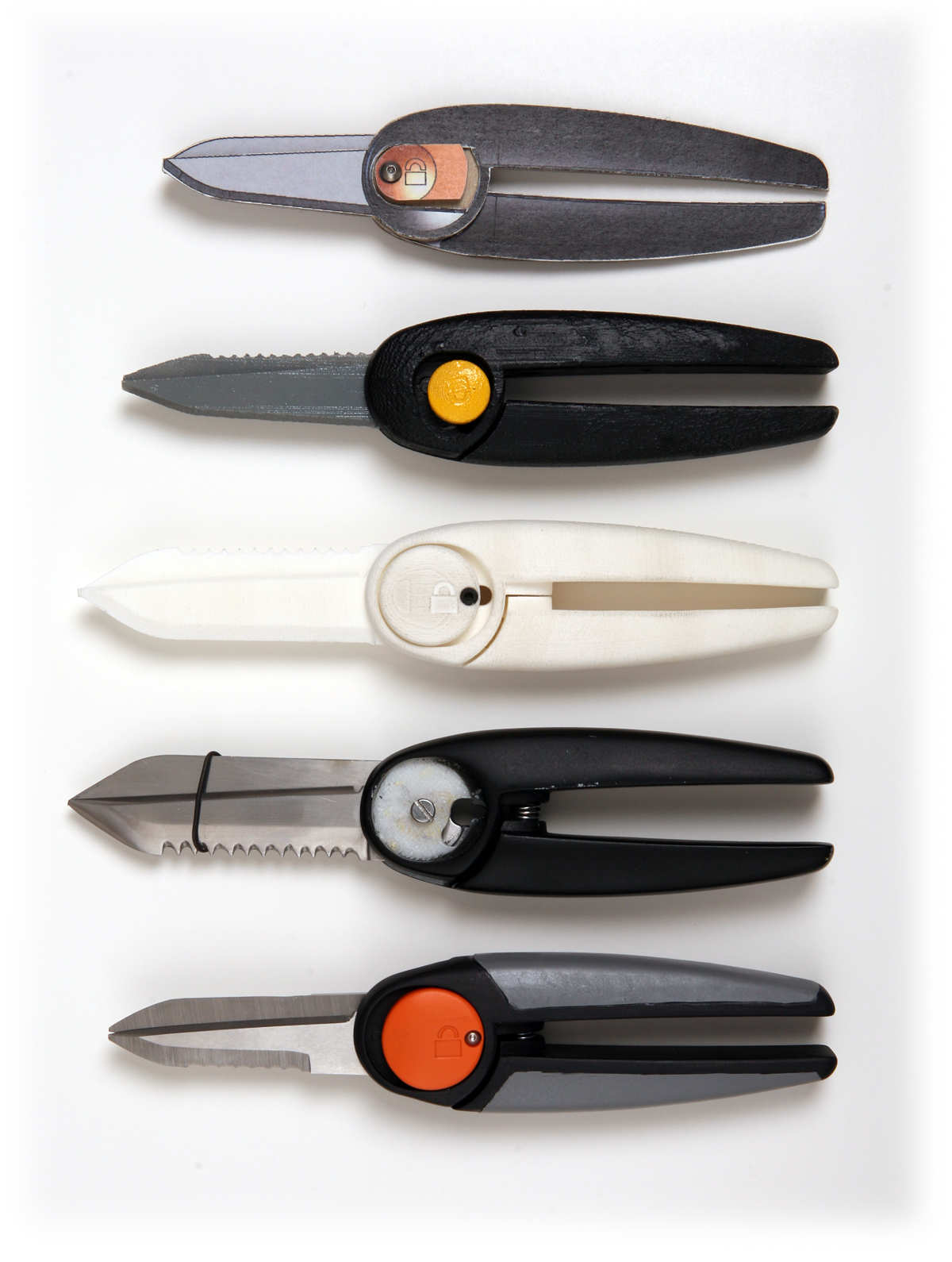

a range of prototypes - top model is cardboard with illustrator print 77'd to it to gutt check size and locking mechanism. inbetween are SLSs and the bottom 2 are castings with hand made blades.
Full Size (highres_width x highres_height)
analog and digital 3D concept development of lower price point phd - welded up prototype to demonstrate advantage of concept over existing post hole diggers. solidworks model for more prototyping/renderings.
Full Size (highres_width x highres_height)
handmade model for presentation - left in primer so color would not interfere with concept at this time.
