Jordan Guelde
Royal Oak, MI
Full Size (highres_width x highres_height)
"Clear-Cut"
Full Size (highres_width x highres_height)
Back side of physical model - Back side of robot....shows how the back arms rotate into place when not in use.
Full Size (highres_width x highres_height)
Profile shot of physical model.
Full Size (highres_width x highres_height)
Forest Fire "Clear Cut" Robot - Senior year independent study project. This futuristic robot was aimed more towards entertainment design...similar to the "Demolition-Bot" seen in the Hollywood film I-Robot. It is designed to cut very large "clear-cut" paths around a forest fire to prevent the flames from spreading. The physical model consists of nearly 600 individual parts and took 6 long months to complete.
Full Size (highres_width x highres_height)
A small fraction of some of the finished parts.
Full Size (highres_width x highres_height)
Hydrolic hands shown in multiple positions. - Senior year independent study project. This futuristic robot was aimed more towards entertainment design...similar to the "Demolition-Bot" seen in the Hollywood film I-Robot. It is designed to cut very large "clear-cut" paths around a forest fire to prevent the flames from spreading. The physical model consists of nearly 600 individual parts and took 6 long months to complete.
Full Size (highres_width x highres_height)
Worn feet with hubless motors set into place.
Full Size (highres_width x highres_height)

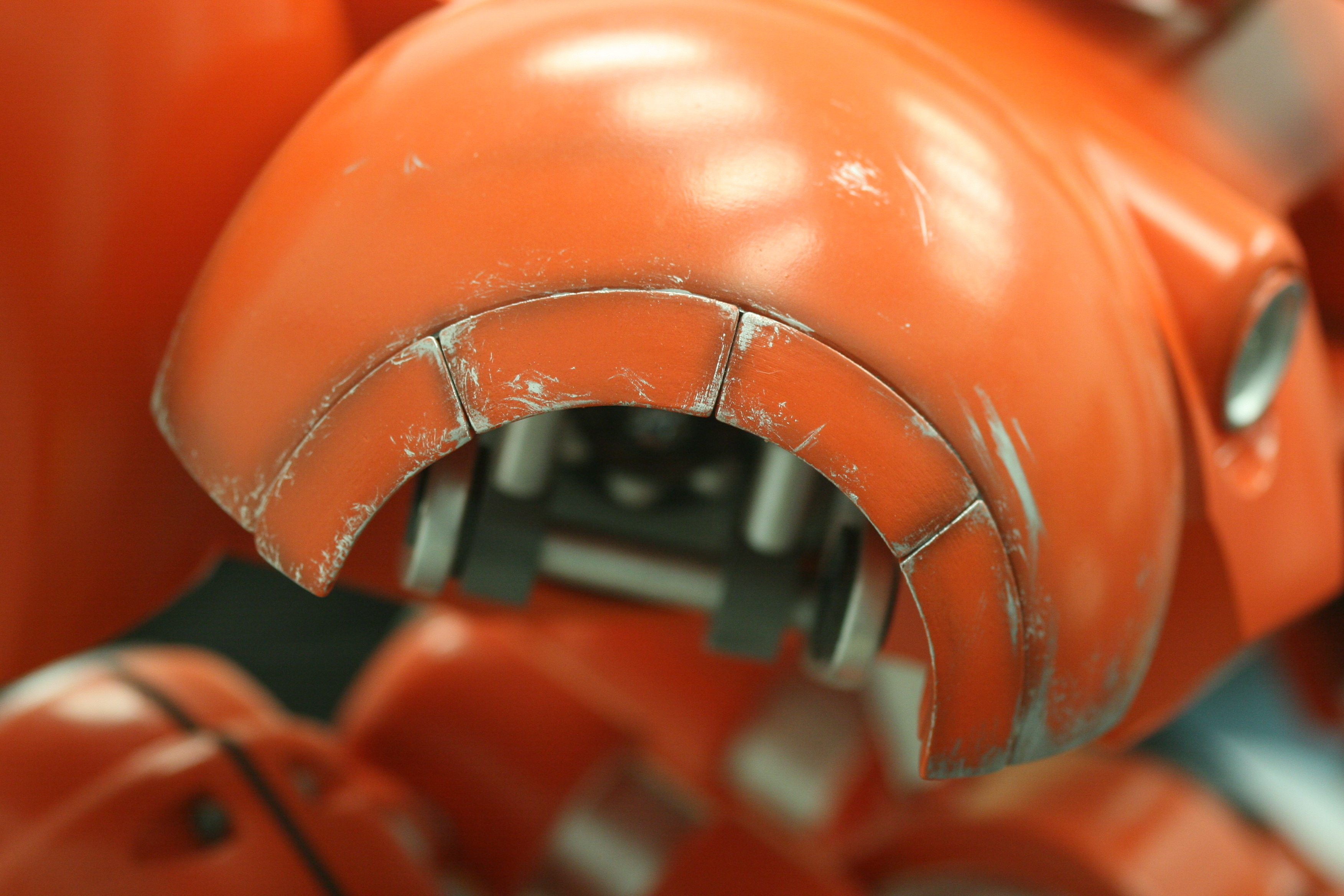

Every part was hand painted and airbrushed to give the model a "worn" appearance.
Full Size (highres_width x highres_height)
Some of the interior leg components. - Senior year independent study project. This futuristic robot was aimed more towards entertainment design...similar to the "Demolition-Bot" seen in the Hollywood film I-Robot. It is designed to cut very large "clear-cut" paths around a forest fire to prevent the flames from spreading. The physical model consists of nearly 600 individual parts and took 6 long months to complete.
Full Size (highres_width x highres_height)
Fuel delivery system. - Senior year independent study project. This futuristic robot was aimed more towards entertainment design...similar to the "Demolition-Bot" seen in the Hollywood film I-Robot. It is designed to cut very large "clear-cut" paths around a forest fire to prevent the flames from spreading. The physical model consists of nearly 600 individual parts and took 6 long months to complete.
Full Size (highres_width x highres_height)
Working electronic lights built in. Scale human figure shows how large the robot would actually be.
Full Size (highres_width x highres_height)
Back arms rotate behind the body when not in use.
Full Size (highres_width x highres_height)
Steel frames were welded to run up through the legs in order to support the weight of the model.
Full Size (highres_width x highres_height)

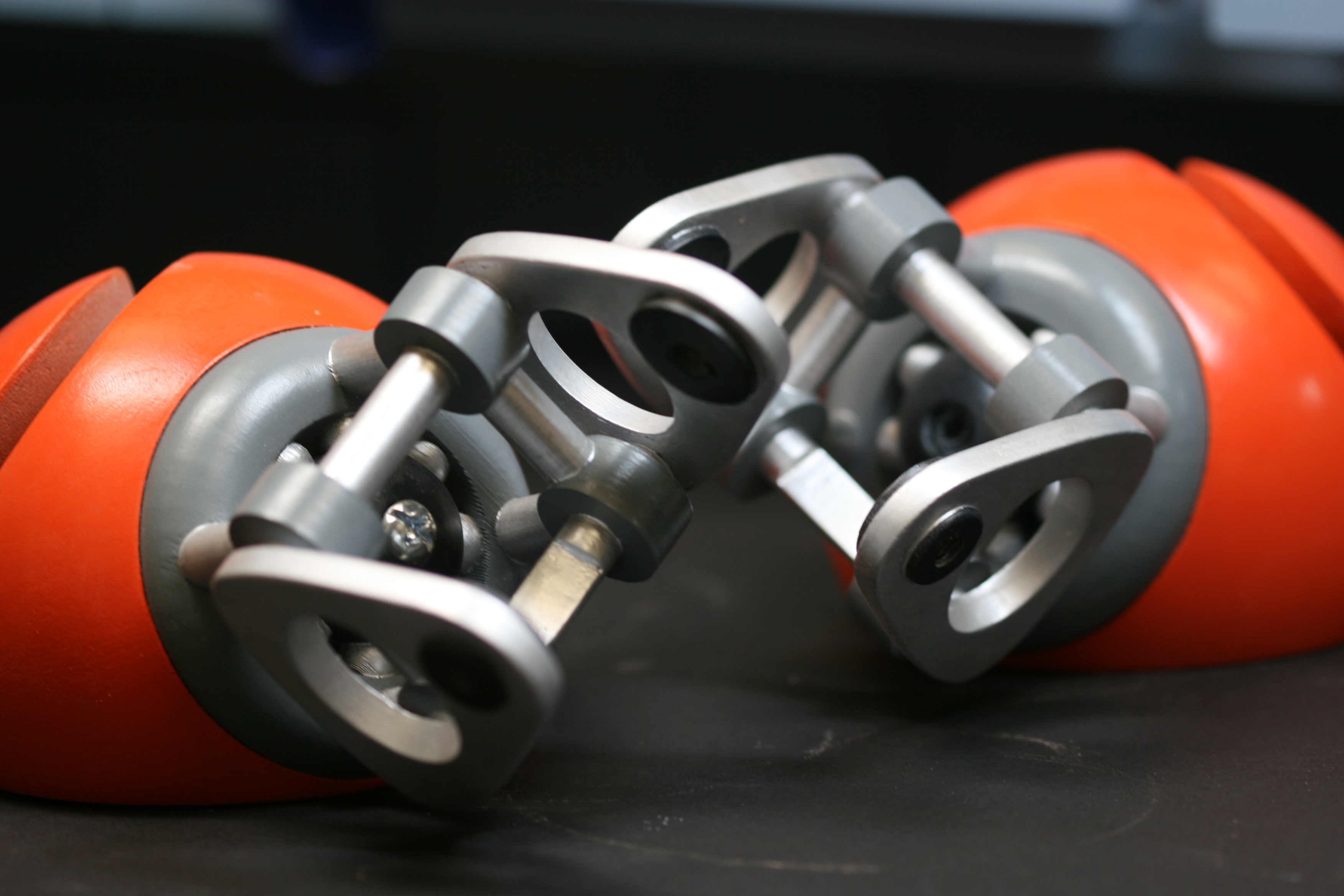

Rotating back shoulder brackets
Full Size (highres_width x highres_height)

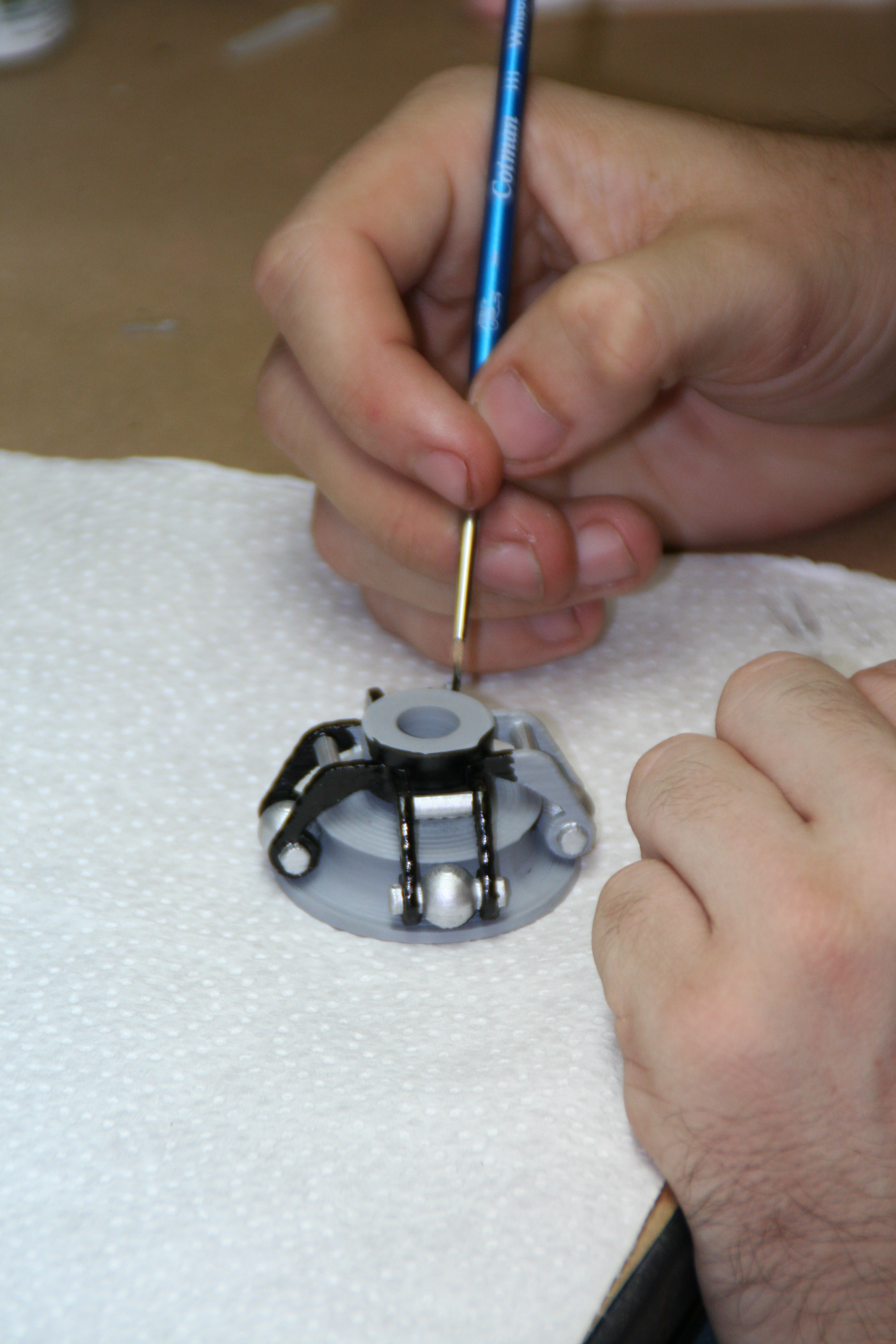

Parts were meticulously hand painted and detailed.
