Jon Pabst
Senior Industrial Designer — Anderson, SC
Quantum Energy PT Baitcast Reel - Redesign of the flagship reel of the Quantum brand.
Full Size (highres_width x highres_height)

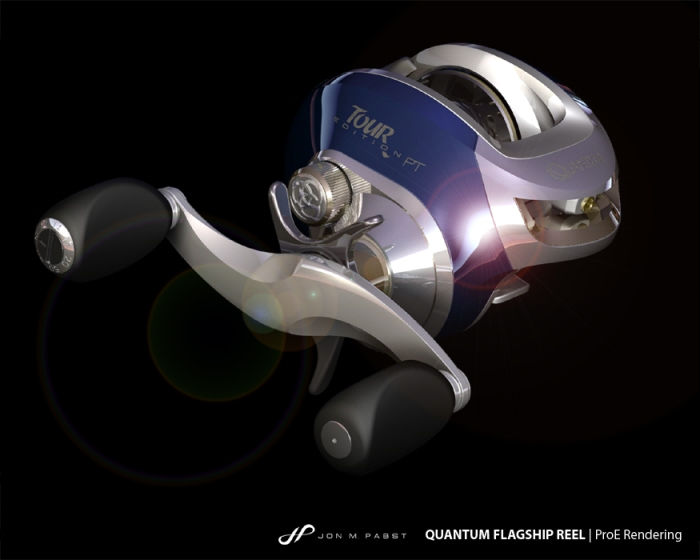

Tour Editiion Palm-side Presentation - Photorealistic ProE Rendering | Palm presentation showing the cast control dial and badge of flagship reel for pre-production validation. (See the following link: http://www.tackletour.com/reviewquant06ptburner.html)
Tour Edition Baitcast Reel - Photorealistic ProE Rendering | Gear side presentation of flagship reel for pre-production validation. (See the following link: http://www.tackletour.com/reviewquant06ptburner.html)
Full Size (highres_width x highres_height)
Line Memo Knob Cap
Full Size (highres_width x highres_height)

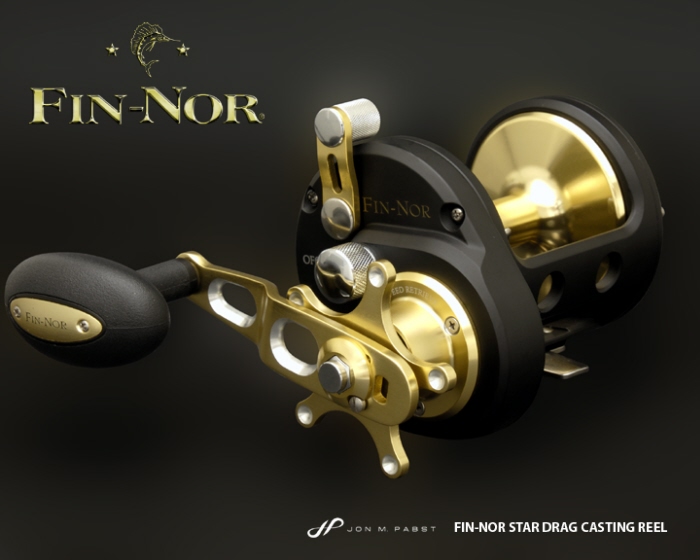

Fin-Nor Star Drag Casting Reel - Big water/Salt water casting reel for the rugged, traditional Fin-Nor brand. Provided all aesthetic design and cosmetic direction.
Full Size (highres_width x highres_height)

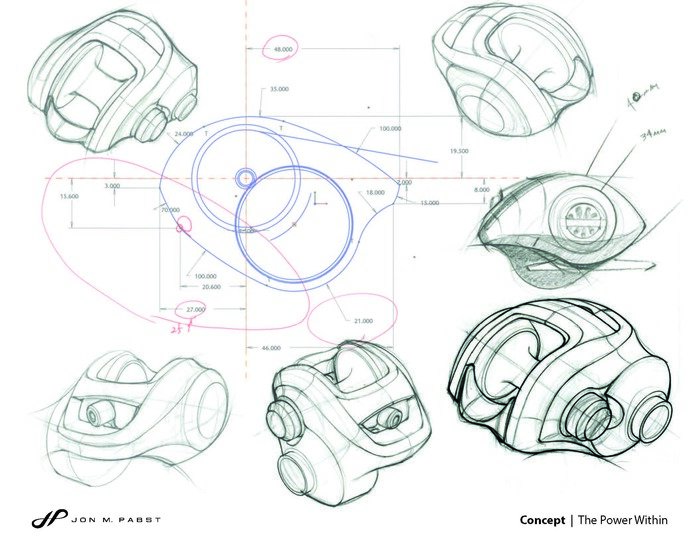

Quantum Baitcast Reel_Early Sketches - Pencil and marker sketches of early concept exploration of light-weight, compact forms
Full Size (highres_width x highres_height)

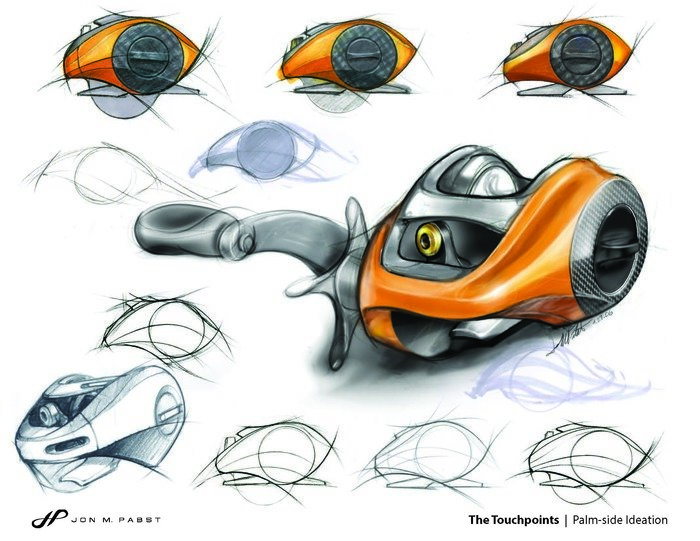

Quantum Baitcast Reel_Early Sketches - Pencil and marker sketches of profile views
Full Size (highres_width x highres_height)
Quantum Baitcast Reel_Detail Sketches - Pencil sketches of handle details, working out materials and construction methods for new light-weight handle
Full Size (highres_width x highres_height)
Quantum PT Baitcast Reels_Freshwater Product Line - Final Product Line. Images from www.quantumfishing.com
Full Size (highres_width x highres_height)

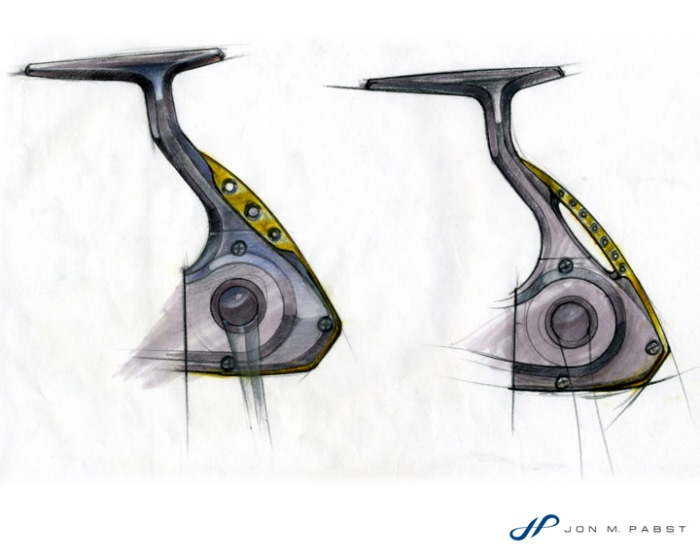

Quantum Metal Spinning_Concept Sketches - Pencil and marker sketches of new metal spinning concept centered around a metal blade spine
Full Size (highres_width x highres_height)
Quantum Metal Spinning_Detail Sketches - Pencil Sketches of "blade" detail
Full Size (highres_width x highres_height)
Quantum Metal Spinning_Detail Sketches - Detail exploration/refinements
Full Size (highres_width x highres_height)
Quantum Metal Spinning_Final Product Line - Final Product Line photos taken from www.quantumfishing.com
Full Size (highres_width x highres_height)
Quantum Saltwater Casting Reel - Photo realistic rendering montage done with ProE and laid out in Photoshop
Full Size (highres_width x highres_height)
Fin-Nor Casting Product Line - Images from www.finnorfishing.com
