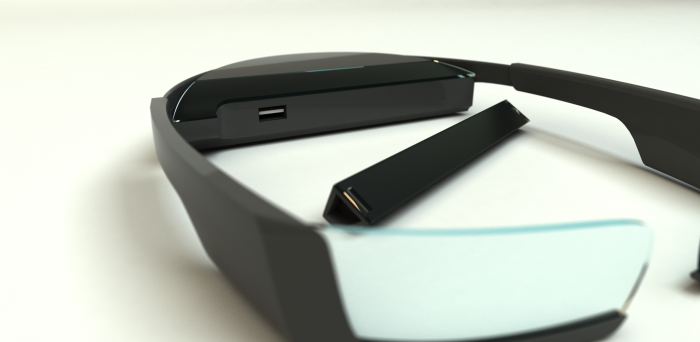

Line of Site - Utilizes three technologies; gyromotion, infrared motion sensors, and helios display to allow the user to see images and drawings in midair. Data can be uploaded and stored on the internet and seen by other users.
H Favorite

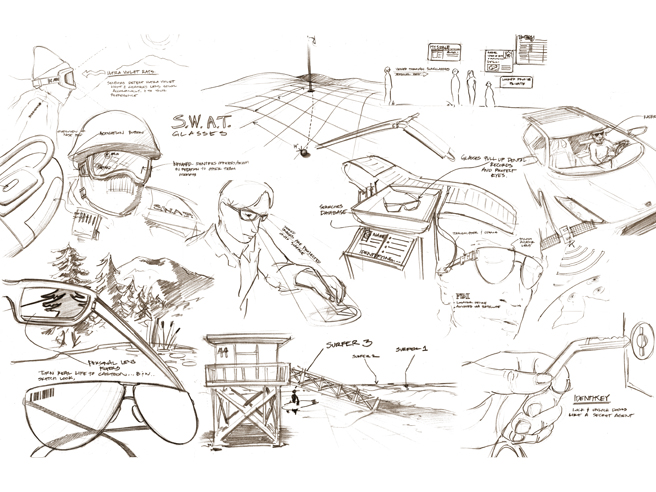

Initial Concept Sketches - A plethora of concepts put onto paper
H Favorite

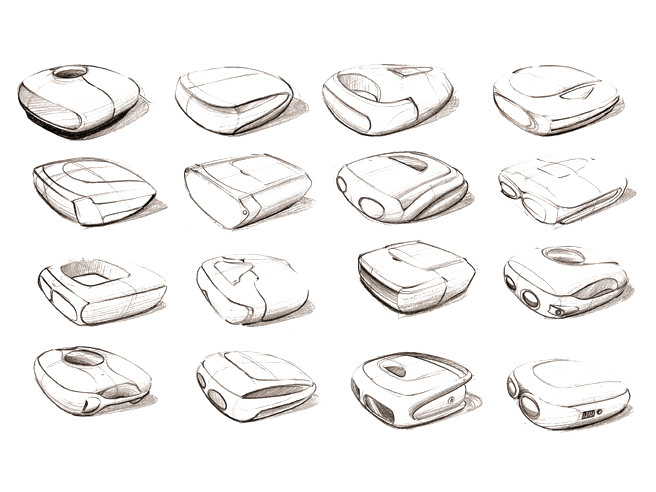

More concept drawings based around one idea. - a bit of refinement towards a more console based direction
H Favorite

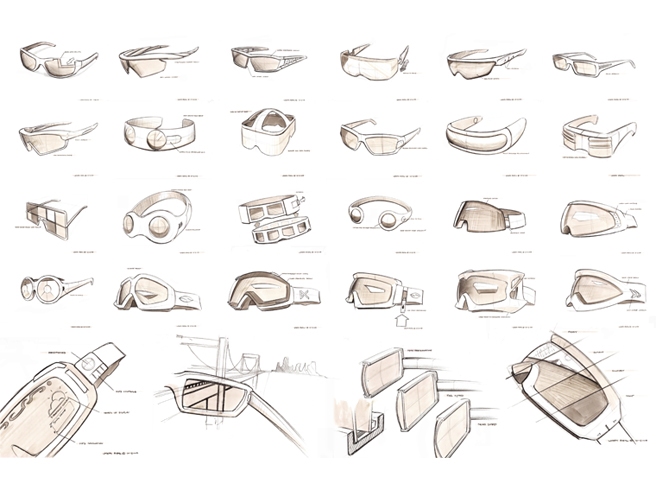

Concept drawings slightly refined - still deciding which technology to utilizing, and exploring different forms.
H Favorite

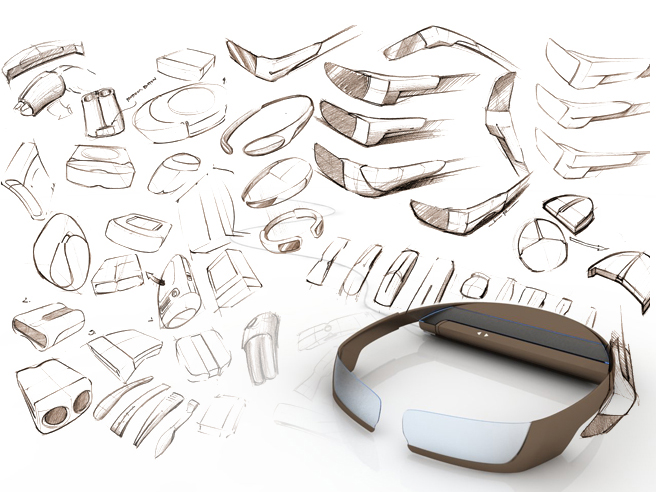

Line of Site - more exploration towards the final design language.
H Favorite

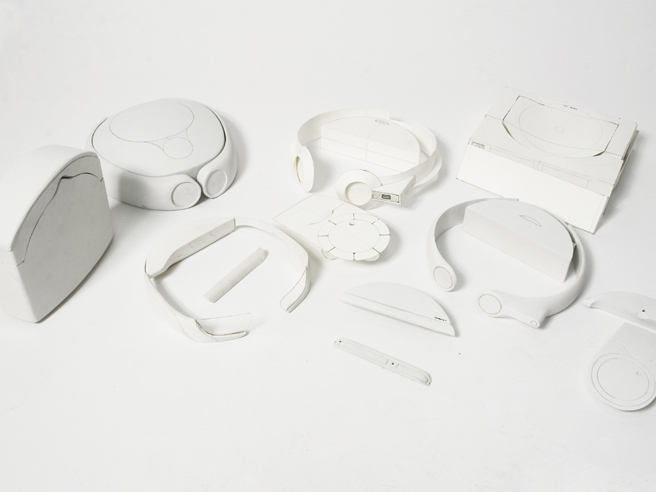

The evolution - foam and paper models
H Favorite
FDM (rapid prototype) - had an FDM prototype made first to make sure dimensions were appropriate before going to aluminum.
H Favorite qView Full Size

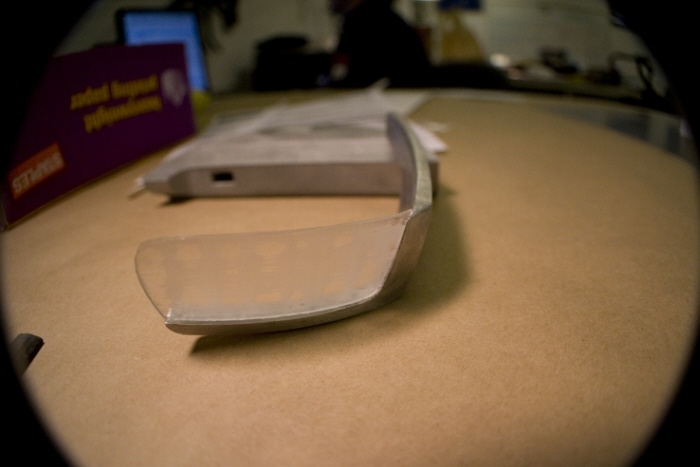

Aluminum Casting - First, SLA parts were printed (not shown) which were burned out in the aluminum casting (results shown here). The clear plastic piece is also a type of SLA that prints clear, and can be sanded and buffed to fully clear.
H Favorite

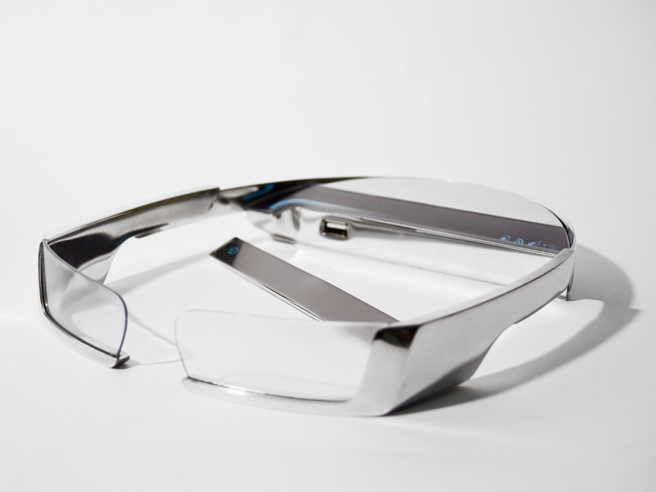

Final Aluminum Model - Finished aluminum model
H Favorite

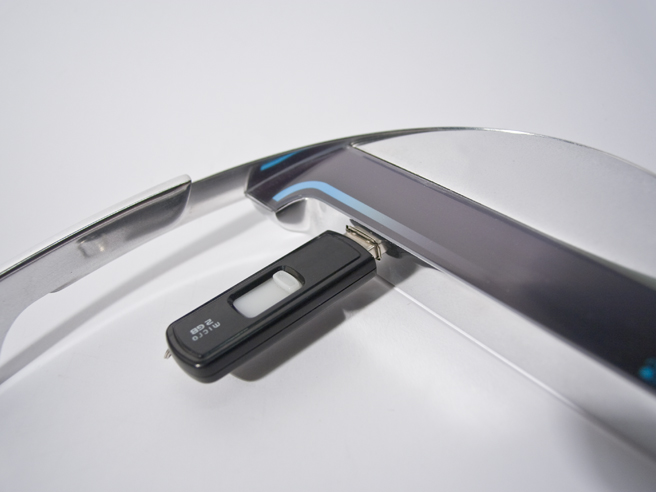

USB - The USB allows the user to upload software to the device.
H Favorite

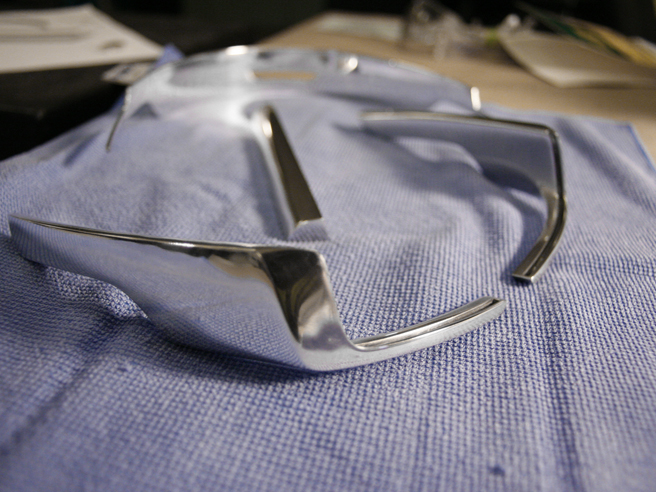

Shining Up - buffed aluminum pieces
H Favorite qView Full Size

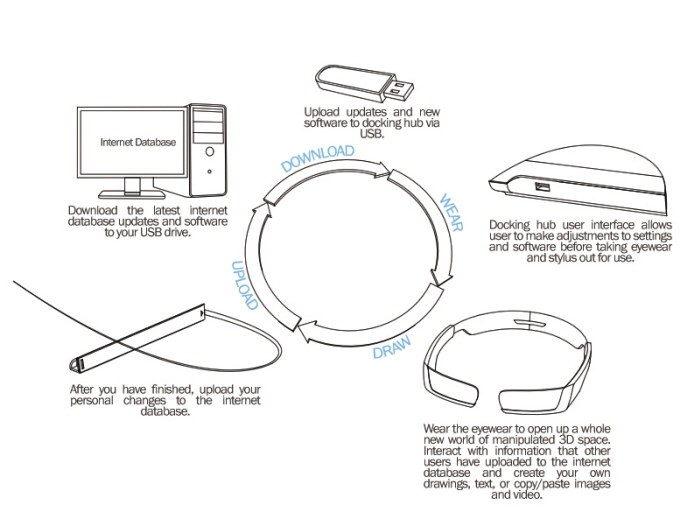

User Experience explanation
