Modular RV Interior - Working with the VRI (Vehicle research Institute) here at Western, my teammates and I proposed this modular RV as a means of creating a more eco-friendly, aerodynamic Recreational Vehicle.
qView Full Size
Modular RV - sweet dish rack that drains directly into the sink below. Stove located beneath sliding cutting board.
Bathroom Render - the handicap accessible bathroom module.

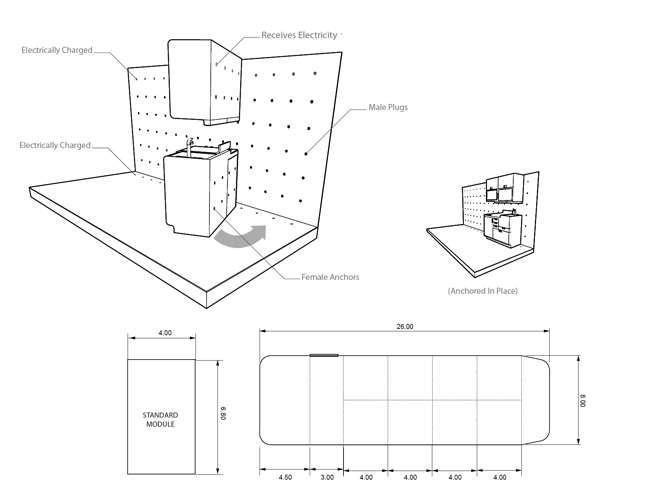

Modular Grid and attachment method - Illustration shows the modular grid layout and attachment method.
"Entertainment" Module - Just one possibility for the "entertainment module" Who doesn't need a record player when their on the road?!
Bunkbed Module - Left: upright position, acts as a white board for children.
Right: sleeping position with TV's for the kids.
Exterior - The exterior of the vehicle reflects the "modularity" of the interior quite nicely.
Modularity concepts - brainstorming through drawings on modularity.
Exterior concepts - Exterior concepts - ended up going for something a little more conservative however.
concept rendering - An initial concept for the exterior of the vehicle during phase 1 of the project
Interior Render - BIG TV.. and cool kitchen floormat
