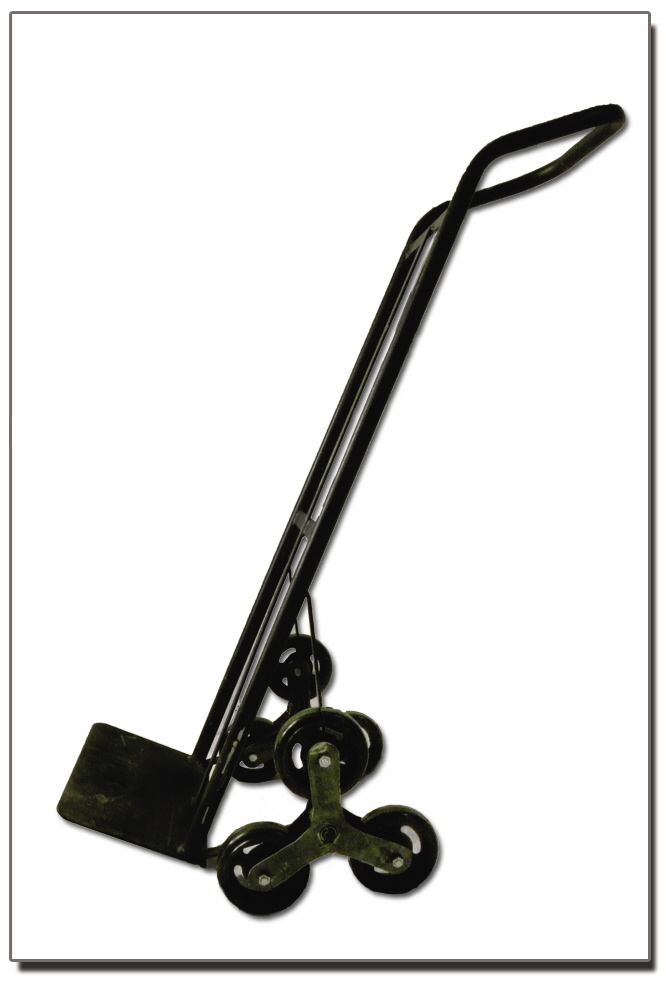

This is my stair climbing hand truck prototype. I used 16 gauge steel for the wheel assembly, which proved strong enough for most loads but were starting to bend under 200lb loads. Next prototype will have the metal stamped for added rigidity.
H Favorite
Close up view of the stair climbing hand truck
H Favorite qView Full Size

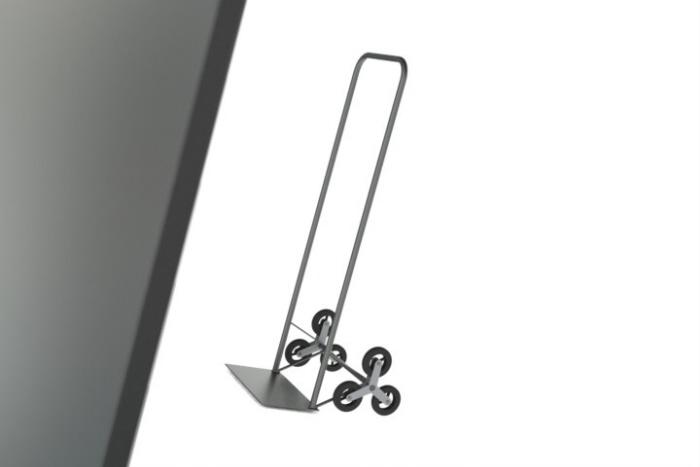

SolidWorks modeled version of the stair climbing hand truck
H Favorite

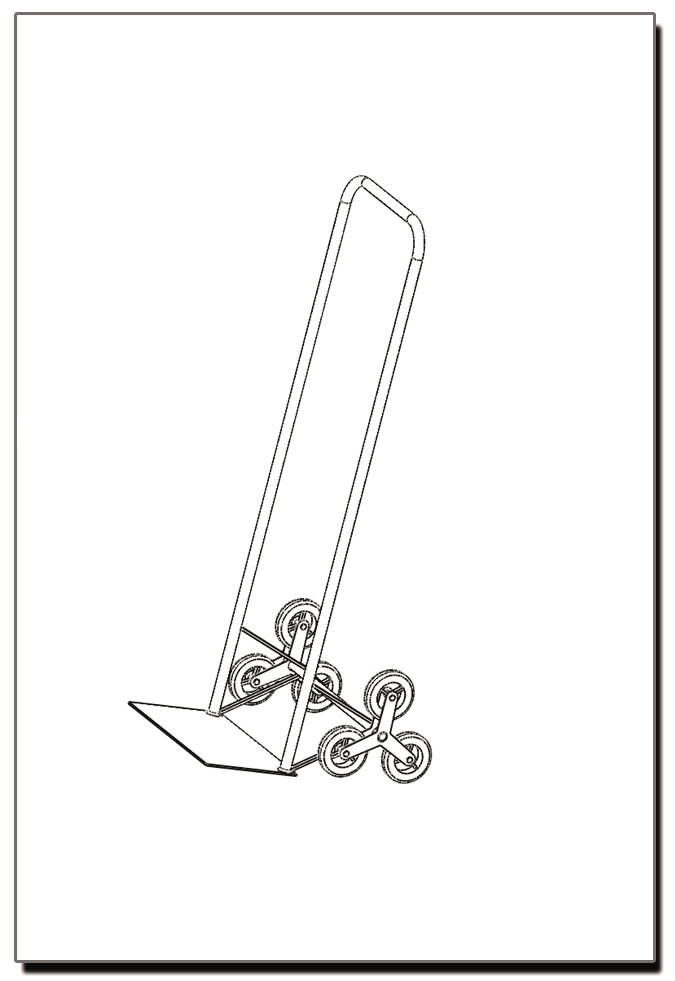

This is the stair climbing hand truck shown in drafting lines
