T-BOX

Full Size (highres_width x highres_height)

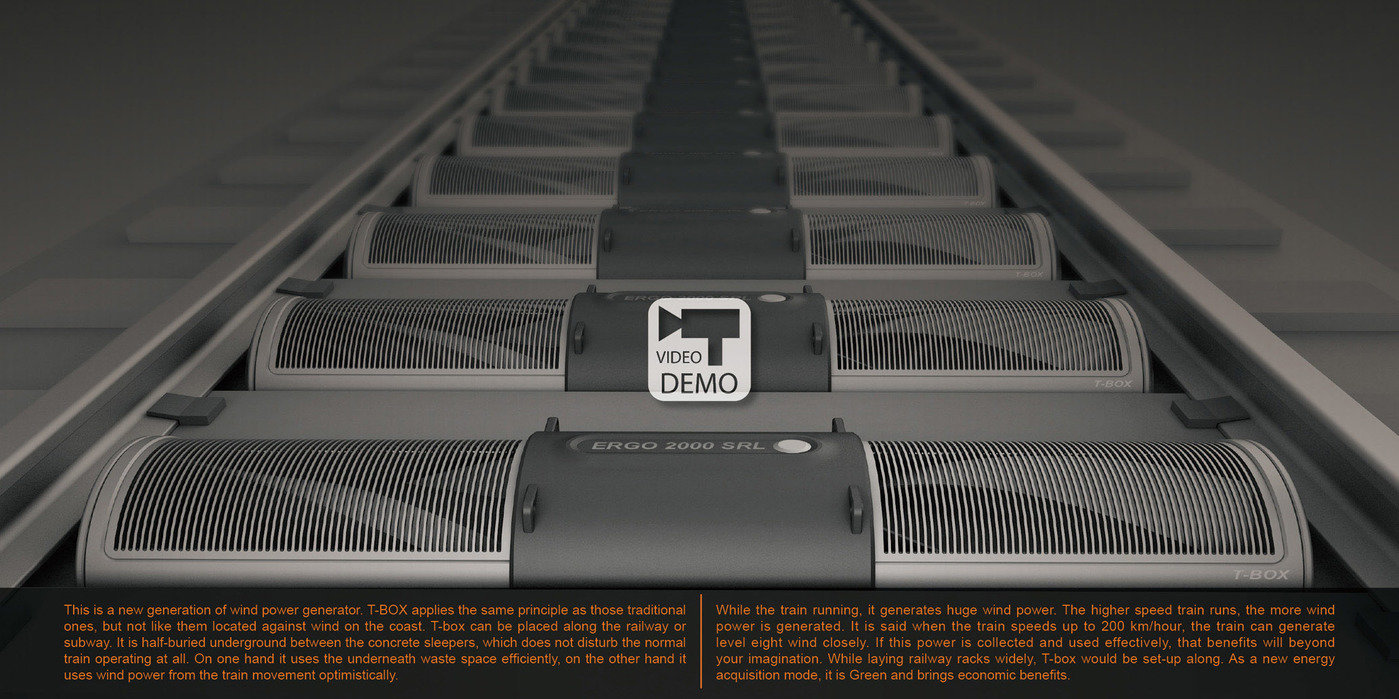

This is a new generation of wind power generator. T-BOX applies the same principle as those traditional ones, but not like them located against wind on the coast. T-box can be placed along the railway or subway. It is half-buried underground between the concrete sleepers, which does not disturb the normal train operating at all. On one hand it uses the underneath waste space efficiently, on the other hand it uses wind power from the train movement optimistically.
Full Size (highres_width x highres_height)
Cooperated with Ale Leonetti Luparini, Ergo2000 SRL, Italy video presentation: http://vimeo.com/14100157 or see below

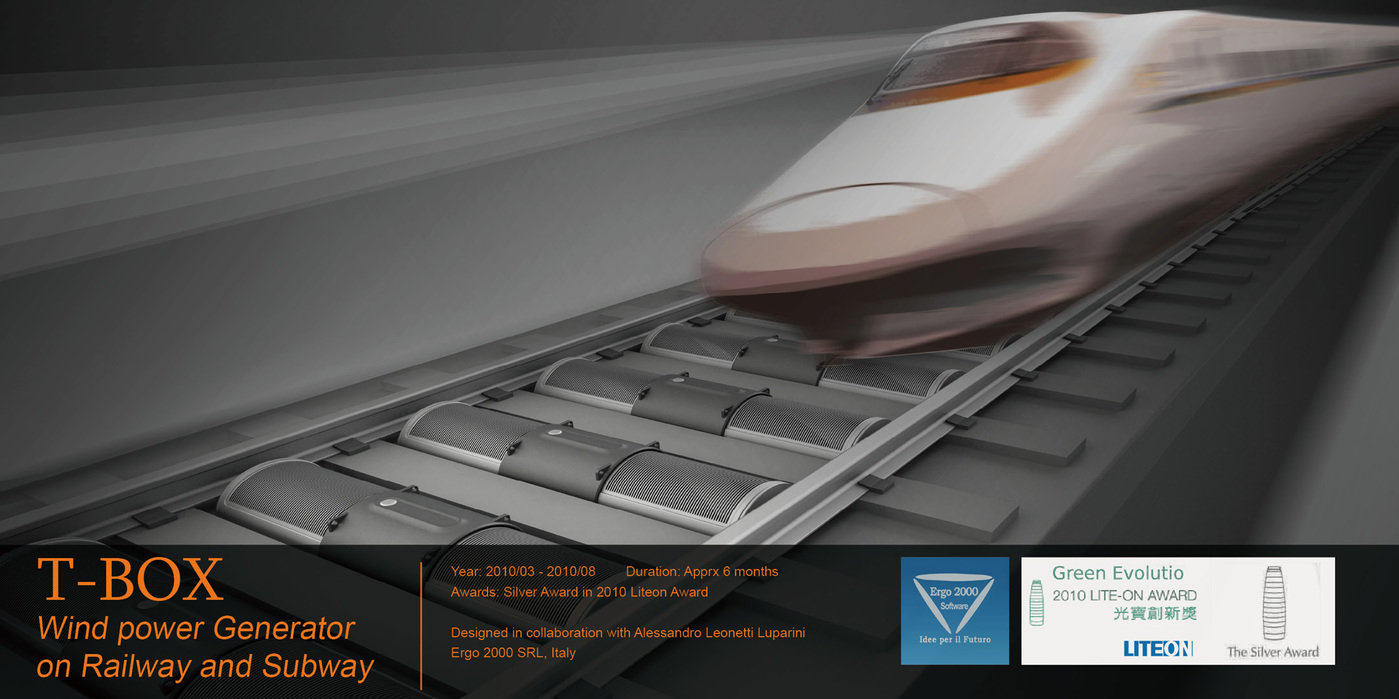

Wind power generator on railway and subway.
Full Size (highres_width x highres_height)
storytelling of the project background
Full Size (highres_width x highres_height)
While the train running, it generates huge wind power. The higher speed train runs, the more wind power is generated. It is said when the train speeds up to 200 km/hour, the train can generate level eight wind closely. If this power is collected and used effectively, that benefits will beyond your imagination. While laying railway racks widely, T-box would be set-up along. As a new energy acquisition mode, it is Green and brings economic benefits.
Full Size (highres_width x highres_height)
form giving and concept selecting
Full Size (highres_width x highres_height)
the processing to the final mockup and animation demo
Full Size (highres_width x highres_height)

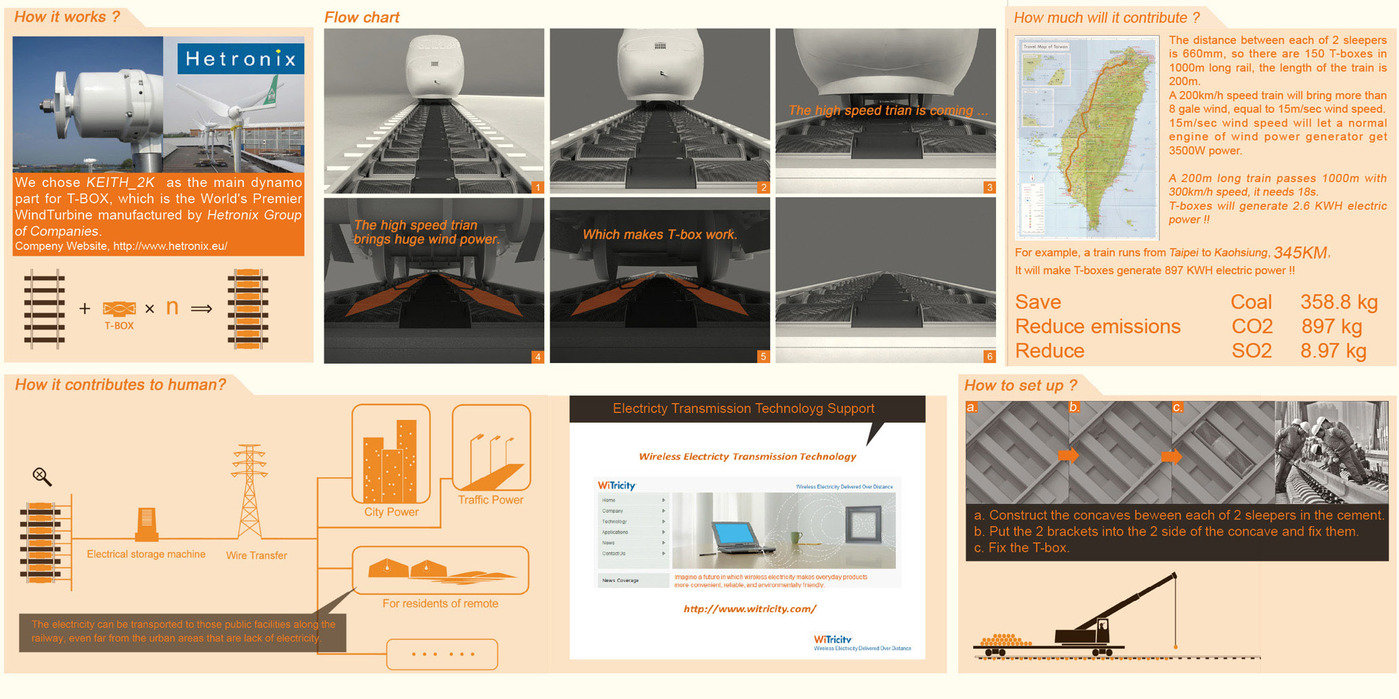

how T-box works ?
Full Size (highres_width x highres_height)
It exhibited in Xuexue Institute, Taipei, in 2010 summer, and won Silver Award in 2010 Liteon Award

http://www.liteonaward.com/en/about_4.aspx
Full Size (highres_width x highres_height)

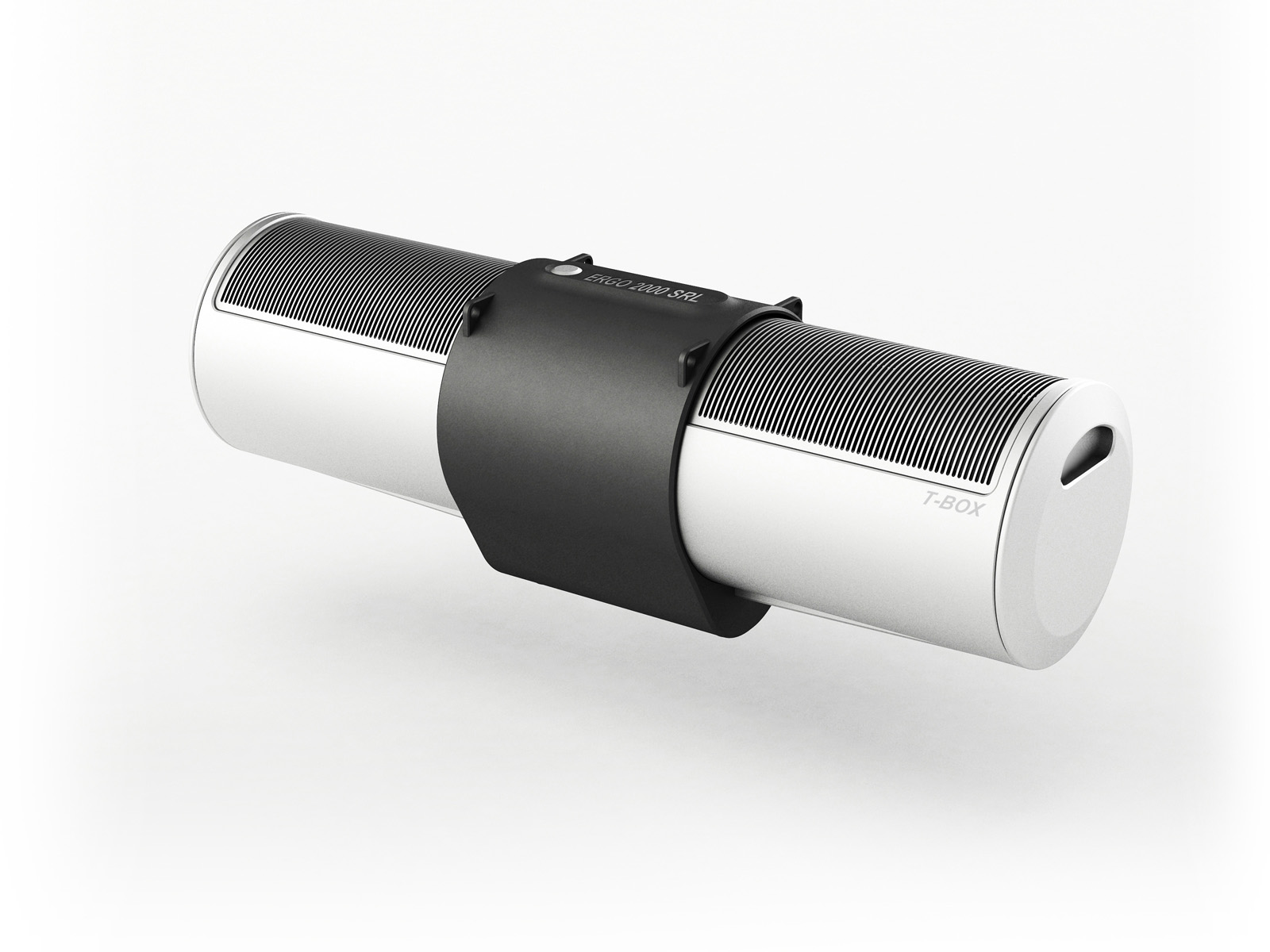

final rendering

find more details here,
http://www.yankodesign.com/2011/03/22/power-to-the-fast-tracks/

if you have any question or interesting, just feel free to contact me via jiangqianjqjq@gmail.com
