Process

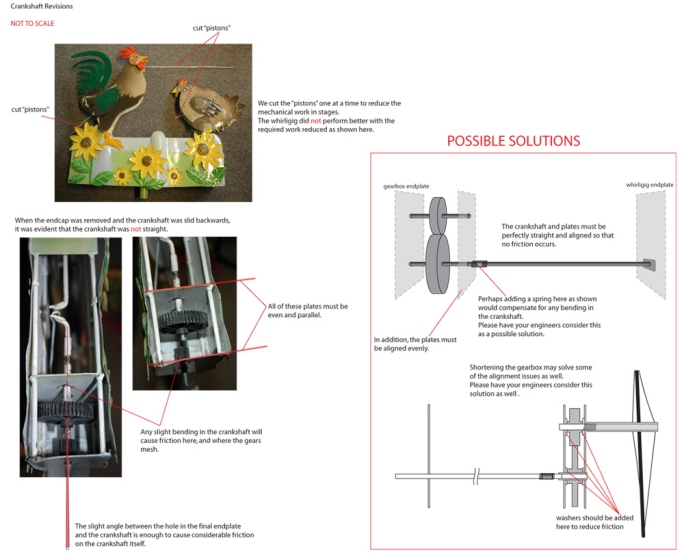

Design/Construction revisions for Whirligig project

Full Size (highres_width x highres_height)

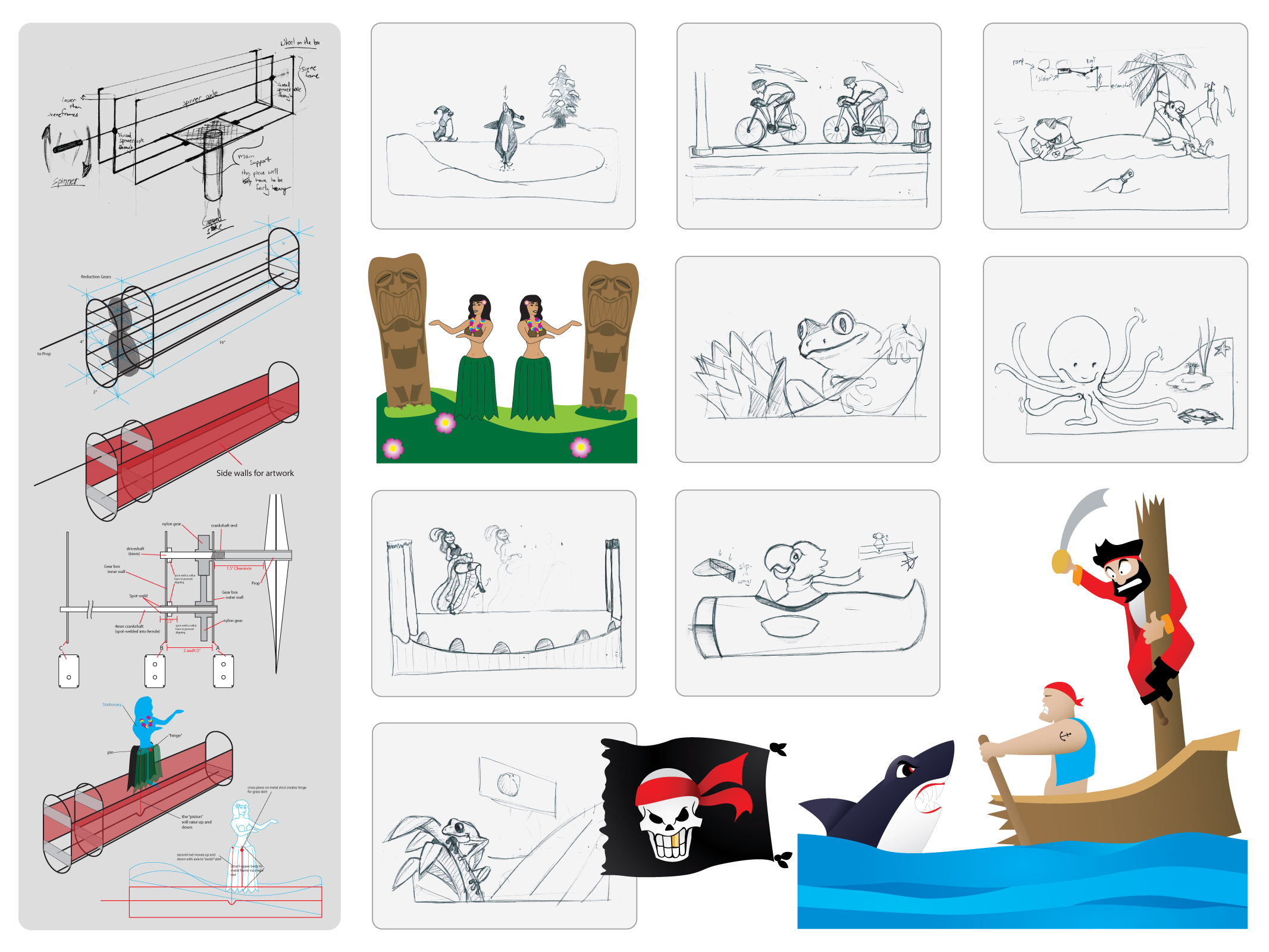

Concept Sketches
Full Size (highres_width x highres_height)
Initial mechanism design proposal
Full Size (highres_width x highres_height)

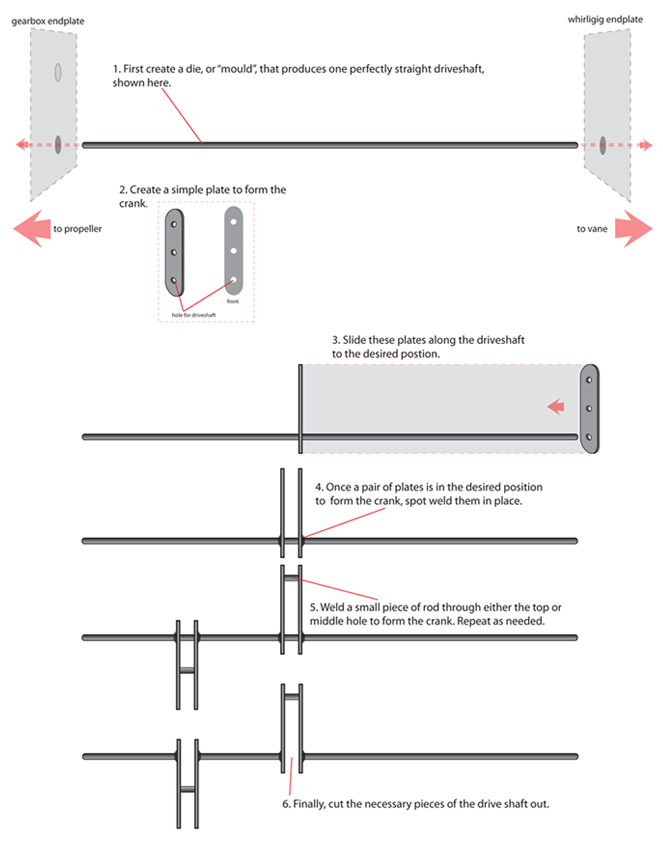

5th set of design revisions.
New manufacturing process to make construction quicker and more uniform.
Full Size (highres_width x highres_height)

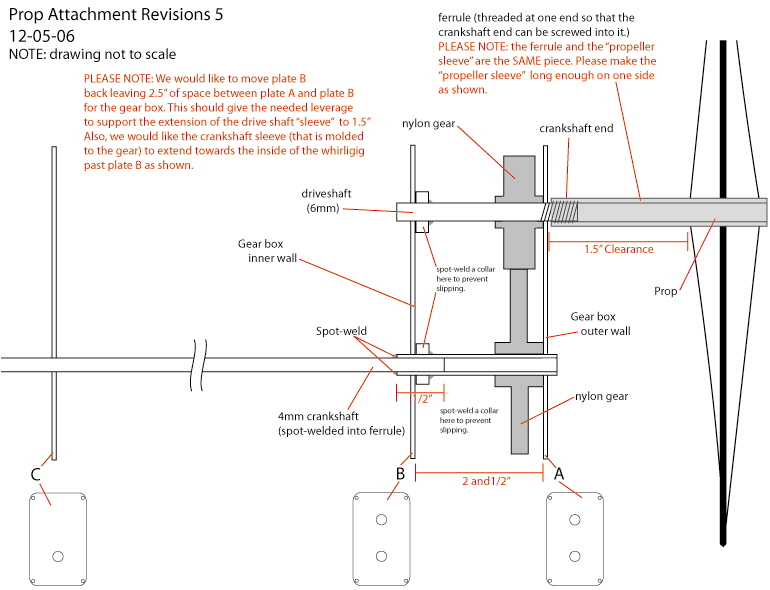

New construction design after third prototype.
