A Bus Stop project made at Fh Aachen, Germany
Full Size (highres_width x highres_height)
The first idea for the concept, a modular bus stop. Five parts able to combine into an indefinite number of combinations.
Full Size (highres_width x highres_height)

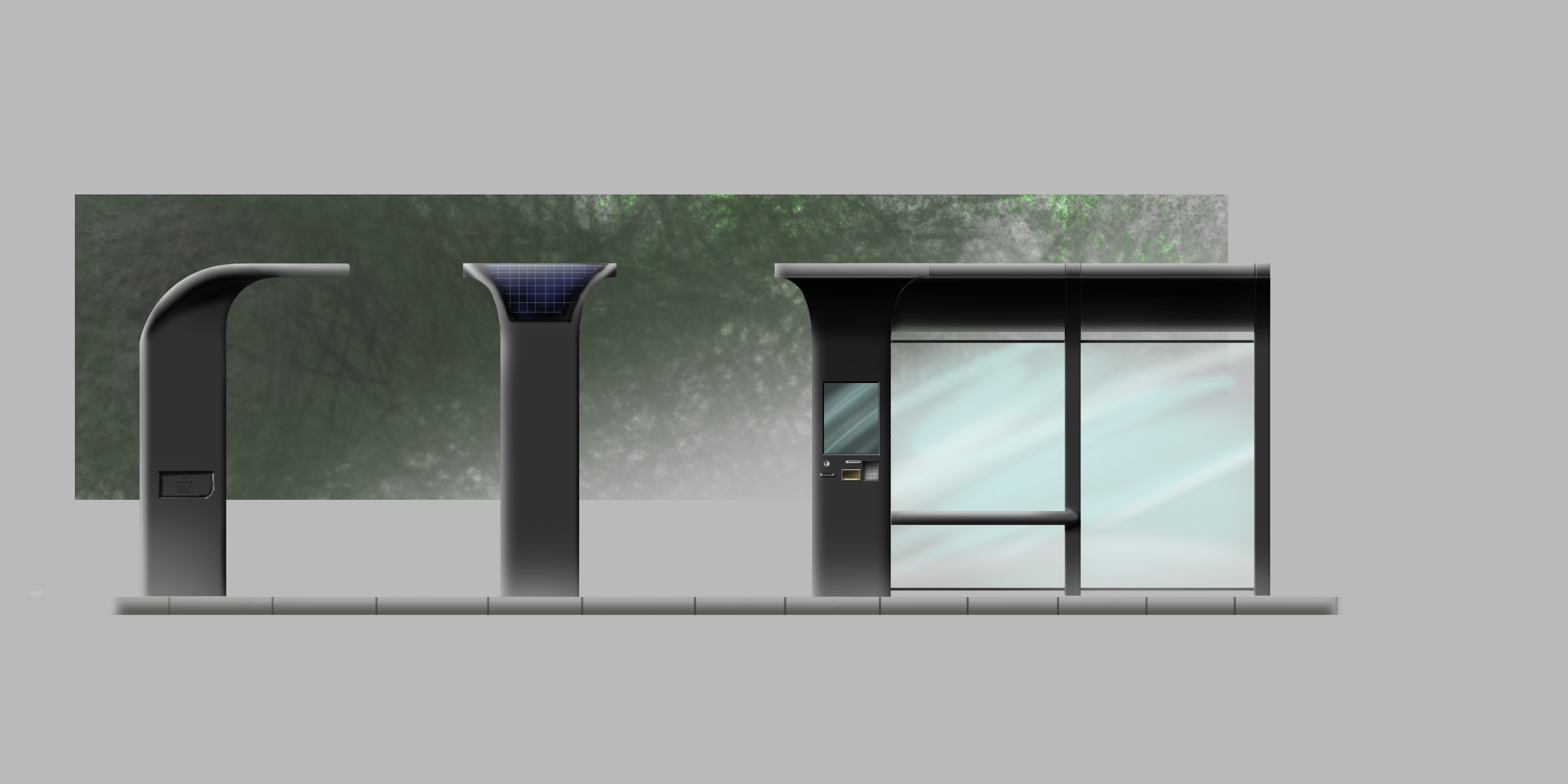

Improved version of the concept.
Full Size (highres_width x highres_height)

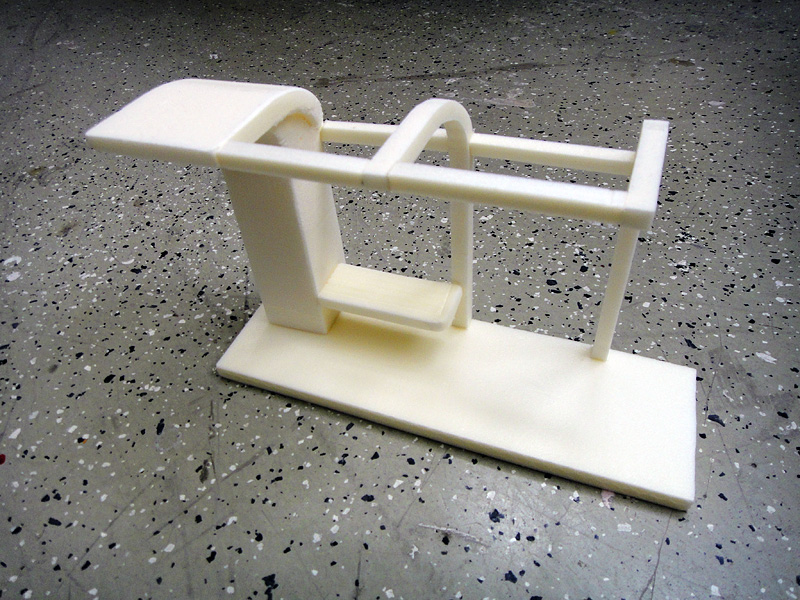

First model, to try to get a better feel for the form.
Full Size (highres_width x highres_height)
Exploration sketches in search for a better profile.
Full Size (highres_width x highres_height)
Exploration sketches in search for a better profile.
Full Size (highres_width x highres_height)
Final suggestion for the profile of the bus stop.
Full Size (highres_width x highres_height)
The final bus stop. Here in a larger version with a long bench.
Full Size (highres_width x highres_height)

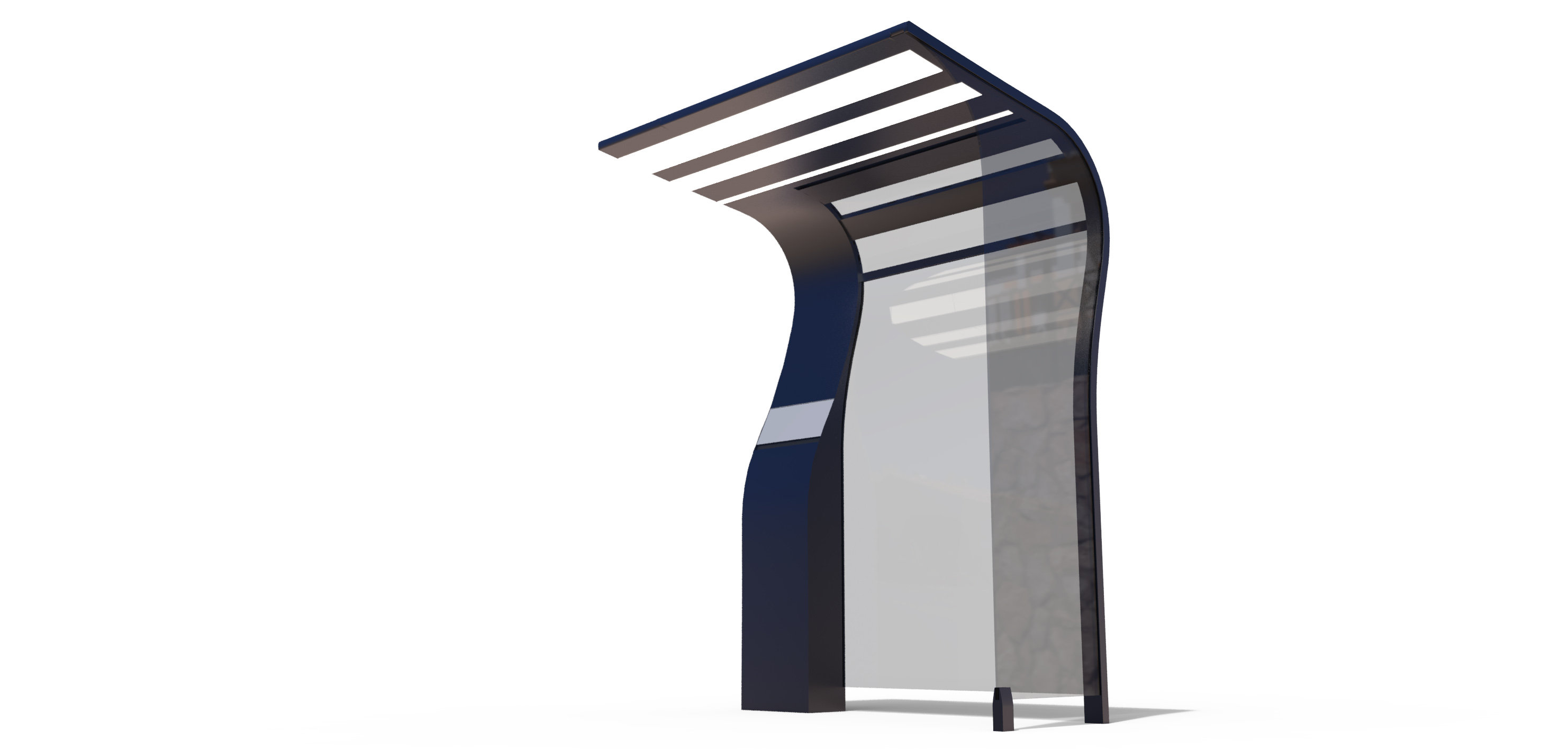

Smaller version of the bus stop.
Full Size (highres_width x highres_height)

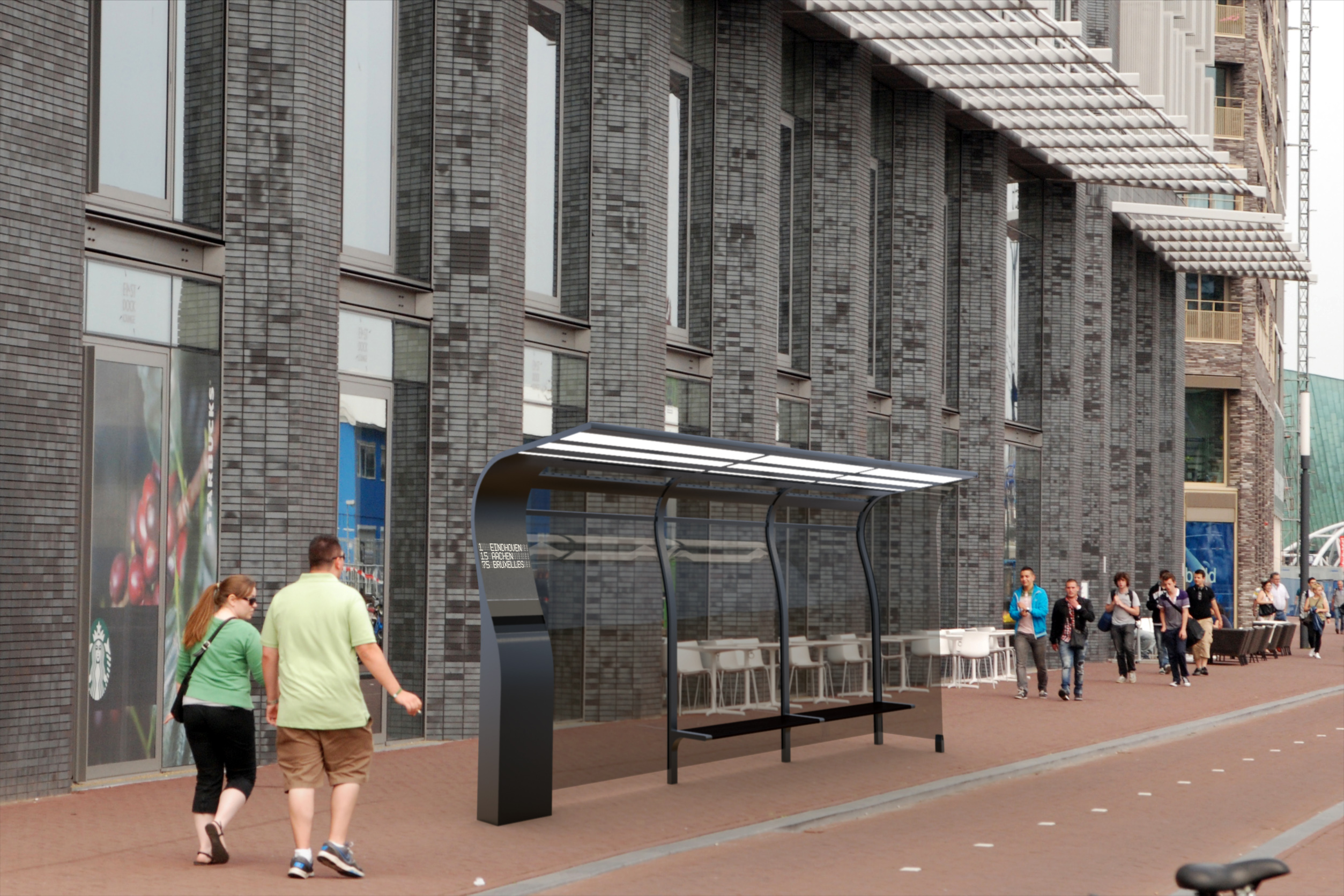

Small version with only the base unit. Here seen as it would look outside the train station in Amsterdam.
Full Size (highres_width x highres_height)
Larger version, as it would look in Amsterdam.
Full Size (highres_width x highres_height)
Base unit with travel planner/ticket machine, solar cells and lights.
Full Size (highres_width x highres_height)

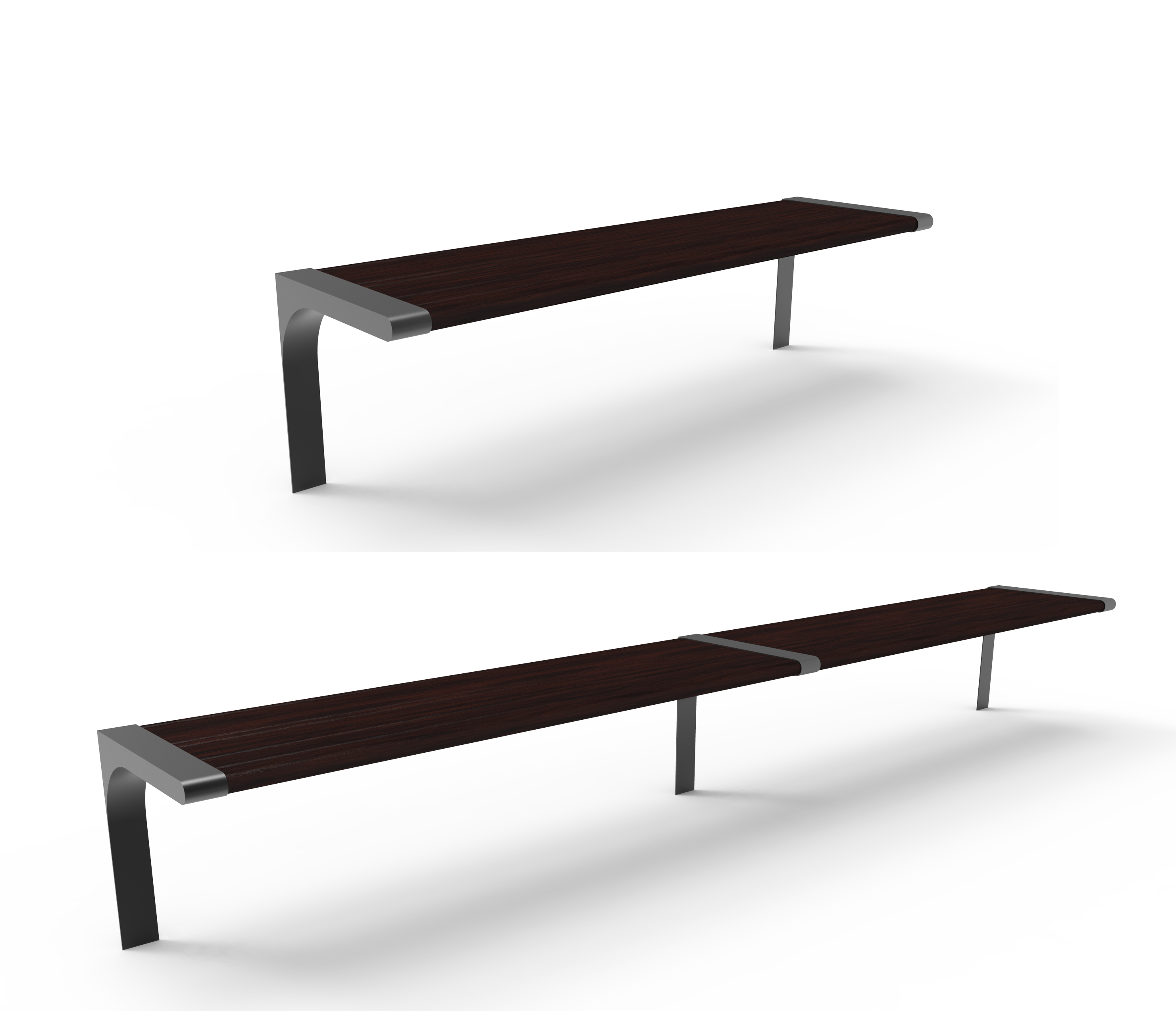

Benches. Short and long version.
Full Size (highres_width x highres_height)
Glass panels.
Full Size (highres_width x highres_height)
Smaller parts; metal plates, distances, poles and a roof with light and a solar panel.
