Project Rapide (2008)
2008 concept...
2008 concept...
1:4 scale model photo
making of 1:1 model
making of 1:1 model
frame, engine and suspension assembly
frame, engine and suspension assembly

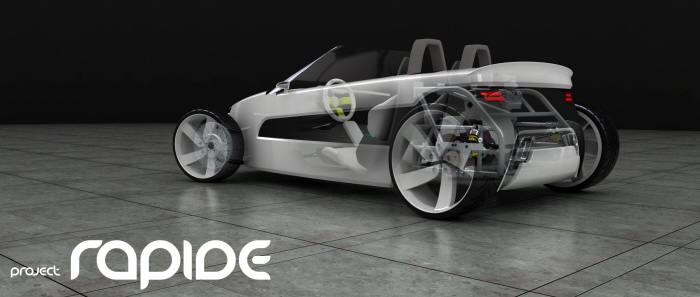

x-ray poster
aerodynamic simulation, created in West Bohemia University - First simulation, made to find the main problem areas, wich was mainly the windschield, the back part of the car and wheels. After that, the proposal got corrected to improve the aerodynamics. The windschiled got bigger and its schape changed a little, I also changed the back part and added a tiny spoiler and I also adjusted the fenders. These adjustments radically improved the aerodynamics, but the design of the car remains almost the same.
aerodynamic simulation, created in West Bohemia University - First simulation, made to find the main problem areas, wich was mainly the windschield, the back part of the car and wheels. After that, the proposal got corrected to improve the aerodynamics. The windschiled got bigger and its schape changed a little, I also changed the back part and added a tiny spoiler and I also adjusted the fenders. These adjustments radically improved the aerodynamics, but the design of the car remains almost the same.
Back part optimalized after aerodynamics simulation
Little changes after aerodynamics simulation
First look of the back part
