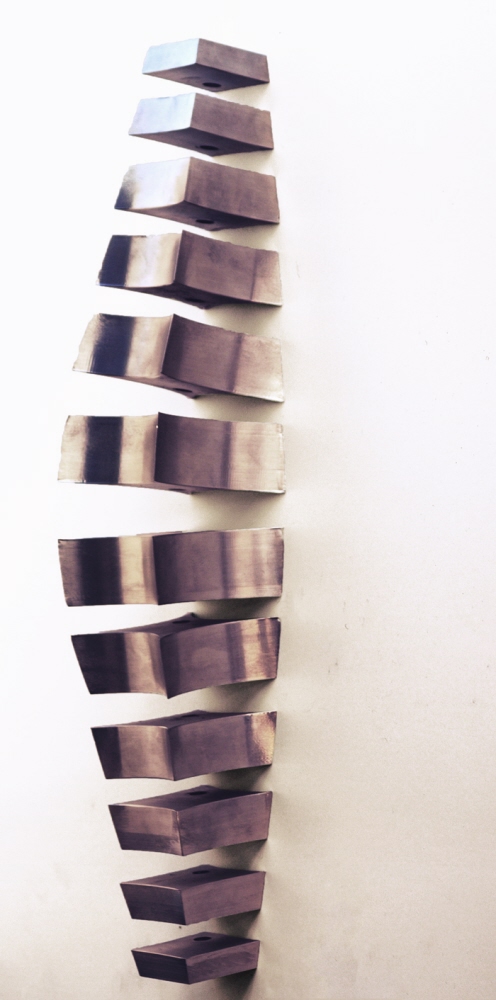

The individual elements within the form sit along an axis in which each piece can be rotated. This particular iteration shows the pieces at 15 degrees relative to one another.

Constructed using CNC Mill
Design developed in RHINO
H Favorite qView Full Size

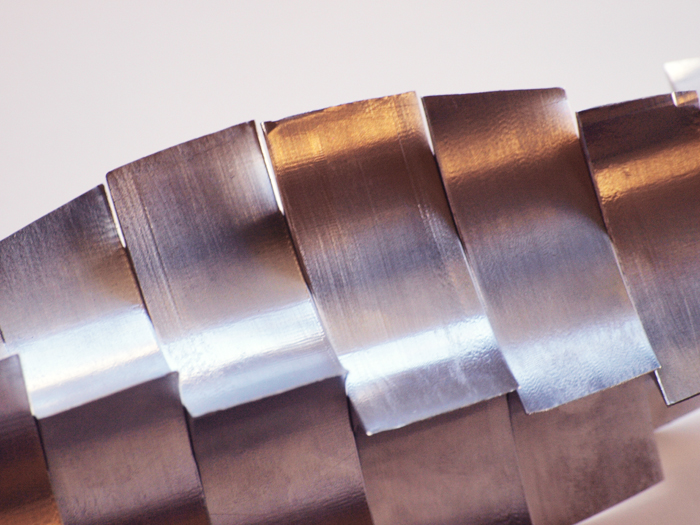

The center of the whole form demonstrates the highest degree of curve at a larger scale. The proportion between pieces remains the same but the size, thickness and curve all increase relative to position.

Constructed using CNC Mill
Design developed in RHINO
H Favorite
Constructed piece by piece from a single block of aluminum. Each was prepped, cut, milled and finished before being placed along the rod.

Constructed using CNC Mill
Design developed in RHINO
H Favorite
Form influenced by aggregation and growth within the cross section of a crystal

Constructed using CNC Mill
Design developed in RHINO
