Stage 3 - Cook House

Self-sustainable cook school in rural Scotland.

Full Size (highres_width x highres_height)

Detailed Sective through Cooking and Storage - 2. EXTERIOR WALL: 100mm Whinstone veneer attached to 50mm battens with plastic ties, Solitex breather membrane, 30mm natural fibre insulation board, 360 mm Thermafleece insulation between timber I-Beam construction 72x45x360mm at 600mm centres, DB+ recycled paper vapour barrier, 10mm plywood, 25mm services gap, 12mm plasterboard, 10mm plywood

Full Size (highres_width x highres_height)

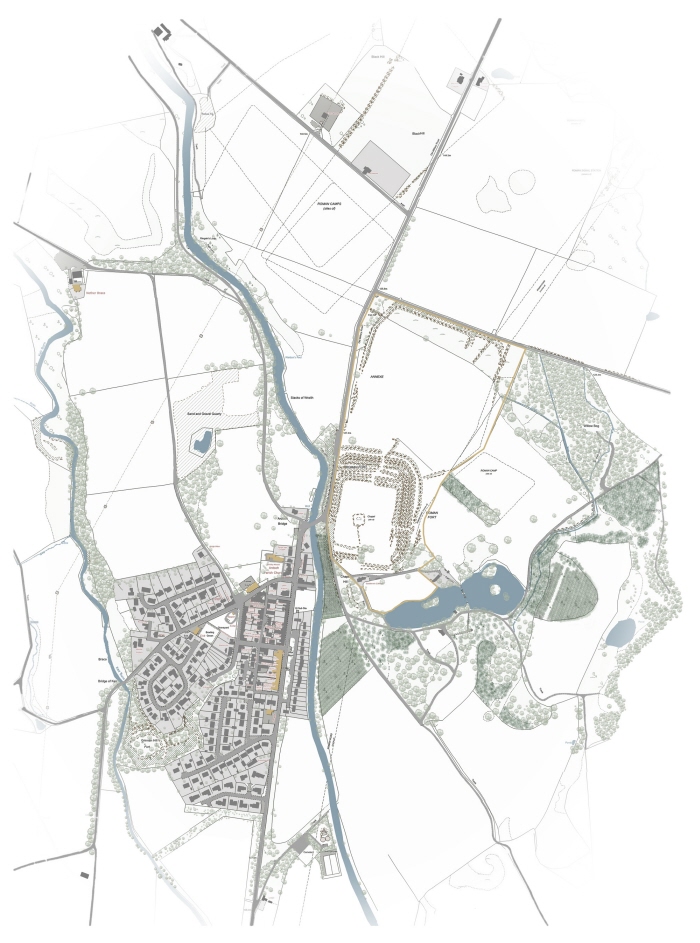

Town of Braco and Ardoch Roman Fort - Community buildings are highlighted.

Full Size (highres_width x highres_height)

Section through Ardoch Roman Fort site - Left to Right:

North of the site: historical agricultural use

Roman Fort: ancient legacy, medieval chapel and burial site

Walled Garden: once part of the Braco Estate, with an artificial pond, a true retreat from the retreat

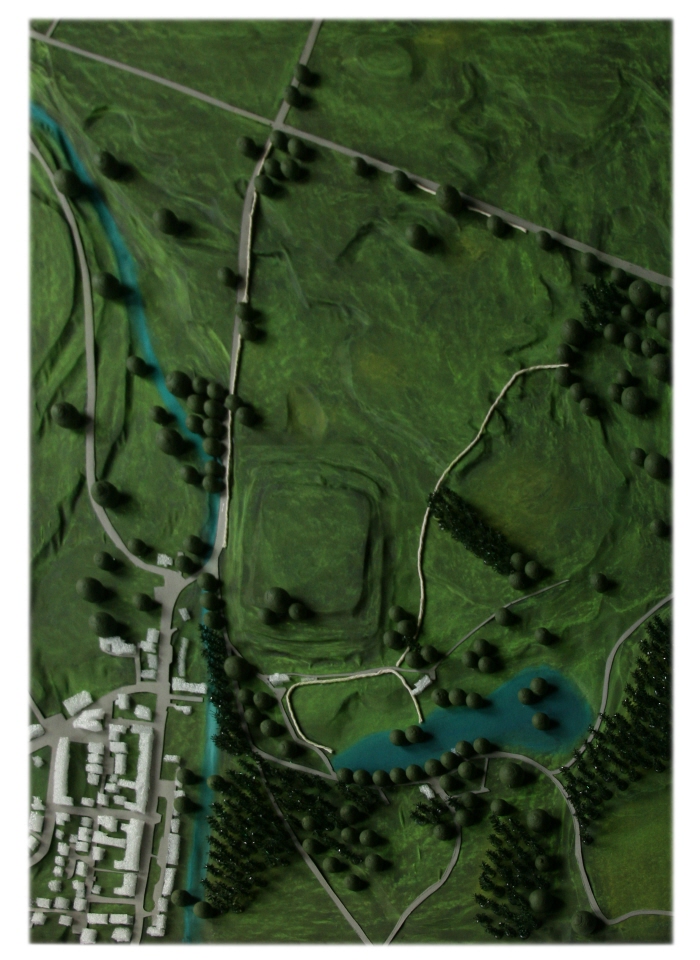

Full Size (highres_width x highres_height)

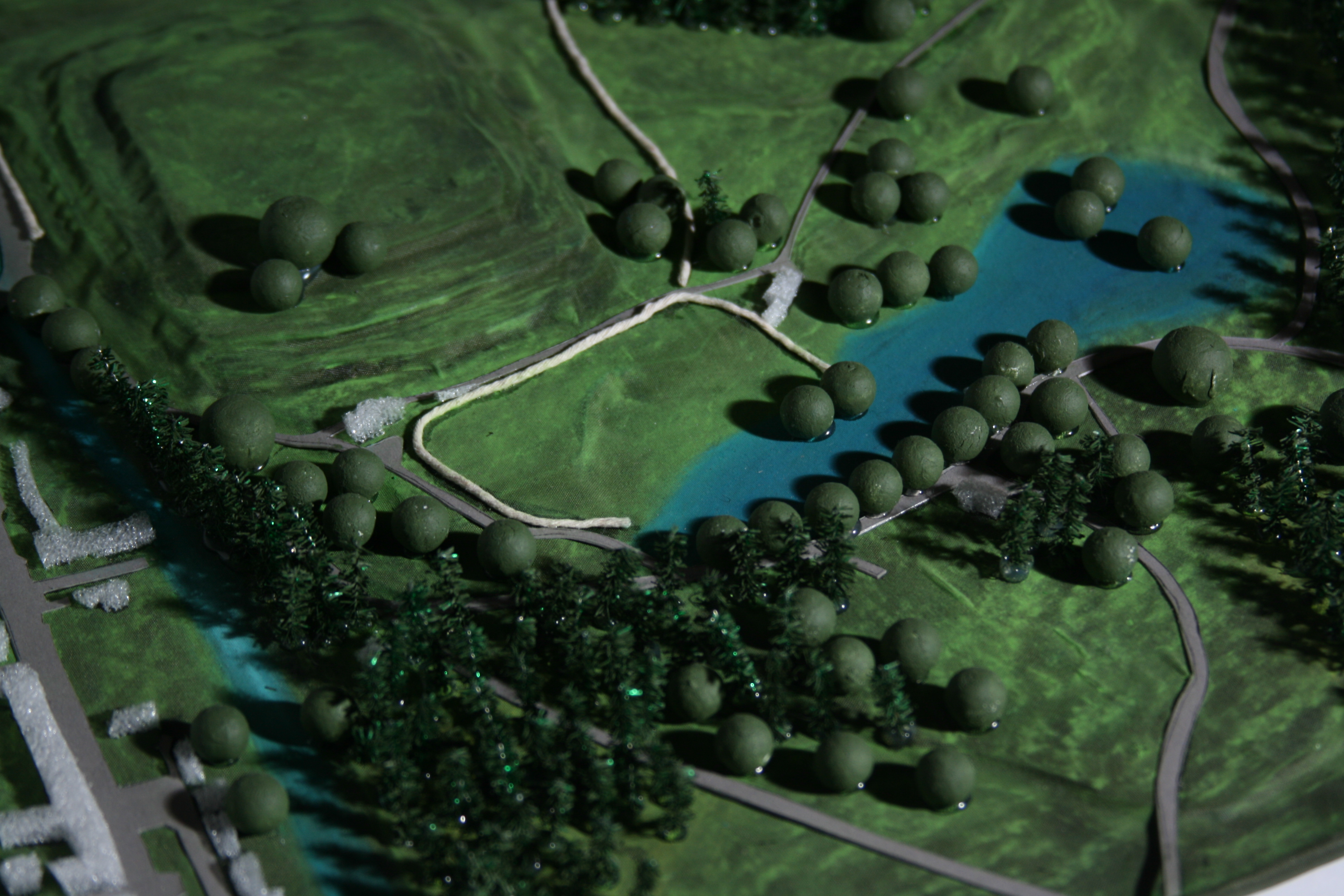

Site Model - The Walled Garden has its own microclimate and is within walking distance from the nearby town Braco.

Full Size (highres_width x highres_height)

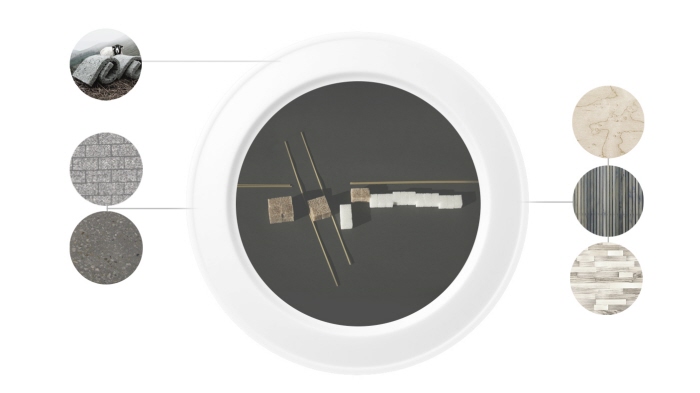

Building Concept: Materiality - Public Side: Cooking; Dining - polished concrete for floor and whinstone cladding for exterior walls.

Private Side: Bedrooms and Lounge: timber floor and wall surfaces

The unifying element is the thickness of walls, dictated by the decision to use local sheep wool as insulation

Full Size (highres_width x highres_height)

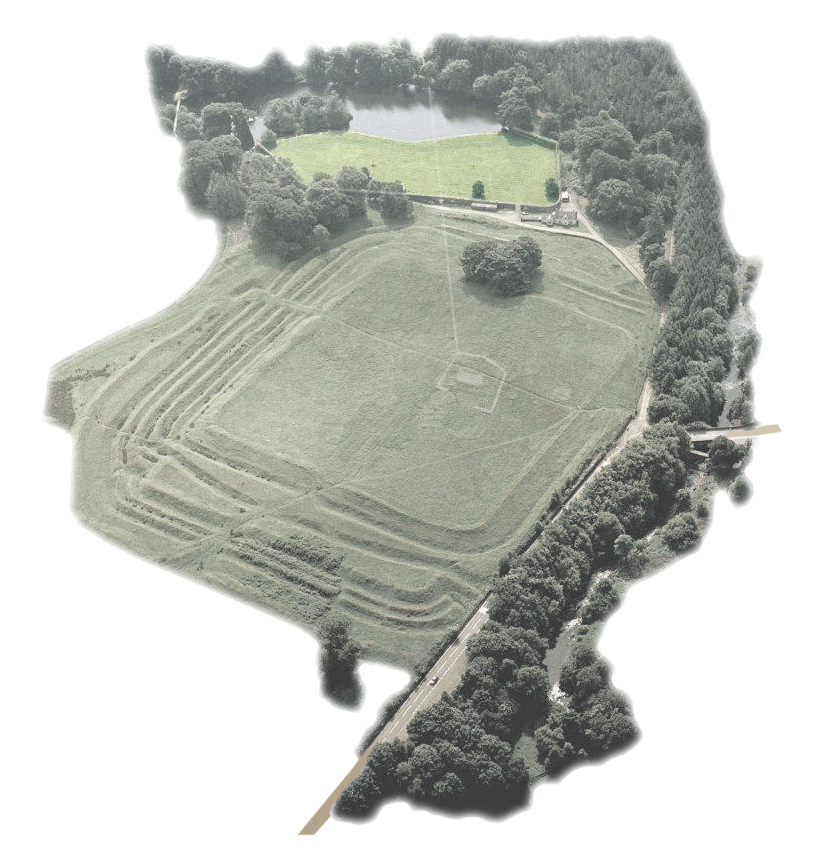

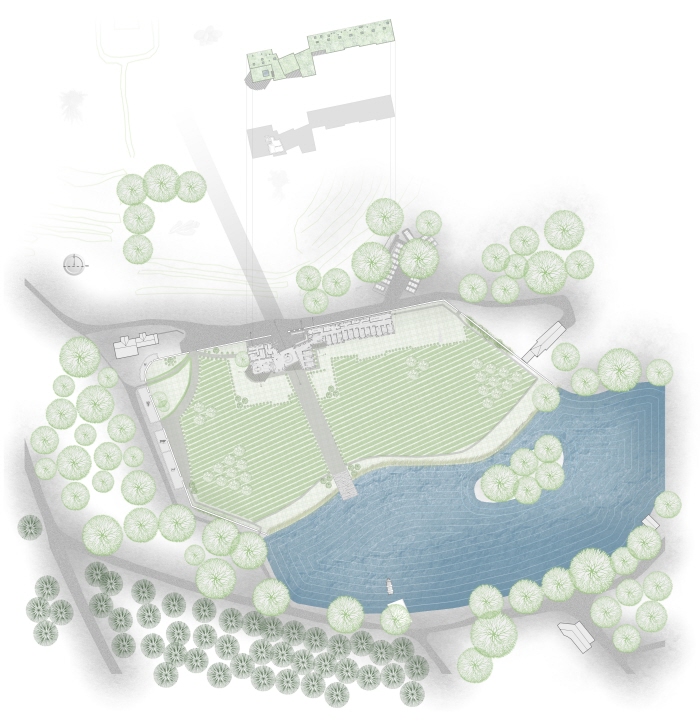

Site Aerial View - Site of chapel highlighted and connected to the opposite side of the pond with a line parallel to one of the walls of the garden.

Full Size (highres_width x highres_height)

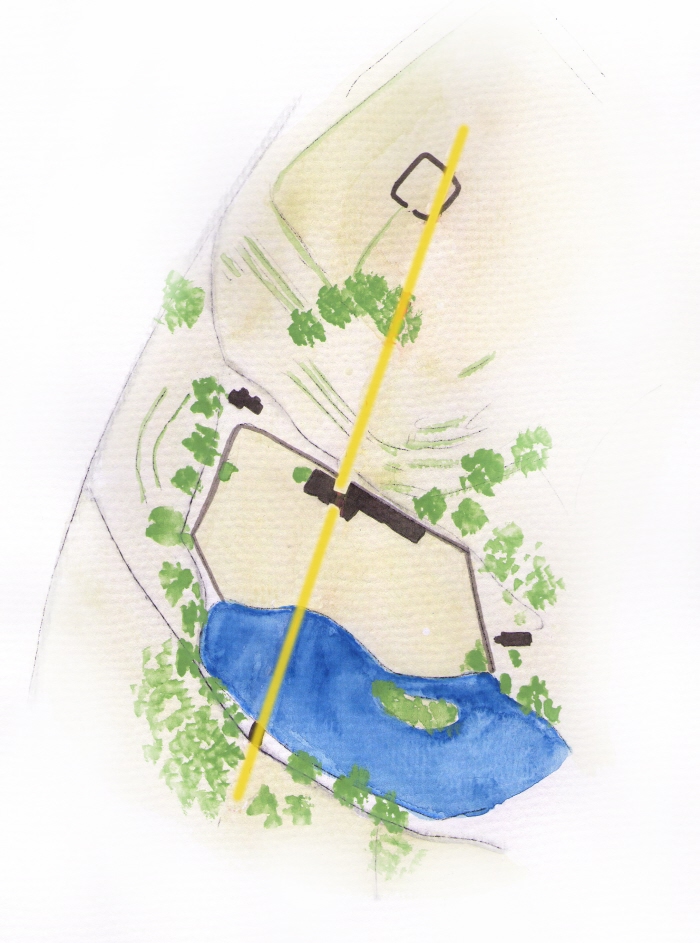

Site Concept - Connecting the site of the chapel (and the center of the Roman Fort) with the Boat House via the Dining Space. The line is parallel to the Eastern wall of the garden.

Full Size (highres_width x highres_height)

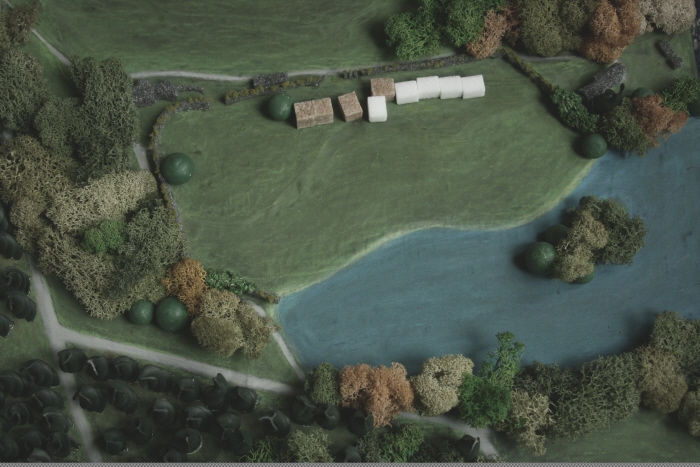

Walled Garden Site Model - The site owes its microclimate to the sheltering trees to the south.

Full Size (highres_width x highres_height)

Sugar Cube Concept

Full Size (highres_width x highres_height)

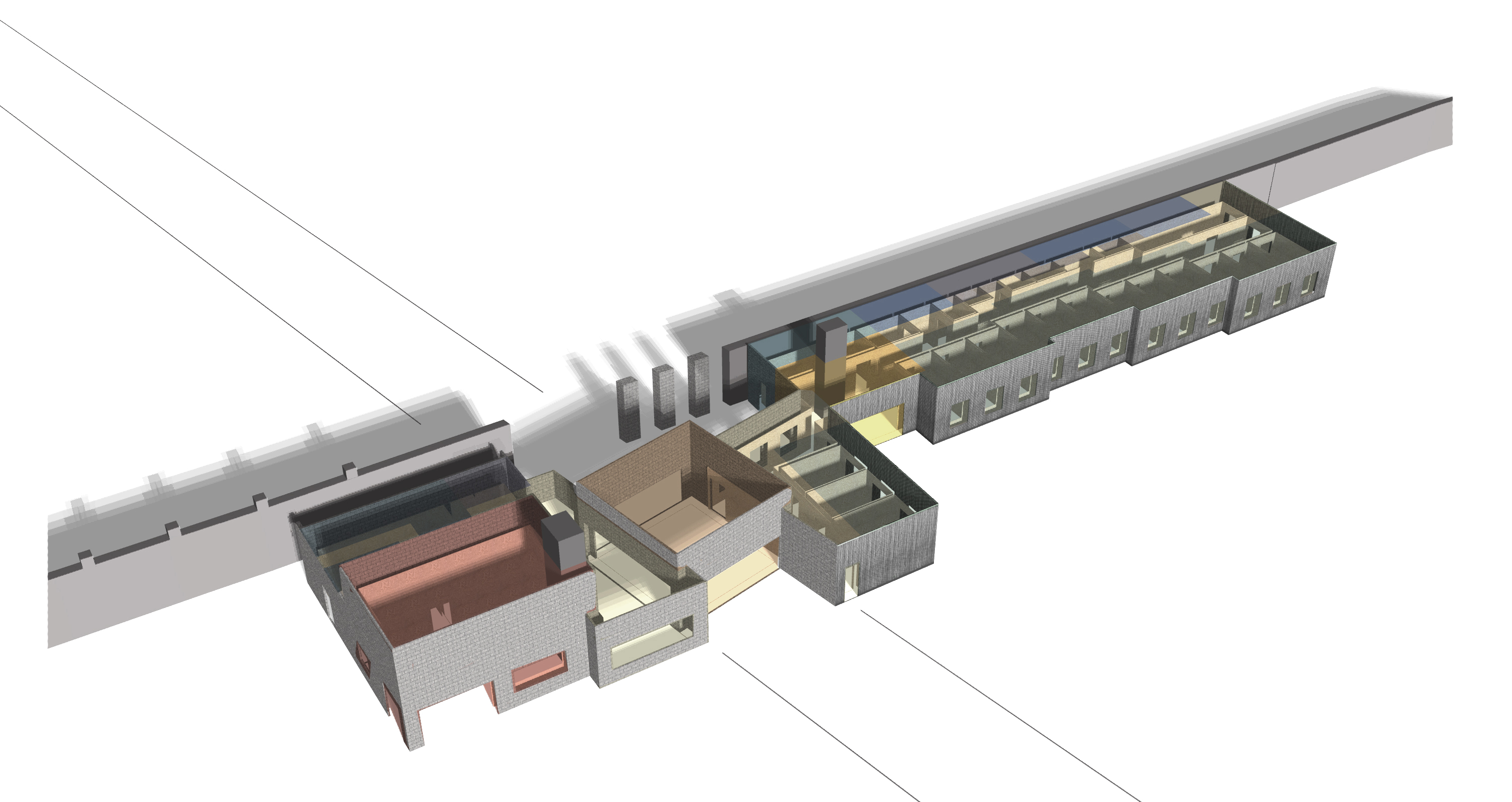

Building Concept - hierarchy of heights; modest intervention; domestic clues: chimney stacks; entrance filtering the view beyond

Full Size (highres_width x highres_height)

View over the Pond

Full Size (highres_width x highres_height)

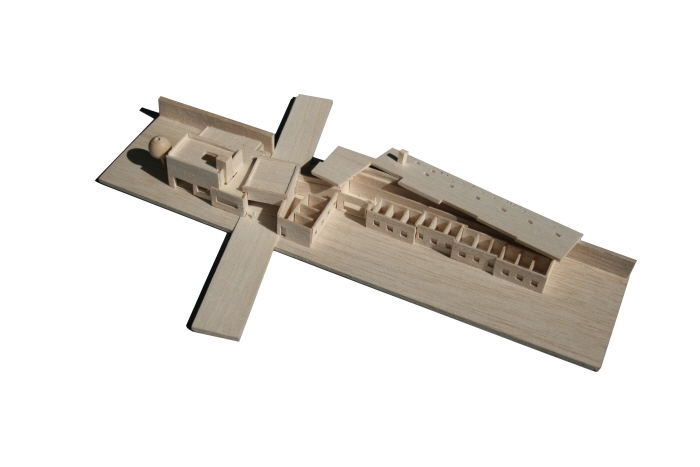

Balsa Model

Full Size (highres_width x highres_height)

Plans - Roof; Underground; Ground plans

The garden features a combination of herbs, vegetables and flowers.

Full Size (highres_width x highres_height)

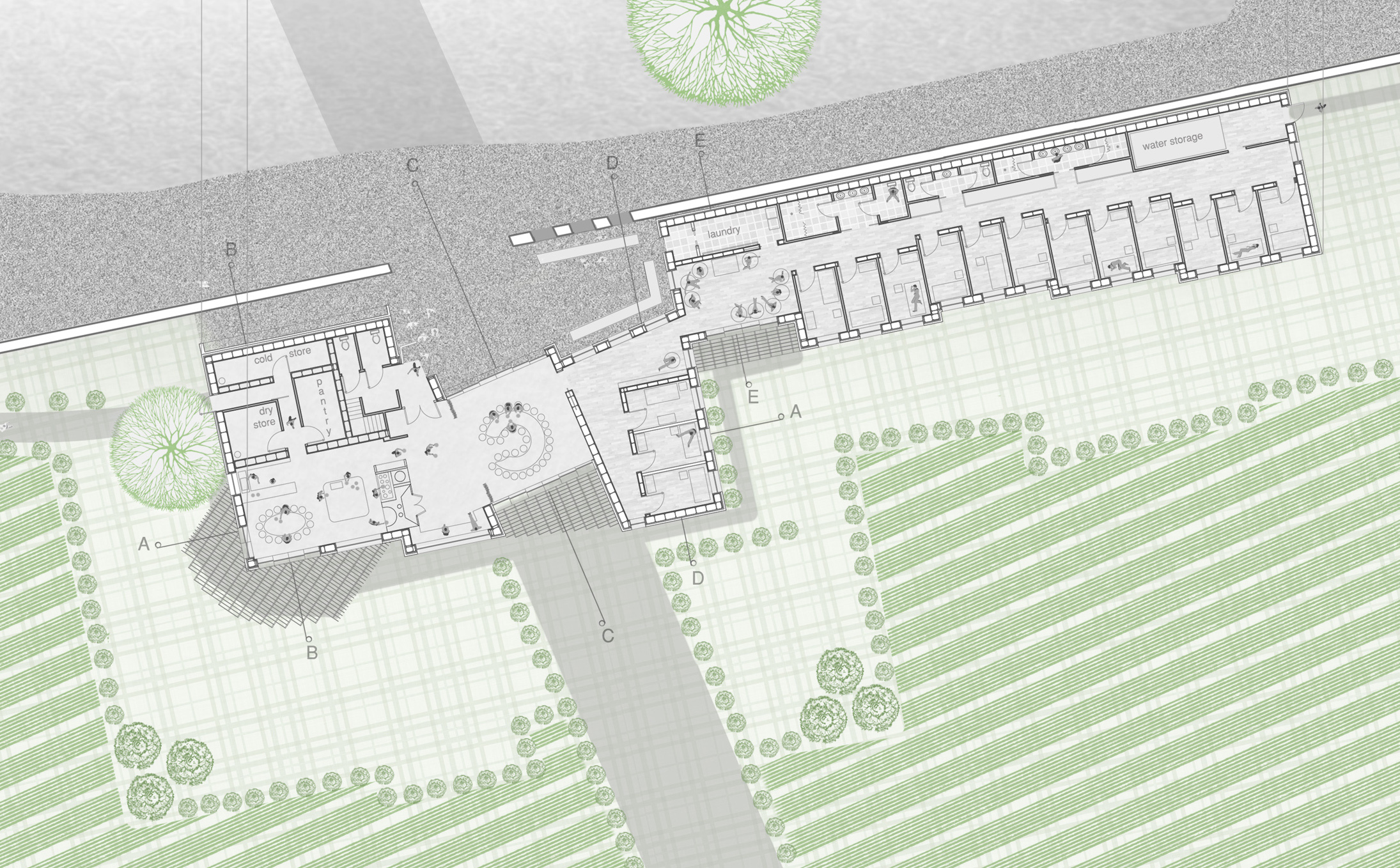

Ground Floor Plan

Full Size (highres_width x highres_height)

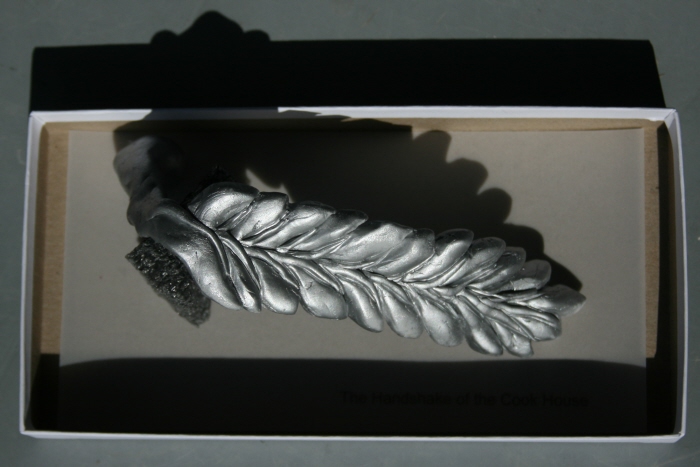

Handshake of the Cook House - a proposed door handle

Download PDF file

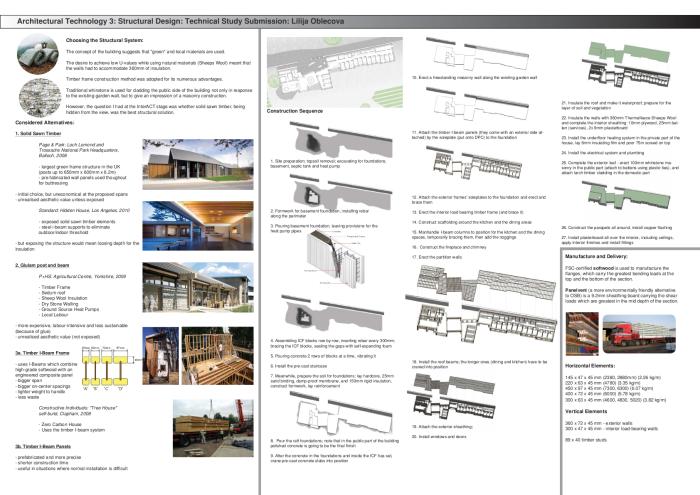

Structural Design Submission - 2 pages pdf including
- Materials
- Precedents
- Structural System
- Construction Sequence
- 3D build-up

Full Size (highres_width x highres_height)

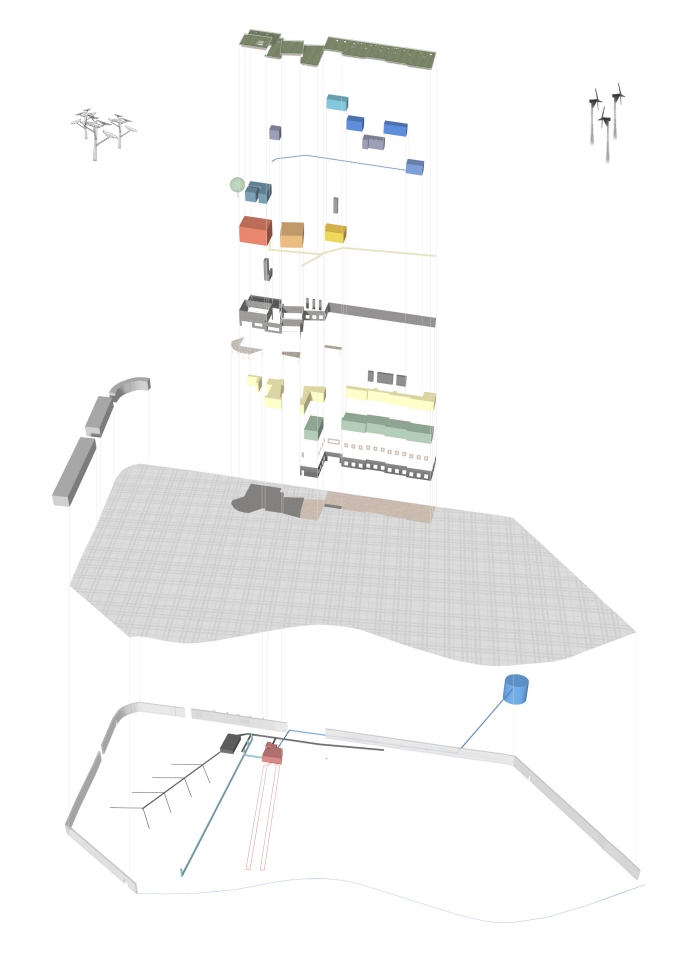

Environmental Strategy - Fireplace / Boiler/ Cooker - bespoke device, uses the heat in the flue to increase the temperature of preheated water to 80 degrees.

GSHP DX 2 tonne capacity, 1.5 kW

Grey water recycling

MVHR for recovering heat from the kitchen, dining and the wet areas

Ground Cooling for constant pre-heated or pre-cooled air supply to AHU, to the store rooms and Cooking space

Proven 6kW

PV-Trees

Septic tank
