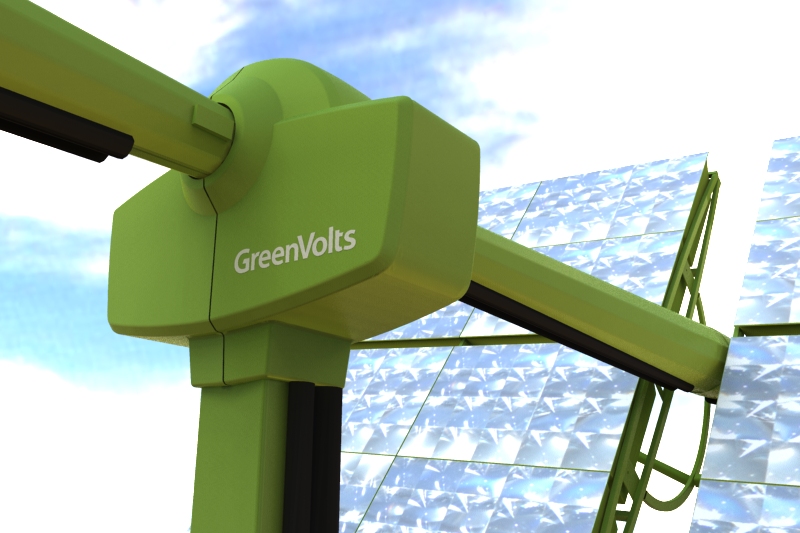

Motor enclosure was designed as a single part used twice to reduce tooling and piece price.

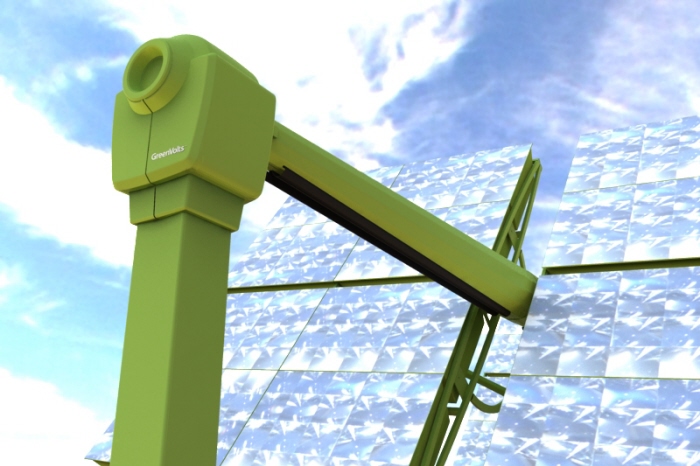

Bearing enclosure was designed as a single part used twice to reduce tooling and piece price.
Typical view from ground.

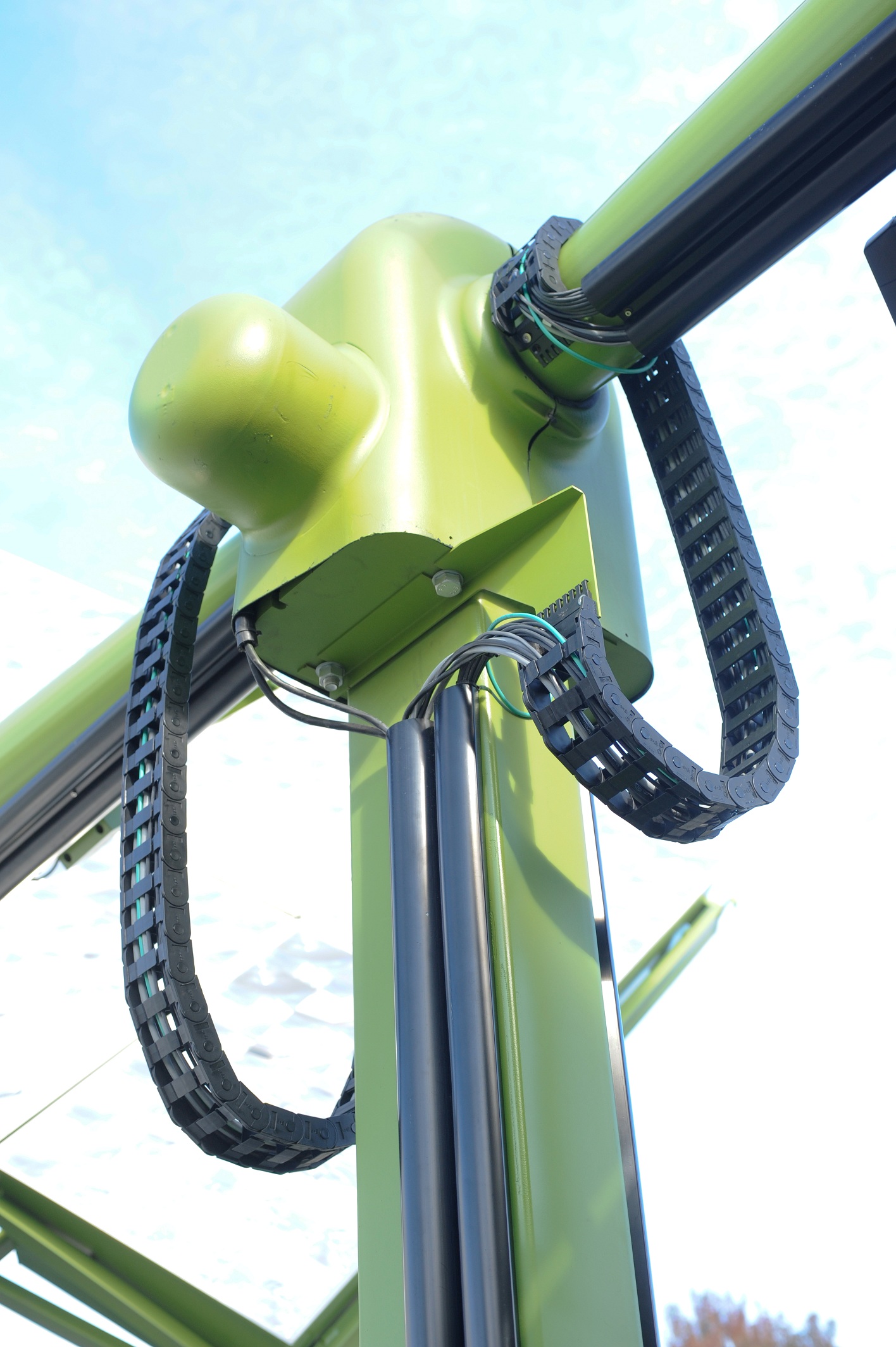

Original motor enclosure.
gLike
GreenVolts

Design and 3D CAD Development of new enclosures for GreenVolts solar array systems.

As the system is continually exposed to nature's wrath great care was taken to develop robust sealed solutions for both the motor and bearing enclosures. Each two part enclosure utilizes two identical parts to simplify manufacturing, installation, maintenance and to reduce tooling and initial piece price cost.
Industrial Design, Product Design, 3D CAD
