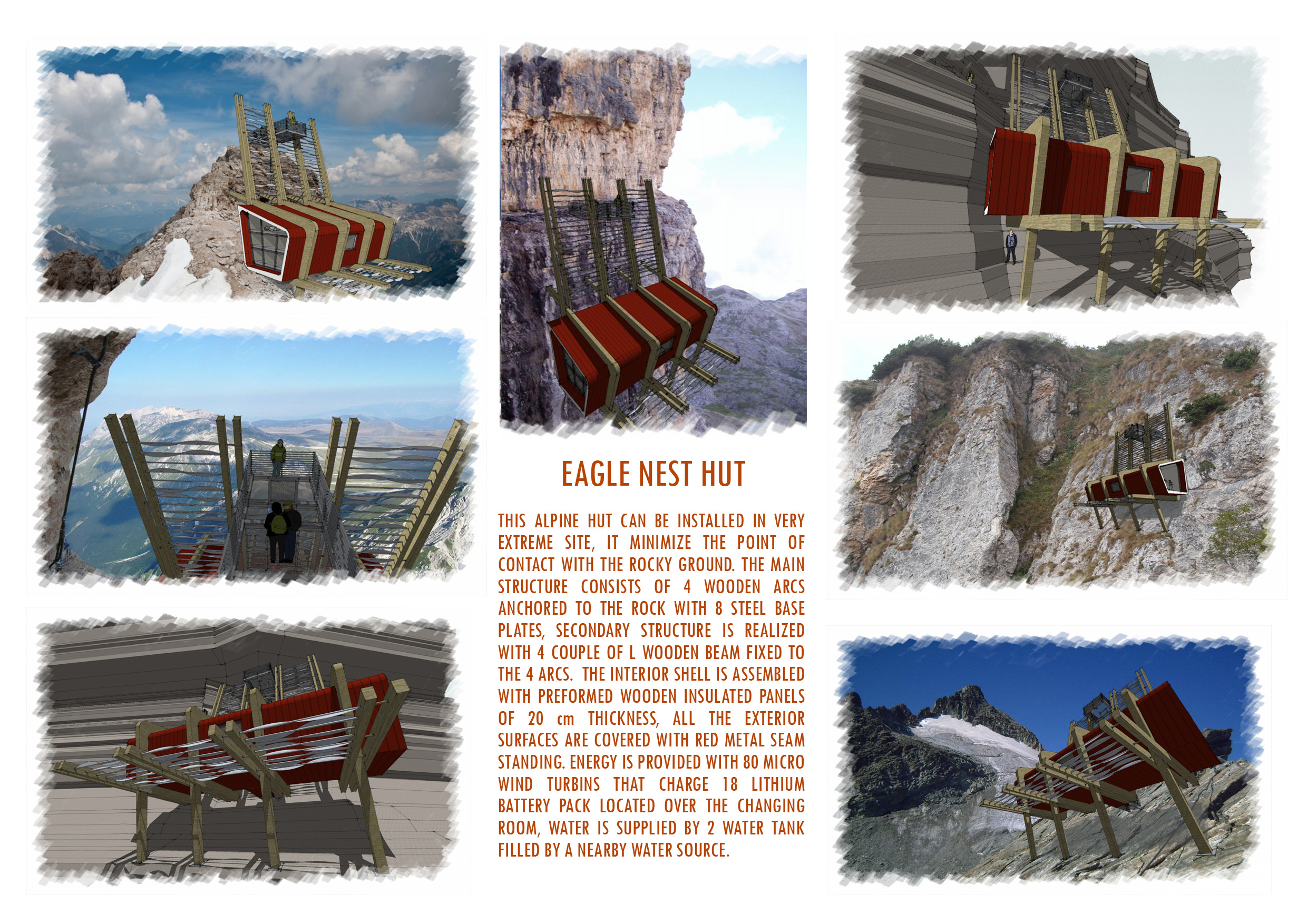

Eagle Nest Hut - location 02 - THIS ALPINE HUT CAN BE INSTALLED IN VERY EXTREME SITE, IT MINIMIZE THE POINT OF CONTACT WITH THE ROCKY GROUND. THE MAIN STRUCTURE CONSISTS OF 4 WOODEN ARCS ANCHORED TO THE ROCK WITH 8 STEEL BASE PLATES, SECONDARY STRUCTURE IS REALIZED WITH 4 COUPLE OF L WOODEN BEAM FIXED TO THE 4 ARCS.

Eagle Nest Hut - Location 01 - Alpine hut is equipped with : 10 bunk beds, 1 wc, 10 backpack storage, 1 changing room, 1 shower, 1 kitchen with 10 seat place.

Eagle Nest Hut - Power Supply - ALPINE HUT PROVIDES ENERGY WITH MICRO WIND TURBINES, THROUGH THE ROTATION OF 80 MICRO TURBINES THE GENERATORS SEND ELECTRICAL ENERGY TO THE 18 LITHIUM BATTERY PACKS, WHERE ENERGY IS STORED FOR FUTURE USE. ALL THE FIXTURE WITHIN THE HUT ARE ELECTRICAL ENERGY SAVING, SUCH US LED LIGHTS

Eagle Nest Hut - Functional Modules - Alpine hut is equipped with : 10 bunk beds, 1 wc, 10 backpack storage, 1 changing room, 1 shower, 1 kitchen with 10 seat place. Electrical power supplied by 18 lithium rechargable battery pack powered by 80 micro wind turbins. Water is supplied by 2 water tank filled by a water source.

Eagle Nest Hut - construction phases - Here are the six main phases of the alpine hut

Eagle Nest Hut - climate confort - The hut shell has a high insulation level, thanks to 20 cm thick insulation panel, to win the extreme weather conditions. A very simple aeration system, controlled with mechanical flaps, completes the system. The passage between interior and exterior is regulated by the filter created by the two entry doors, in order to save interior climate confort.
