H Favorite qView Full Size
production iTalk - Shown on a (dead) 3rd generation iPod.
H Favorite qView Full Size

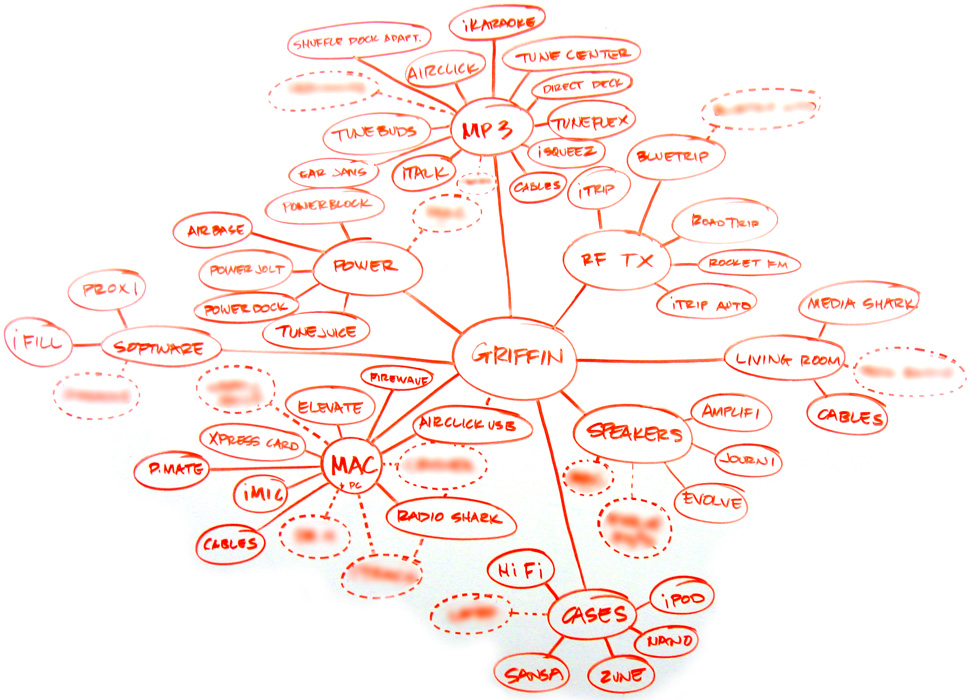

product map - The blurred out areas represent new product opportunities ;-)
H Favorite qView Full Size
iTrip LCD concept rendering - Form-Z concept rendering for the 1st dock connector iTrip.
H Favorite qView Full Size
exploded iTrip LCD - Form-Z model used to communicate design to engineering team.
Biggest challenge here was figuring out how to pack all of the existing top mounted iTrip hardware into this new bottom mounted design.
H Favorite
production iTrip LCD
H Favorite
iTrip nano concept - Form-Z concept rendering of the iTrip nano (1st gen) "sled".
H Favorite qView Full Size
iVault nano development meeting, China - The Chinese are always very willing to help solve problems when you take the time to visit them in person.
H Favorite
production RoadTrip II - The decision was made to keep the internal components the same which resulted in a thicker finished product.
H Favorite qView Full Size
Tempo armband notes - Product development notes used to finalize details for a nano armband. One of the 5 cases I developed that launched us to #3 in iPod cases in less than 24 months.
H Favorite qView Full Size

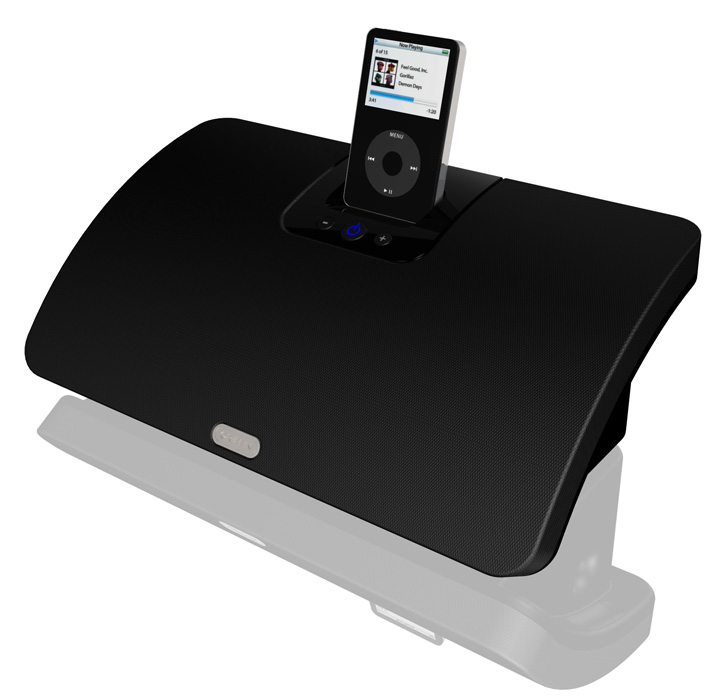

iPod table top speaker concept - Modeled and rendered in Form-Z.
H Favorite
Vizor case for iPod - Final development sample. One of the 5 cases I developed that launched us to #3 in iPod cases in less than 24 months.
H Favorite qView Full Size
TuneCenter model on display at Macworld
H Favorite qView Full Size
iTrip Auto development notes - An impromptu explanation of the concept while visiting a potential Chinese manufacturing partner.
H Favorite qView Full Size

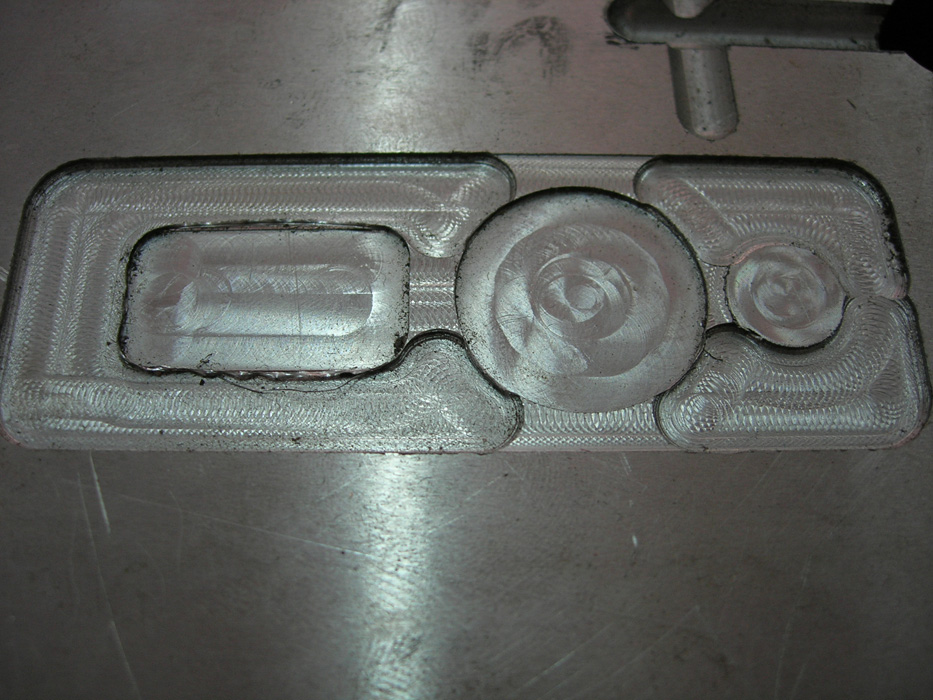

iTrip Auto tool - This tool would go on to produce the world's best selling cable attached iPod FM transmitter.
H Favorite qView Full Size
SmartTalk development - In this meeting I was able to import the factory's Pro/E IGES file into Form-Z and make some quick modifications to help explain the changes I was looking for.
H Favorite
BlueTrip transmitters - Modeled and rendered in Form-Z.
H Favorite
Mac audio amplifier concept - Concept study for a firewire attached digital amplifier for Apple computers. Design cues were chosen to match both professional and consumer level Macs. Modeled and rendered in Form-Z.
H Favorite qView Full Size

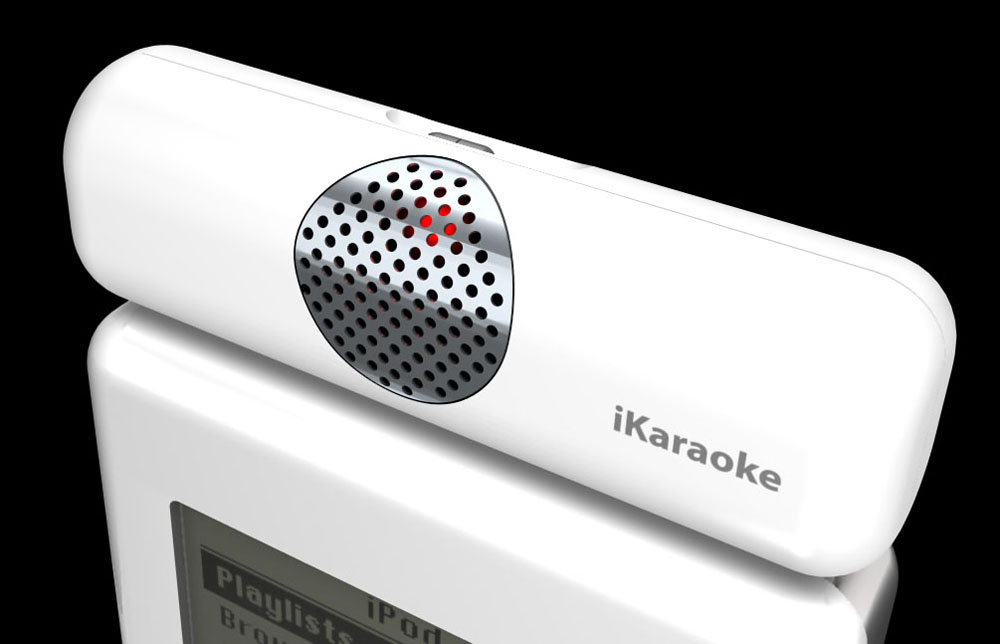

iKaraoke concept - Early design study for a top-mounted iKaraoke. Final concept ended up being a cable attached microphone. Modeled and rendered in Form-Z.
H Favorite
30 pin to 9 pin adapter concept - Exploded view of an adapter concept to adapt older 9 pin (top mounted) iPod accessories to the new 30 pin (dock connector) format. Modeled and rendered in Form-Z.
H Favorite qView Full Size

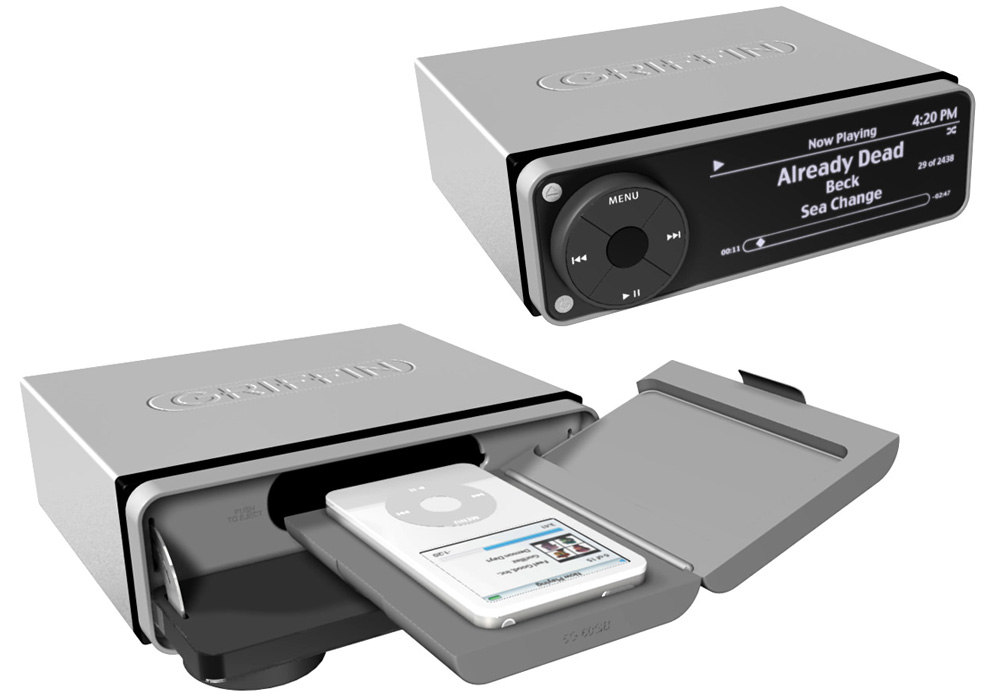

iPod in-dash car stereo concept - Modeled and rendered in Form-Z.
H Favorite qView Full Size
PSP iFM concept - Part of a series of PSP accessory concepts presented to Best Buy as part of Griffin's foray into gaming accessories. Modeled and rendered in Form-Z.
H Favorite qView Full Size
PSP iFM exploded view - Rendering used to communicate the multi-layer construction to Griffin's Taiwanese contract manufacturer. Modeled and rendered in Form-Z.
