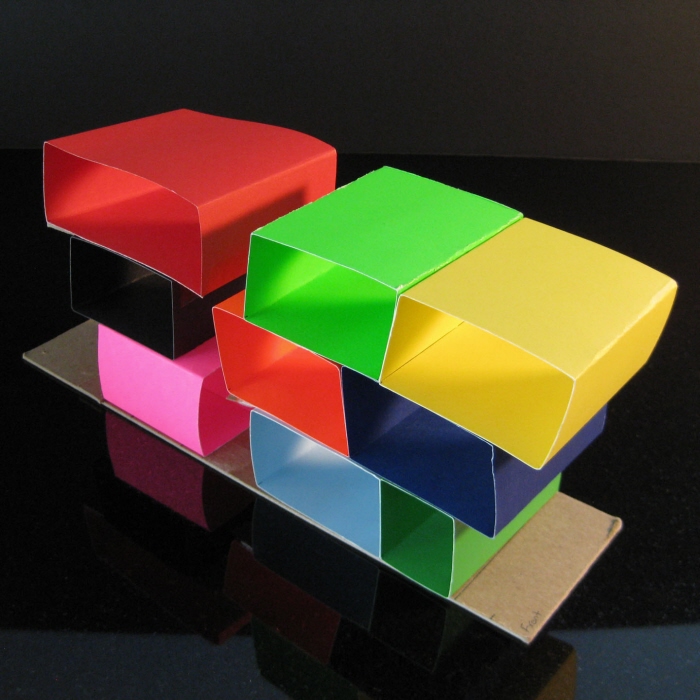

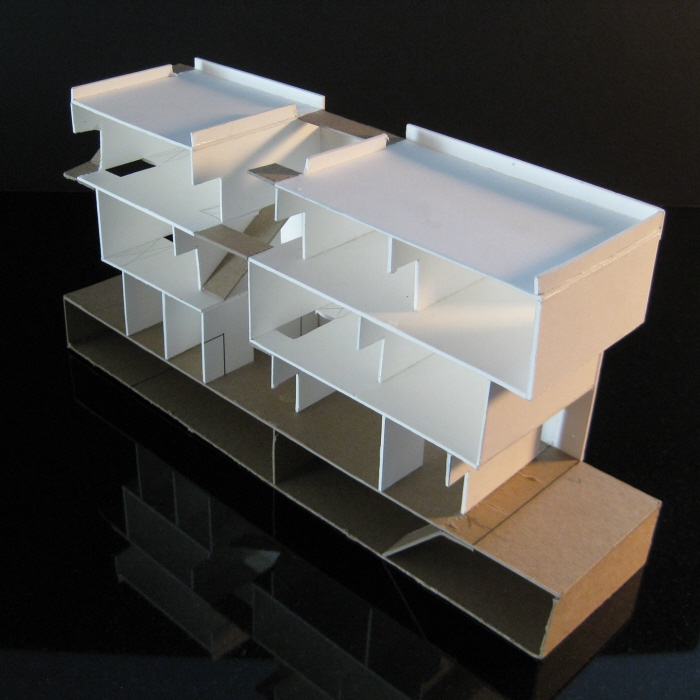

Conceptual models - 1/16th scale
Chipboard, museum board, poster board
Conceptual models - 1/16th scale
Chipboard, museum board, poster board
Conceptual models - 1/16th scale
Chipboard, museum board, poster board

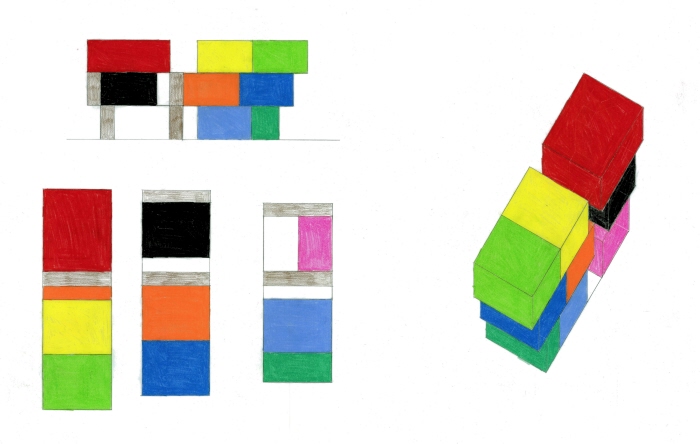

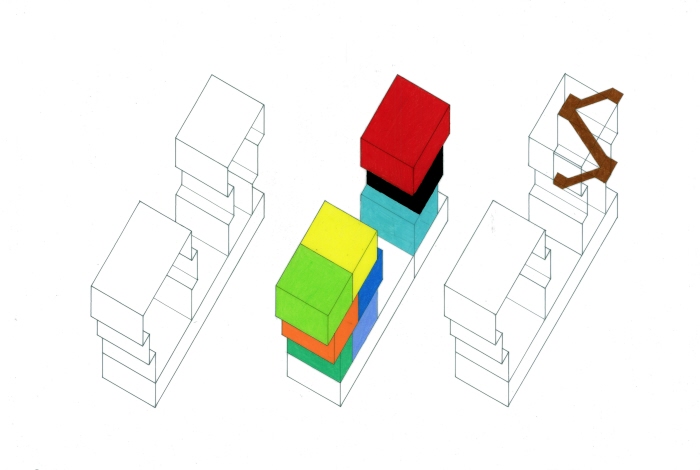

Conceptual Diagrams - 1/16th scale
Hand drawn
Ink on Mylar, Prismacolor
Conceptual Diagrams - 1/16th scale
Hand drawn
Ink on Mylar, Prismacolor
Perspective - 2 point perspective from street, rendered
Hand drawn
Graphite and Prismacolor on trace

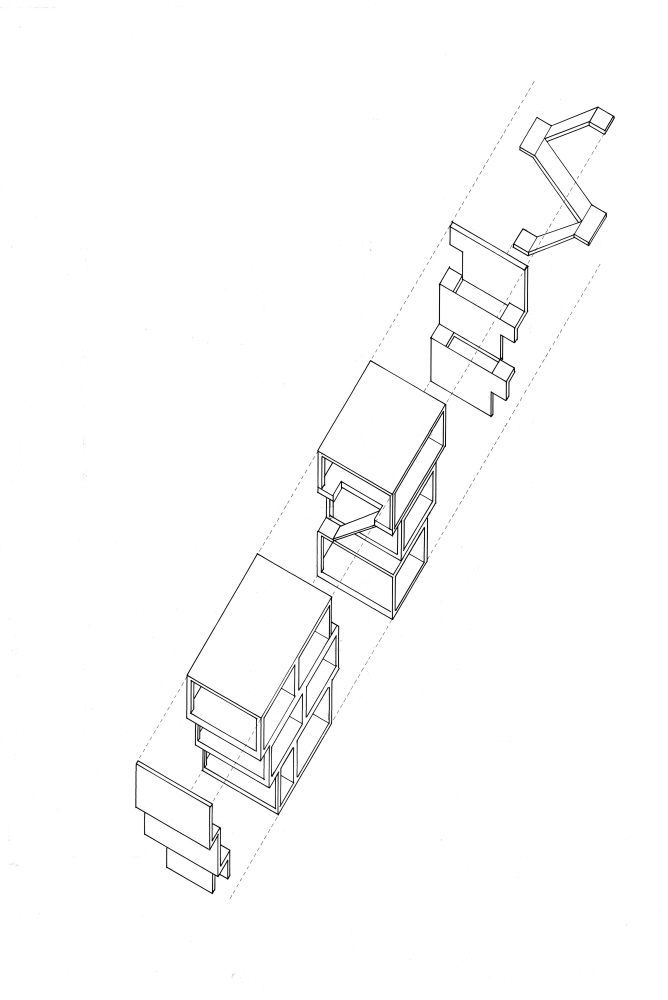

Exploded Axonometric - 1/8th scale
Hand Drawn
Ink on Mylar

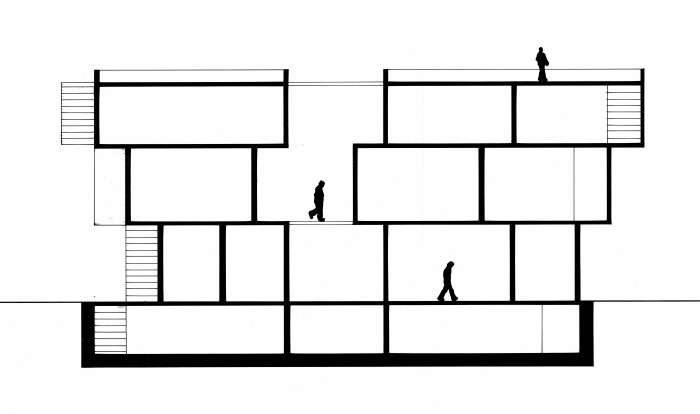

Longitudinal Section - 1/8th scale
Hand drawn
Ink on Mylar

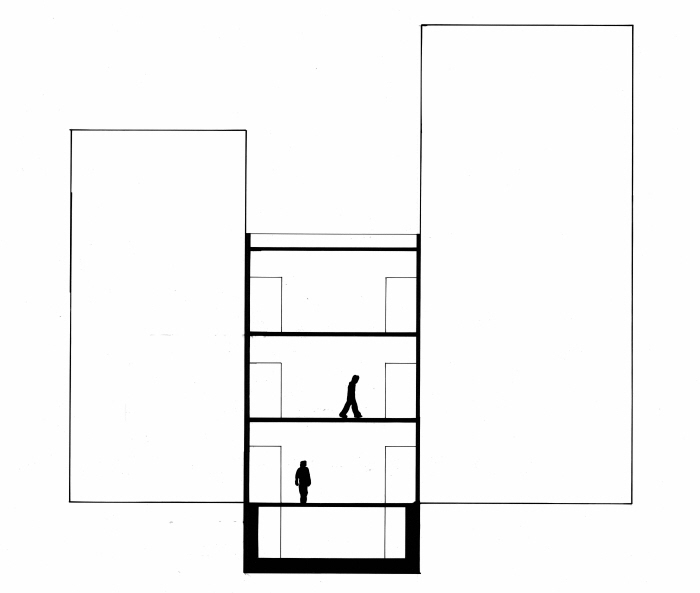

Transverse Section - 1/8th scale
Hand drawn
Ink on Mylar

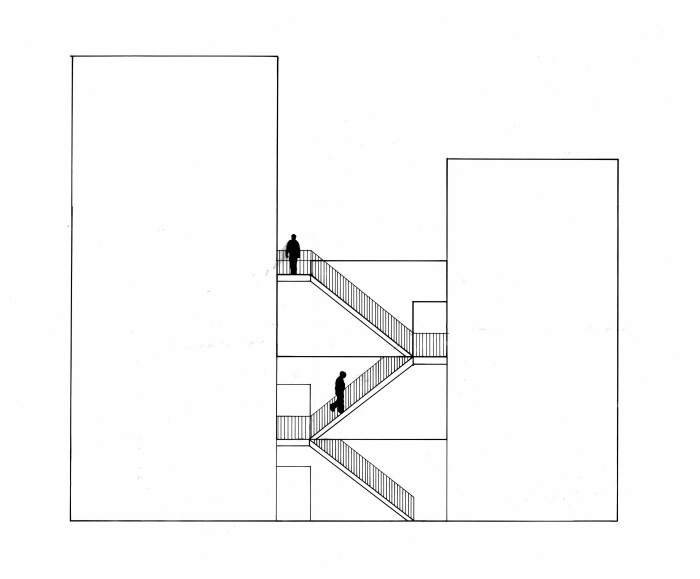

Rear Elevation - Hand Drawn
Ink on Mylar

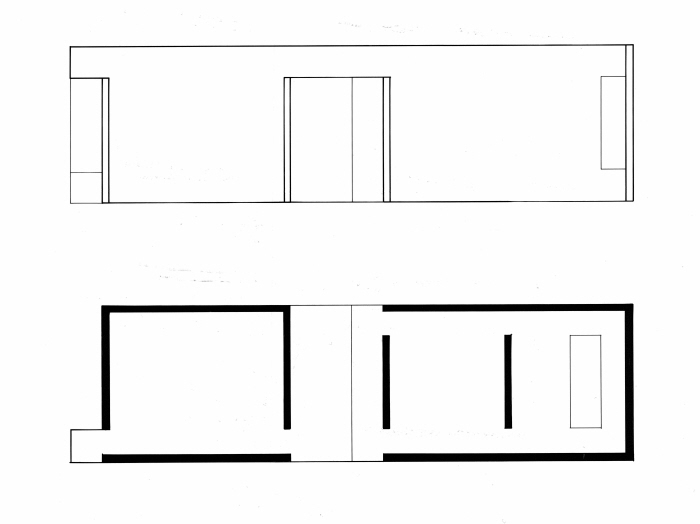

Plan 1 - Hand Drawn
Ink on Mylar

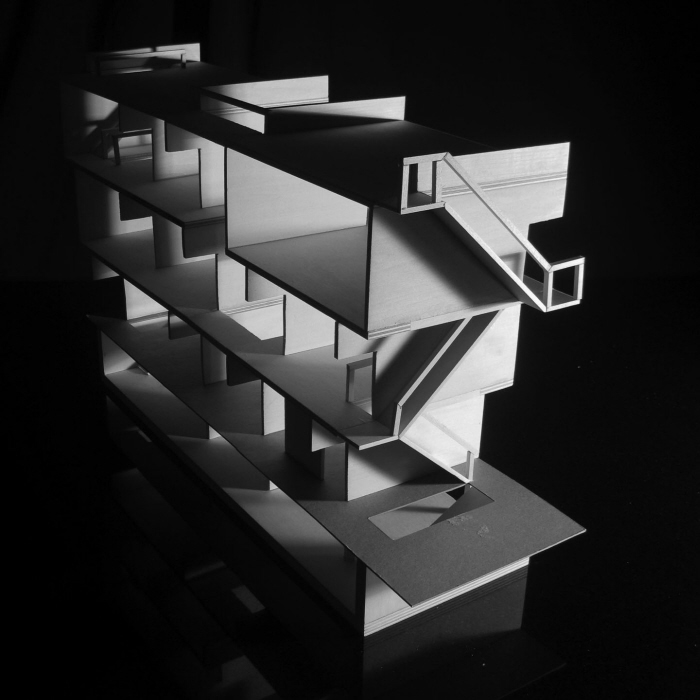

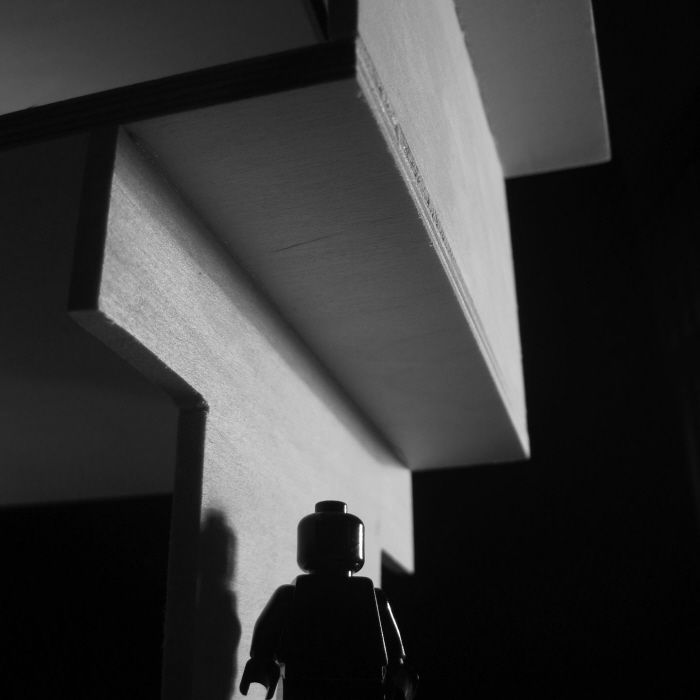

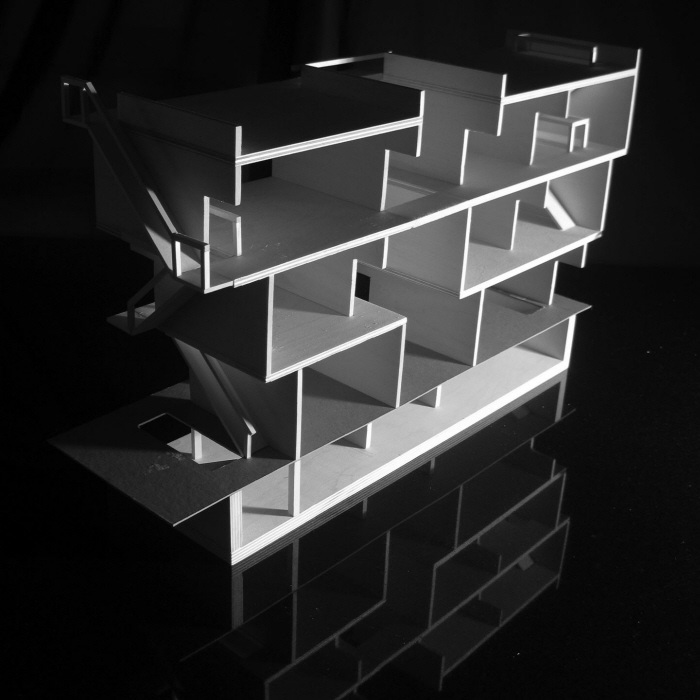

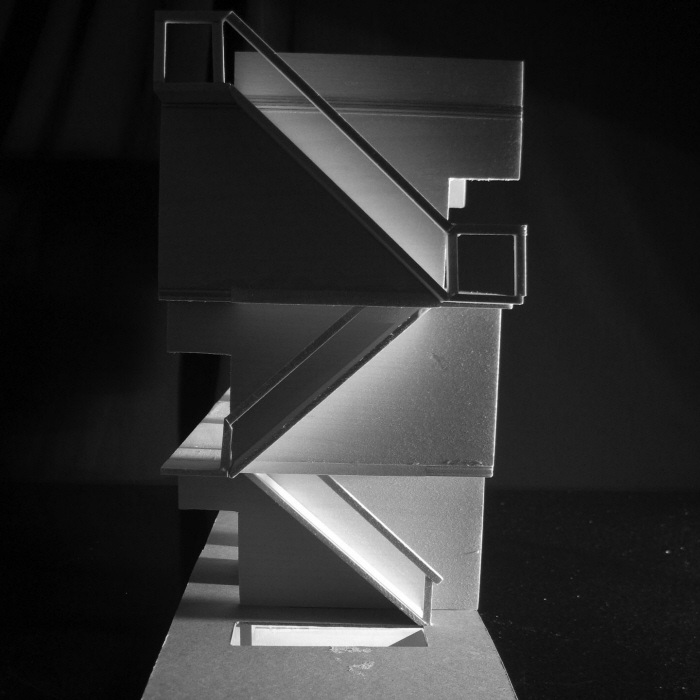

Rear - 1/4 Scale Model
1/4 Scale Model
1/4 Scale Model
1/4 Scale Model
gLike
Museum of the Immigrant Experience-Spring 2009
