Lamp and Pedestal
H Favorite qView Full Size

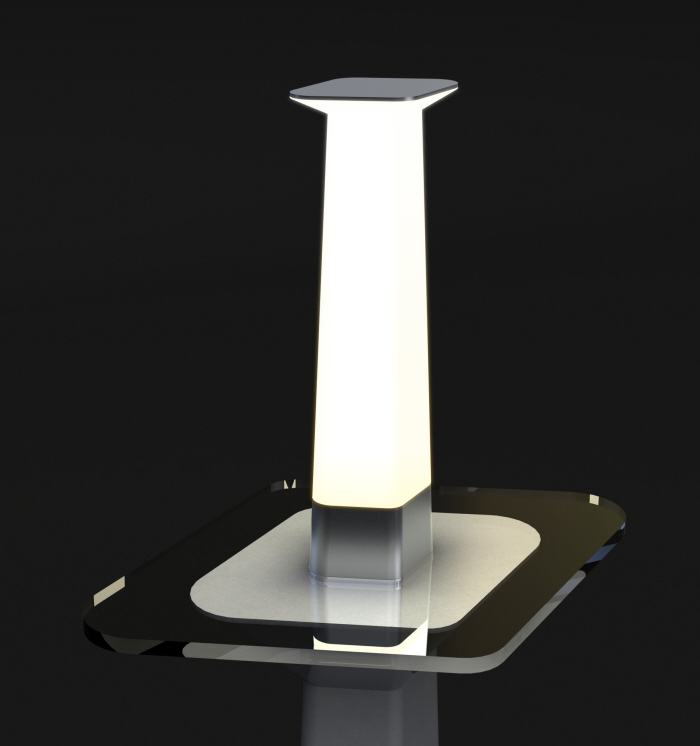

Final assembled/ functional prototype. Diffuser is a polycarbonate-like 3D printed material with a light media blast. Top cap piece and base were 5-axis CNC milled from aluminum.
Interior components consist of 3D printed ABS, brass, copper, bearing, LEDs, and thermal compound to sink heat throughout the assembly and base.
H Favorite qView Full Size
Rough assembly and details. Modeled in Solidworks.
H Favorite qView Full Size

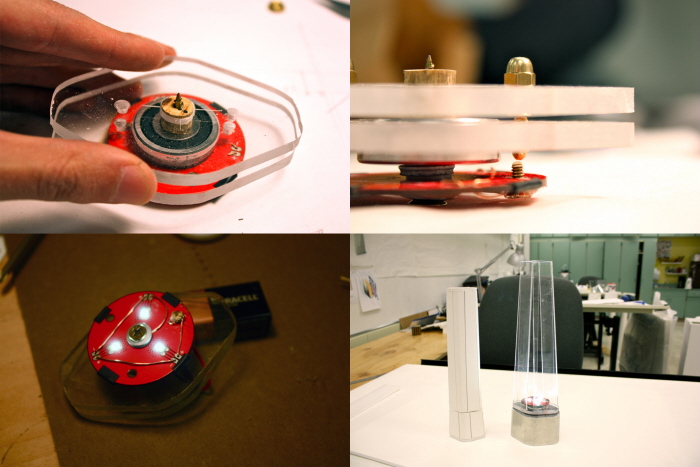

Carousel prototype. The final product has twice as many super-bright warm LEDs.
H Favorite qView Full Size

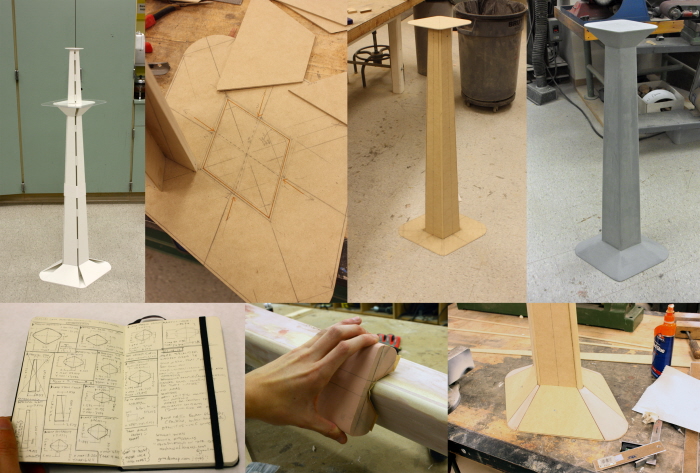

Pedestal mockup and construction
H Favorite qView Full Size
Final working prototype lamp and pedestal on display.
H Favorite qView Full Size

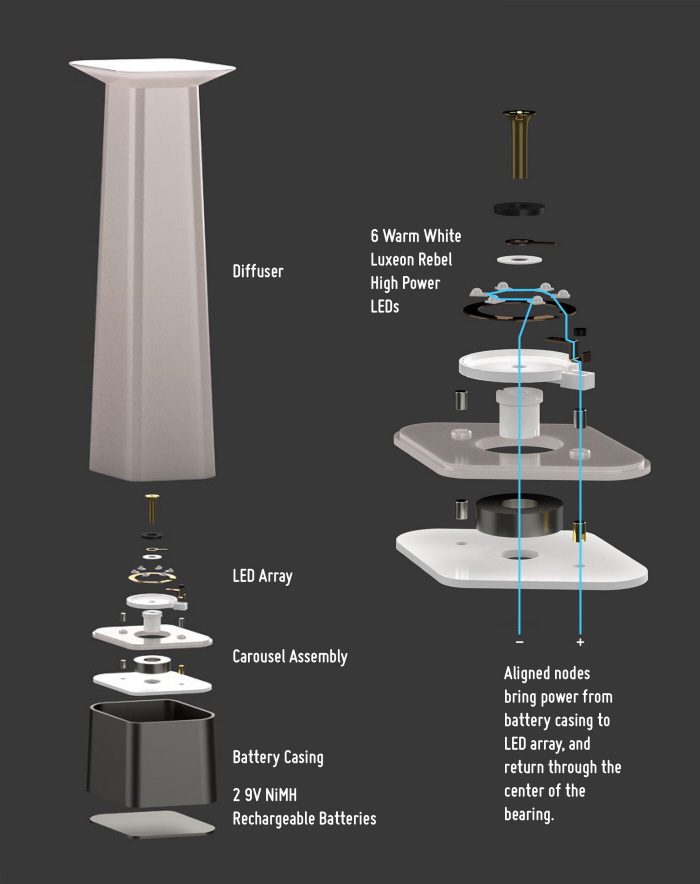

Lamp Assembly, modeled and rendered in Solidworkds
