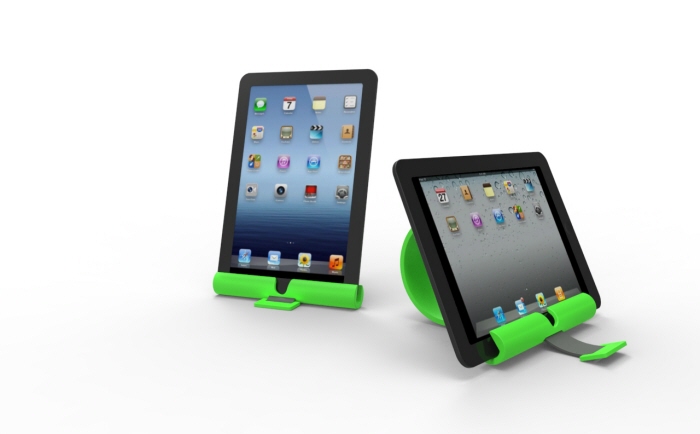

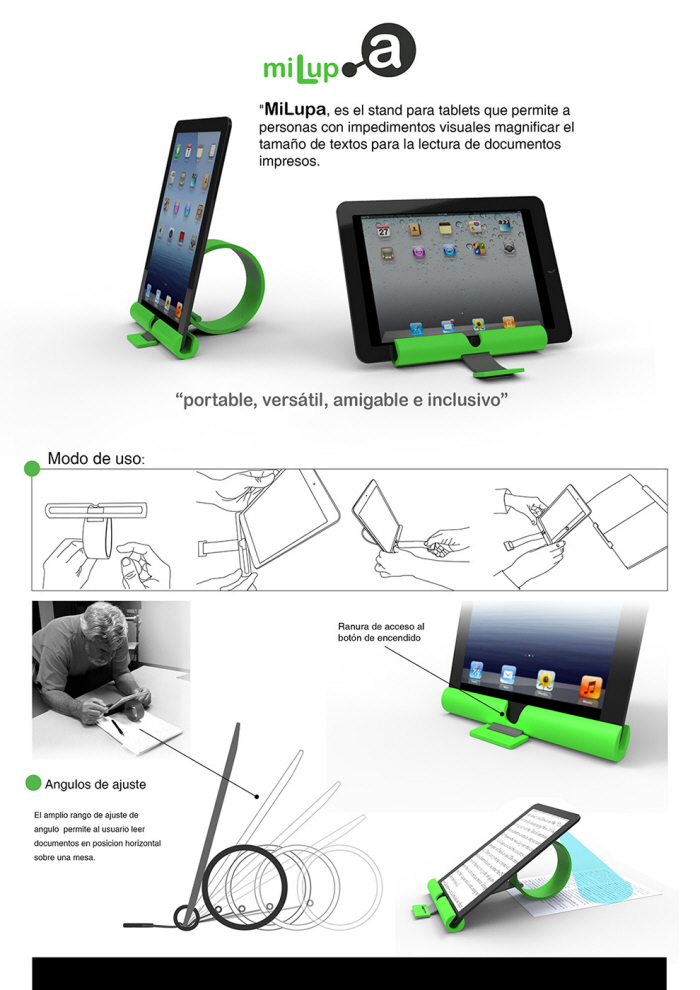

MiLupa, es el stand para tablets que permite a personas con impedimentos visuales magnificar el tamaño de textos para la lectura de documentos impresos.
qView Full Size

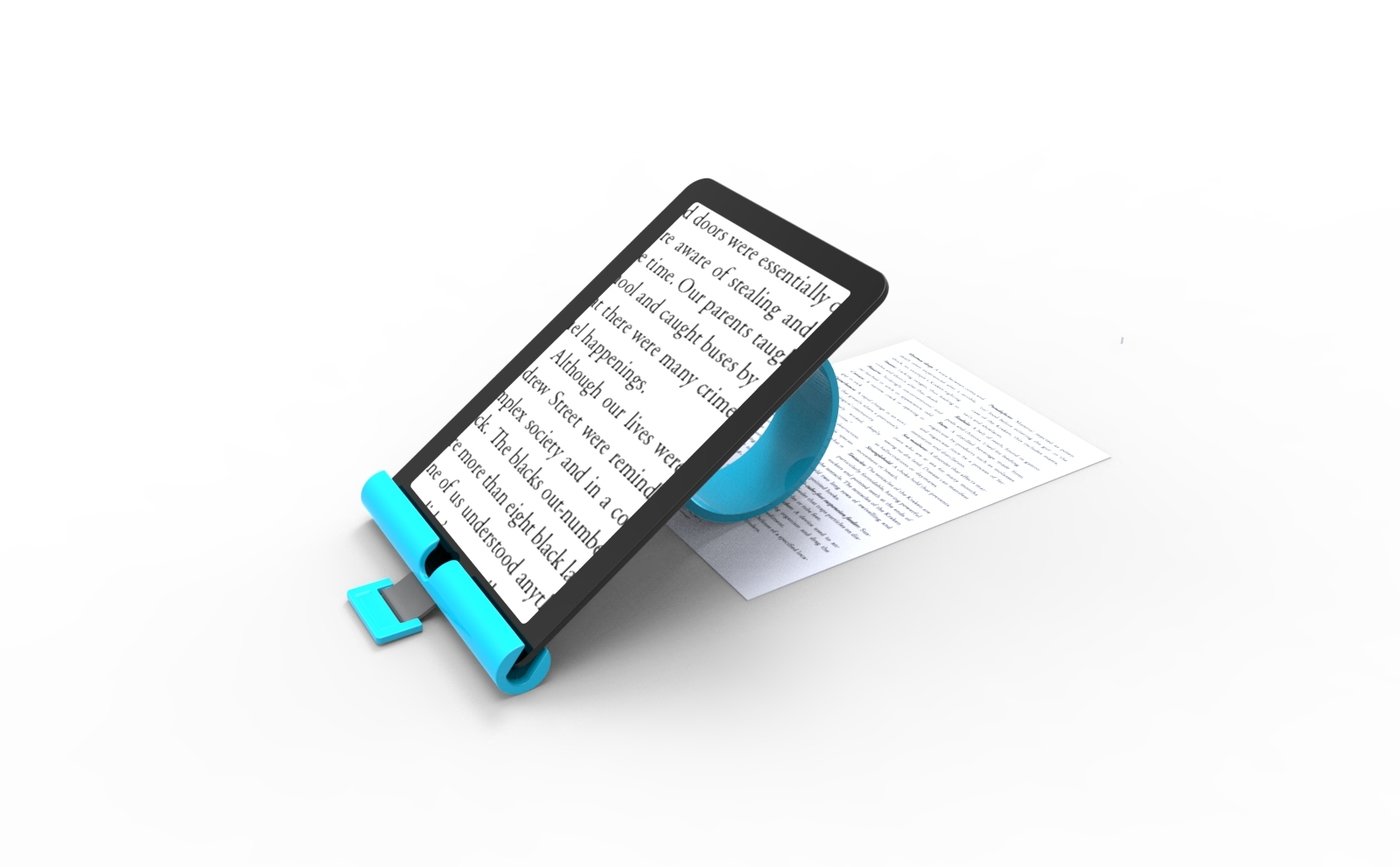

El amplio rango de ajuste de ángulo permite al usuario leer documentos en posición horizontal sobre una mesa.
qView Full Size

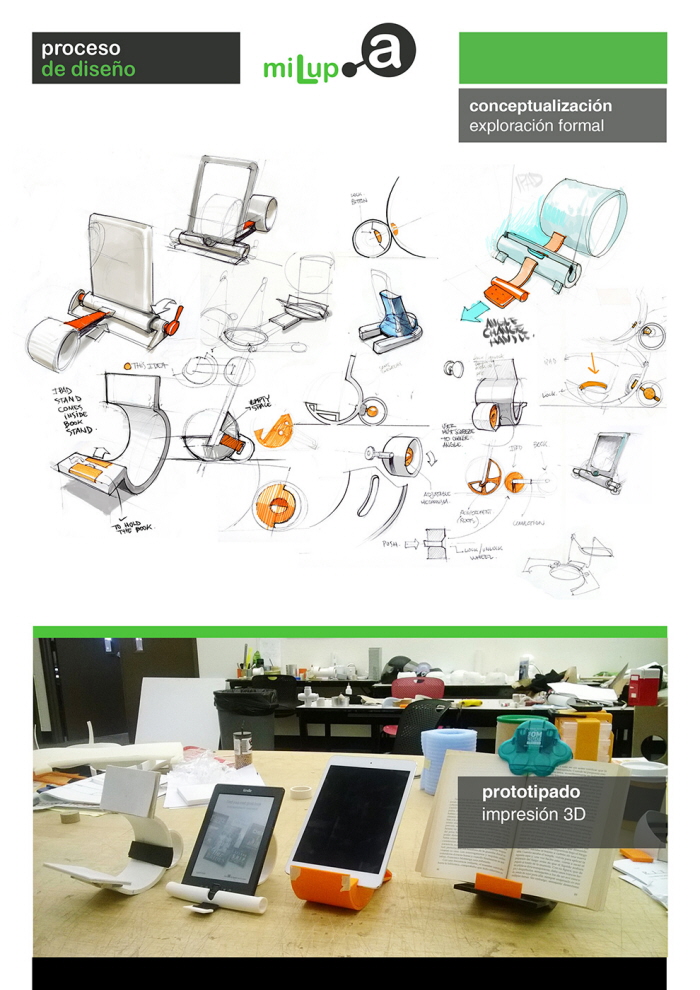

These 3 slides show a brief summary of the ideation stage.
qView Full Size
Flat version. I was trying to develop the solution within the same area of an Ipad.
qView Full Size
Simple mechanisms exploration...
qView Full Size
mock ups with PVC tubes, wood and an elastic strap.
qView Full Size
Nest idea. Trying to fit every element inside the book stand.
qView Full Size
Testing the performance of our 3D printed prototypes. This idea was dropped behind because it was too bulky.
qView Full Size
Trying new ideas...
qView Full Size
Mock up for book stand.
qView Full Size
Final Design. Really small.
qView Full Size
The weight of the Ipad locks the strap.
qView Full Size

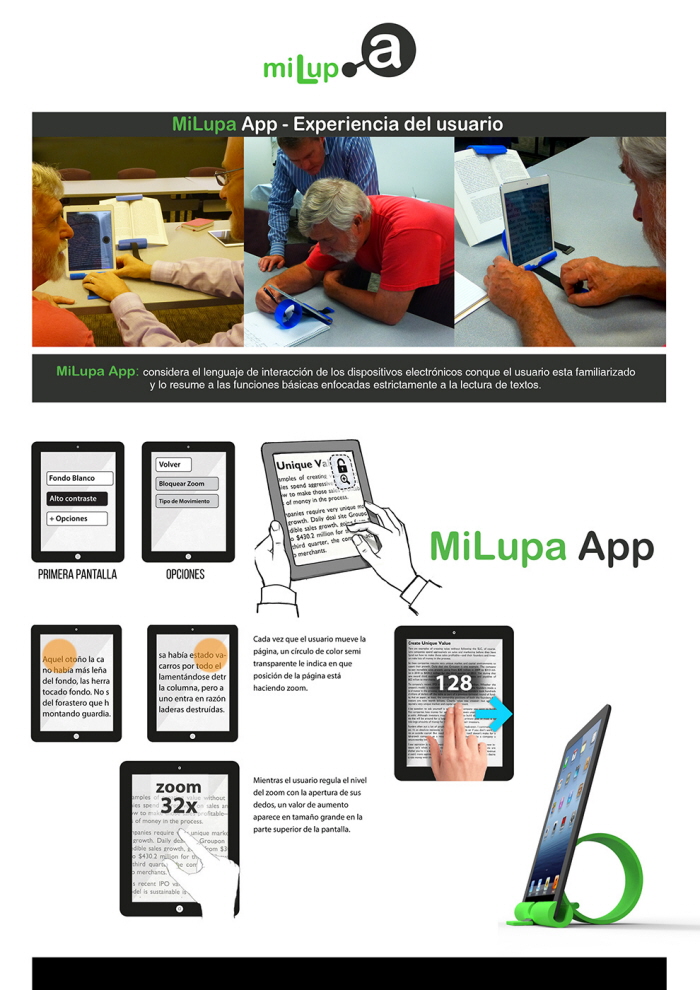

Real user testing. Getting useful feedback.
