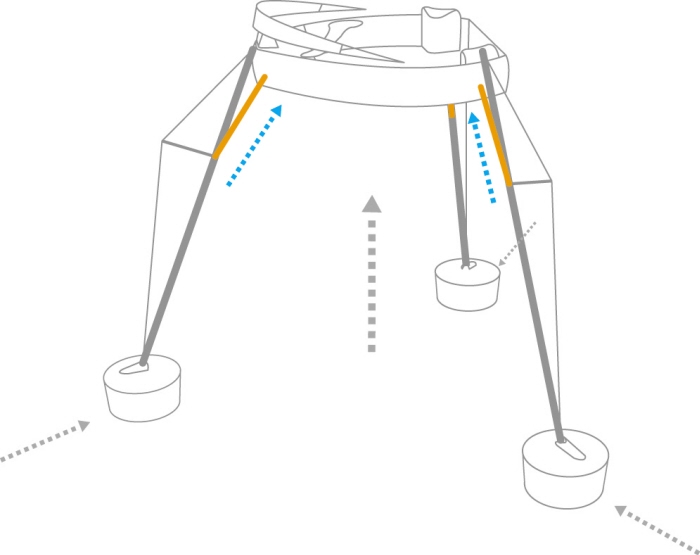

Molnarka is an engined boat capable for lifting its hull about 4 meters (~13 ft) above water, at any point on still water surface. The development of the concept was based on a university tender aiming to design a rescue base that can be optionally placed for sighting, so the rescue procedure can be immediately initiated from water, after notice of emergency.

Further information: http://igendesign.wordpress.com/2010/02/11/igenworks-molnarka-with-detailed-documentation/
qView Full Size

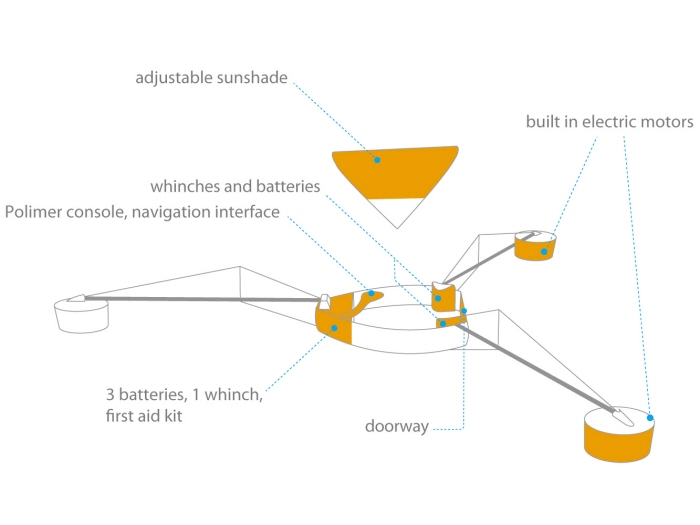

The multifunctional lifeboat task is to privide the coastal rescue operations mainly in freshwater in such a way that the crew can choose the observation post anywhere on the open-water. By the help of its legs, the boat can lift itself and its crew upto 4 meters above the water level anywhere.
qView Full Size
there are no rudder on the boat. In fact of the big distance between the steerling wheel and the motors it would be very difficult and expensive to steer on the classic way with bowdens, but we can make use of the rev differences of the motors to navigate the boat. And for that big distance we have a great leverage.
When the Molnarka is off duty it can rest on a pier-head. It navigates above the pier with raised body then slowly descends onto it. In such a case the legs are resting unloaded and easely equip the boat.
To avoid the too intensive rocking caused by the wind and the waves we can fix the boat to a buoy. In the rescue situation the lock perceive when the motors start and they unlock immediately.
qView Full Size
The structure of the feet is designed similar to the bicylcle frame. Because this way tha main loads cause compressive stresses.
