DESIGN DIRECTION
DESIGN DIRECTION
DESIGN DIRECTION OF FULL AND HALF FRAME CHRONOSHIELD

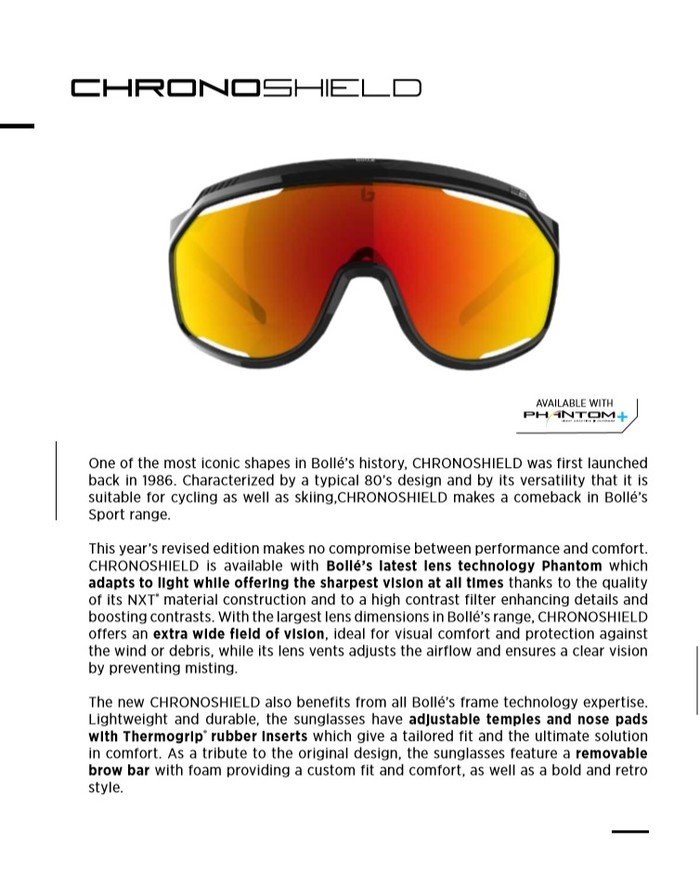

TOUR DE FRANCE 2020

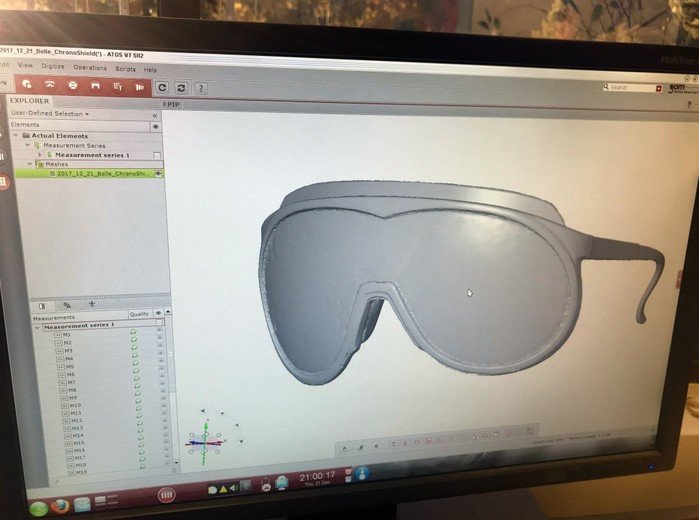

3D SCAN OF ORIGINAL CHRONOSHIELD
3D SCAN OF ORIGINAL CHRONOSHIELD
VERY FIRST 3D PRINT
MINOR ADJUSTMENTS
ORIGINAL CHRONOSHIELD AND 3D PRINT
ASSEMBLED PROTOTYPE WITH ADJUSTABLE LENGTH TEMPLES
HAND CUT LENS FITTING
3D PRINT WITH MAGNETIC BROW PAD
3D PRINT WITH MAGNETIC BROW PAD
3D PRINT W CUSTOM MICRO FIBER CLOTH DESIGN
PROTOTYPE EVOLUTION
FINAL DESIGN DIRECTION
gLike
AHEAD OF ITS TIME
This was an unbriefed passion project. When I started at Bollé I felt so strongly that it should exist that I spent a Friday & created it. I presented it to the team and they loved it. The Chronoshield 2 was then added to the product road map and development began. I first started by white light scanning the original Chronoshield to use as an underlay in CAD as a reference for fit and sizing. Quick sketches moved to 3D and numerous prints followed to refine fit, panto angle, frame size, & temple length. Once complete, development with our Italian manufacturer began. The result is a new iconic design to help elevate the Bollé brand back to where they once stood.
