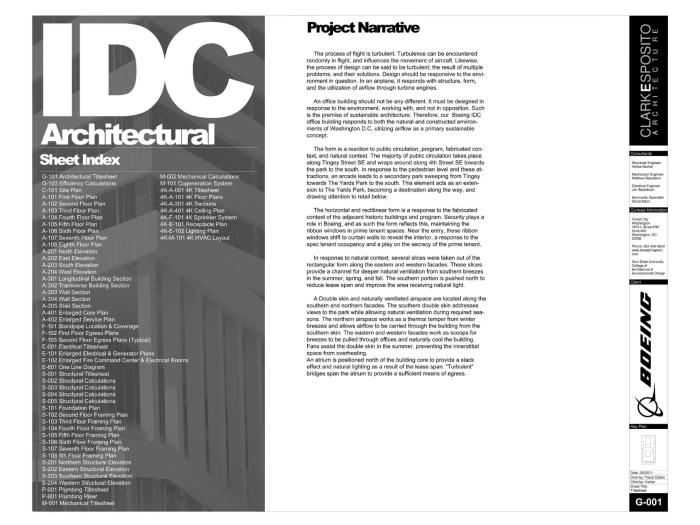

Architectural Titlesheet
View PDF
View PDF

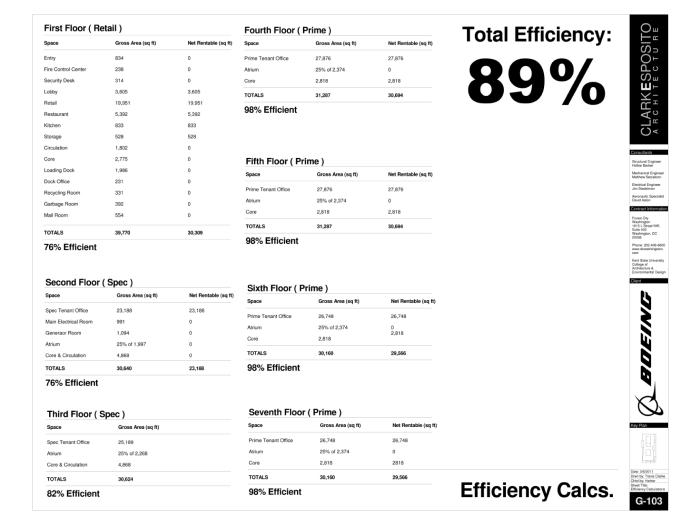

Efficiency Calculations
View PDF
View PDF

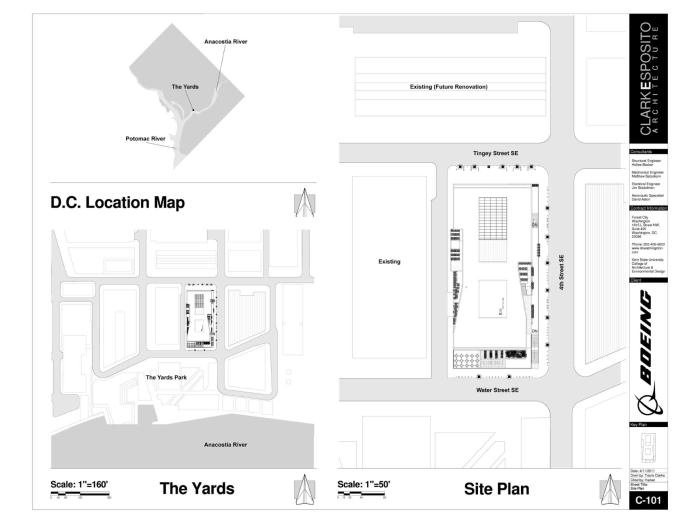

Site Plan
View PDF
View PDF

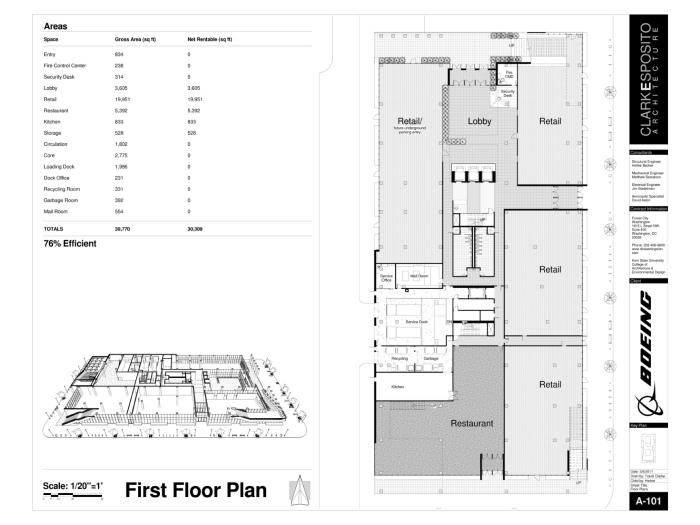

First Floor Plan
View PDF
View PDF

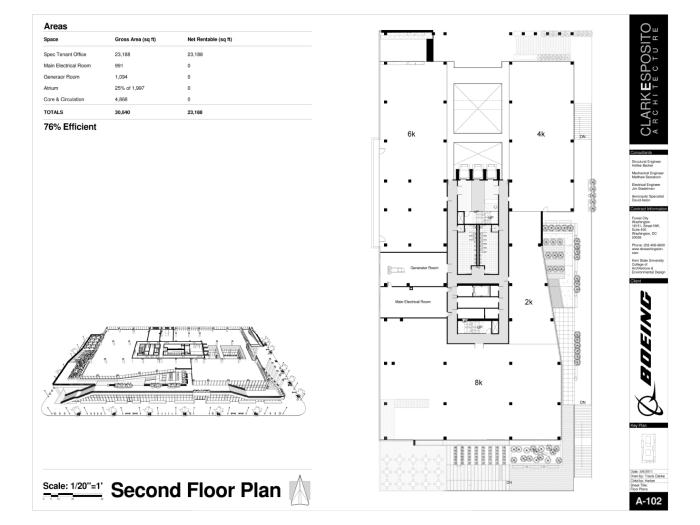

Second Floor Plan
View PDF
View PDF

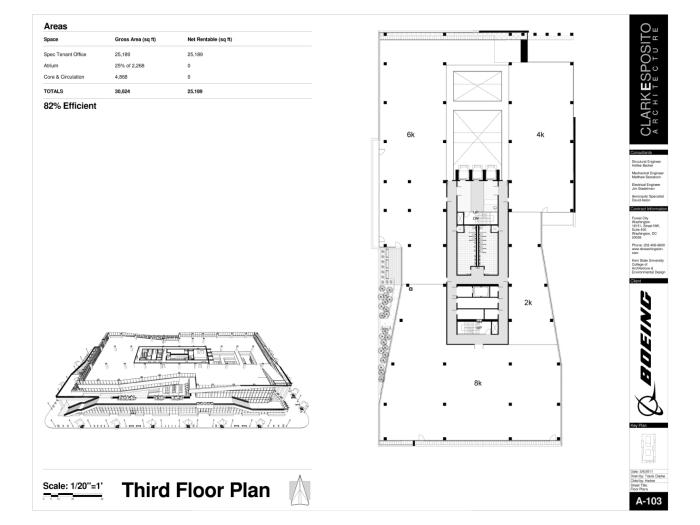

Third Floor Plan
View PDF
View PDF

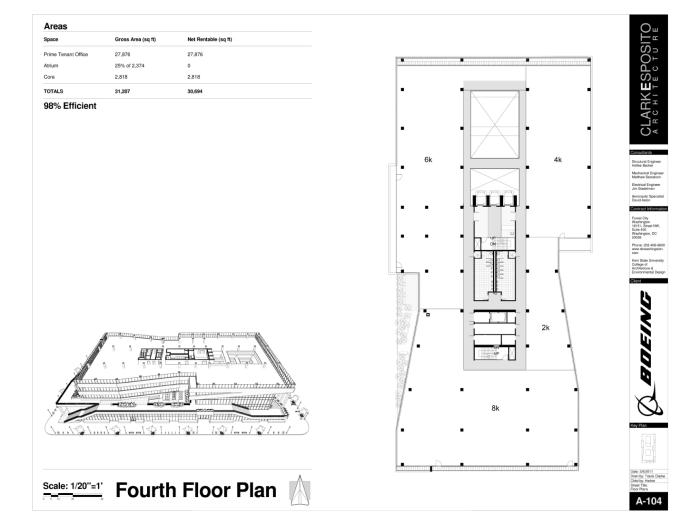

Fourth Floor Plan
View PDF
View PDF

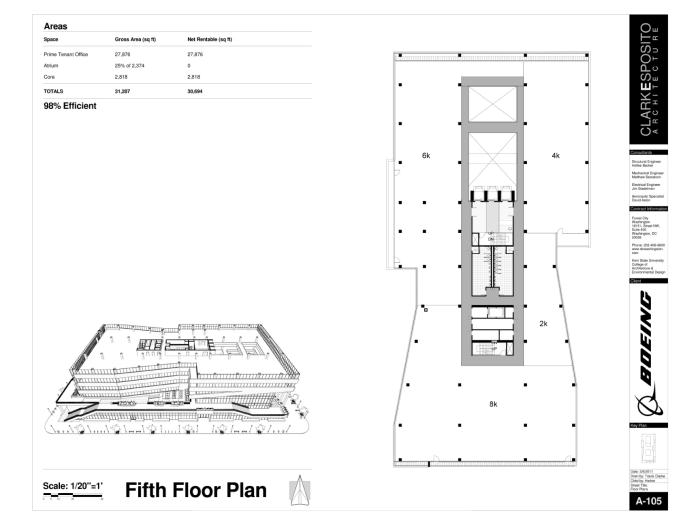

Fifth Floor Plan
View PDF
View PDF

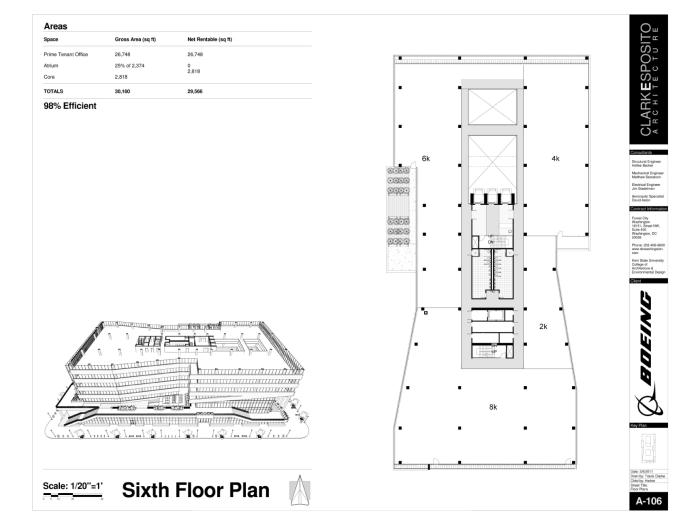

Sixth Floor Plan
View PDF
View PDF

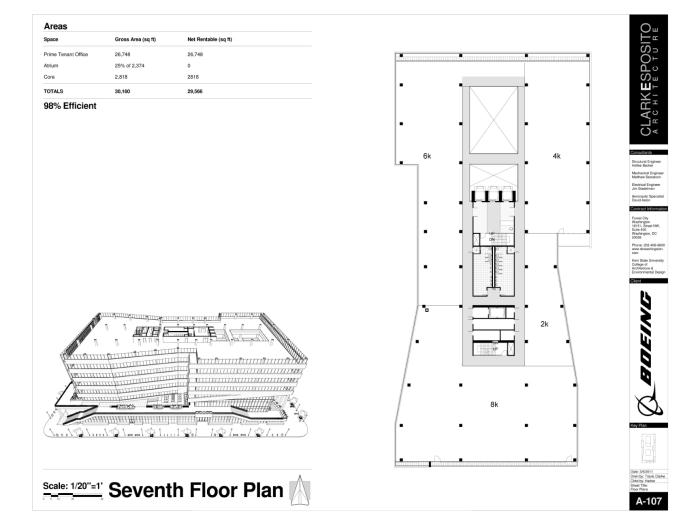

Seventh Floor Plan
View PDF
View PDF

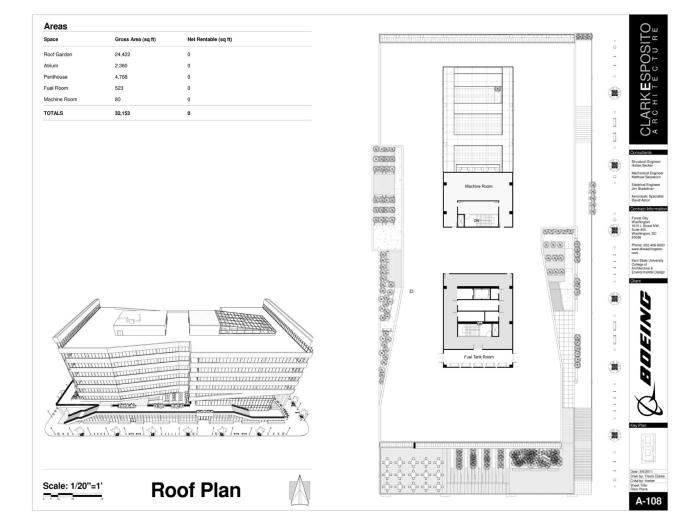

Roof Plan
View PDF
View PDF

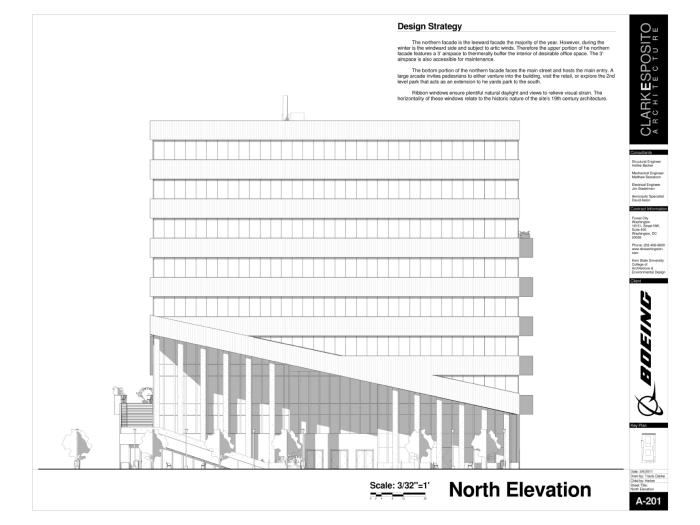

North Elevation
View PDF
View PDF

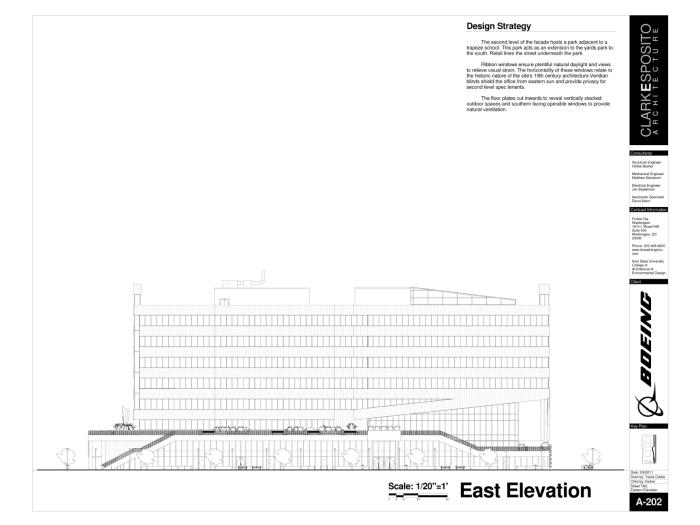

East Elevation
View PDF
View PDF

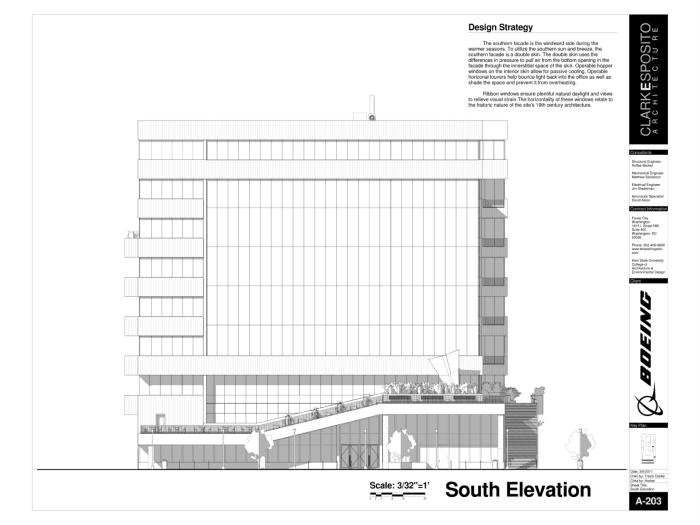

South Elevation
View PDF
View PDF

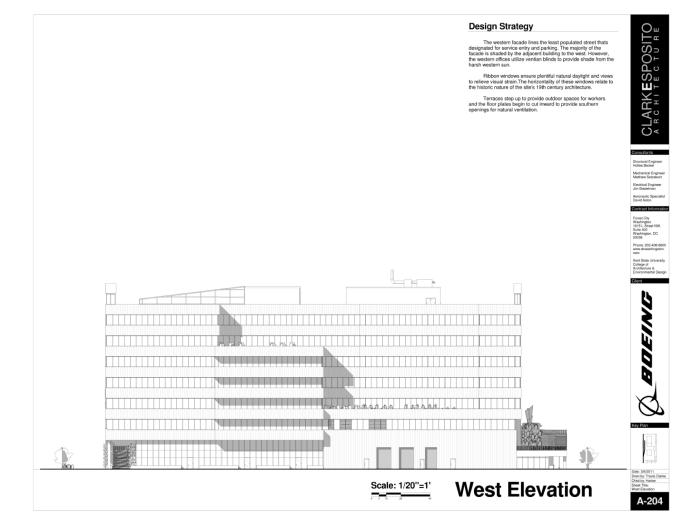

West Elevation
View PDF
View PDF

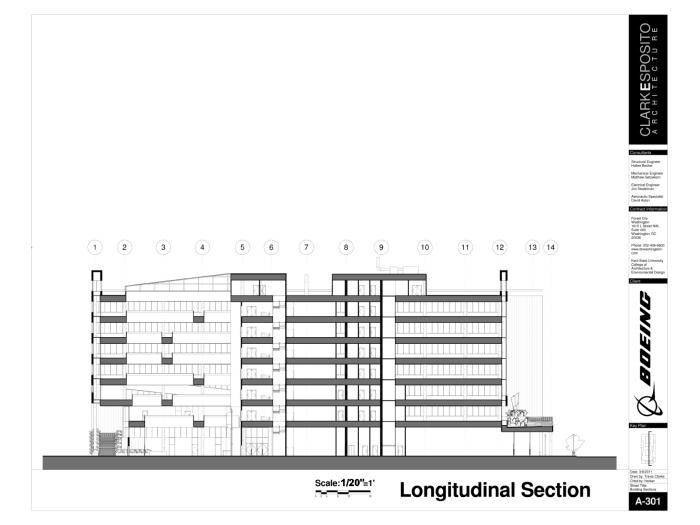

Longitudinal Section
View PDF
View PDF

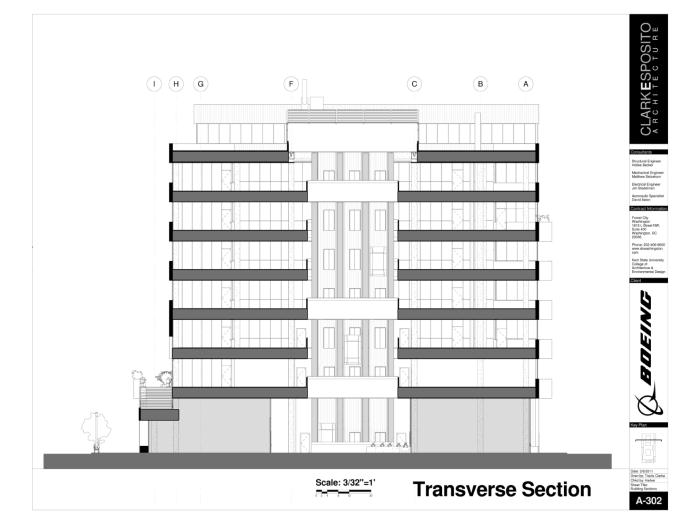

Transverse Section
View PDF
View PDF

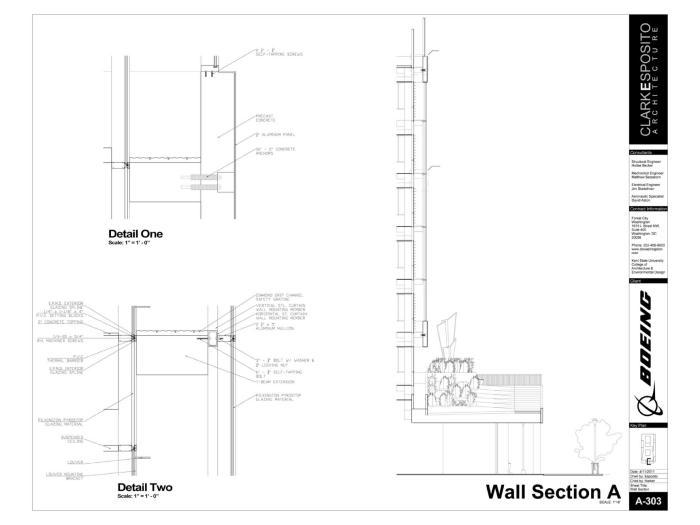

Wall Section A
View PDF
View PDF

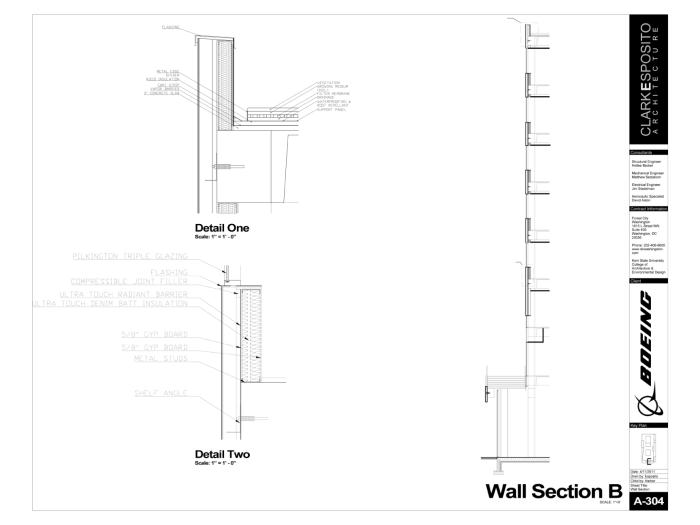

Wall Section B
View PDF
View PDF

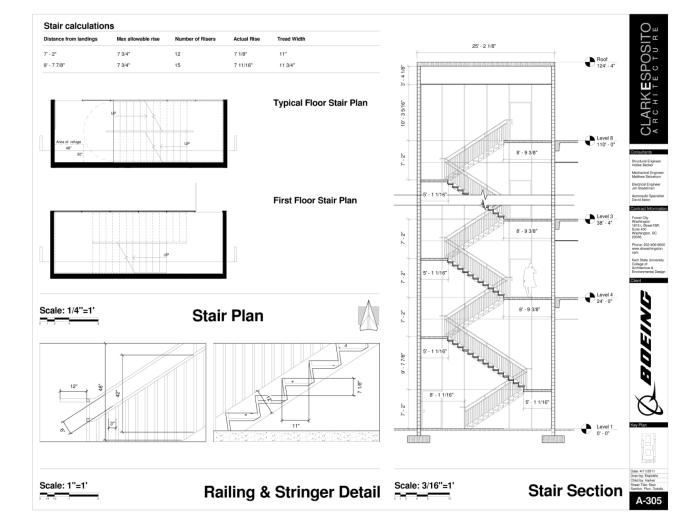

Stair Section
View PDF
View PDF

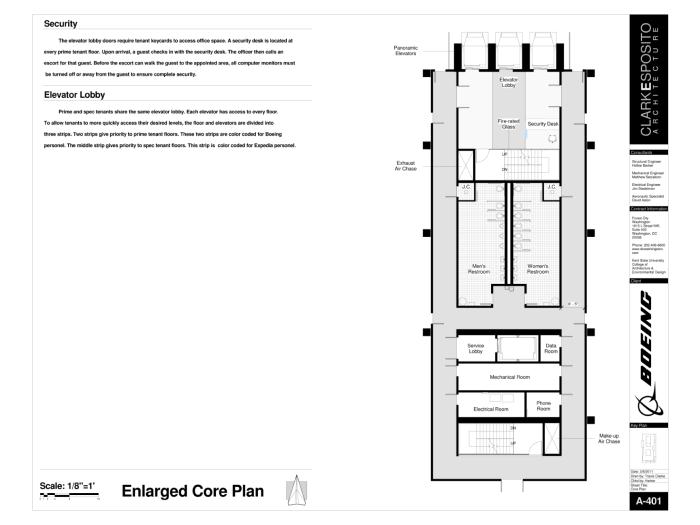

Enlarged Core Plan
View PDF
View PDF

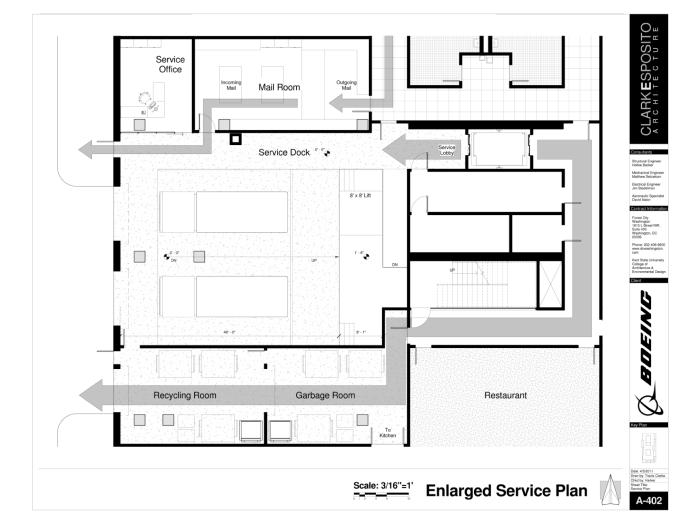

Enlarged Service Plan
View PDF
View PDF

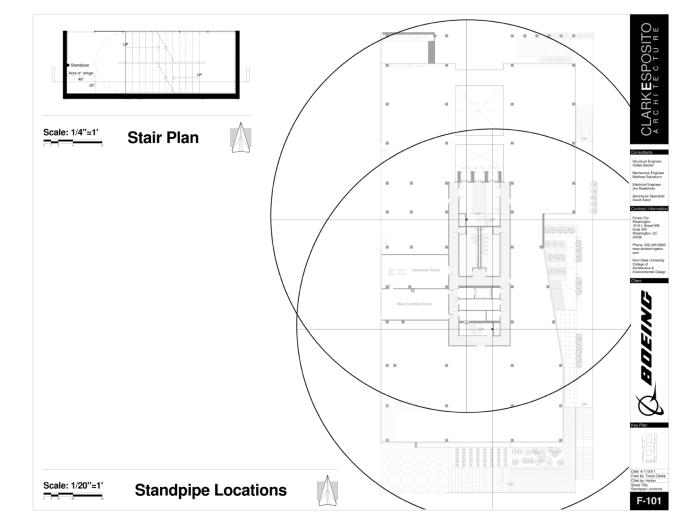

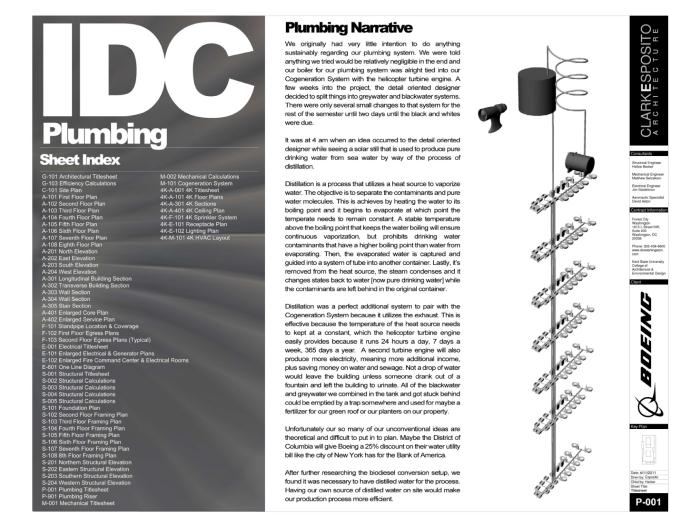

Standpipe Locations
View PDF
View PDF

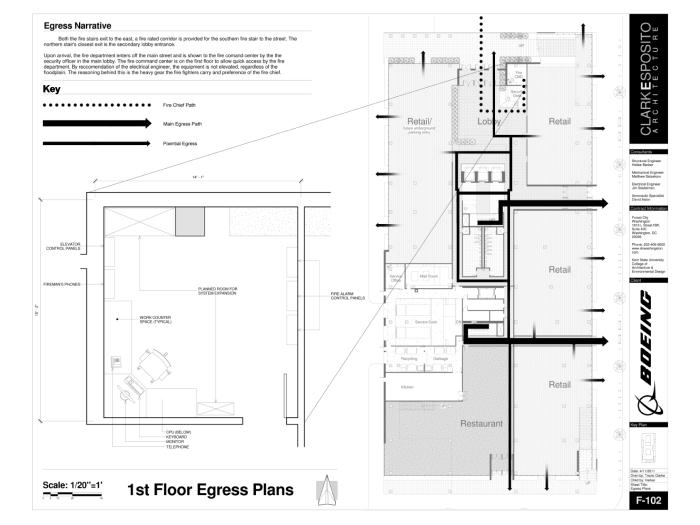

1st Floor Egress Plans
View PDF
View PDF

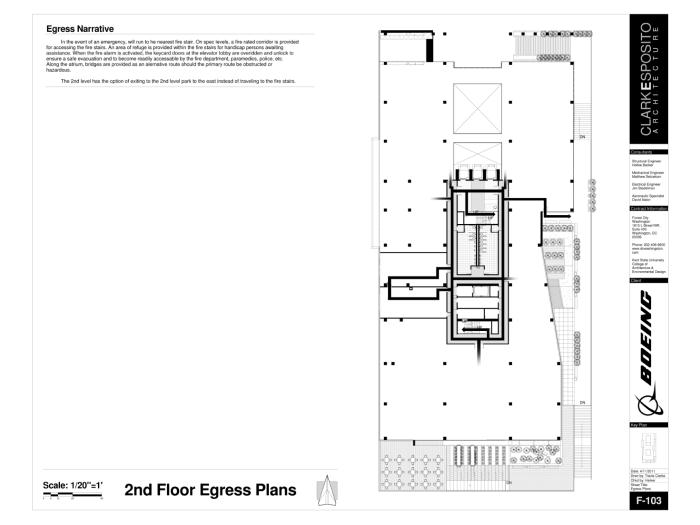

2nd Floor Egress Plans
View PDF
View PDF

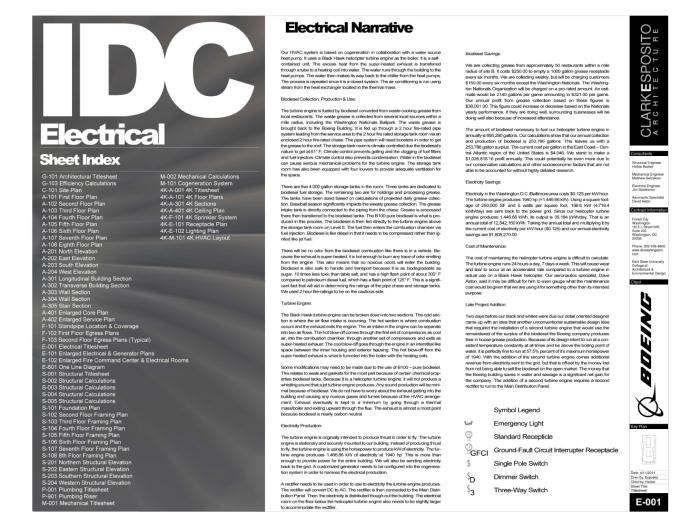

Electrical Titlesheet
View PDF
View PDF
Enlarged Plans
View PDF
View PDF

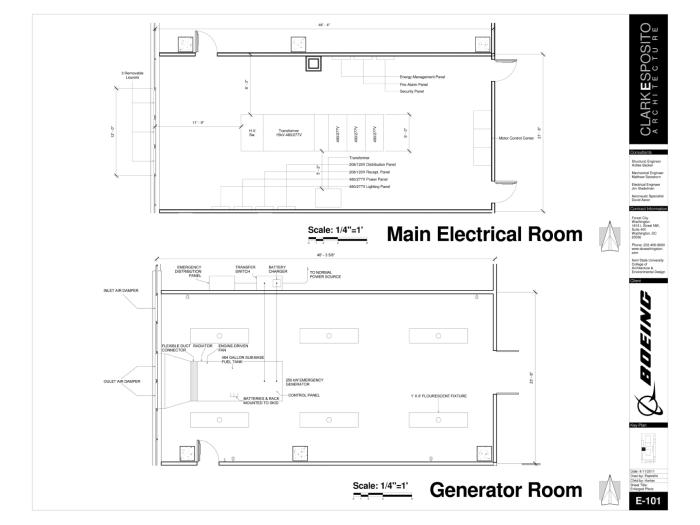

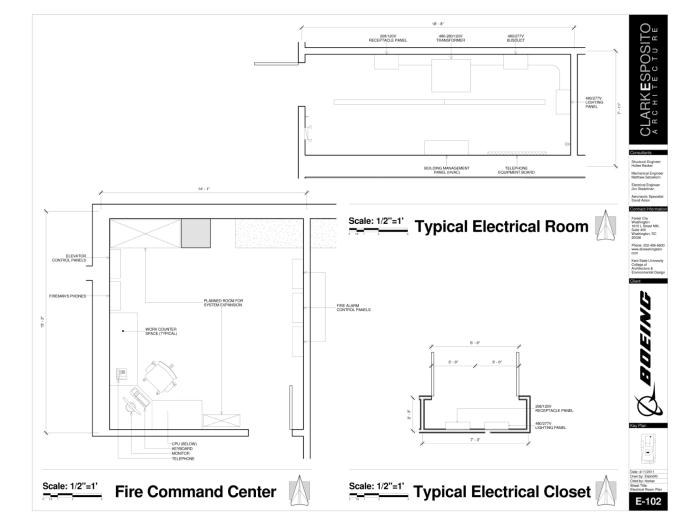

Electrical Room Plan
View PDF
View PDF

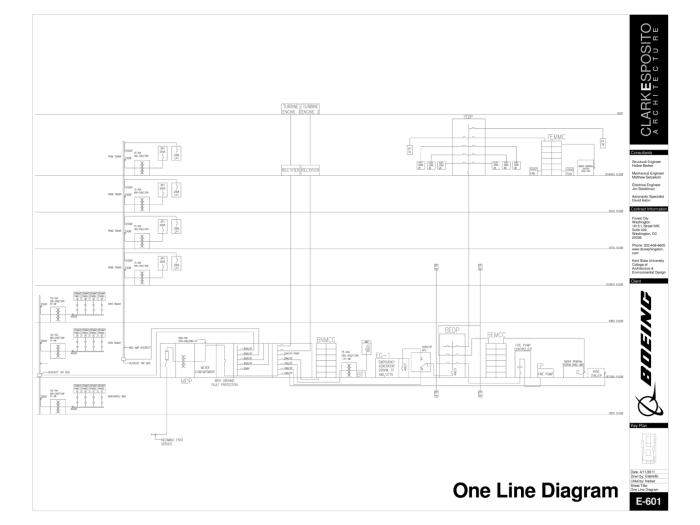

One Line Diagram
View PDF
View PDF

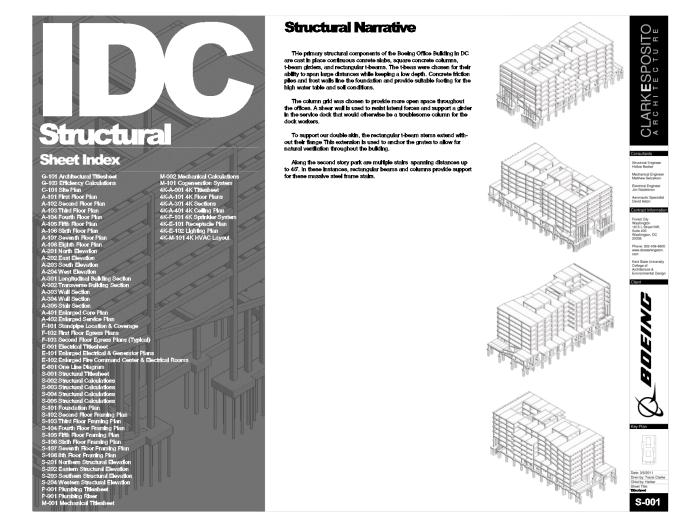

Structural Titlesheet
View PDF
View PDF

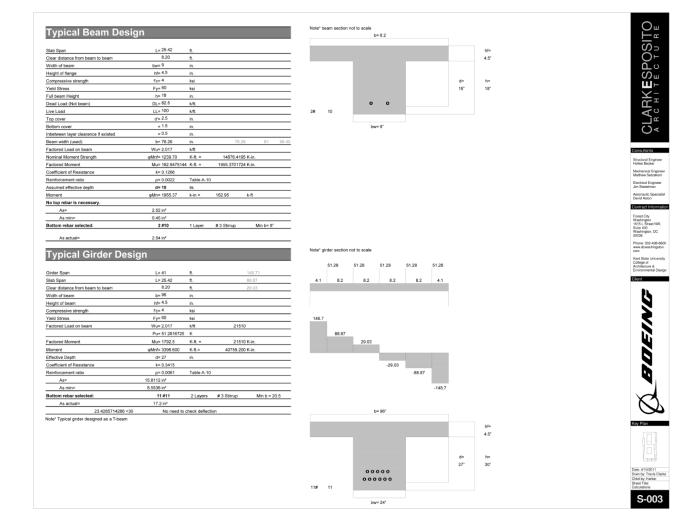

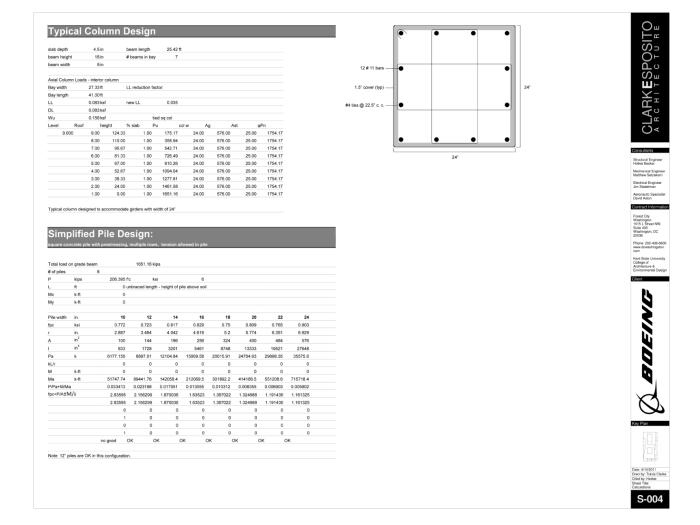

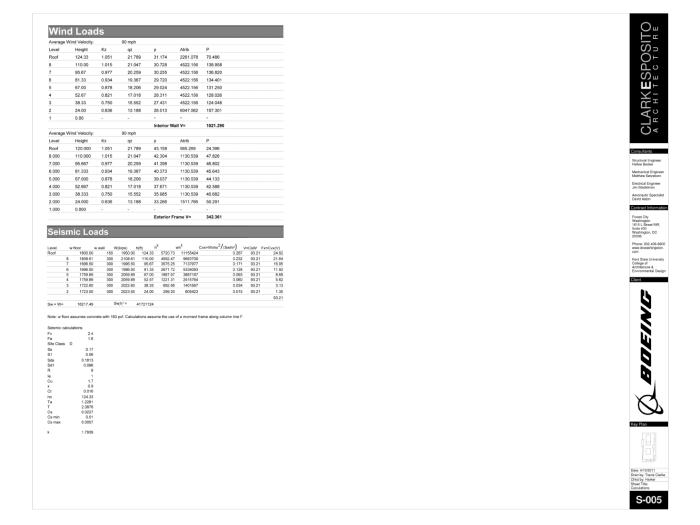

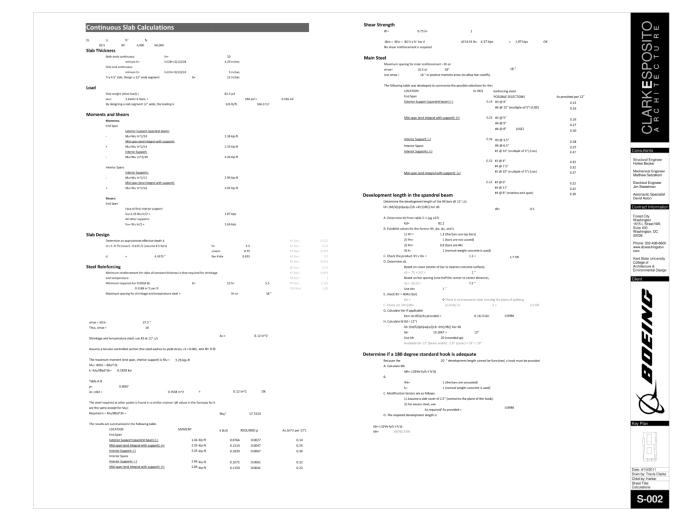

Structural Calculations
View PDF
View PDF
Structural Calculations
View PDF
View PDF
Structural Calculations
View PDF
View PDF
Structural Calculations
View PDF
View PDF

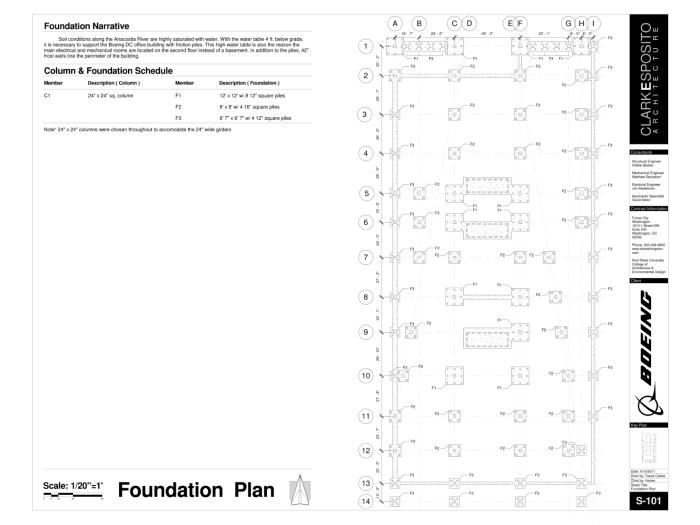

Foundation Plan
View PDF
View PDF

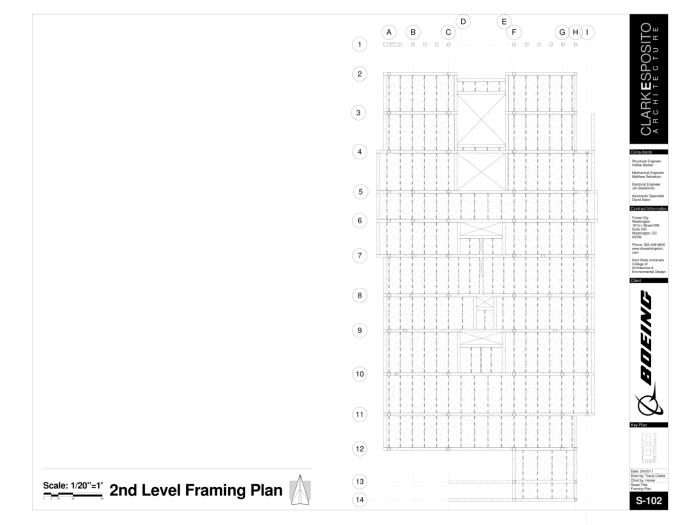

2nd Level Framing Plan
View PDF
View PDF

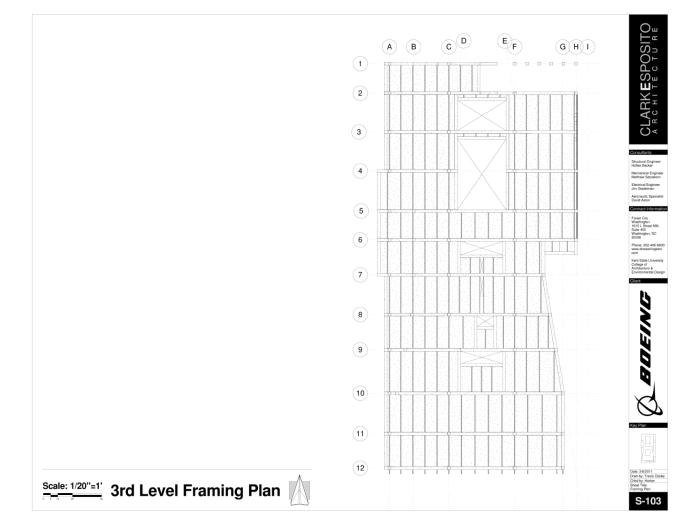

3rd Level Framing Plan
View PDF
View PDF
4th Level Framing Plan
View PDF
View PDF
5th Level Framing Plan
View PDF
View PDF

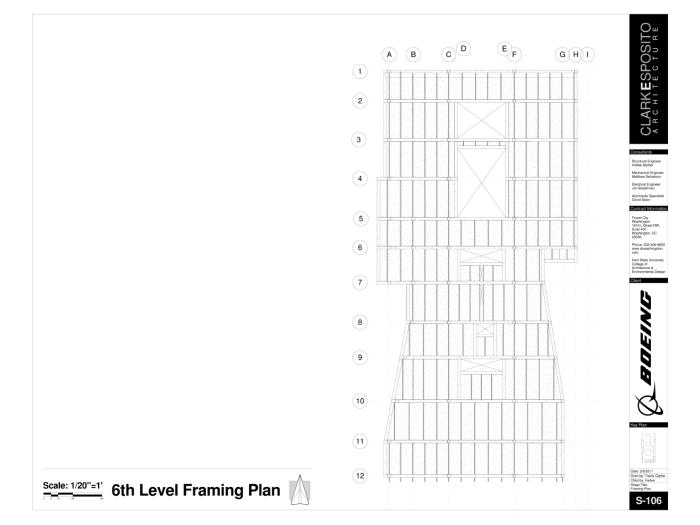

6th Level Framing Plan
View PDF
View PDF

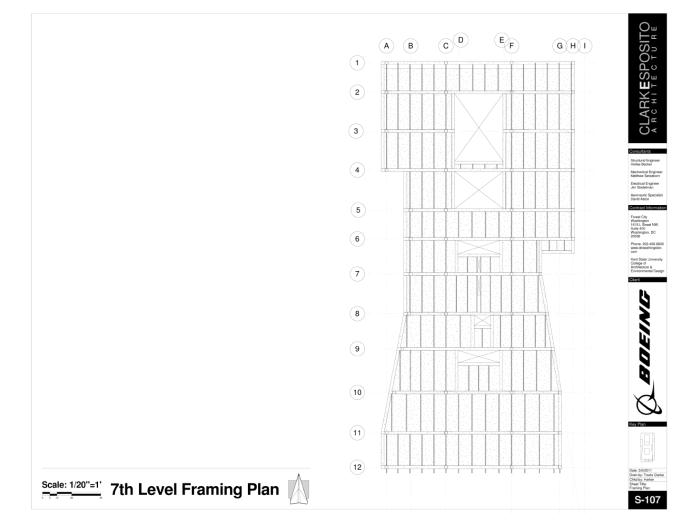

7th Level Framing Plan
View PDF
View PDF

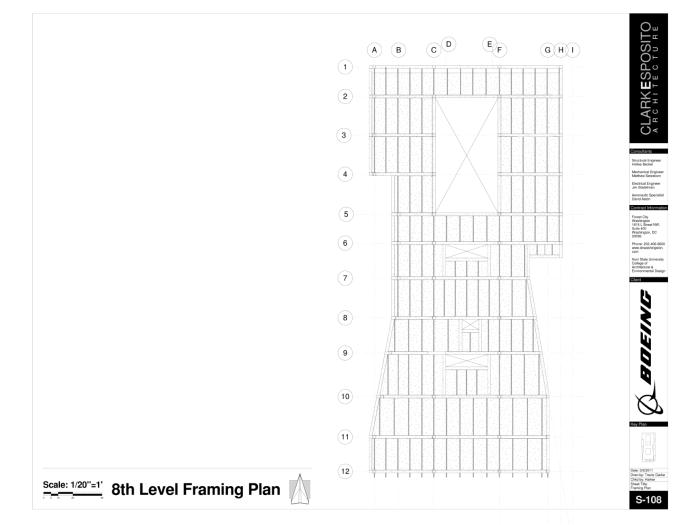

8th Level Framing Plan
View PDF
View PDF

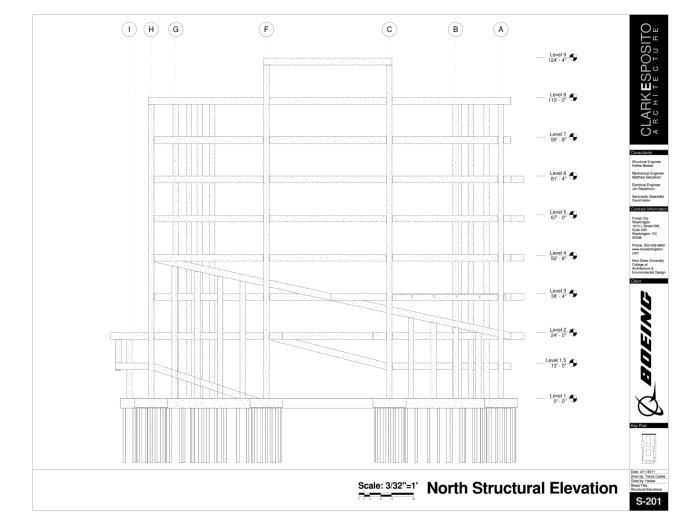

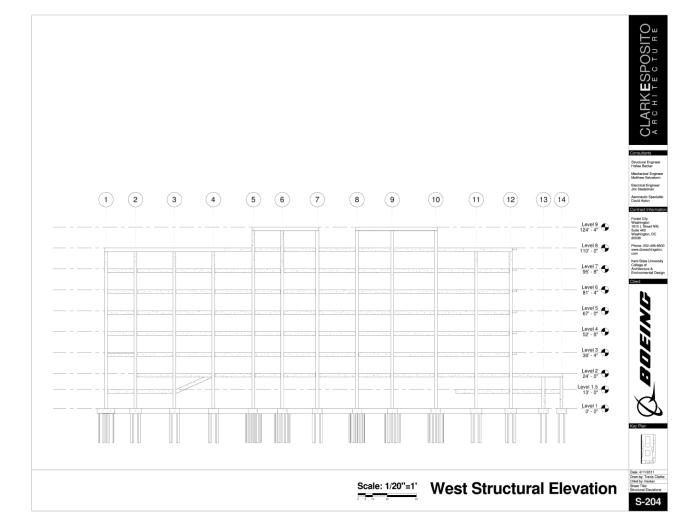

North Structural Elevation
View PDF
View PDF

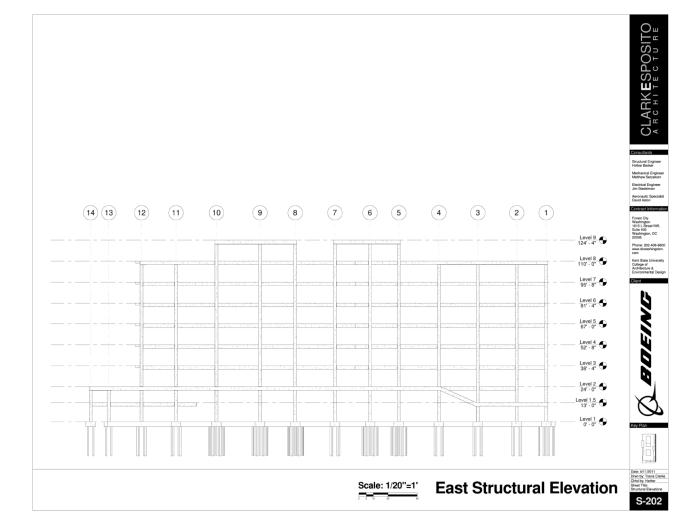

East Structural Elevation
View PDF
View PDF

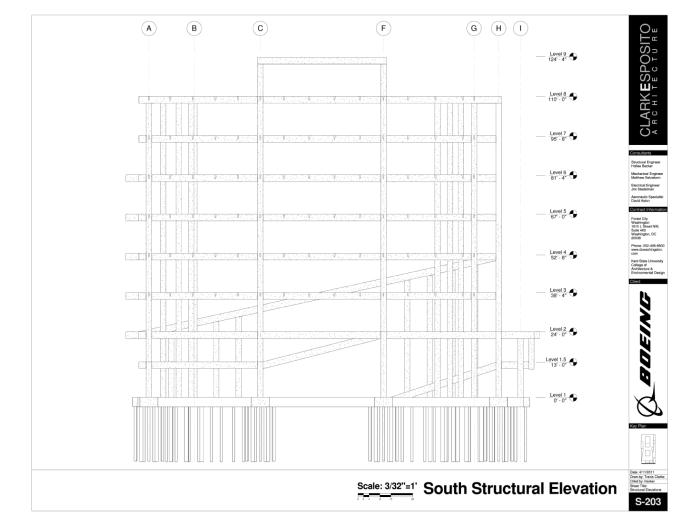

South Structural Elevation
View PDF
View PDF
West Structural Elevation
View PDF
View PDF
Plumbing Titlesheet
View PDF
View PDF

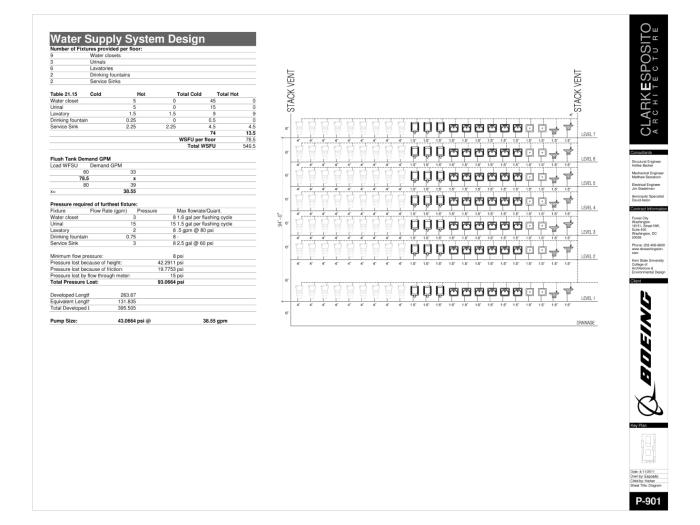

Plumbing Riser
View PDF
View PDF

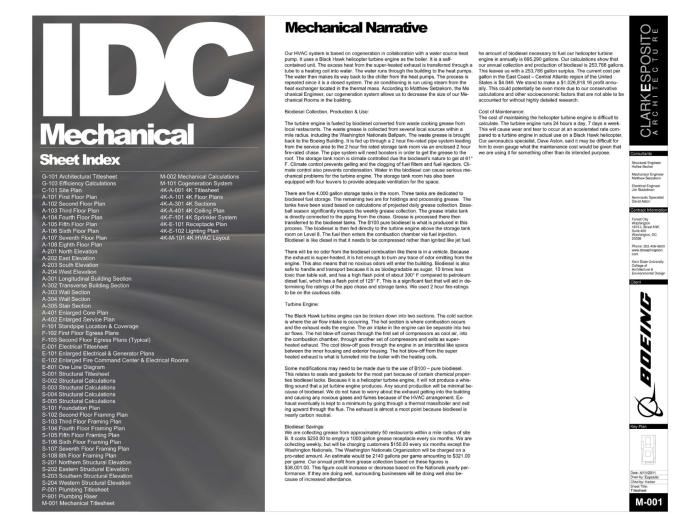

Mechanical Titlesheet
View PDF
View PDF

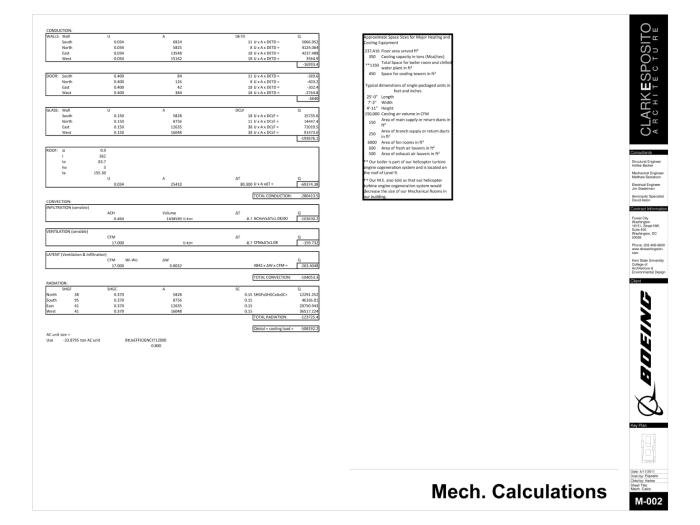

Mechanical Calculations
View PDF
View PDF

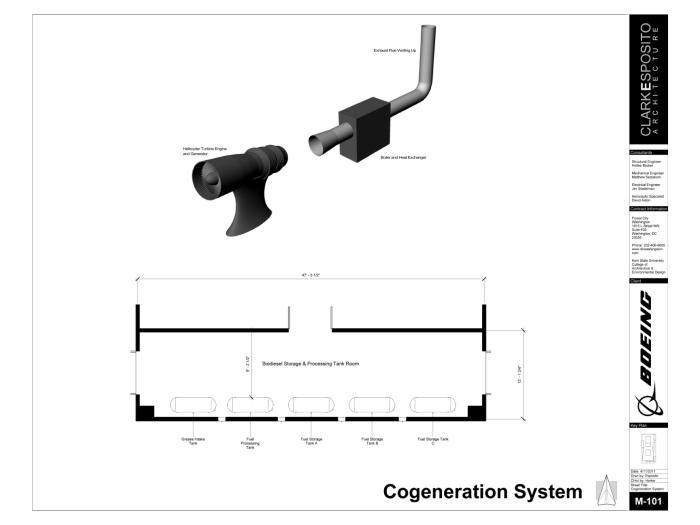

Cogeneration System
View PDF
View PDF
4k Titlesheet
View PDF
View PDF

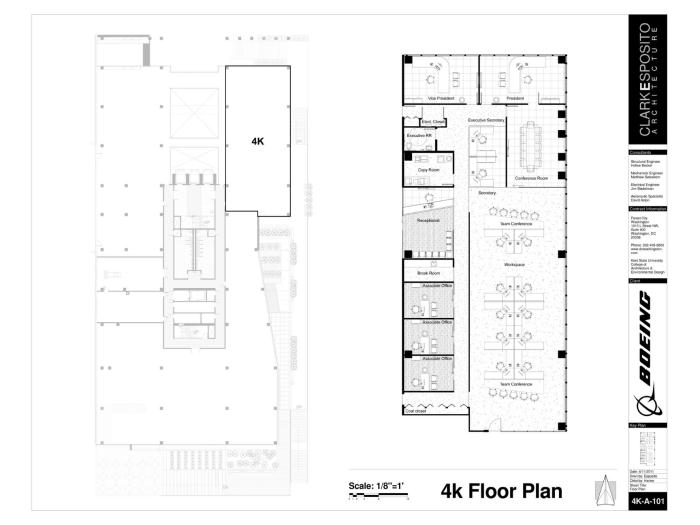

4k Floor Plan
View PDF
View PDF

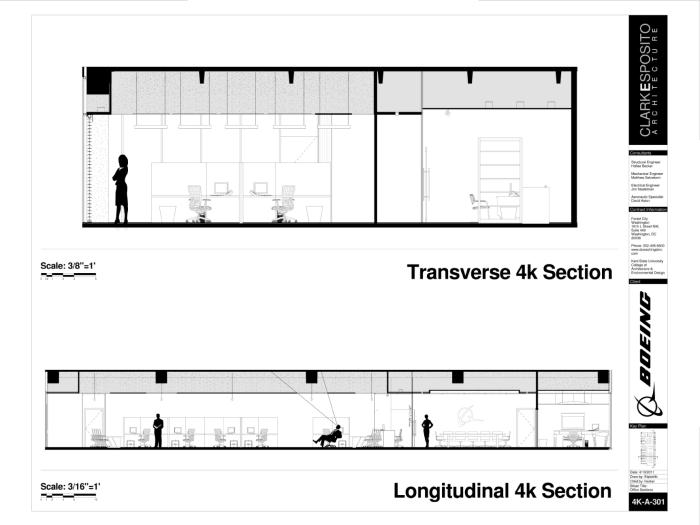

4k Sections
View PDF
View PDF

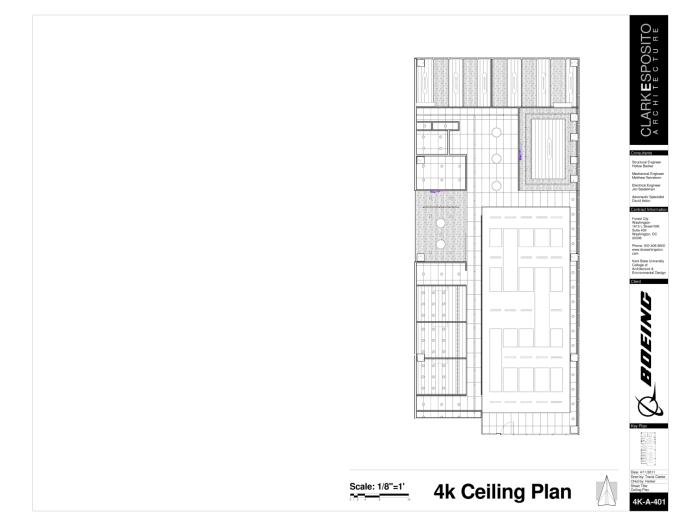

4k Ceiling Plan
View PDF
View PDF

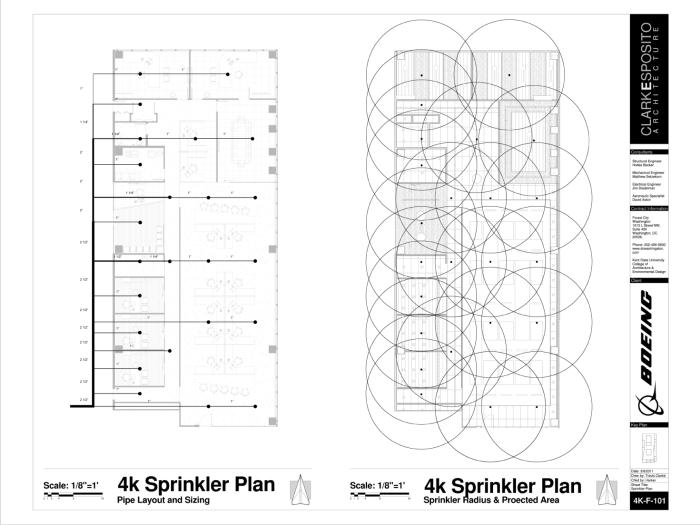

4k Sprinkler Plan
View PDF
View PDF

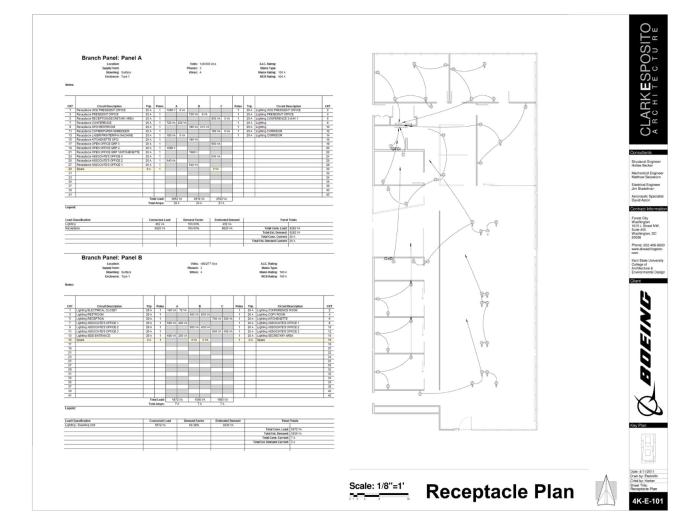

Receptacle Plan
View PDF
View PDF

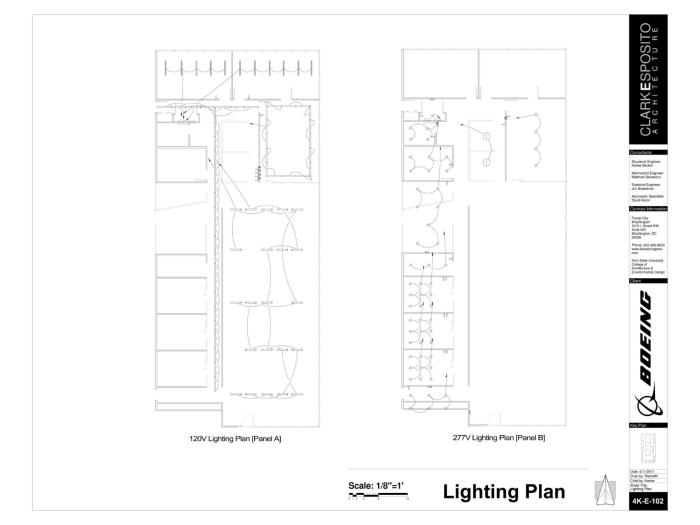

4k Lighting Plan
View PDF
View PDF

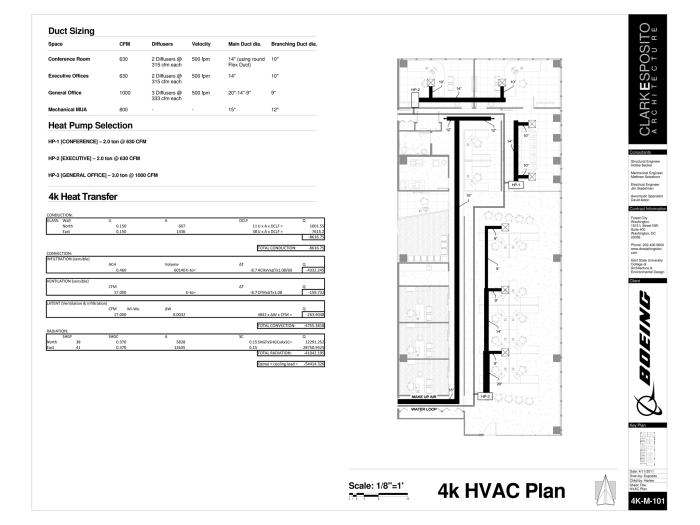

4K HVAC Plan
gLike
Integrated Design Competition Black & White Drawing Set
This is the complete black & white drawing set that accompanies the renderings for the Integrated Design Competition. It was a major part of the competition and a valuable experience.
Partner: Travis Clarke
