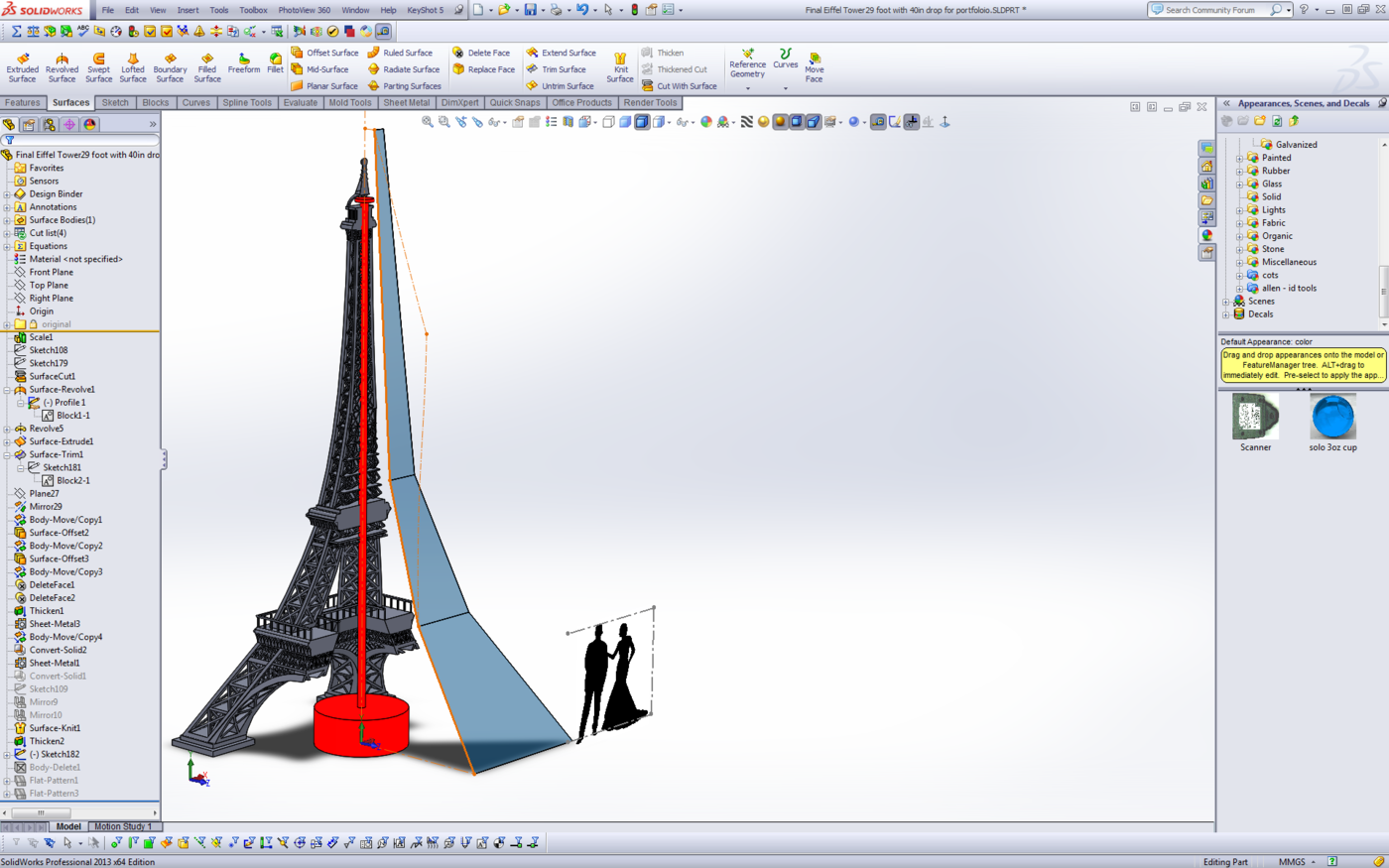

Swx file was created by importing a desktop-decoration 3D-printable model and scaling it precisely to the height of the flag-pole taking in account the hardware needed atop. I utilized the sheet-metal feature to unfold the 4x sides and applied the exported PDF line-work to scale in Ai.
For scale and clarity, I showed the commissioner this CAD and a paper model photo

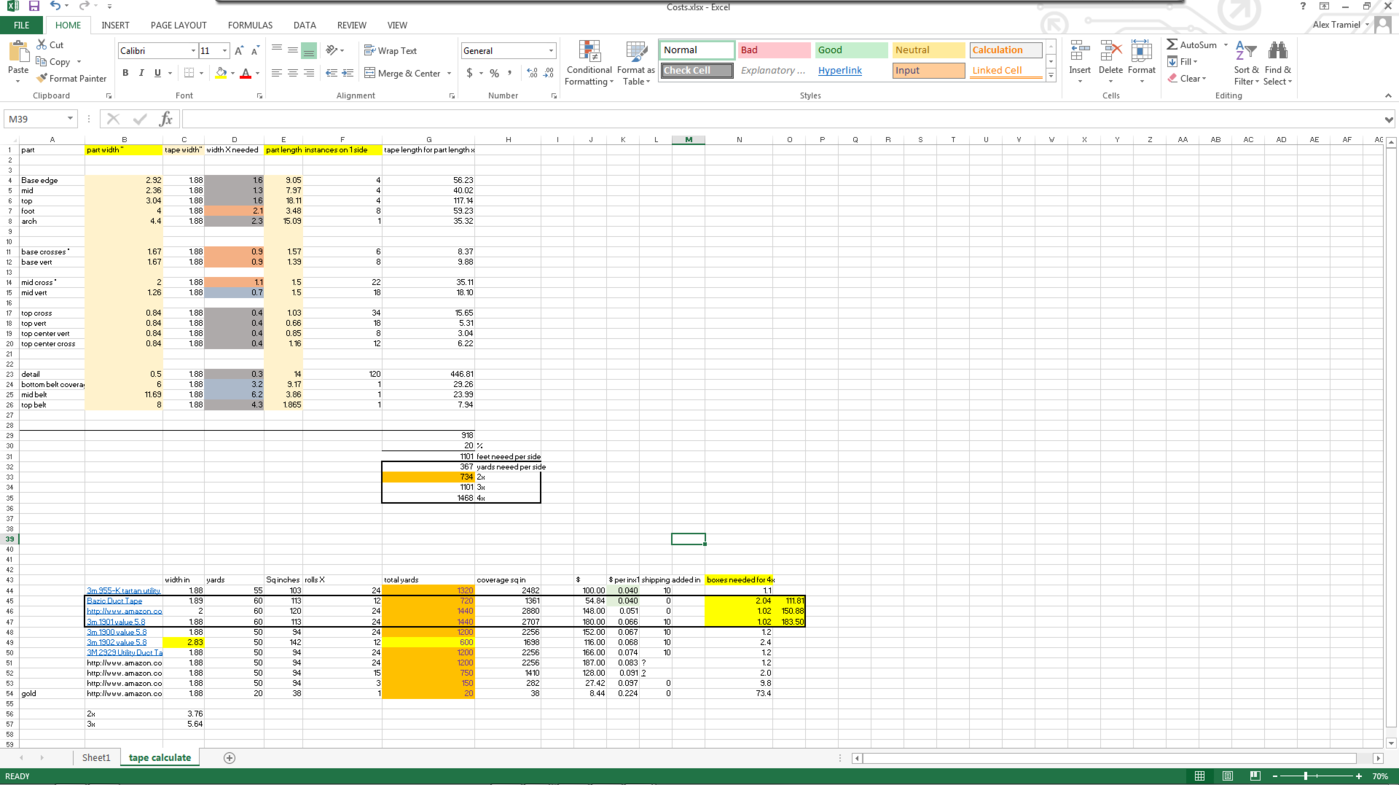

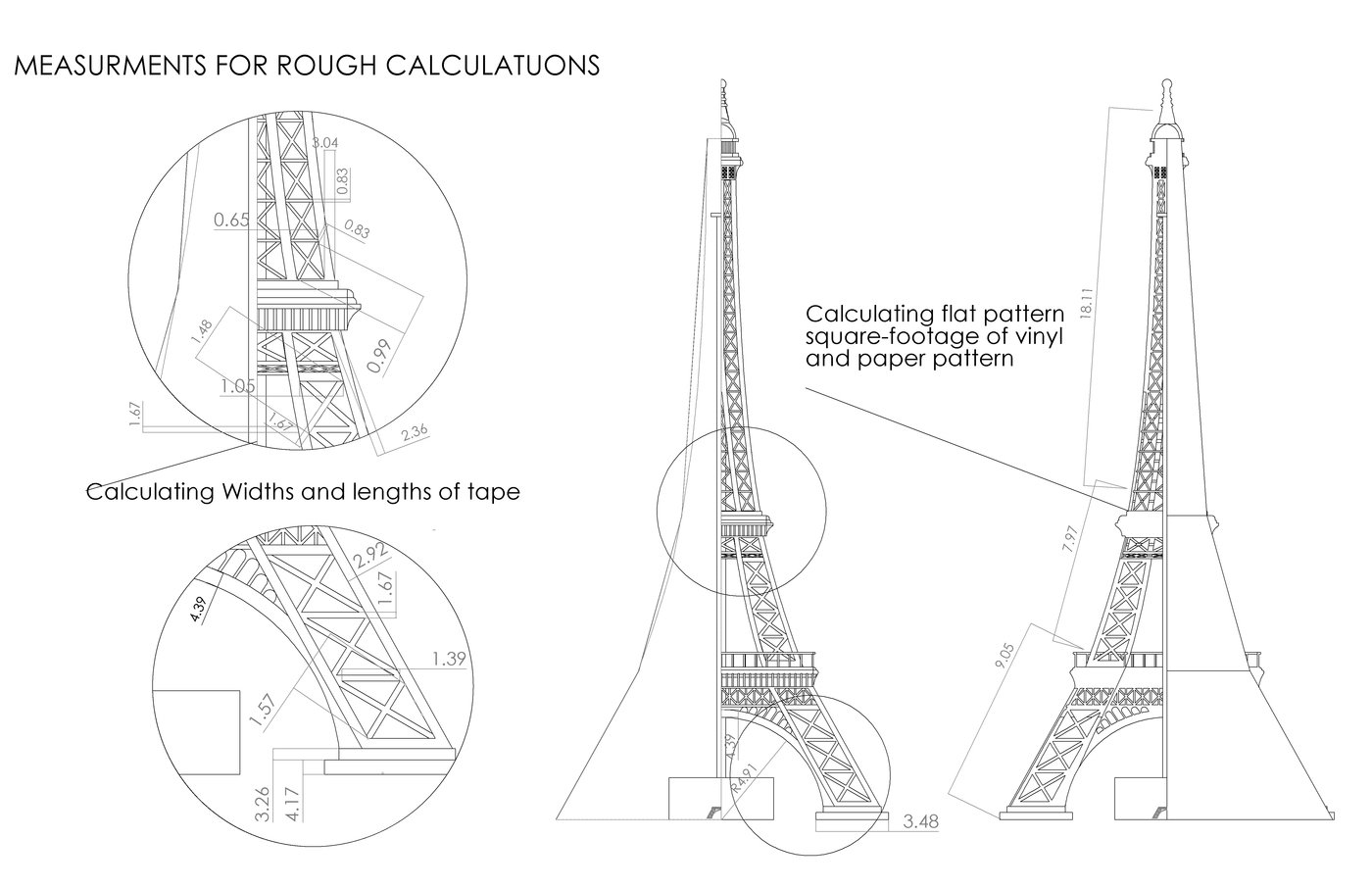

I made SWx drawings to estimate the length of tape needed while taking on account the WIDTH of the cross members. If the tape was 1.88" wide and certain beams were half that wide, I could use half the width of tape and buy half the length needed. It turns out that you cannot use a band-saw to cut duct tape and we used Xacto blades as we applied the tape instead.

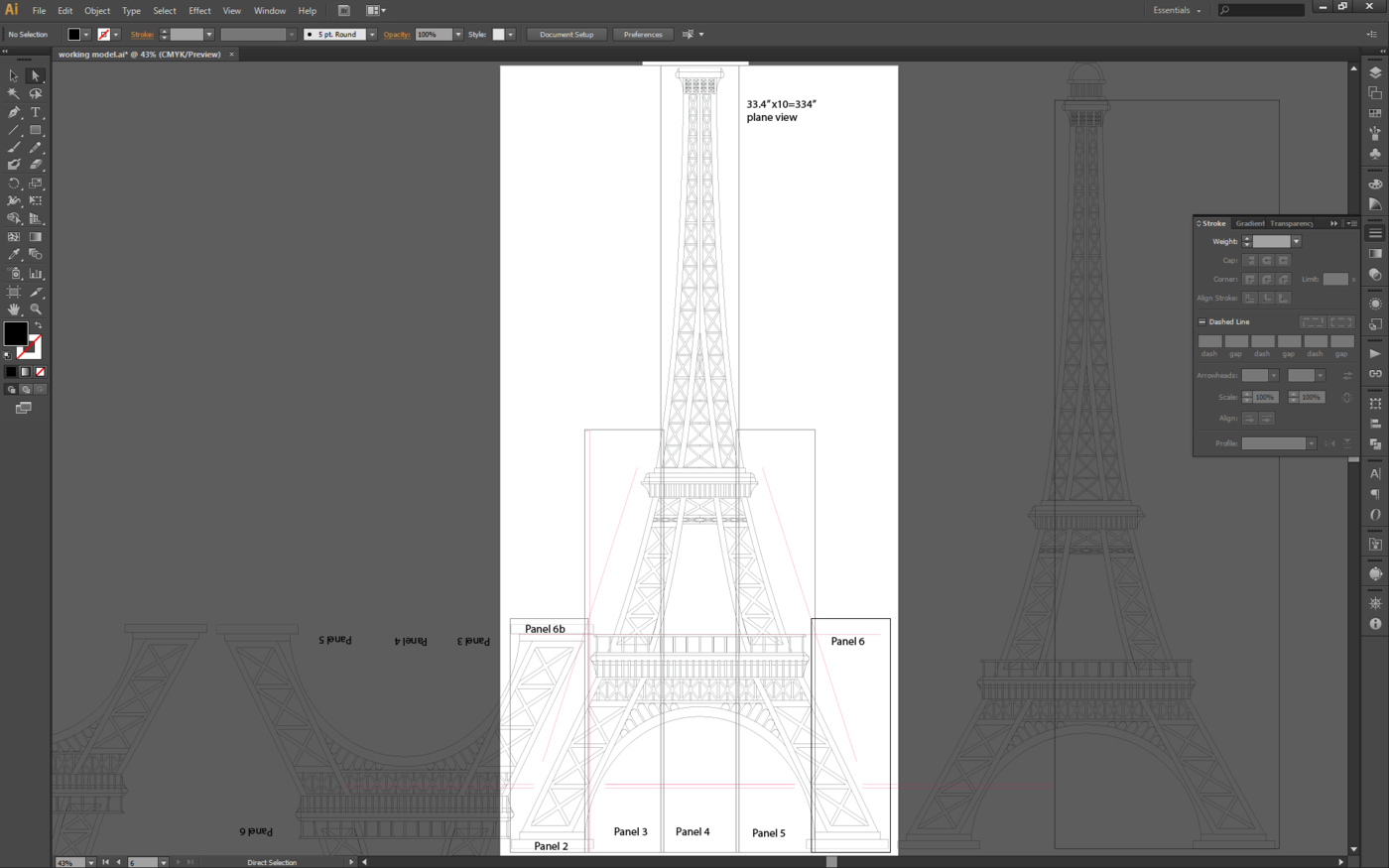

Laying out the print was an effort in battling printer formats (width and length) vs paper expense vs OEM plotter restrictions. I ended up using 36" wide Home Depot brown masking paper which I had to construct a mock-axle for the plotter and then unroll photo paper and re-roll the masking paper onto the cardboard core.
I sourced dozens of materials and tapes and calculated the most economical solutions. - we ended up using almost 2 12xroll cases of duct tape and 100 yards of clear vinyl.

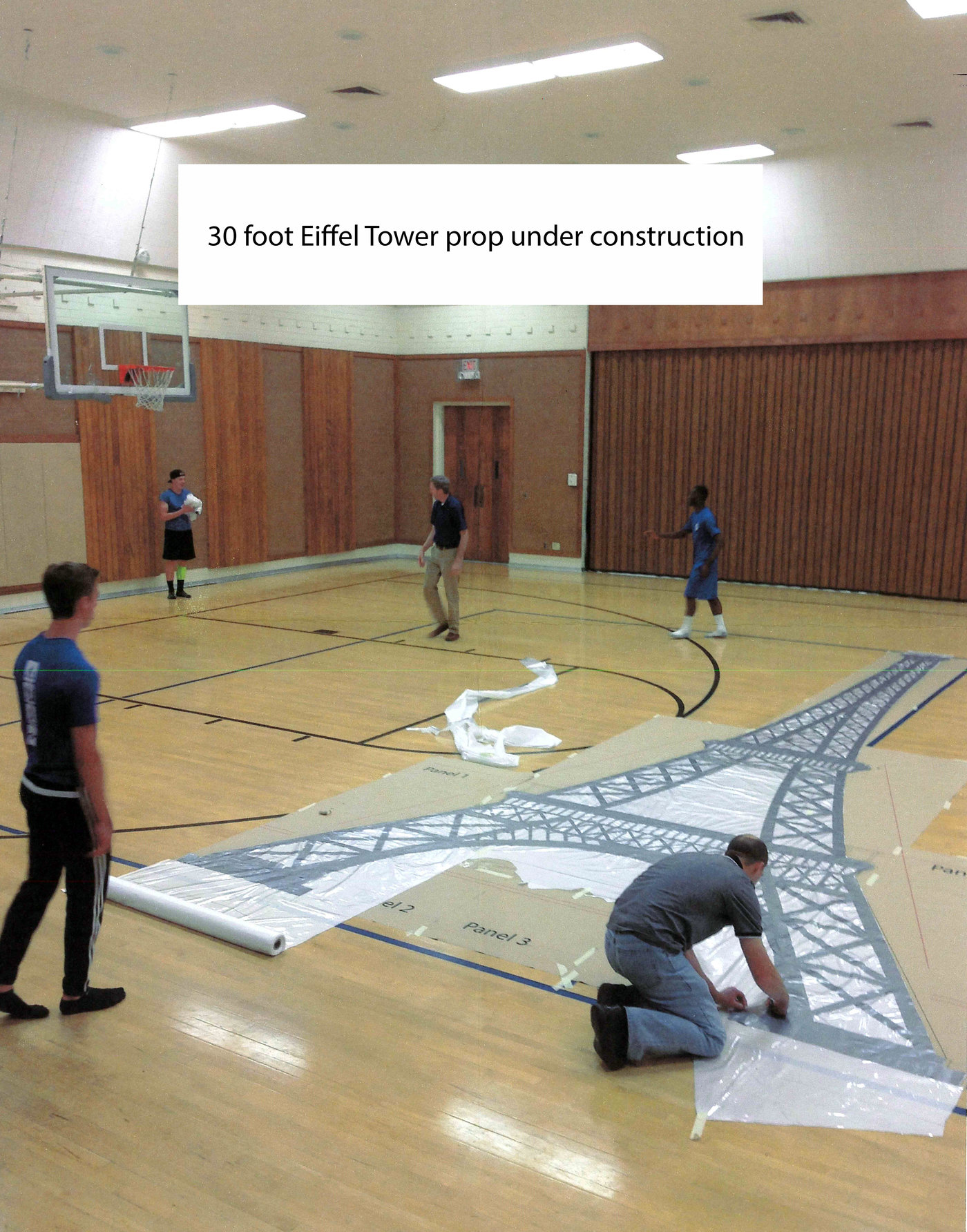

5/9/2015 I'm mid-construction building a 30-foot tall Eiffel tower prop for a YM/YW formal dance. CAD-scale and flatten / plotter printer rolls / vinyl sheet / duct tape / PVC piping/ string lights
upon 1st erection, as suspected, I didn't appreciate the squared off top here and decided to implement the curvature in the top section by taping the corners to each other. I also added PVC square structures at the belt-lines because there were slight winds that would billow the tower out of square.
impressive arrival and couple's shots
I was also asked to perform [like a French street performer], so I brought a date - my wife Amy. We had a blast unicycle-dancing on the dance floor with the Young Men and Young Women.
as Prom-goers left the dance I juggled a Flaming Devil Sticks.
A view from hoisting perspective
Detail Pattern from backside. Minimal damage from 1 week of winds
