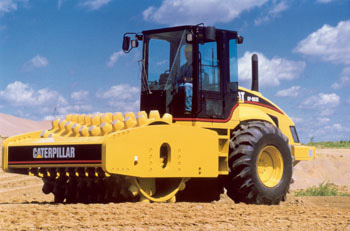

Caterpillar - soil compactor hood - Redesign of soil compactor hood and drum frame. Photoshop illustration, Alias surface modeling and rendering, photo of production machine.
H Favorite
Caterpillar Soil Compactor - Hood, grille, fender and drum yoke design for Caterpillar Soil Compactor.
H Favorite
Caterpillar Soil Compactor - Hood, grille, fender and drum yoke design for Caterpillar Soil Compactor.
H Favorite

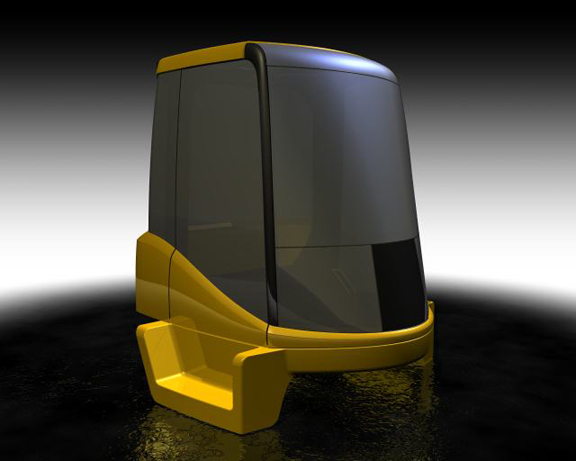

Caterpillar cab - This cab was a research and development special project for Caterpillar. Working with an elite group of engineers and composite specialists, this cab was developed, exploring the use of composite structures for operator cab manufacturing.

The basic ROPS or roll-over protective structure remained as a robust, hardened steel fabrication, the remainder of the cab was made of resin transfer molded plastics with various inserted and molded-in, mixed-material channels and reinforcements.

H Favorite
Caterpillar cab - This cab was a research and development special project for Caterpillar. Working with an elite group of engineers and composite specialists, we developed this cab design, exploring the use of composite structures for operator cab manufacturing.

The basic ROPS or roll-over protective structure remained as a robust, hardened steel fabrication, the remainder of the cab was made of resin transfer molded plastics with various inserted and molded-in, mixed-material channels and reinforcements.

H Favorite qView Full Size
Caterpillar cab - This cab was a research and development special project for Caterpillar. Working with an elite group of engineers and composite specialists, we developed this cab design, exploring the use of composite structures for operator cab manufacturing.

The basic ROPS or roll-over protective structure remained as a robust, hardened steel fabrication, the remainder of the cab was made of resin transfer molded plastics with various inserted and molded-in, mixed-material channels and reinforcements.

H Favorite
Caterpillar cab - This cab was a research and development special project for Caterpillar. Working with an elite group of engineers and composite specialists, we developed this cab design, exploring the use of composite structures for operator cab manufacturing.

The basic ROPS or roll-over protective structure remained as a robust, hardened steel fabrication, the remainder of the cab was made of resin transfer molded plastics with various inserted and molded-in, mixed-material channels and reinforcements.

H Favorite

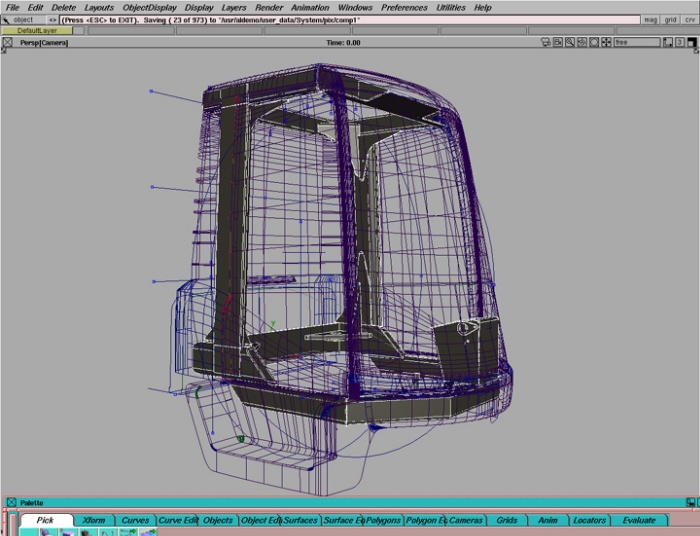

Caterpillar cab - Exploded view concept sketch for Caterpillar composite structure cab.
