Triumph Tiger Explorer

Full Size (highres_width x highres_height)
Triumph Tiger Explorer - Project For Triumph Motorcycle Ltd. This project in 2010/2011 was to re-style an existing design proposal ready for production in 2011.

This is a montage of the early sketch work.
Full Size (highres_width x highres_height)
Triumph Tiger Explorer Initial Sketch Work - Project For Triumph Motorcycle Ltd. This project in 2010/2011 was to re-style an existing design proposal ready for production in 2011.

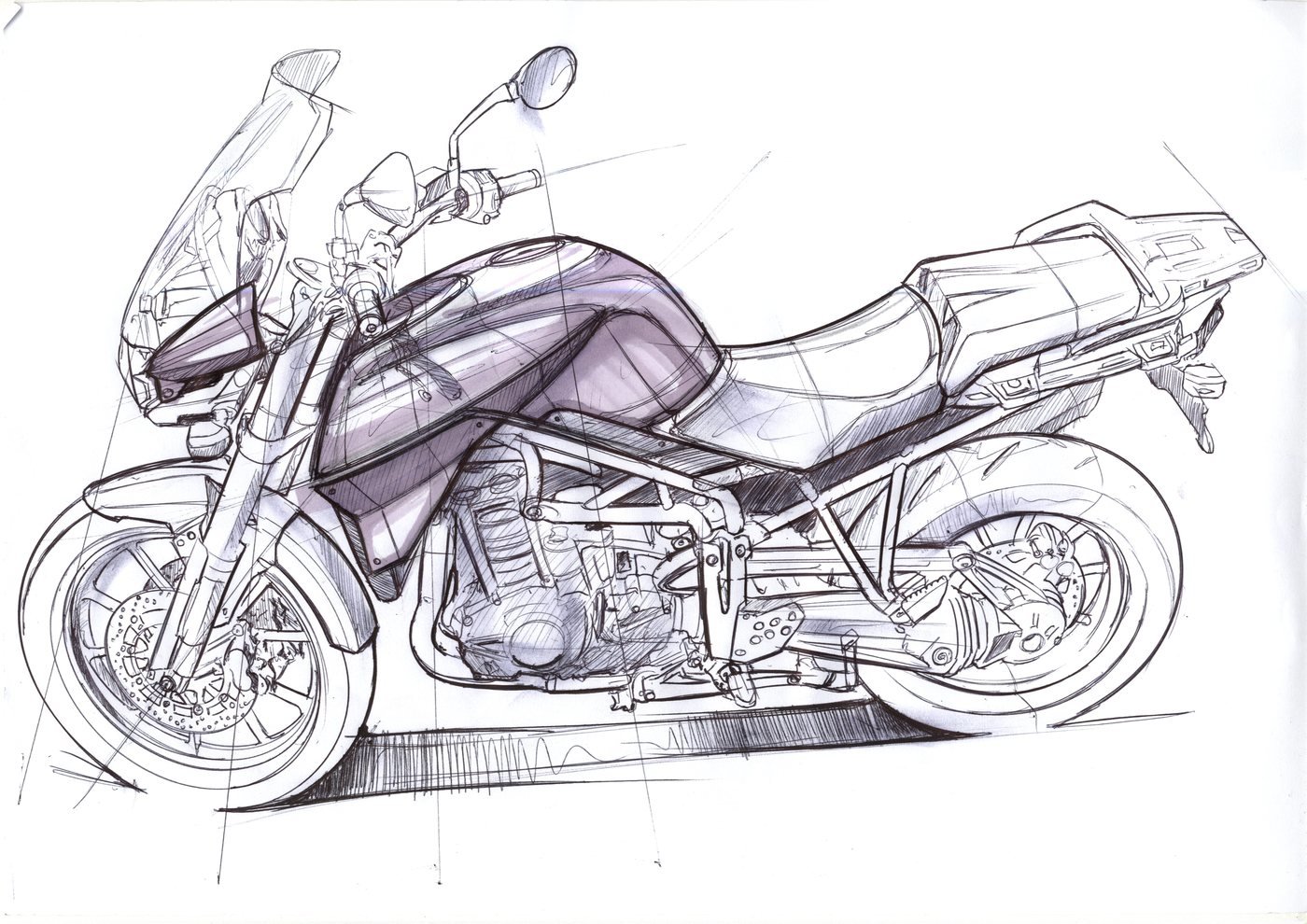

This was the sketch that we took forward for further development.
Full Size (highres_width x highres_height)
Initial Sketch Work Triumph Tiger Explorer - Project For Triumph Motorcycle Ltd. This project in 2010/2011 was to re-style an existing design proposal ready for production in 2011.

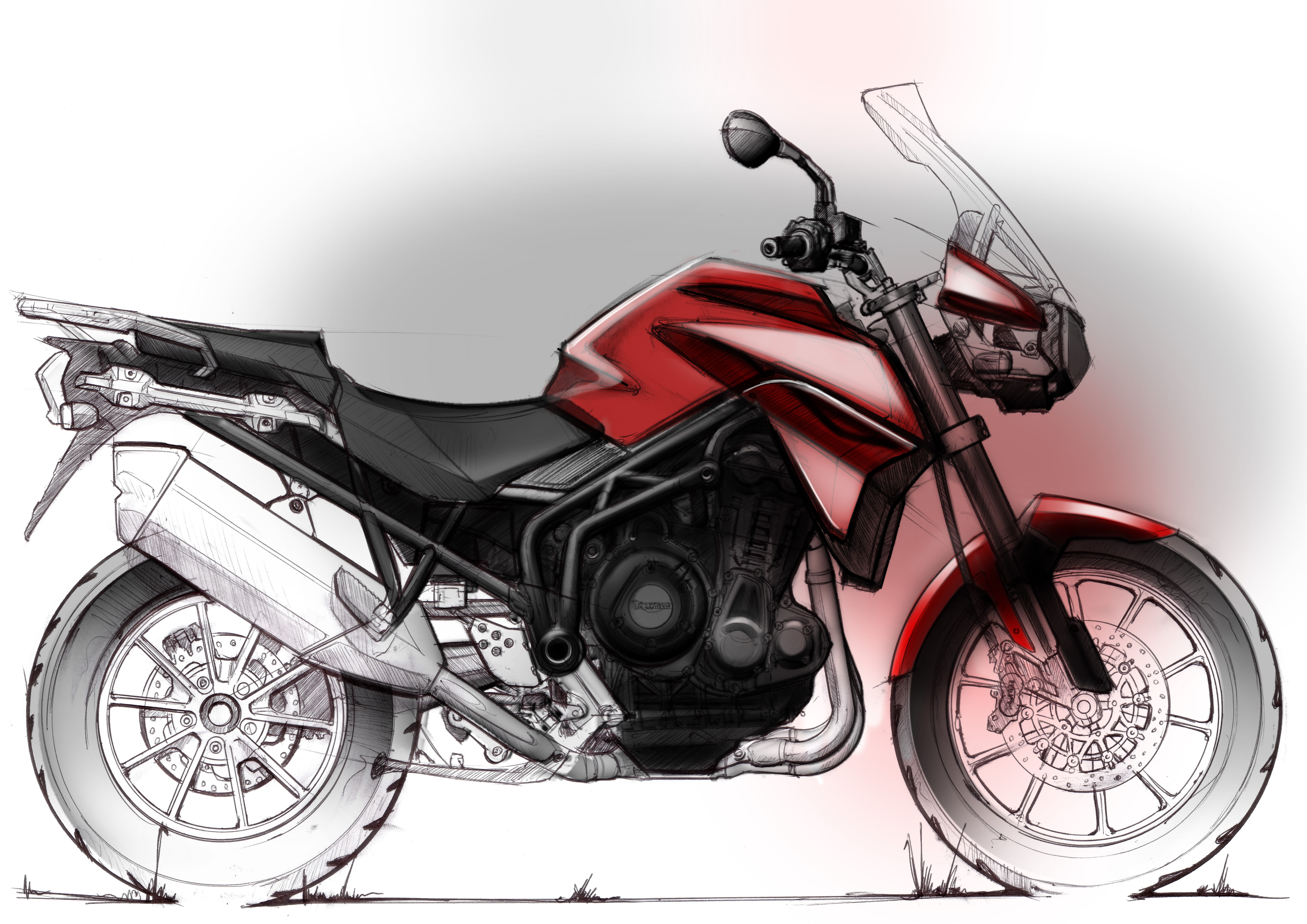

Further development of the chosen design direction.
Full Size (highres_width x highres_height)
Triumph Tiger Explorer Perspective Sketches - Project For Triumph Motorcycle Ltd. This project in 2010/2011 was to re-style an existing design proposal ready for production in 2011.

Perspective sketch development.

Full Size (highres_width x highres_height)

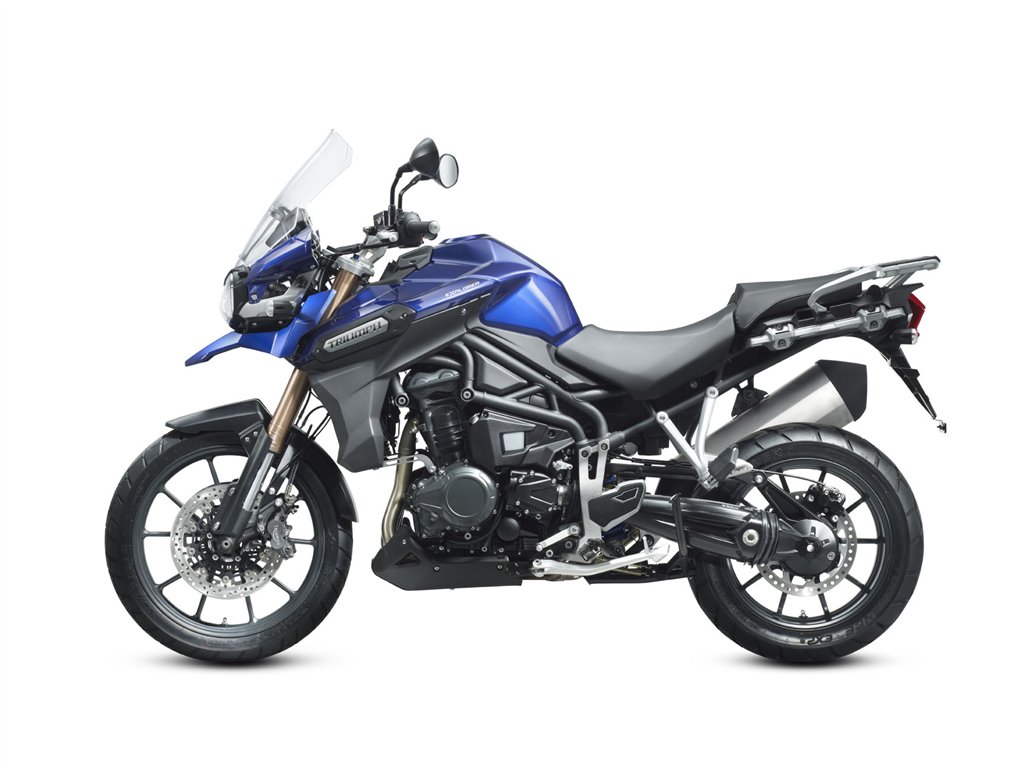

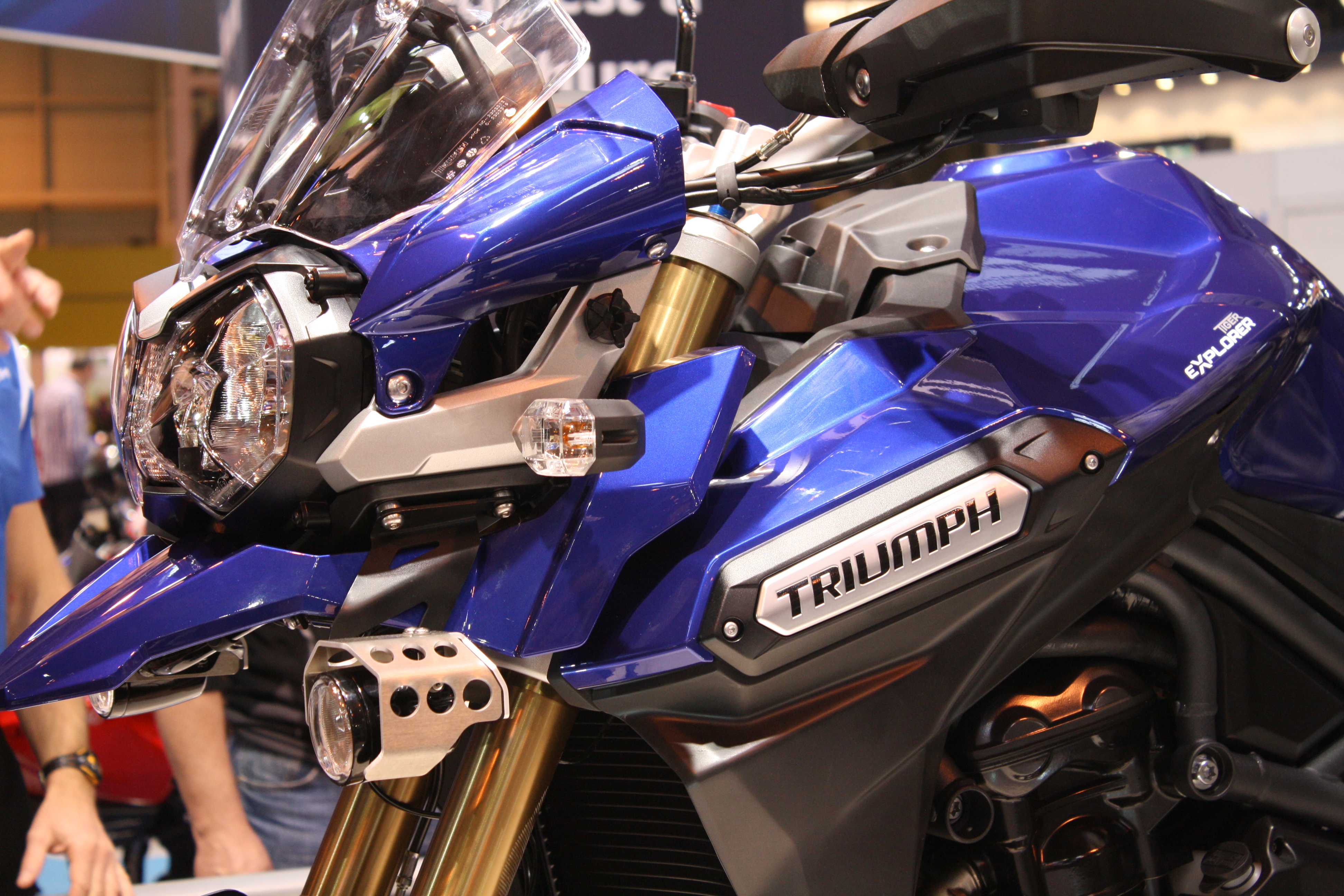

Triumph Tiger Explorer - Project For Triumph Motorcycle Ltd. This project in 2010/2011 was to re-style an existing design proposal ready for production in 2011.
Full Size (highres_width x highres_height)

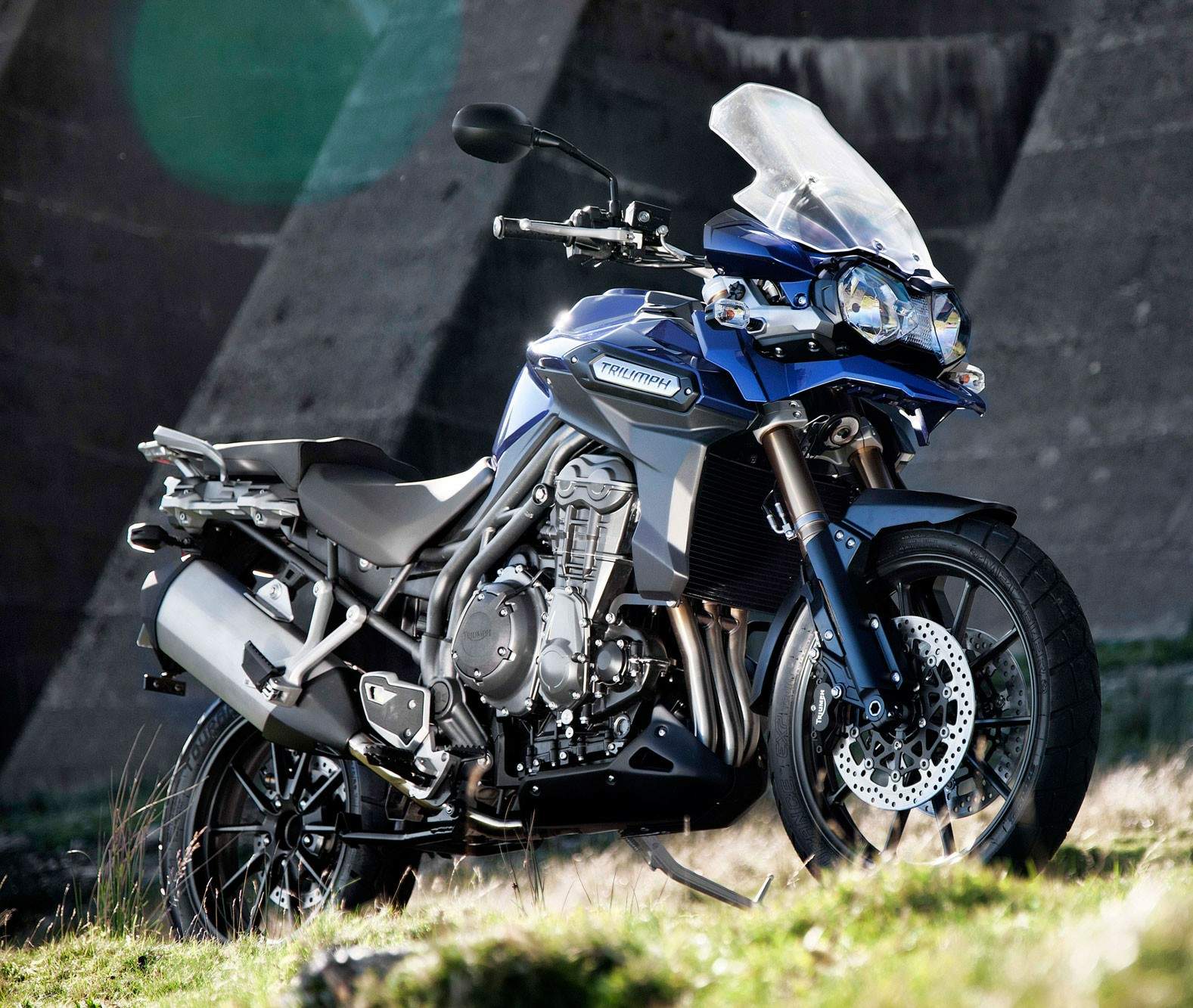

Triumph Tiger Explorer - Project For Triumph Motorcycle Ltd. This project in 2010/2011 was to re-style an existing design proposal ready for production in 2011.
Full Size (highres_width x highres_height)

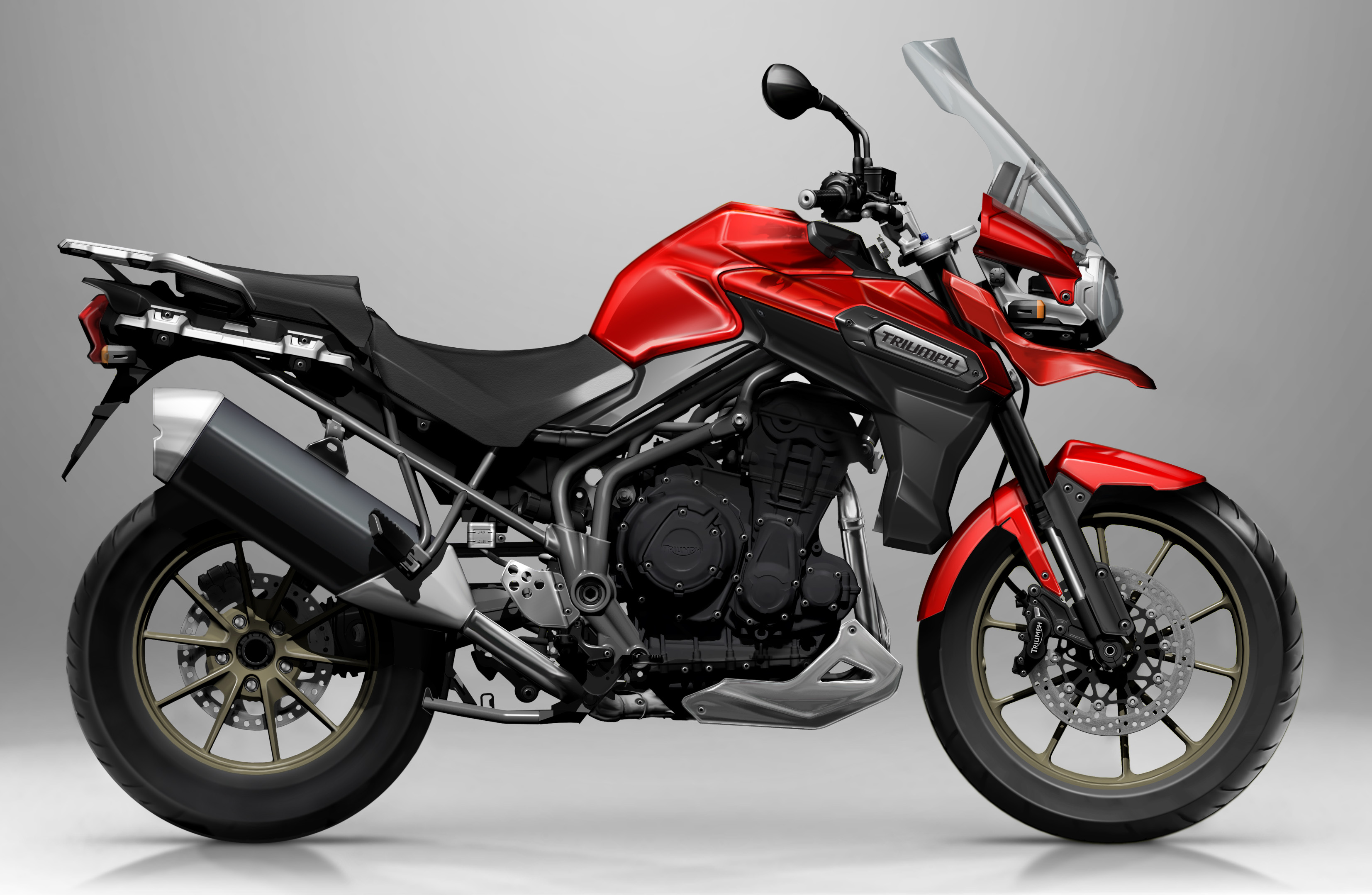

Triumph Tiger Explorer 2d rendering - Project For Triumph Motorcycle Ltd. This project in 2010/2011 was to re-style an existing design proposal ready for production in 2011.

The final 2d design proposal before 3d clay development started. Rendering created in Photoshop on a Wacom Cintiq.
Full Size (highres_width x highres_height)

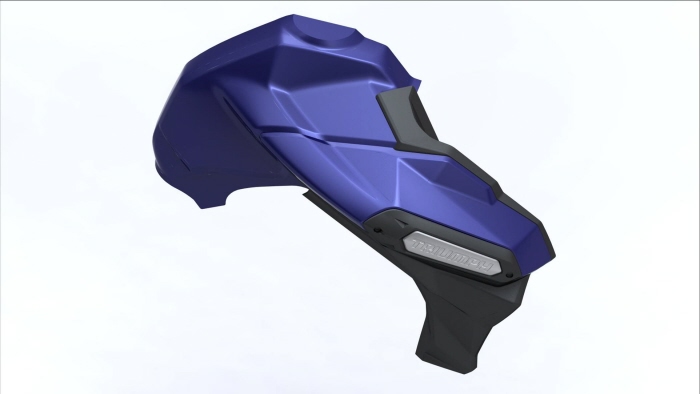

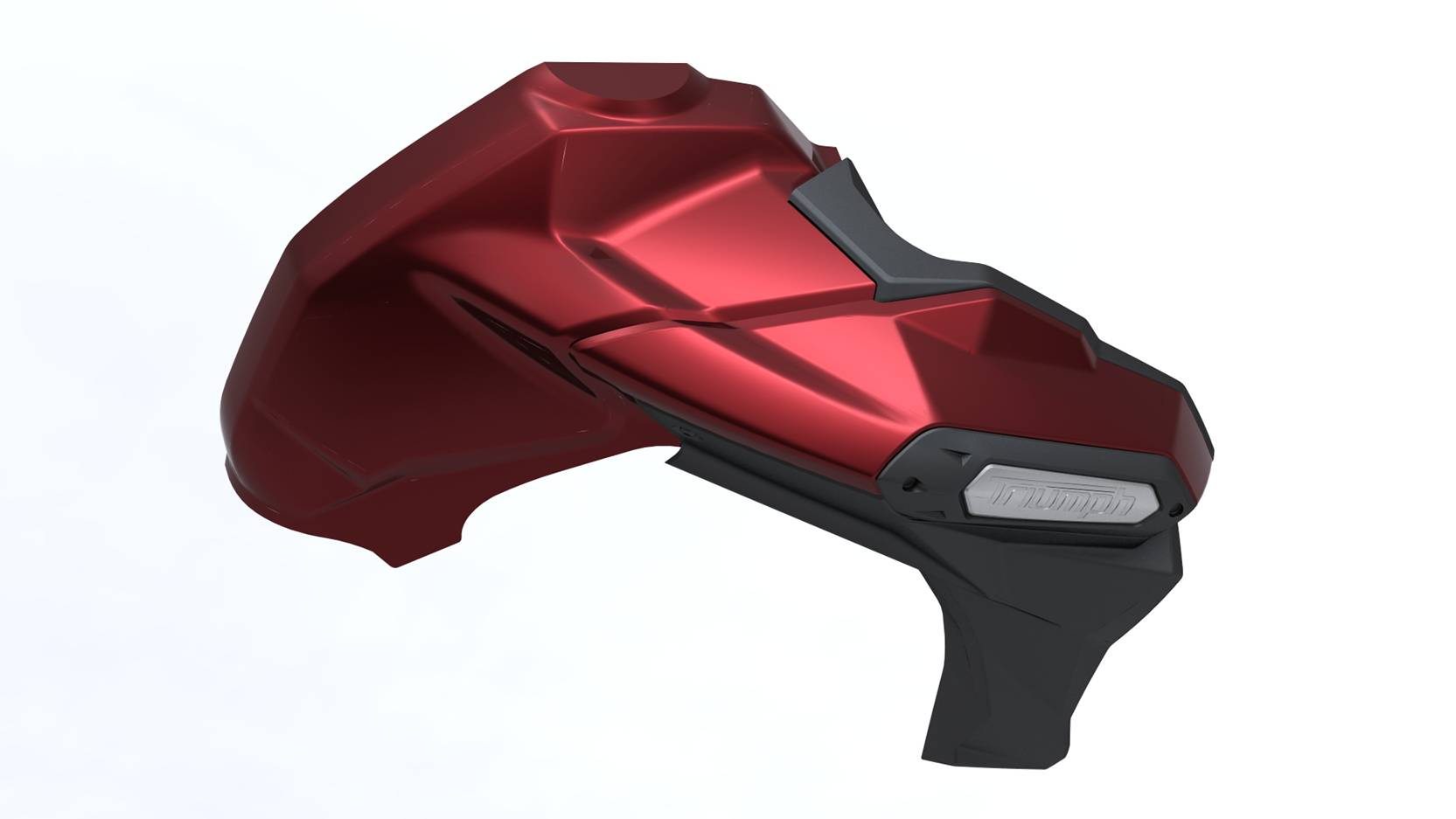

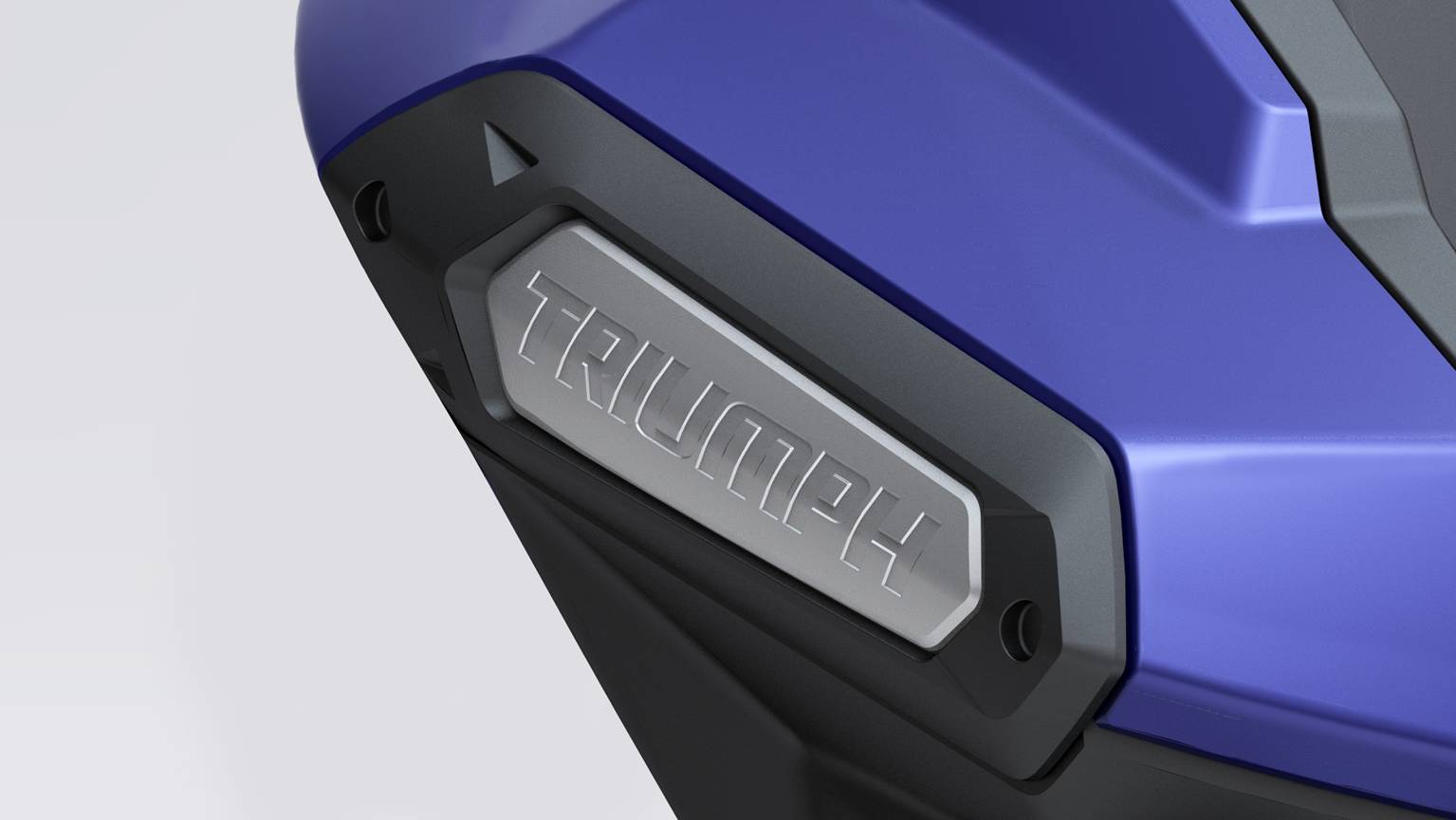

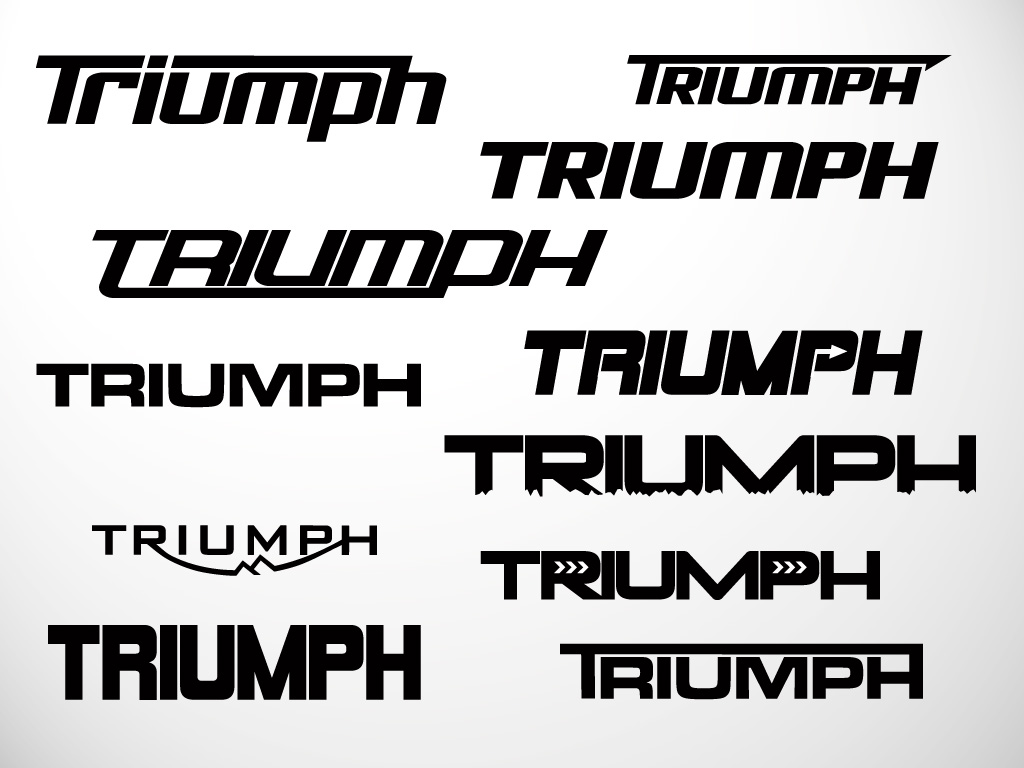

Triumph Tiger Explorer Badge Proposal - Triumph badge proposal. The A-class surfacing work on the tank was created from clay scan data by the good chaps at Triumph. The CAD work for the badge was done by Nigel Robson an excellent chap who regularly does modelling work for us.
Full Size (highres_width x highres_height)

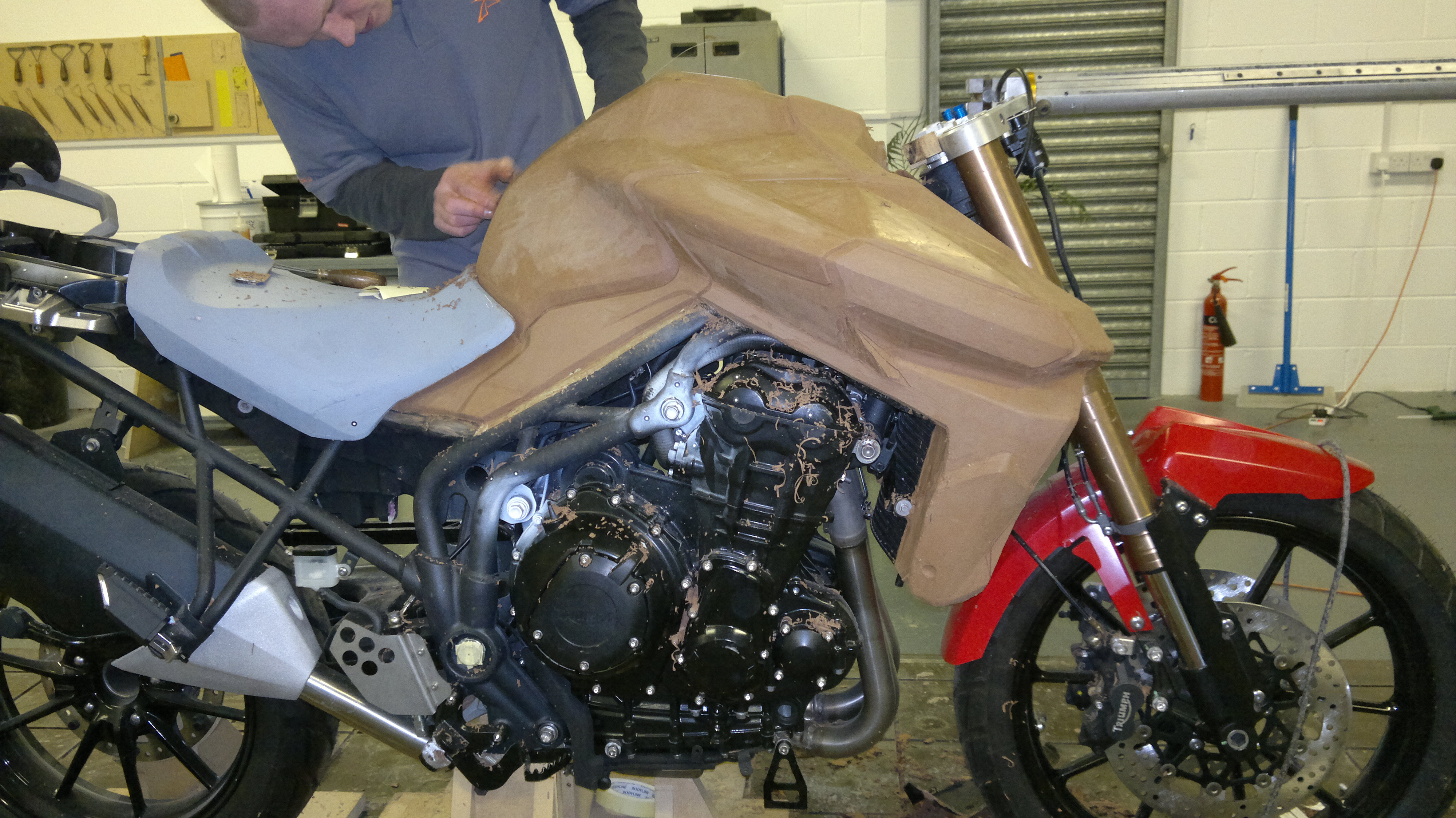

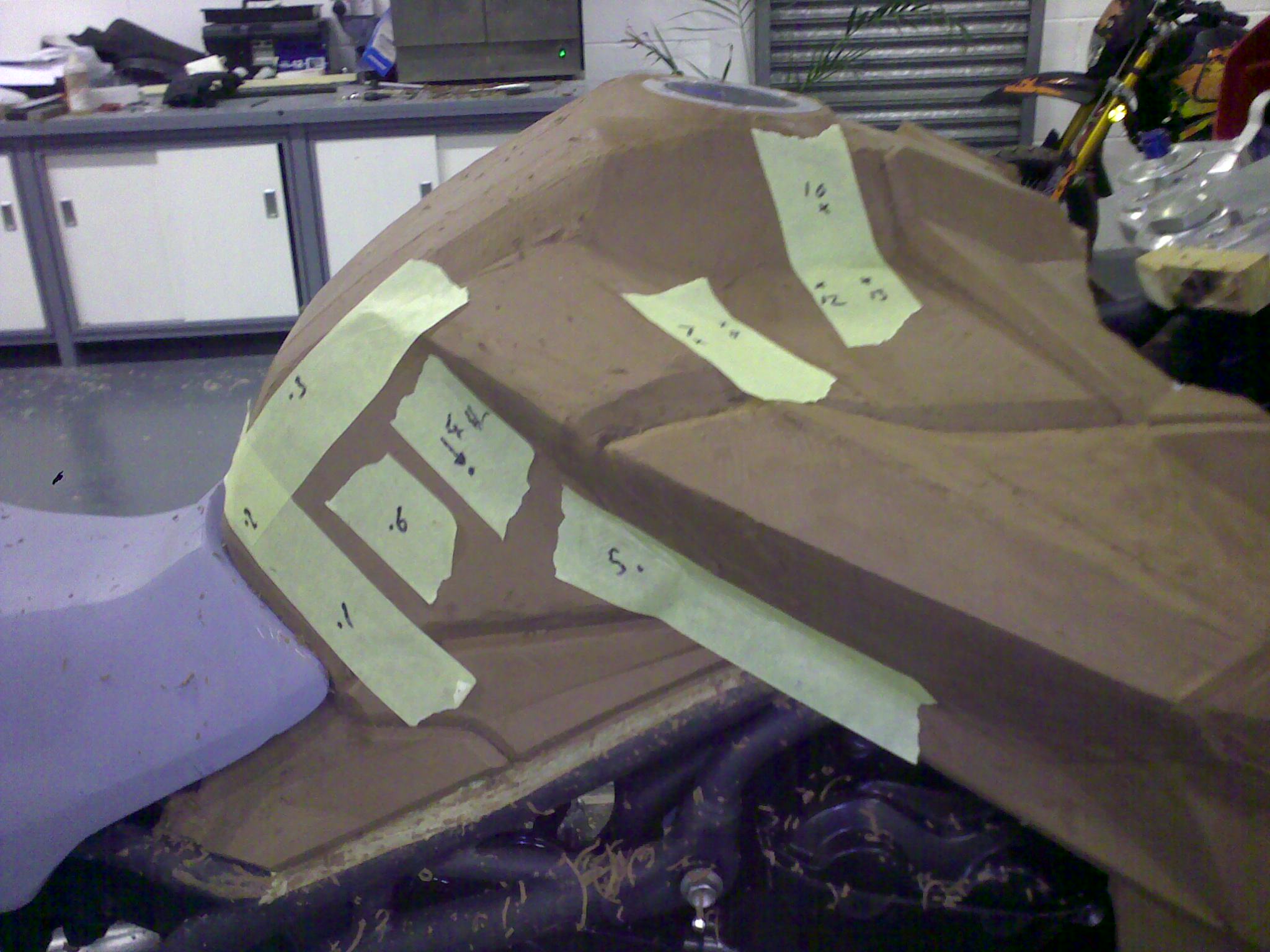

Early Clay Model development work
Full Size (highres_width x highres_height)

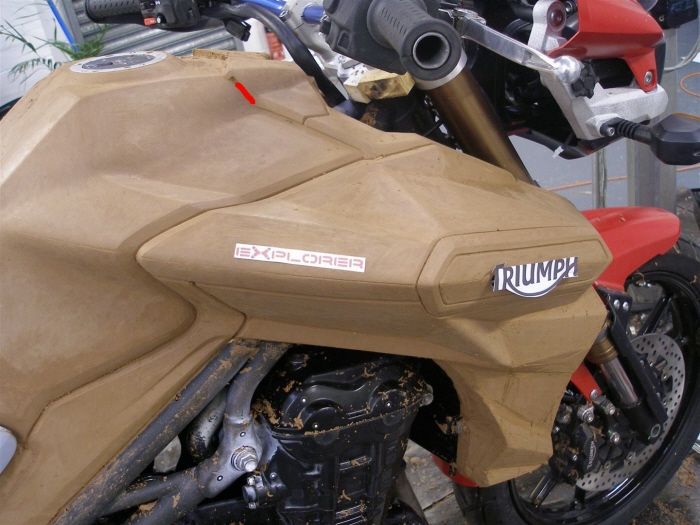

Triumph Tiger Explorer Clay Development Work
Full Size (highres_width x highres_height)
Triumph Tiger Explorer Clay Development Work
Full Size (highres_width x highres_height)
Triumph Tiger Explorer Clay Development Work
Full Size (highres_width x highres_height)
Triumph Tiger Explorer Development Work
Full Size (highres_width x highres_height)

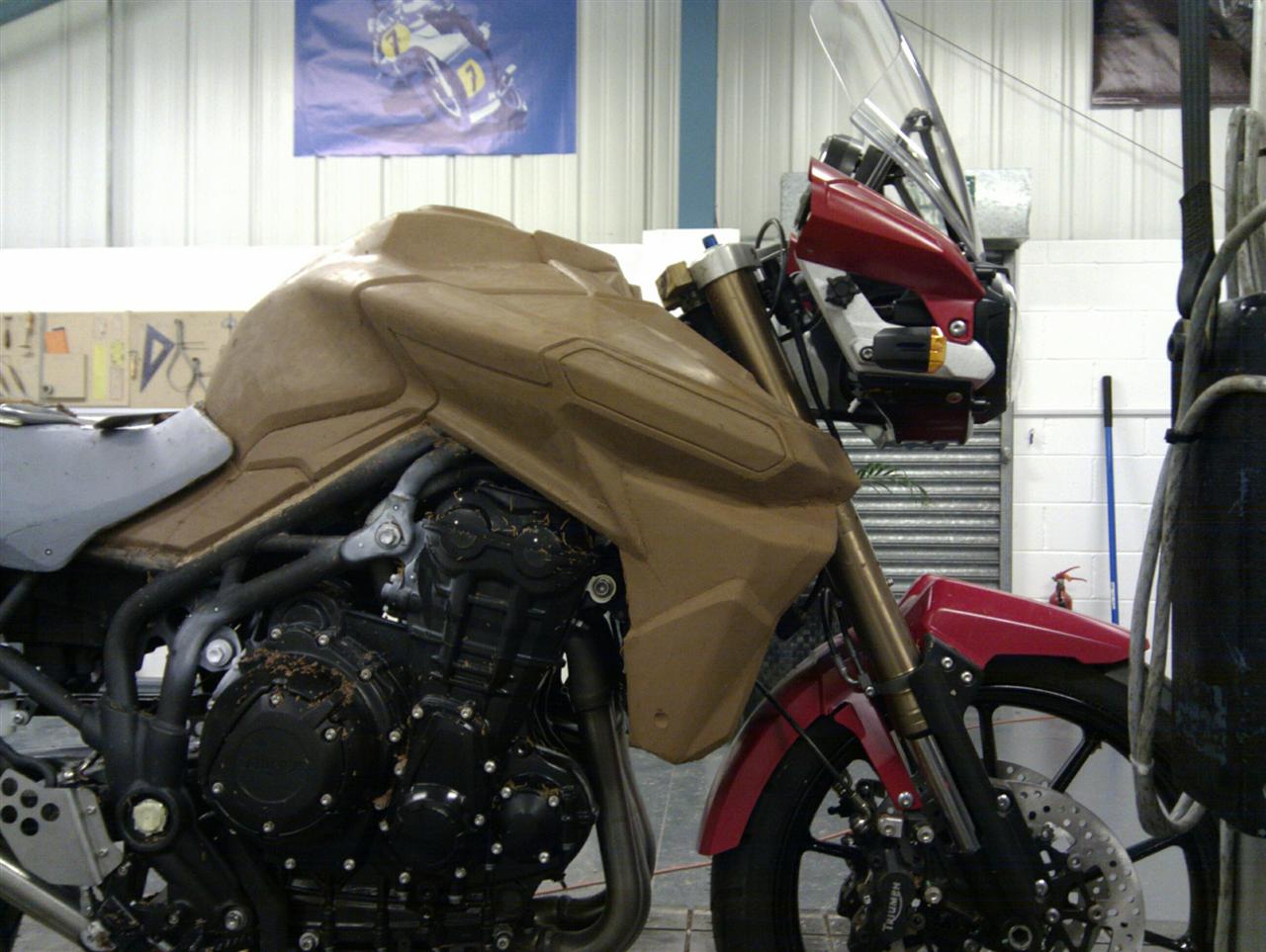

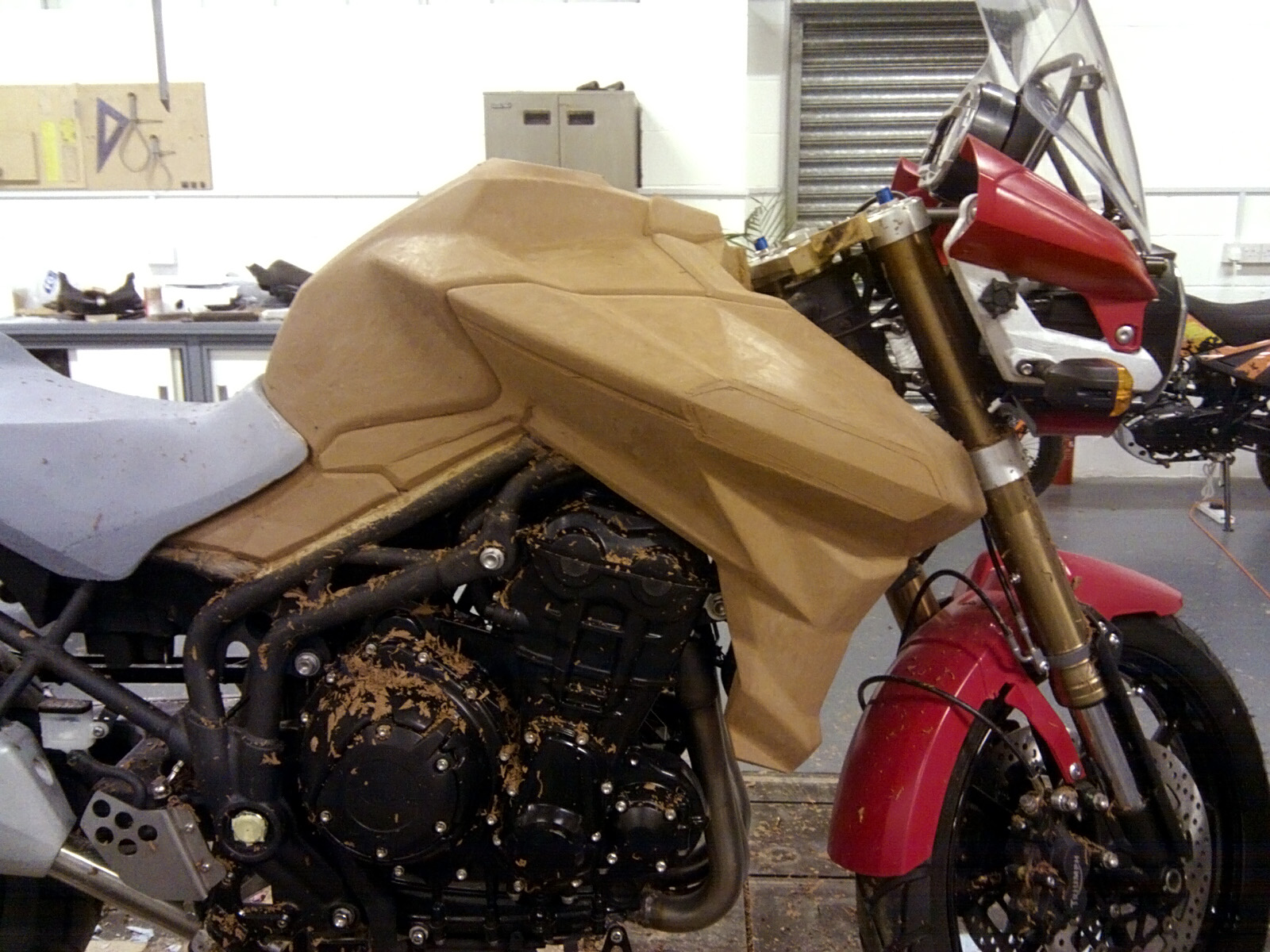

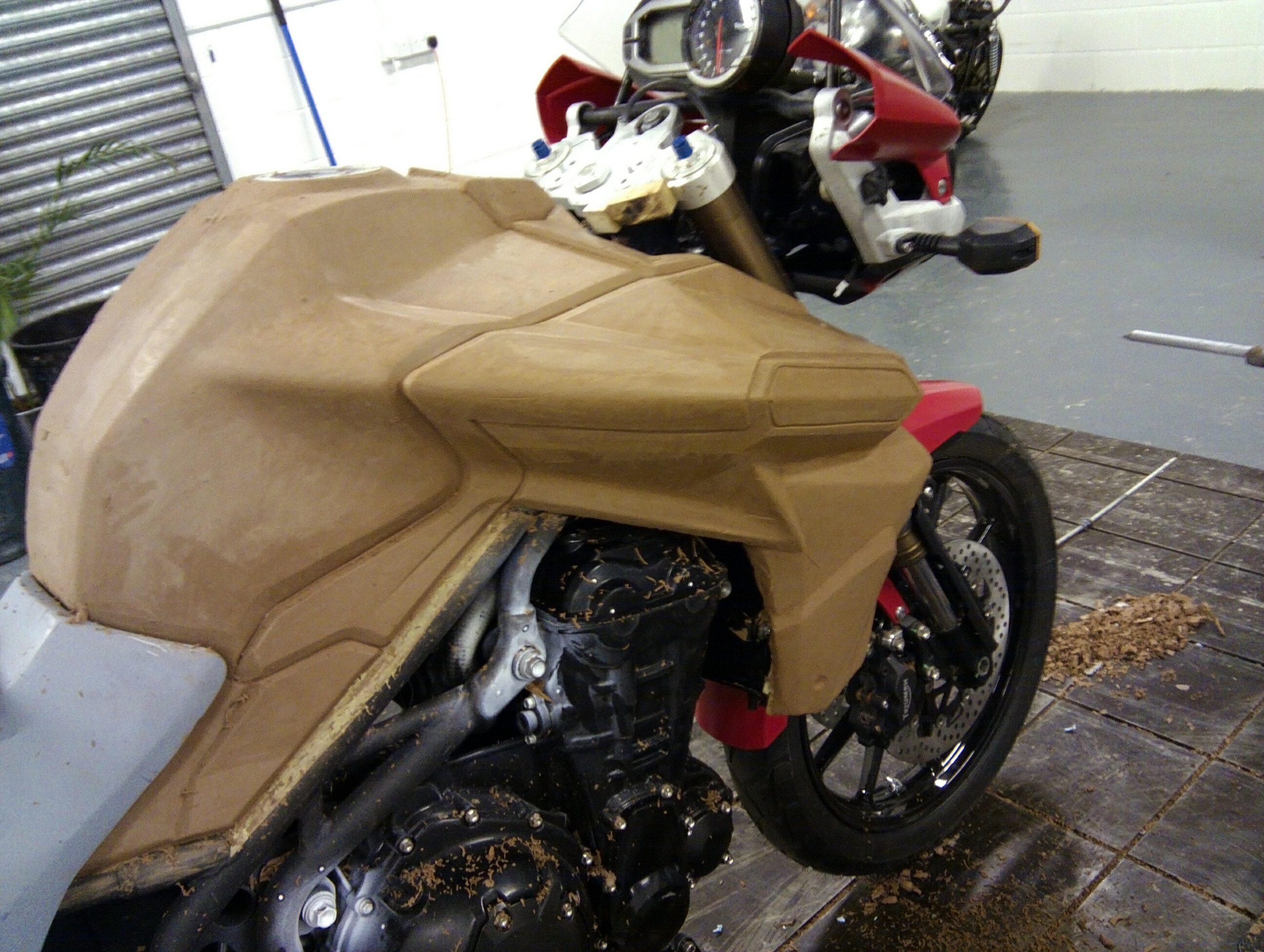

Triumph Tiger Explorer Clay Development Work - Really early clay development image, only a couple of days after the clay started going on. A real advantage of clay, you get an idea of proportion, scale and stance really early on in the process.
Full Size (highres_width x highres_height)

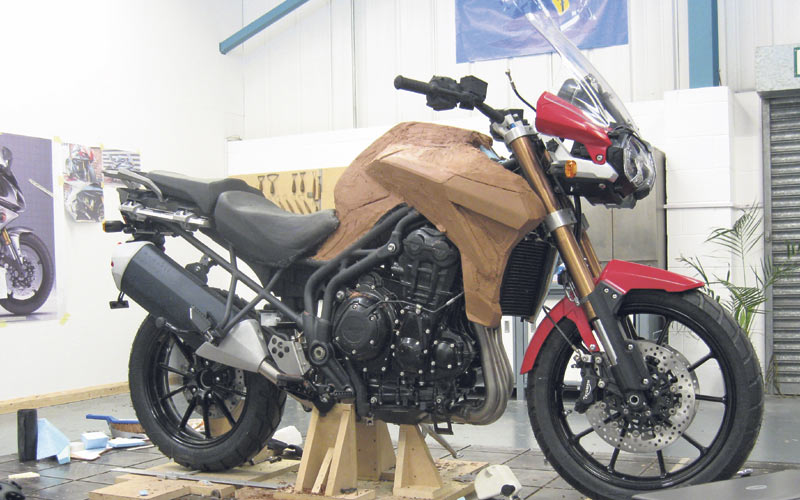

Triumph Tiger Explorer Painted Clay Model - The Painted clay model at an interim design review.
