Technical drawings for various projects developed via AutoCAD & Vellum software programs.

Mobile, interlocking beverage container - AutoCAD technical drawing of interlocking portable beverage container cap. side/front view.

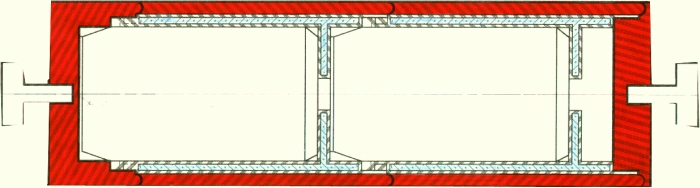

Mobile, interlocking beverage container. - AutoCAD technical drawing of interlocking portable beverage container. cut away plan view.
Mobile, interlocking beverage container. - AutoCAD technical drawing of interlocking portable beverage container cap. side view.
Mobile, interlocking beverage container. - AutoCAD technical drawing of interlocking portable beverage container cap. cut away view, assy view.
aetna "health national" exhibit signage - AutoCAD dwg for aetna exhibit
Rhinoceros 3D "ghosted view" rendering. Depicts location of beverage can with in cooler.

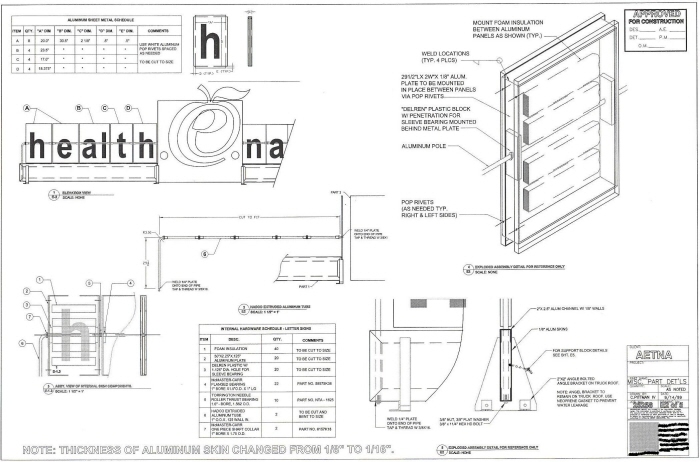

Engineering dwg depicting elevation view w/ section cuts and parts details.
Rhinoceros 3D "Ghosted View" of assembly.
