Finished Prototype

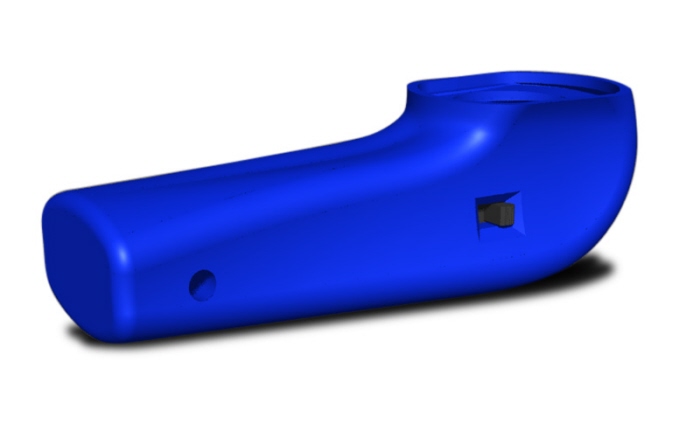

Alias Rendering

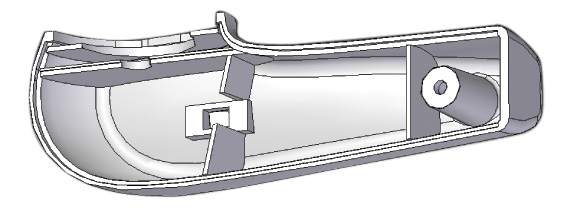

Solid Edge Casing Part
gLike
CAD- LED Torch Prototype
We were set a brief to design and prototype the casing of an injection moulded LED torch.
The casing had to be designed completely from scratch, working from sketches, before reverse-engineering the components to be able to create the designs in Autodesk Alias and Solid Edge, before printing the final design using a Z-Printer 3D system.
This prototype had to be carefully prepared before being given the final coats of paint and being assembled and tested.
