LARGE MULTI PROCESS SKID

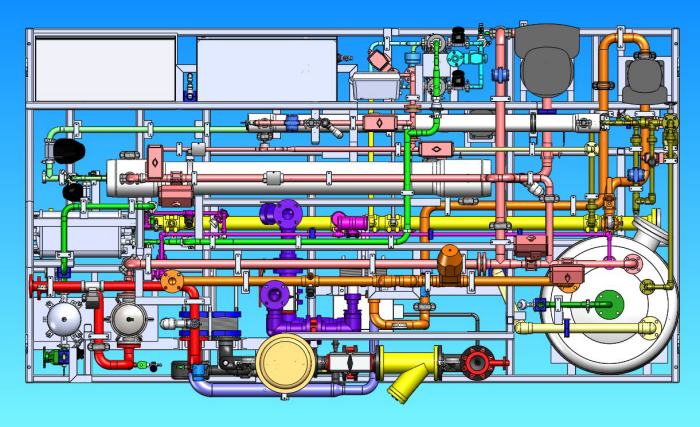

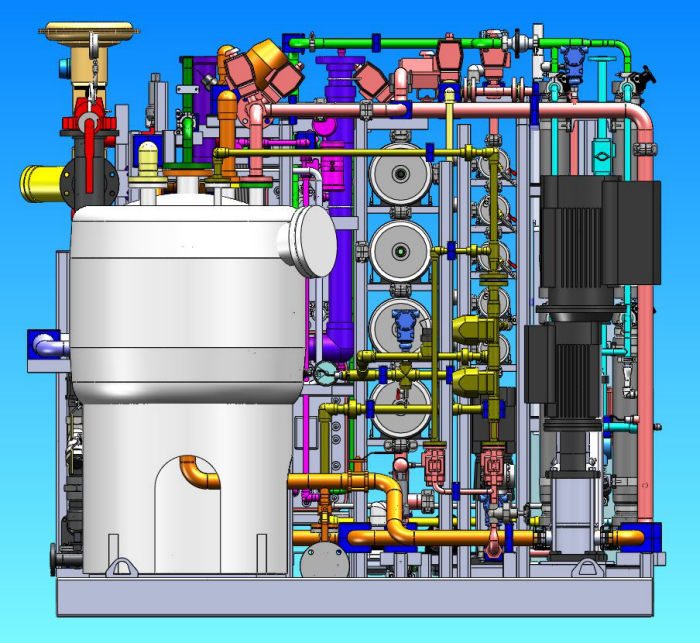

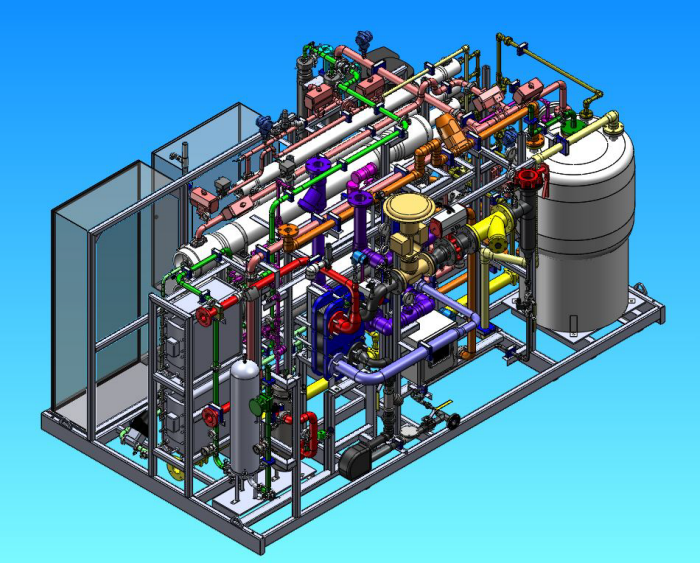

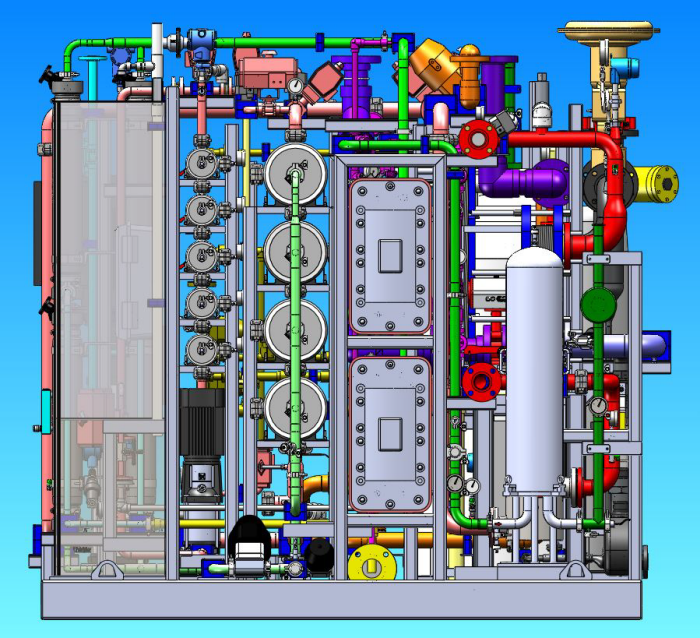

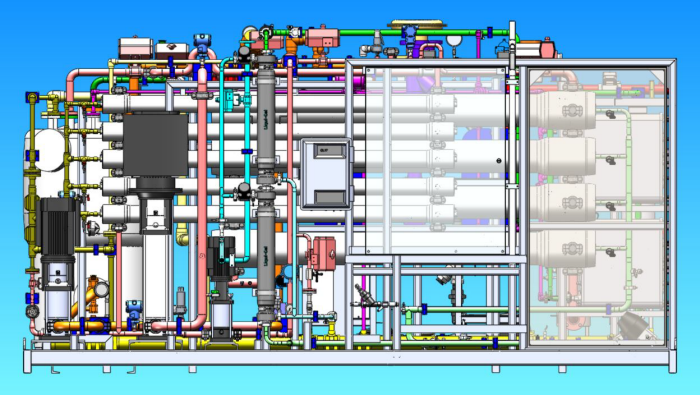

MULTI PROCESS Skid, stainless steel tube frame, 3x pumps, 2x HX Plate & Frame Heat Exchanger (chiller & steam), 2 CDI Capacitive Deionization, 2x filters, break tank, 2X degas, Chlorine Analyzer, CPVC Drain lines, HRRO High Recovery Reverse Osmosis, Carbon Steel Steam Manifold, Sch10 - 316L SS process manifold, sanitary SS product manifold, CPVC interconnect and drain pipe.

Designed and documented in SolidWorks from customer and engineering P&ID.

Total number of components in Multi Process Skid 1936
Parts: 1652
Unique Part Documents: 640
Unique Parts: 255
Subassemblies: 284
Unique Subassemblies: 117
Unique Subassembly Documents: 96
Maximum Depth: 4
Number of Top Level Components: 198
