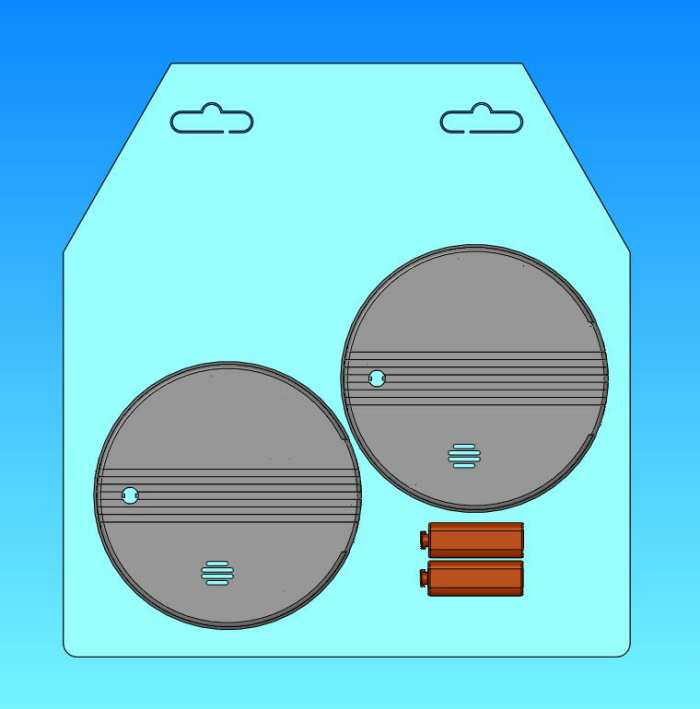

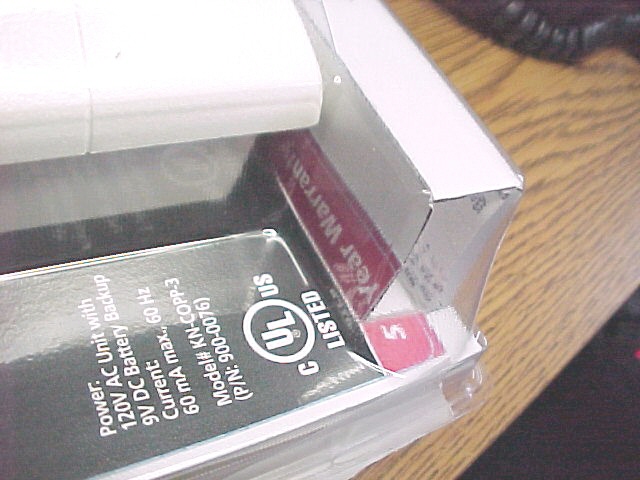

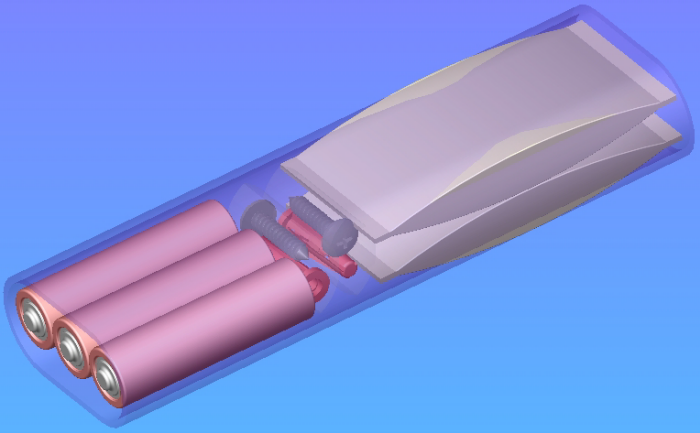

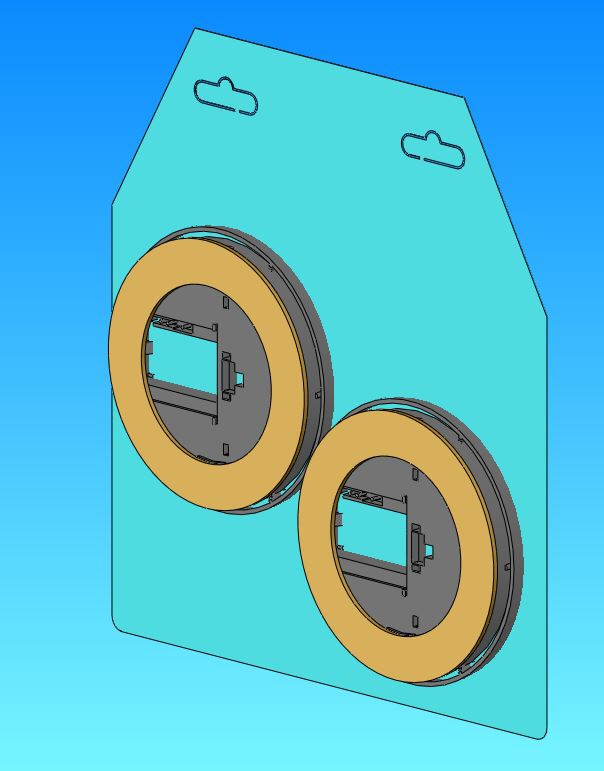

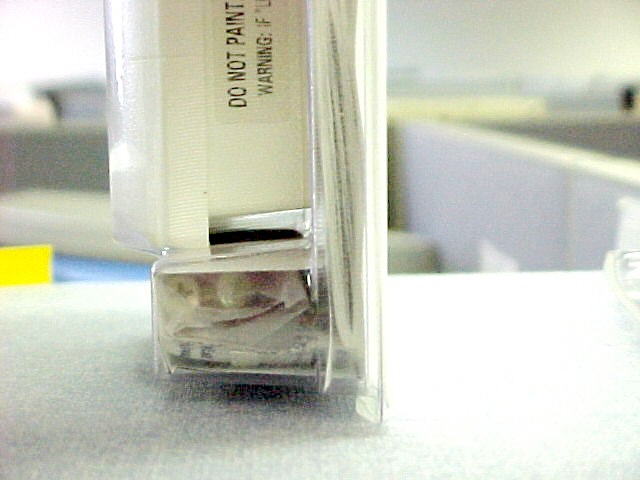

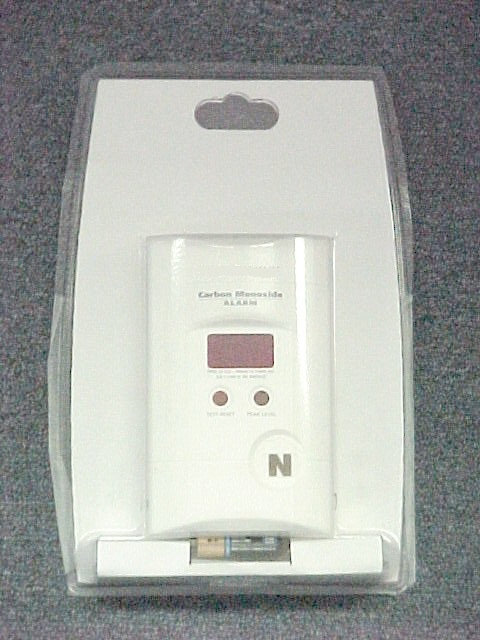

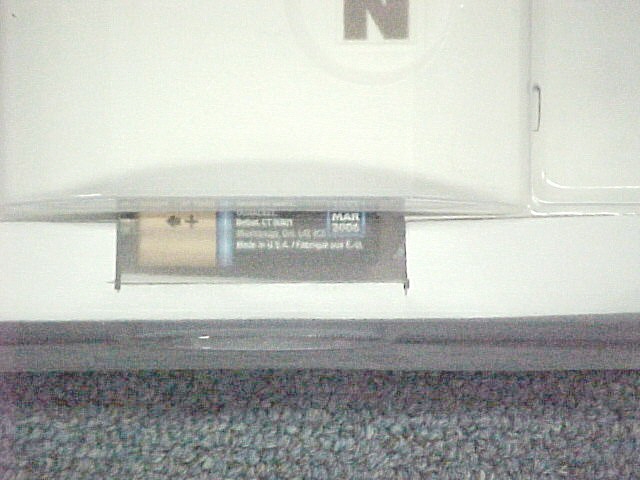

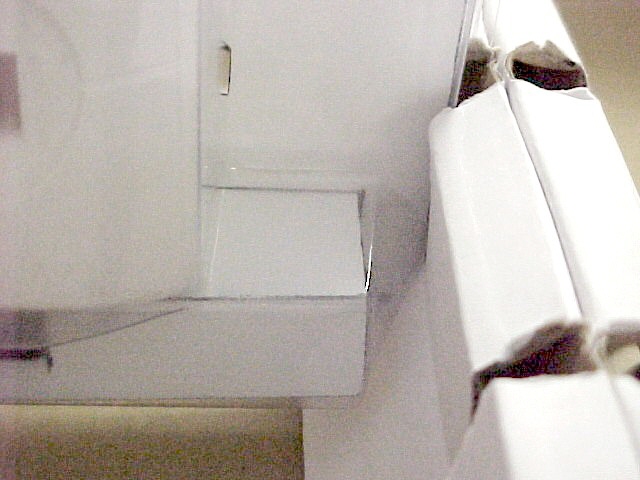

Clam shell design for Carbon Monoxide & Smoke Detectors. Design blisters & header cards for single or multiple unit packages for products & required accessories (header card, user manuals, battery options, mounting hardware & desiccant packs) Design features include keying options to keep product & header cards from sliding / rotating, rigidity, 100% air tight seal, multiple contact points to allow clam shells to be self-standing. Design sealing layouts for 10Kw RF sealers. Optimize units to be sealed in a single pass.

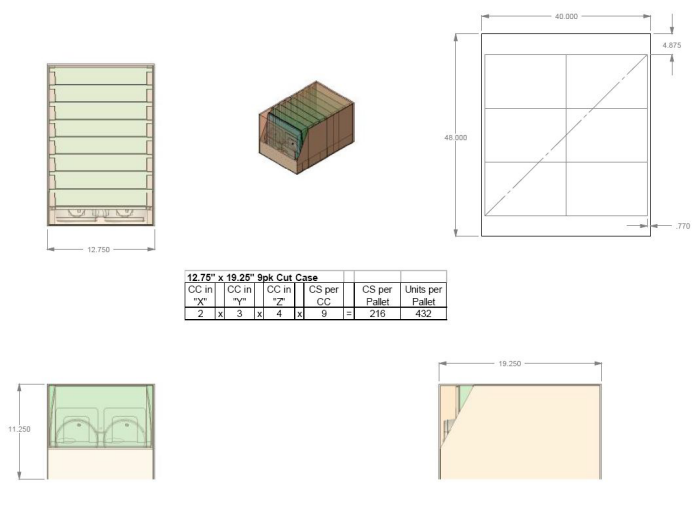

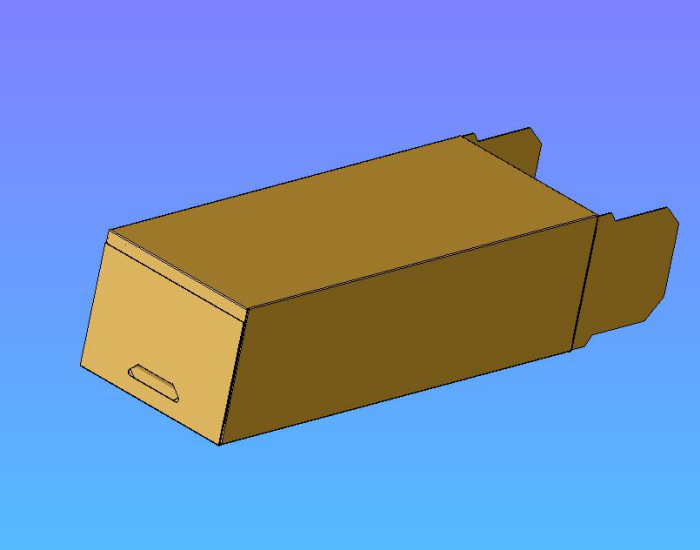

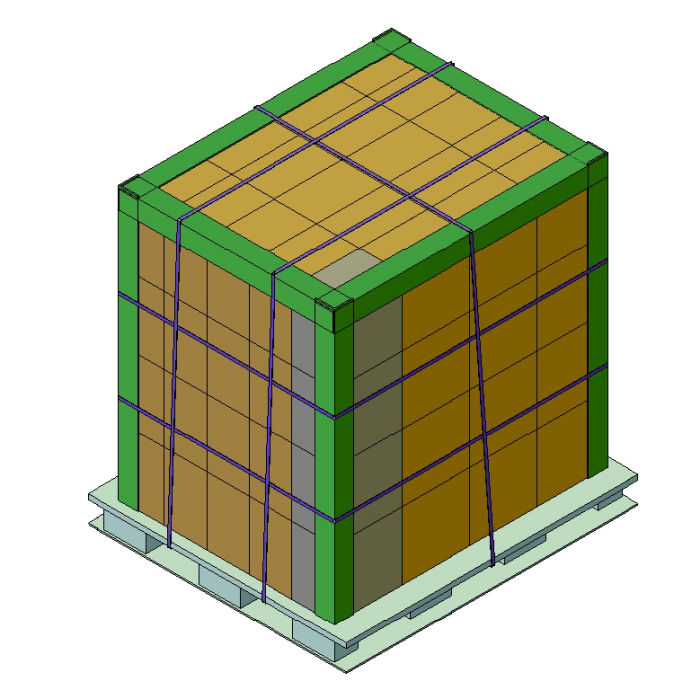

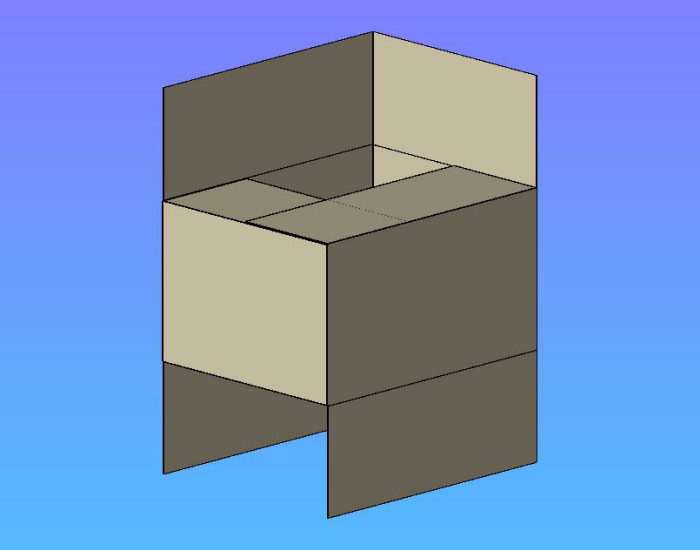

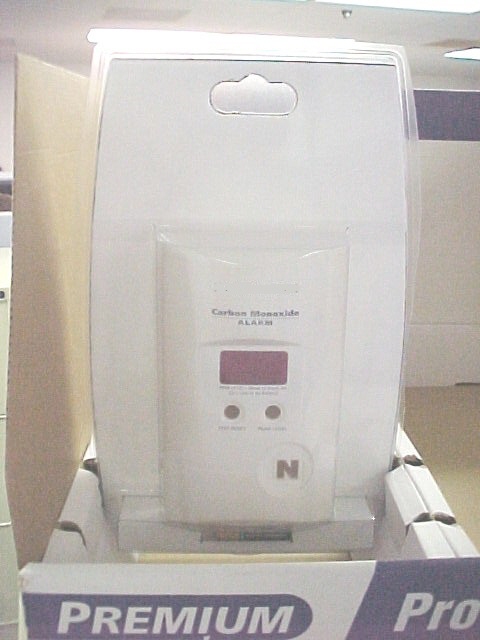

Corrugated Cardboard Packaging: Point of sale trays hold detectors in clam shells in 2 PK - 24 PK POP & shipping configurations. Shipping boxes to hold single or multiple display packs. Designed to optimize maximum number of packages on shipping pallets, US/EU requirements

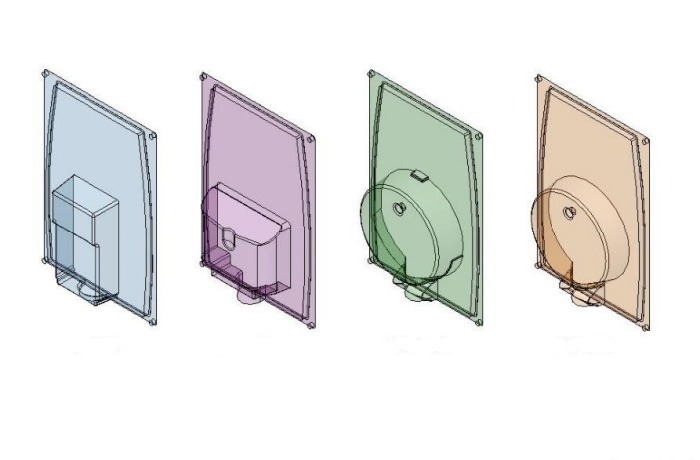

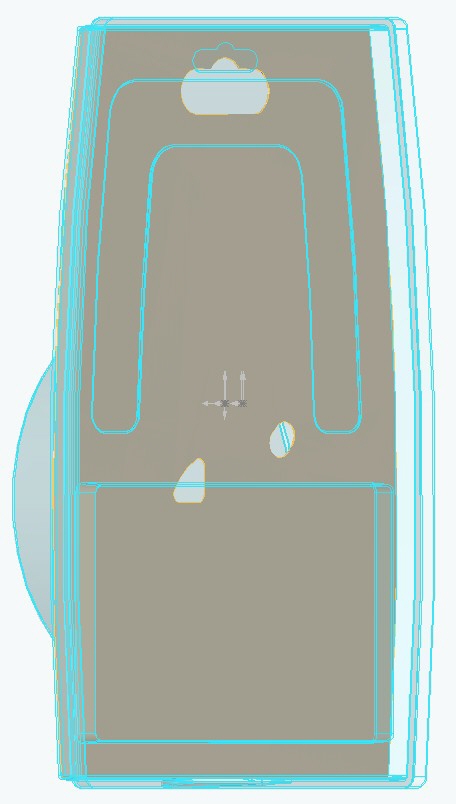

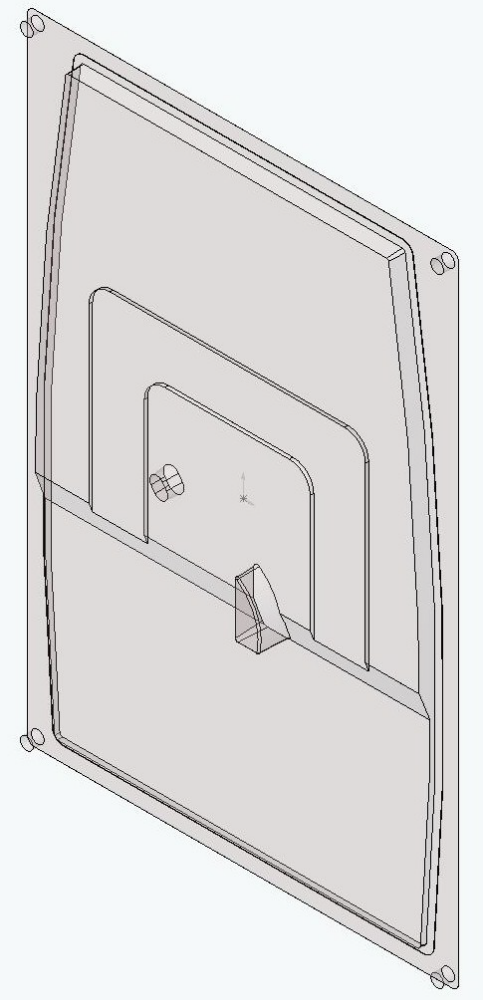

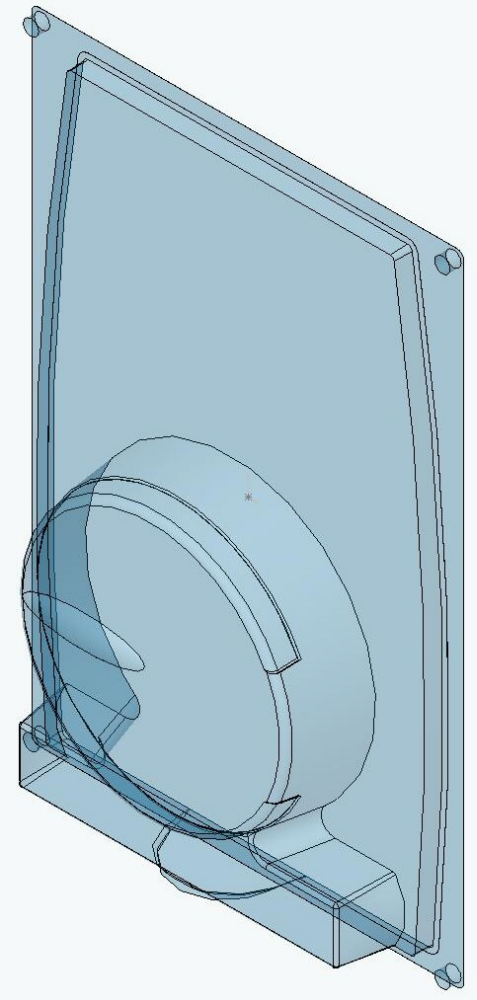

Clam Shells designed & documented in SolidWorks for PVC thermoformed mold under vacuum,

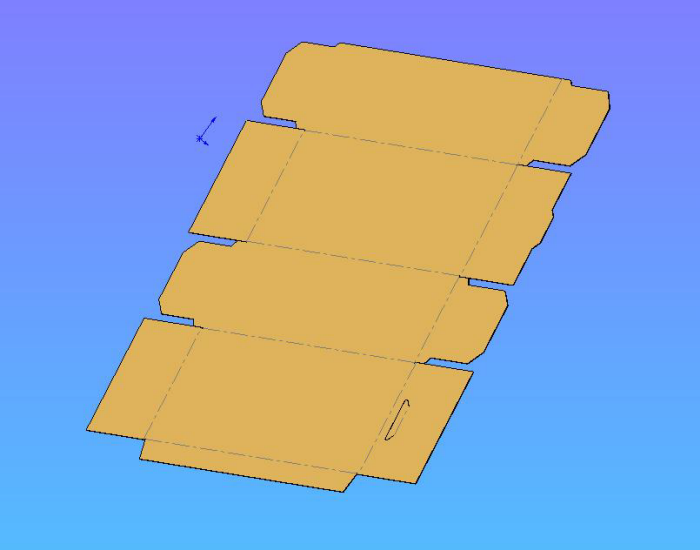

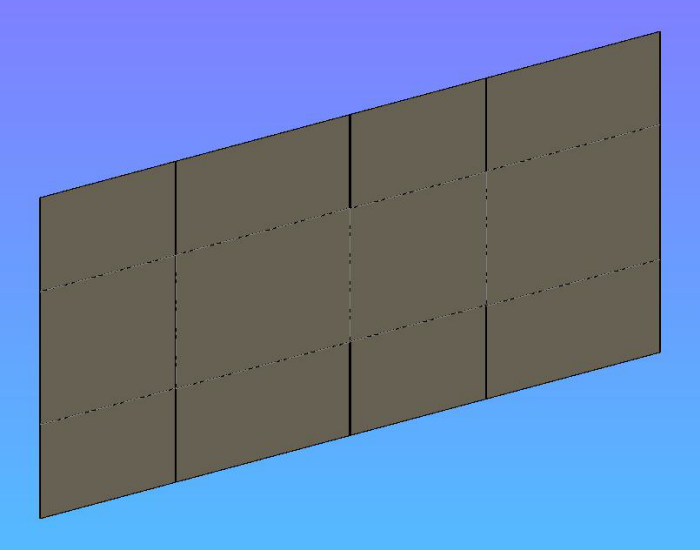

Header Cards, display trays & shipping boxes design in SolidWorks Sheet Metal tools with layouts in AutoCAD.
