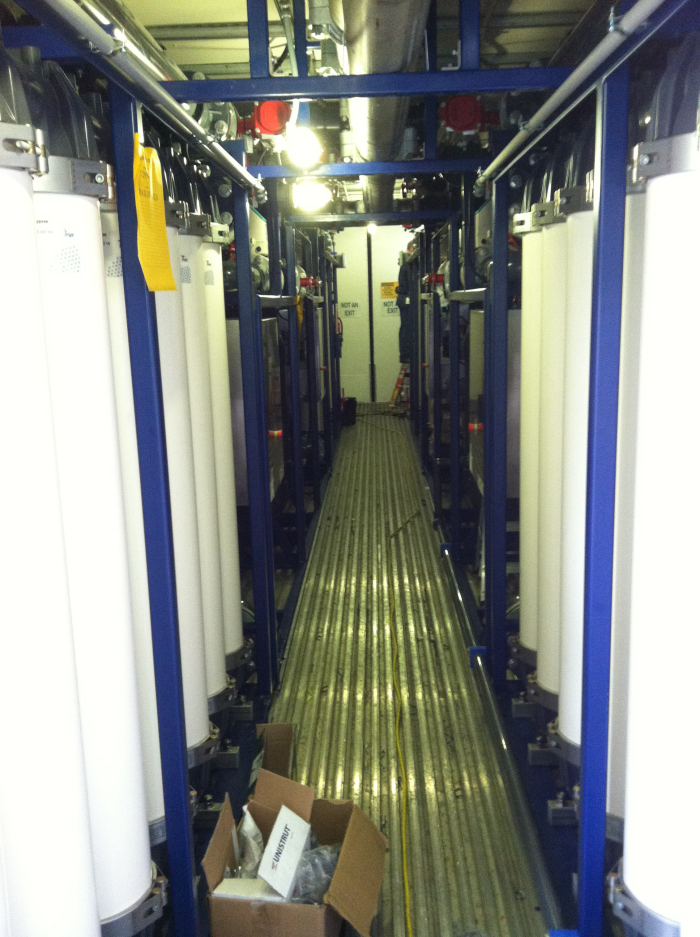

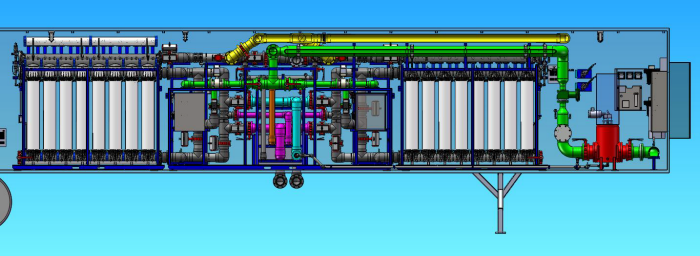

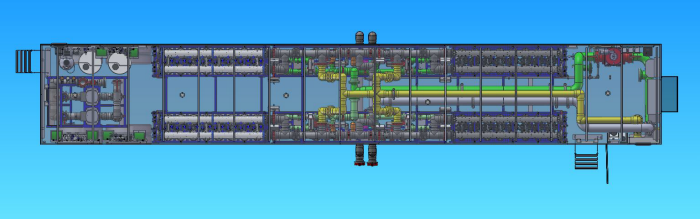

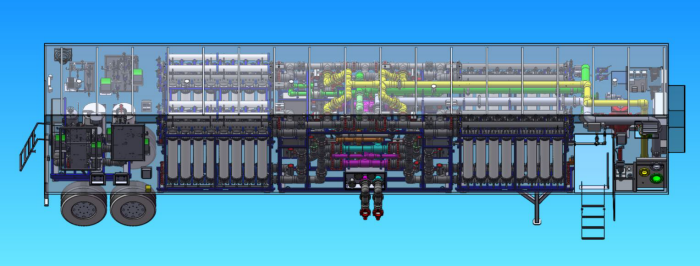

ULTRAFILTRATION TRAILER

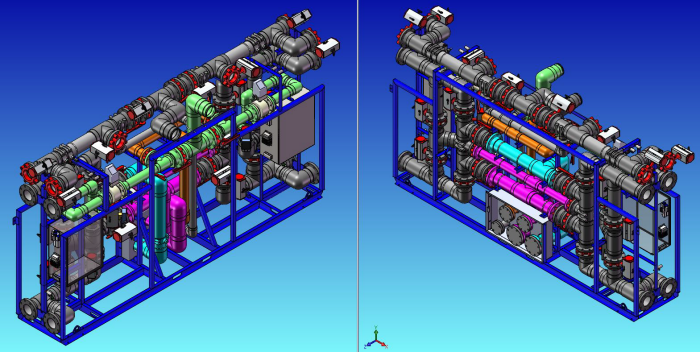

Portable Trailer Fab, 4x 16 vessel Ultrafiltration Units, 2x Valve Stack skids, Backwash Pump Skid, PVC interconnect drain lines, Sch10 - 316L SS process manifold,
Designed and documented in SolidWorks from customer and engineering P&ID.
Total number of components in Ultrafiltration Trailer 8450
Parts: 7420
Unique Part Documents: 704
Unique Parts: 302
Subassemblies: 1030
Unique Subassemblies: 153
Unique Subassembly Documents: 138
Maximum Depth: 6
Number of Top Level Components: 98
