Sections & Elevations within Urban Planning
Sections & Elevations within Urban Planning from Christopher Church
Sections & Elevations within Urban Planning

IMAGE 1/2
Visual representation showing elevations of the site, This was created for use with the planning application of a Redevelopment and Conversion of former Brewery site to a Wellbeing Village, consisting of serviced Units and Care Home bedrooms to be occupied as a care village, under C2 class use and associated development comprising a Restaurant, Convenience Shop, Swimming Pool with Spa and Gym, Hair and Beauty Treatment facility, Bowling Green, Landscaping and Parking areas.

Existing elevations transferred into M-Colour to apply get the sketchy lines visual then rendered using various Adobe Photoshop filters and brush types.

IMAGE 3/6
These visuals where produced to help show how this residential proposal would look on completion.
These drawings where used in both the marketing of the site and also in conjunction with the planning application.

The drawings where produce in Adobe Photoshop as this programme allows for more artistic licence.

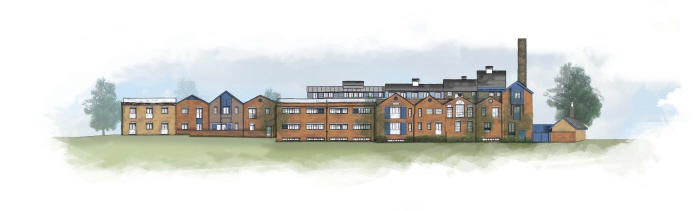

Hartford End Brewery, Felsted - Visual representation showing an elevation of the site, This was created for use with a planning application for the redevelopment and conversion of the former brewery site. Elevations designed by Brooks Architects Ltd Elevation visuals created by Christopher Church & Oliver Mckay at Andrew Martin Associates
Hartford End Brewery, Felsted - Visual representation showing an elevation of the site, This was created for use with a planning application for the redevelopment and conversion of the former brewery site. Elevations designed by Brooks Architects Ltd Elevation visuals created by Christopher Church & Oliver Mckay at Andrew Martin Associates

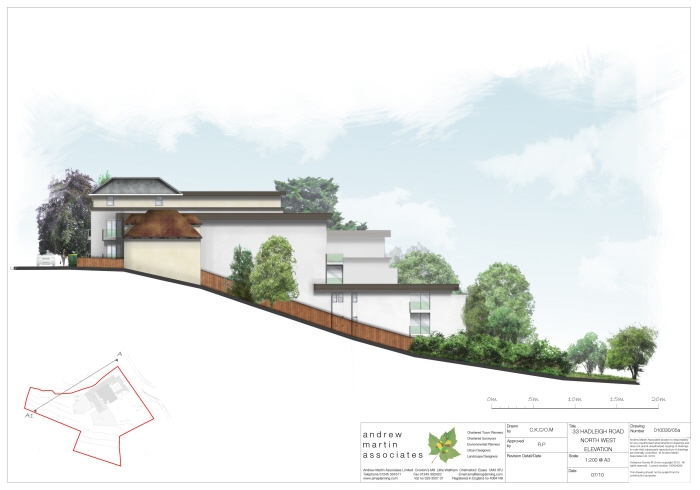

33 Hadleigh Road, Westcliff-on-Sea - Visual representation showing an elevation of the site comprising a development of 15 apartments within the Leigh-on-Sea conservation area. Client: Marden Homes Ltd, building designed by Robert Kemball RIBA, Visulisation produced by Christopher Church and Olivier Mckay of Andrew Martin Associates

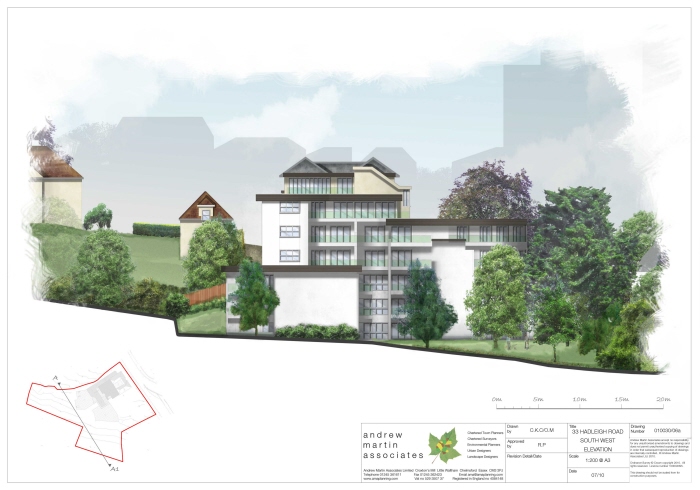

33 Hadleigh Road, Westcliff-on-Sea - Visual representation showing an elevation of the site comprising a development of 15 apartments within the Leigh-on-Sea conservation area. Client: Marden Homes Ltd, building designed by Robert Kemball RIBA, Visulisation produced by Christopher Church and Olivier Mckay of Andrew Martin Associates

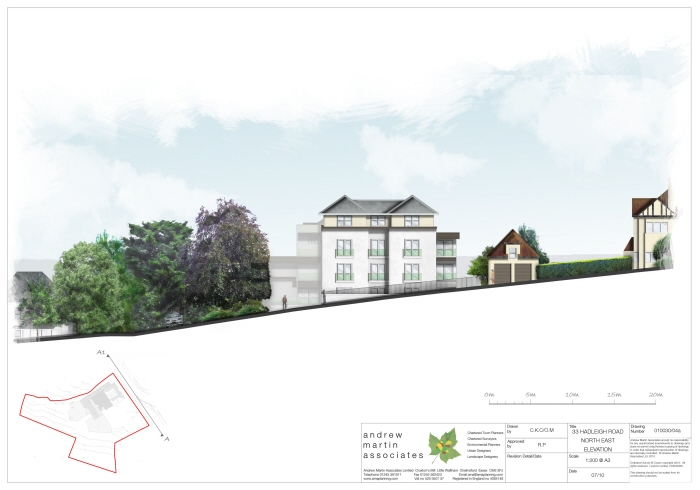

33 Hadleigh Road, Westcliff-on-Sea - Visual representation showing an elevation of the site comprising a development of 15 apartments within the Leigh-on-Sea conservation area. Client: Marden Homes Ltd, building designed by Robert Kemball RIBA, Visulisation produced by Christopher Church and Olivier Mckay of Andrew Martin Associates
33 Hadleigh Road, Westcliff-on-Sea - Visual representation showing an elevation of the site comprising a development of 15 apartments within the Leigh-on-Sea conservation area. Client: Marden Homes Ltd, building designed by Robert Kemball RIBA, Visulisation produced by Christopher Church and Olivier Mckay of Andrew Martin Associates
