This is a stand for the programming of a circuit board. The stand has two locations for adding pogo pins to very specific points on the board designated for programming and testing. The circuit board layout was uploaded to SolidWorks, a stand was designed, and then the model was 3D printed using an Objet 3D Pro.

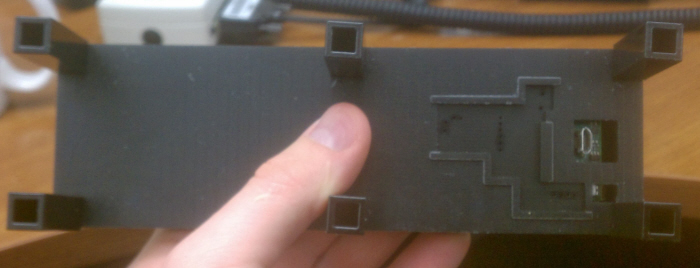

These are the removable locations for the pogo pins. The locations are removable to ease the installation of pogo pins and wiring, and to prevent the printing of a completely new stand if pin locations slightly change.
