Adjustable Proportional Valve installed on a GM Brake Valve

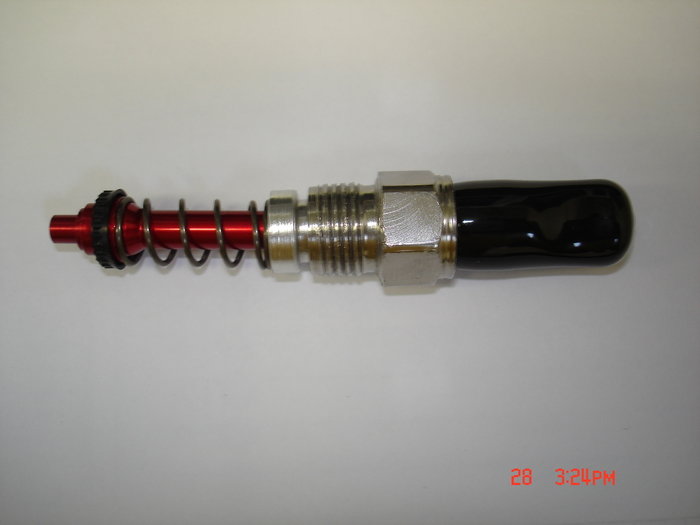

Adjustable Proportional Valve Assembly
Adjustable Proportional Valve Exploded Components
Example of a Typical Brake Valve Diagram
  • o
Adjustable Brake System Proportioning Valve

A valve that replaces components in a automotive master cylinder proportioning valve. This concept makes a typical GM style brake valve able to be used with aftermarket brake upgrades such as a system going from drum brakes to disc brakes, or from smaller brake disks to larger higher performing brake disks.
