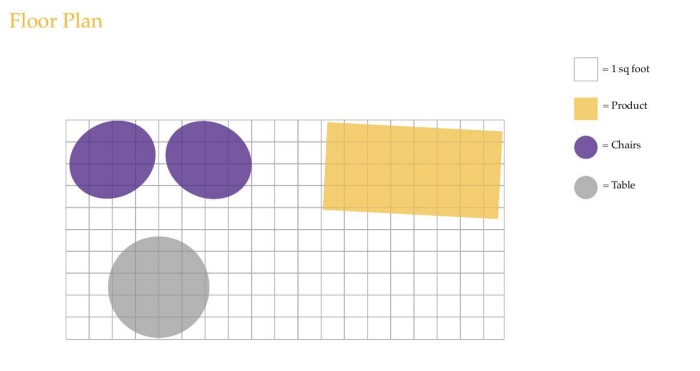

Quick floor plan sketch for a 10x20 foot in line exhibit.
View PDF
View PDF
3D "render sketch"
In progress rendering.
In progress rendering.
View PDF
View PDF
Inspiration for the design came from bright colors, geometric elements, and graphics that would either highly relate to or contrast the BOX design.
View PDF
View PDF
A brief introduction of BOX company guidelines and objectives. Objectives are in blue, and guidelines are orange type.
View PDF
View PDF
Final exhibit design. The goal of the exhibit would be to engage the customer with the product and leave them with information on how to buy the product in the future.
View PDF
View PDF

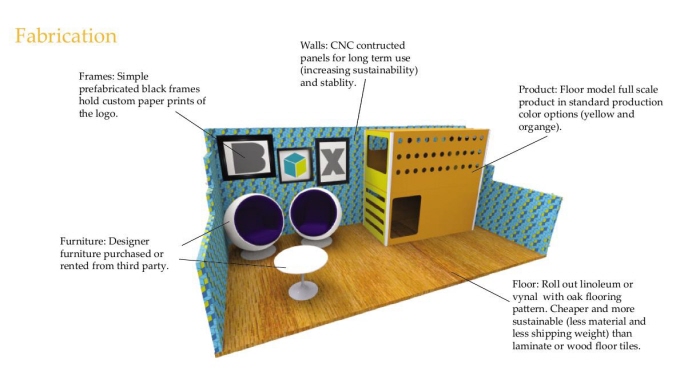

Over view of fabrication methods.
View PDF
View PDF

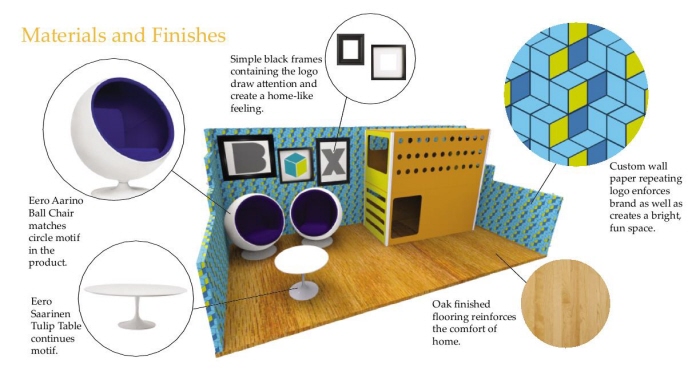

Exhibit finishes, including custom wall paper. The wood flooring would be a linoleum look-alike for easy transport and set-up. The final design would be made of wood half box frames, durable for multiple uses.
View PDF
View PDF

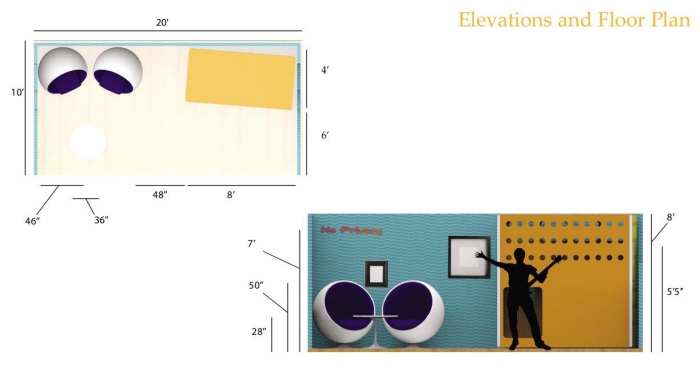

Final floor plan and elevations.
View PDF
View PDF

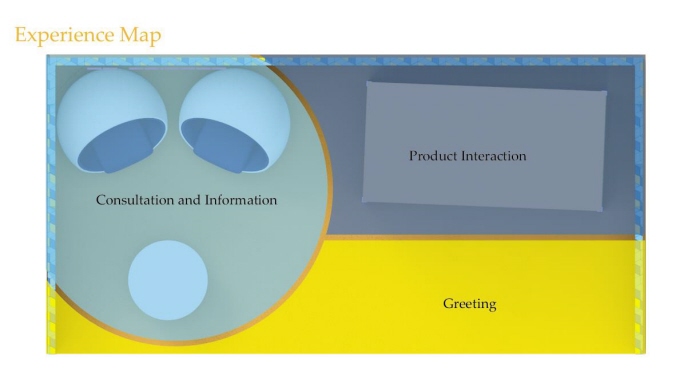

This experience map locates where certain activities would be in the exhibit.
View PDF
View PDF
Final design from the perspective of an exhibit guest.
View PDF
View PDF
gLike
BOX 10x20 Trade Show Isle Exhibit
A quick two week project; a race to make a 10x20 foot in line exhibit for an existing product of my design.
This solo project required market research, design research, product research, materials and process research, hand sketches, digital sketches, layout planning, SolidWorks modeling, Autodesk 3D Studio Max modeling, KeyShot rendering, Adobe Illustrator, and Adobe Photoshop editing.
All materials are original work of Elizabeth Schwartz with exception of photography in the "Inspiration" and "Materials and Finishes" slides, and 3D model of the Ball Chair.
