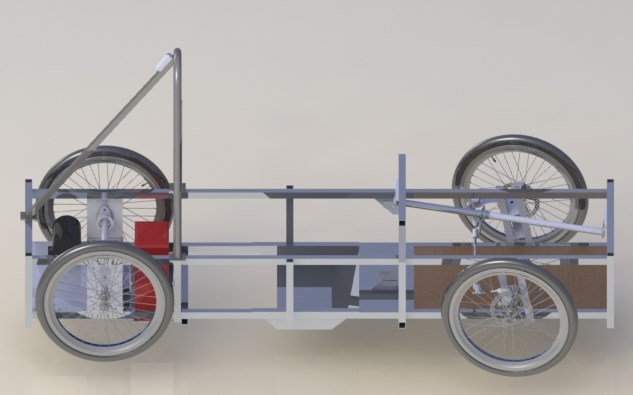

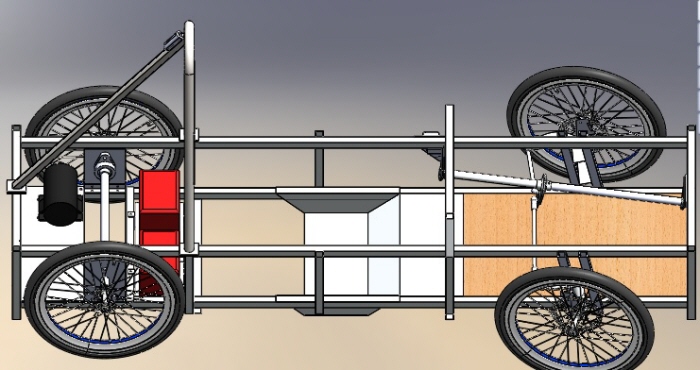

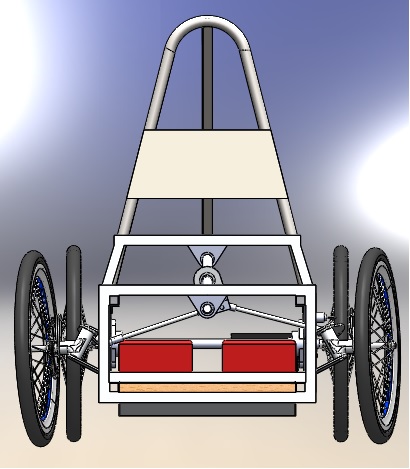

Render of frame in SolidWorks.

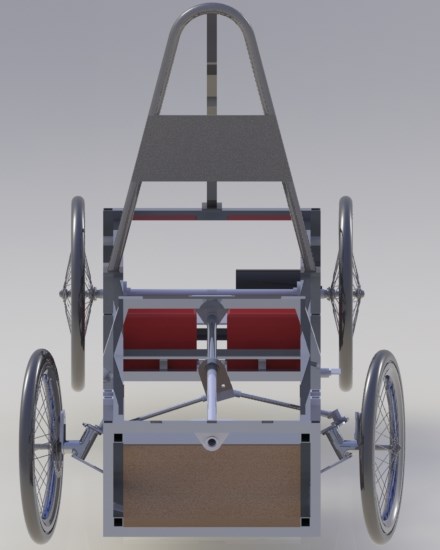

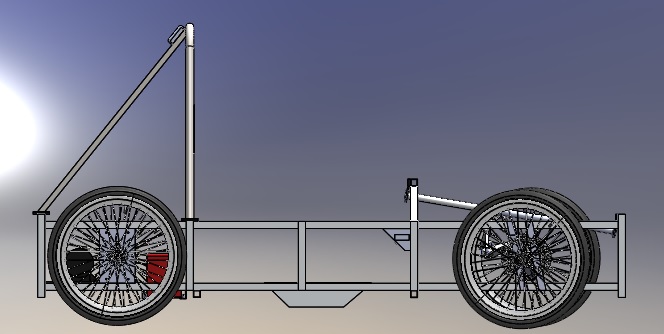

Render of frame in SolidWorks.

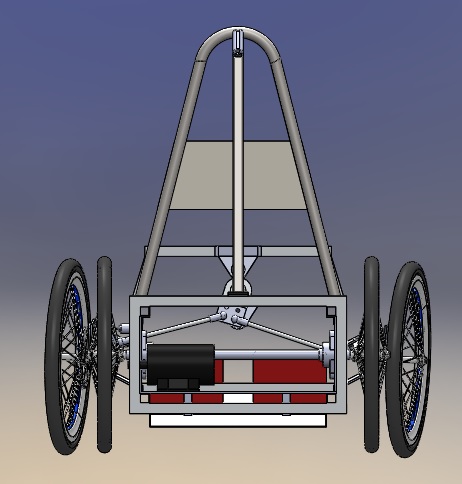

Render of frame in SolidWorks.

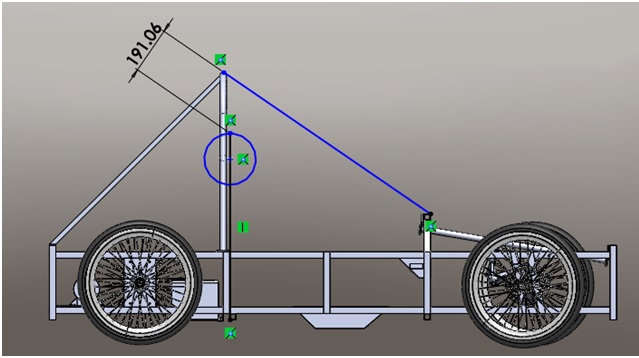

Roll bar calculations.

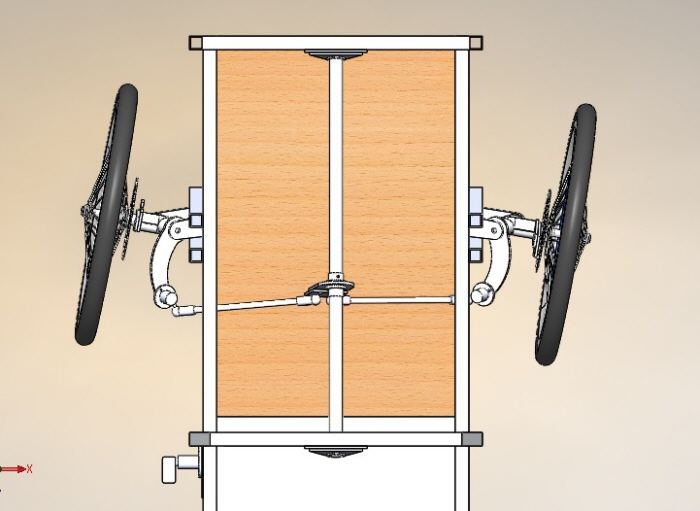

Steering mechanism.

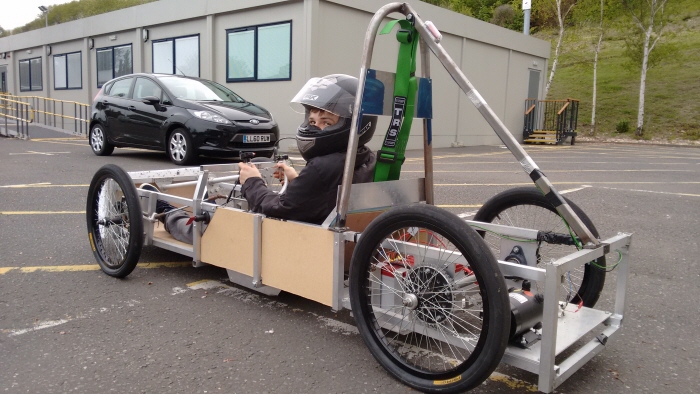

Finished car.

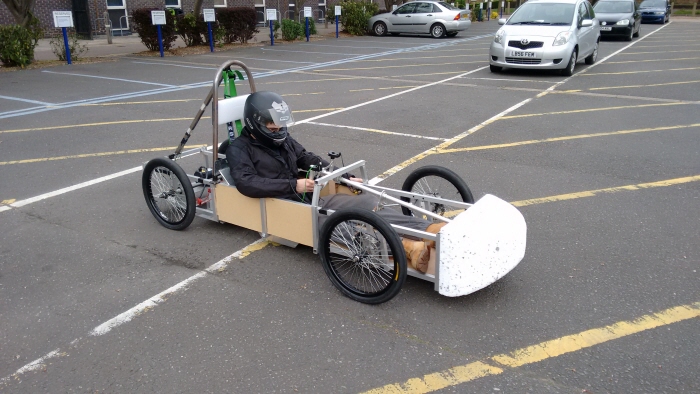

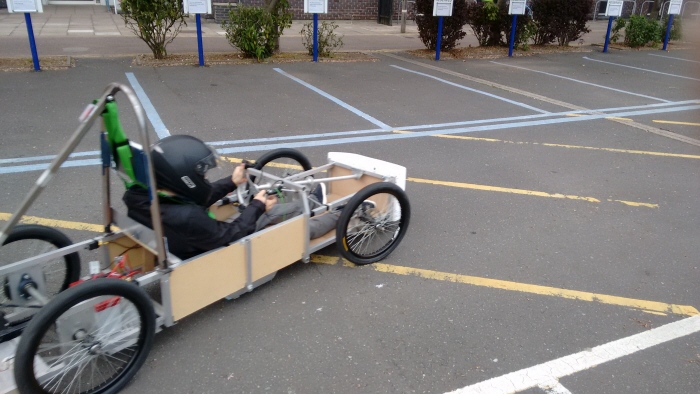

Car was tested in a carpark.
Test speeds of 25mph recorded.
Green Power Car frame Project

This project was to create a frame for an electric race car within the GreenPower car student race series. The car has to meet a strict set of regulations put in place by the race series. The frame was designed in Solidworks and created out of aluminum. The finished frame was tested in a car park with speeds of 25mph recorded. I also moved on to designig the body work of the vehicle as well which is shown in a separate project. This project was part of my university dissertation project in which i was awarded a 2:1
