LYNX1 - Mobile crane concept with a lifting capacity of 80 tons.The driver's and operator's cabin are combined into one at the end of an auxiliary two-piece hydraulic folding arm which can be lifted up to 8.5 meters high to improve the view over the construction site.It can be moved either to the transport position or to the crane operating position as on conventional cranes. Steering and crane functions are controlled via joystick and pedals. http://www.youtube.com/watch?v=nzXWIvVnuwM
LYNX2 - http://www.youtube.com/watch?v=nzXWIvVnuwM
LightForce - Time trial bicycle
Trigon - Tube light which can stand on the floor or be mounted on the wall. Frame is made of triangular shape aluminium profiles.

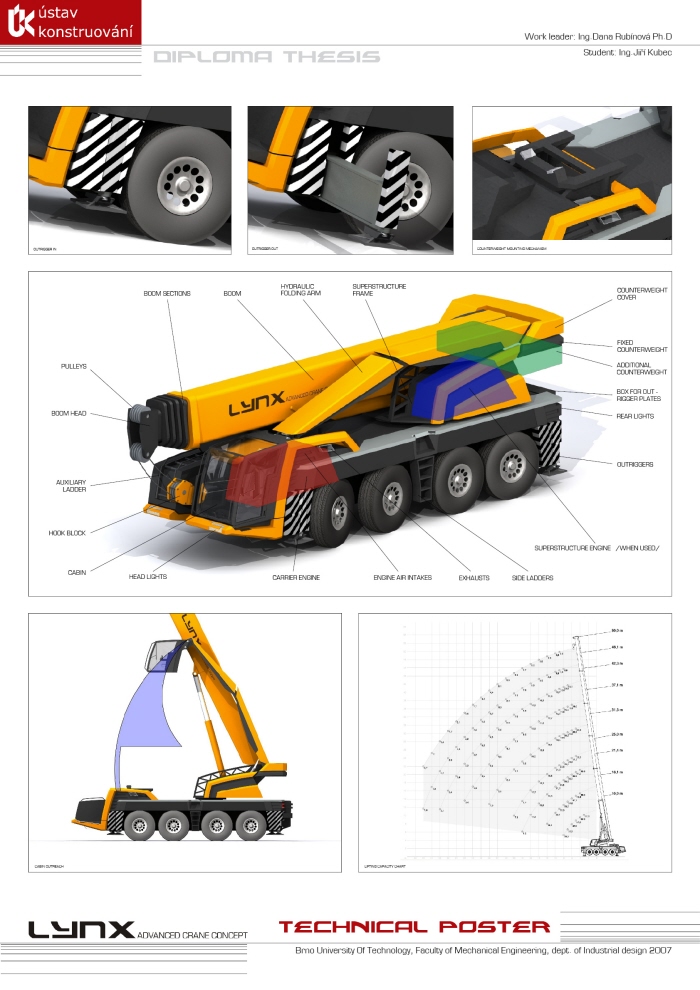

LYNX - Outrigger legs are integrated to the warning stripped plates. Front part brings a new simplified system of hook transportation. Partially hidden hook allows better visibility out of the cabin. Rear part of superstructure can be fitted with additional counterweight. Rendered using Photoworks for Solidworks.

http://www.youtube.com/watch?v=nzXWIvVnuwM
LYNX2 - Auxiliary ladder can be removed from the front part and put anywhere around the platform.

http://www.youtube.com/watch?v=nzXWIvVnuwM
Fixation - School task. Goal was to fix the basic solid (sphere, box, cone, etc.) above the base using some element. Solid itself shouldnĀ“t touch the base
Sidewinder - 4 person snow groomer.
F-one - Paper stand for motorsport advertising. Simple from one piece. Can be used on trade fairs, promotions, etc.
Aphrodite - Experimental sewing machine with separated needle and shuttle motors.
Display can be lifted-off to access to control buttons of a machine.
Real model - 1/20 scale model of LYNX crane
Scooter for city usage - 2005 sketch
