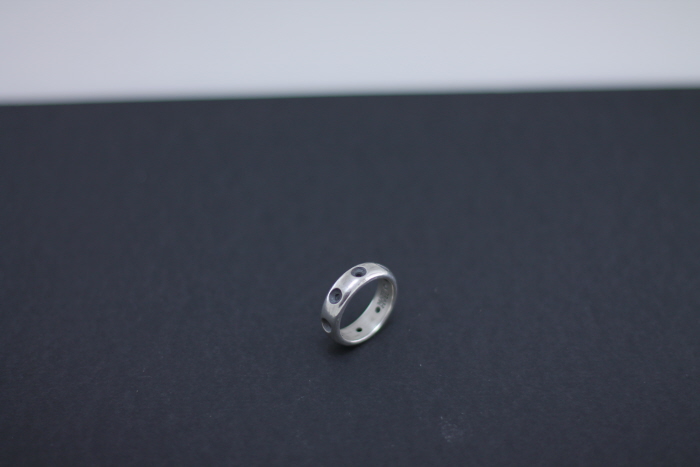

Just made a new ring in SolidWorks to 3D print, make a mold and castings to set stones in.

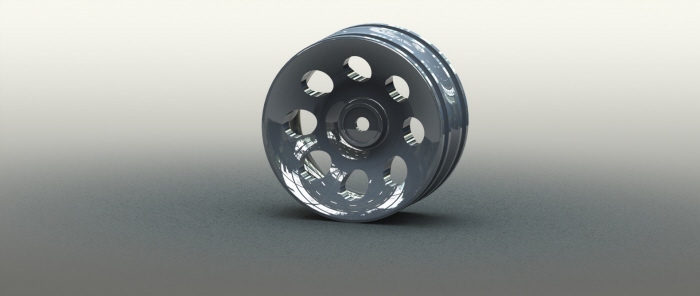

1/10 scale 1.9" wheel done with SolidWorks
1/10 scale 1.9" wheel back view
SolidWorks
Secret product design/invention.

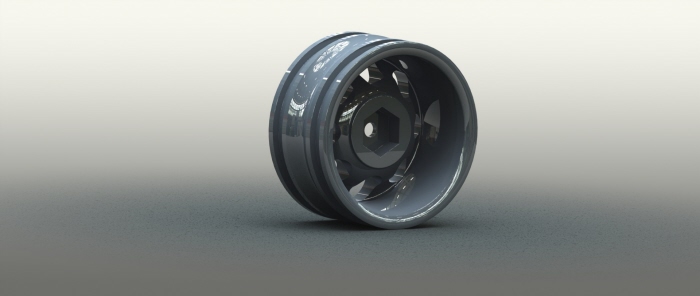

1/10 scale BBS wheel 12mm hex drive- SolidWorks
1/10 scale BBS wheel 12mm hex drive- SolidWorks playing w/color schemes
1/10 scale BBS wheel 12mm hex drive- SolidWorks (section view)
In progress: drive-shaft assembly
12mm hex drive 1.9 BBS style wheel designed in Solidworks and 3D printed.
1.9 BBS 12mm hex drive wheel 3D printed after making sure the design was "watertight" and using Insight to create the "toolpath".
1.9 tires fit my 3D printed wheel designed in SolidWorks perfectly.
gLike
CAD/SolidWorks & Rapid Prototyping
Here's a small selection of projects I created using SolidWorks and Jewelry CAD/CAM.
Available
Freelance
Matthew Hall
Industrial Designer, Mechanical Designer, Fabricator, Model Maker & Jeweler
Providence, RI
